Impact of pollution on marine Biodiversity Pr. Alexandre Meinesz University of Nice - Sophia Antipolis And President of the Commission Environment/energy at the Regional Economic and Social Committee There are few endemisms in the

slide-1
SLIDE 1

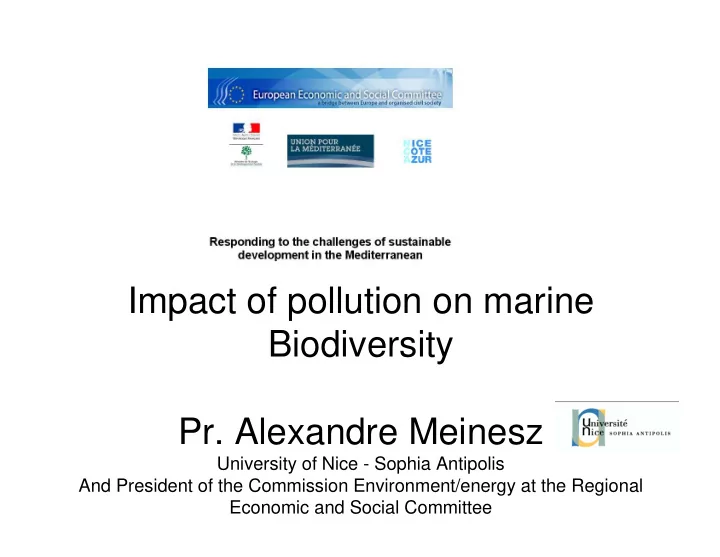

Impact of pollution on marine Biodiversity

  • Pr. Alexandre Meinesz

University of Nice - Sophia Antipolis And President of the Commission Environment/energy at the Regional Economic and Social Committee

slide-2
SLIDE 2

meinesz@unice.fr

There are few endemisms in the biodiversity in all marine ecosystems : large diffusion of reproductive elements for most of the species (eggs, larvae,…)

slide-3
SLIDE 3

meinesz@unice.fr

1 Extincted species in the sea are exceptionnal

slide-4
SLIDE 4

meinesz@unice.fr

In the Sea, there are two kinds of major ecosystems :

Pelagic and Benthic

slide-5
SLIDE 5

meinesz@unice.fr

The biodiversity is much higher in the Benthic ecosystems because there is a high diversity of biotopes (habitats)

slide-6
SLIDE 6

meinesz@unice.fr

2

1- Benthic marine ecosystems are by far the richest in terms of biodiversity

“Marine biodiversity is higher in the benthic than in the pelagic system”

Joint group of Experts on the scientific aspects of marine environmental

  • protection. GESAMP Reports, N°

6, 1997; IMO/FAO/UNESCO – IOC/WHO/IAEA/UN/UNEP

slide-7
SLIDE 7

meinesz@unice.fr

The biodiversity of the benthic littoral ecosystems is much more ritch than the deep benthic ecosystems for two reasons : light penetration and higher diversity of biotopes

slide-8
SLIDE 8

meinesz@unice.fr

Coastal benthic ecosystems are highly diversified in their uppermost layer (between 0 and 20 m depth).

slide-9
SLIDE 9

meinesz@unice.fr

3 Coastal benthic ecosystems between 0 and -20 m depth extend over limited areas only

It is on this narrow 'oasis' of marine life that most the pollutions are concentrated and were the seafront constructions (reclamations) are built.

slide-10
SLIDE 10

meinesz@unice.fr

slide-11
SLIDE 11

meinesz@unice.fr

slide-12
SLIDE 12

meinesz@unice.fr

slide-13
SLIDE 13

meinesz@unice.fr

  • 5

Impact of human activities are concentrated on the shores : on the richests ecosystems of the sea

4 Impact of human activities are concentrated on the shores : on the richests ecosystems of the sea

slide-14
SLIDE 14

meinesz@unice.fr

Damages to the marine biodiversity :

  • best known, documented, published, are the

damages having an impact on health

  • r on the economy (fisheries ...).

(transparency, chemical oxygen demand, total phosphorus and nitrogen, pollutants load, red tides, bacterial or hydrocarbures pollutions)

slide-15
SLIDE 15

meinesz@unice.fr

  • Global cumulative impacts of habitat

destruction in the marine coastal ecosystems by constructions reclaimed from the sea are underestimated.

slide-16
SLIDE 16

meinesz@unice.fr

The assessment of the negative impact of reclamations is often seen as hostile to development. For this reason, few studies have deal with this conflicting and politically sensitive subject, and there has been little financial or personal investment in this field.

slide-17
SLIDE 17

meinesz@unice.fr

But ...Habitats destruction is at the top of the pyramid of biodiversity loss on the planet, even ahead of invasions by allogenous species, chemical or bacteriological pollutions or

  • verexploitation of natural living

resources.

slide-18
SLIDE 18

meinesz@unice.fr

In marine environment, each construction reclaimed from the sea destroys an underwater habitat by covering it or by confining the water inside breakwaters. A high density

  • f constructions built on narrow

shallow bottoms represents a major damage to the subsea environment.

slide-19
SLIDE 19

meinesz@unice.fr

Destructions of marine habitats are cumulative. Destruction by reclaimed lands are irreversible. // Chemical or bacteriological pollutions

  • r overexploitation of natural living

resources are mostly localized and With reversible damages on the marine life.

slide-20
SLIDE 20

meinesz@unice.fr

Actual situation In the front of French Mediterranean coasts

On the basis of an exhaustive inventory of the constructions reclaimed from the sea and of surface area and linear measurements, the rates of destruction of shallow coastal bottoms and of the occupation of the seafront by man-made structures have been calculated .

slide-21
SLIDE 21

meinesz@unice.fr

Data are online :

http://www.medam.org

slide-22
SLIDE 22

meinesz@unice.fr

slide-23
SLIDE 23

meinesz@unice.fr

Impact on the landscape This form of impact is assessed by comparison of:

  • the length of built-over seafront
  • with the length of the seafront prior

to any construction (initial length of the natural coast). This assessment provides a basis for proposing rates of artificial landscape by man-made constructions

slide-24
SLIDE 24

meinesz@unice.fr

Ecological impact The ecological impact is assessed on the basis of comparison of

  • the cumulative surface area of constructions

reclaimed from the sea

  • with the surface area of the littoral shallow

bottoms (0-10m, 10m-20 m) which are the richest in the marine environment. This assessment provides a basis for proposing rates of destruction for all the littoral ecosystems.

slide-25
SLIDE 25

meinesz@unice.fr

Coast line before any construction on the sea

  • The overall length of the French

Mediterranean coastline measures 2 056 km, excluding the shoreline of the Etang de Berre (100 km) and of Monaco (5 km) ;

  • 977 km for Corsica
  • 853 km for Provence – Alpes – Côte d’Azur
  • 226 km for Languedoc - Roussillon.
slide-26
SLIDE 26

meinesz@unice.fr

Initial coast line

The initial coastline, (that is as it was before any construction) has been digitalised

  • n the basis of old maps.
slide-27
SLIDE 27

meinesz@unice.fr

3-1 Description de l’état initial du littoral

Trait de côte initial

slide-28
SLIDE 28

meinesz@unice.fr

Initial shallow seafront area

We have delimited and digitalised the initial coastline and the marine contour lines (isobaths) of the shallow bottoms (from 0 to 10 m and 10 to 20 m depth). The surface areas between these bathymetric layers is measured. From 0 to -20 m depth) = 168 769 ha (1 688 km²), including

  • 500 km² for Corsica,
  • 668 km² for PACA,
  • 520 km² for Languedoc-Rousillon
slide-29
SLIDE 29

meinesz@unice.fr

Inventory of seafront developments Inventory of seafront developments

The complete inventory of all 947 seafront developments on the French Mediterranean coast includes all constructions with a surface area

  • f more than 100 m² directly occupying

The marine environment.

Seven types of seafront development Seven types of seafront development have been defined have been defined

slide-30
SLIDE 30

meinesz@unice.fr

1/7 Harbours: 149

Surface area of generally more than 1 ha.

slide-31
SLIDE 31

meinesz@unice.fr

slide-32
SLIDE 32

meinesz@unice.fr

slide-33
SLIDE 33

meinesz@unice.fr

2/7 Little harbours: 109

Harbour without a harbour master, with a surface area

  • f generally less than 0.5 ha. :
slide-34
SLIDE 34

meinesz@unice.fr

3/7 Land fills : 137 Area of land reclaimed from the sea for the construction of parking lots, gardens, buildings, shopping centres, Industry, airport, roads, etc.

slide-35
SLIDE 35

meinesz@unice.fr

slide-36
SLIDE 36

meinesz@unice.fr

slide-37
SLIDE 37

meinesz@unice.fr

4/7 Breakwater protected beaches: 62

Breakwater protected beach : development consisting of two rocks dump breakwaters, curving inwards towards each other at the seaward end and delimiting an area reclaimed land and a sheltered stretch of water for bathing

slide-38
SLIDE 38

meinesz@unice.fr

slide-39
SLIDE 39

meinesz@unice.fr

slide-40
SLIDE 40

meinesz@unice.fr

slide-41
SLIDE 41

meinesz@unice.fr

5/7 Groins: 397

Structured pile of rocks designed to protect the shore against erosion (axis generally perpendicular to the coast).

slide-42
SLIDE 42

meinesz@unice.fr

slide-43
SLIDE 43

meinesz@unice.fr

6/7 Landing pier (jetties): 58 Solid structure with vertical sides (in contrast to rock dump groins) for boats to draw alongside.

slide-44
SLIDE 44

meinesz@unice.fr

7/7 River mouth breakwater: 35

Construction of two breakwaters situated on either side of the mouth of a river flowing into the sea.

slide-45
SLIDE 45

meinesz@unice.fr

Two types of surface area have been taken into account: 1- Built-over surface

Built-over surfaces are the emerged parts of constructions reclaimed from the sea bottom. The subsea habitats built over are irreversibly destroyed. We have not taken into account the immersed parts of constructions or jetties built on piles.

slide-46
SLIDE 46

meinesz@unice.fr

slide-47
SLIDE 47

meinesz@unice.fr

2 - Water body

This means a stretch of water enclosed by a structure (harbour, man-made beach).

slide-48
SLIDE 48

meinesz@unice.fr

slide-49
SLIDE 49

meinesz@unice.fr

The enclosure of this water body irreversibly upsets the enclosed

  • ecosystems. The water, in particular in

harbours, is exposed to various forms of pollution such as heavy metals (from antifouling paints), oils, waste and various organic substances (from sewage from inhabited boats).

slide-50
SLIDE 50

meinesz@unice.fr

Linear measurement

  • Length of man-made coastline

= artificial coastline

This is the length of the original seafront

  • n which constructions have been built.
slide-51
SLIDE 51

meinesz@unice.fr

Actual impacts on landscapes

226 km (of the 2056 km) seafront is now artificial. So 11 % of the seafront has the appearance from seawards of piles of rocks, blocks or concrete tetra pods.

This impact is very uneven: 40.6 % of the seafront is man-made in the Gard, 27.4 % in the Alpes-Maritimes, 89 % for the coast

  • f Monaco and only 2.1% for the coast of Corse

du Sud.

slide-52
SLIDE 52

meinesz@unice.fr

Impact on the coastal ecosystems

5 282 ha have been built on the coastal benthic ecosystems and are thus permanently (definitively) damaged or destroyed.

Between Menton and Martigues (Alpes-Maritimes, Monaco, Var and east of the Bouches-du-Rhône), 500 constructions have been built occupying 17.8 % between 0 and -10 m depth and 11 % between 0 and -20 m.

slide-53
SLIDE 53

meinesz@unice.fr

Conclusion about the actual situation: Habitat destruction in the marine coastal ecosystems by constructions reclaimed from the sea (physical pollution) is by far the major cause of alteration of marine biodiversity

  • n the French Mediterranean

coasts

slide-54
SLIDE 54

meinesz@unice.fr

Coastal restructurations = irreversible physical pollution is not sustanaible !

slide-55
SLIDE 55

meinesz@unice.fr

Global change : expected response

Strong enhances of habitat destruction in the marine coastal ecosystems and of the coastal landscapes by new constructions reclaimed from the sea to protect the shore line : Groins, dikes, with more and more vertical rocky shores

slide-56
SLIDE 56

meinesz@unice.fr

Consequences Homogenisation of the shore line substrates at the sea level + much more artificial concrete, blocs, rocks at the sea level) + less shallow water sandy or muddy substrates (tidal flats).

  • > Hy level modification of the

global biodiversity of the intertidal ecosystems

slide-57
SLIDE 57

meinesz@unice.fr

slide-58
SLIDE 58

meinesz@unice.fr

slide-59
SLIDE 59

For a sustainable development in the respect of the marine biodiversity Protect for ever the natural coastal landscape (France) National Trust (GB) or Conservatoire du littoral

slide-60
SLIDE 60

meinesz@unice.fr

  • Remember :

http://www.medam.org
