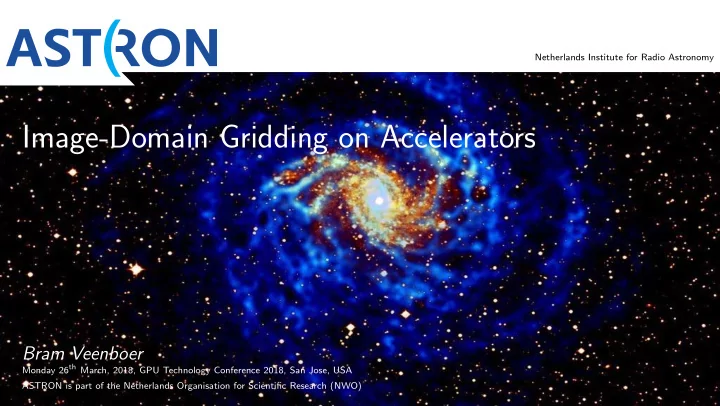

Image-Domain Gridding on Accelerators

Bram Veenboer

Monday 26th March, 2018, GPU Technology Conference 2018, San Jose, USA ASTRON is part of the Netherlands Organisation for Scientific Research (NWO)

Introduction to radio astronomy

Observe the sky at radio wavelengths:

Image credits: NRAO

Size of the telescope is proportional to the wavelength e.g. Hubble Space telescope: 1 um, 2.4 m Same resolution for 1 mm requires 2 km dish!

1

Radio telescope: astronomical interferometer

Array of seperate telescopes: interferometer Create an image: interferometry Combine the signals for pairs of telescopes Resolution similar to one very large dish

2

Interferometry theory

Sparse sampling of the ‘uv-plane‘: Every baseline samples the uv-plane: ‘visibility’ and ‘uvw-coordinate’ Orientation of baseline also determines

• rientation in the uv-plane

A sample V (u, v) is the 2D FT of the brightness on the sky B(l, m) Apply Non-uniform Fourier transform to get sky image from uv data

3

Sampling using 2 antennas

Every sample (in the uv-domain) shows up as a waveform in the image

Image credits: NRAO 4

Sampling using 4 antennas

Every baseline (pair of two antennas) adds information to the image

5

Sampling using 16 antennas (compact)

Using 16 antennas, the (artificial) source in the center of the image becomes visibile

6

Sampling using 16 antennas (extended)

Longer baselines (larger antenna spacings) increase resolution of the image

7

Sampling using 32 antennas, for 8 hours

Sampling for an extended period of time increases signal to noise

8

Creating a sky-image

Imager: visibilities

gridder

− − − − → regular grid 2D FFT − − − − − → sky-image

baseline (pair of receivers) receiver

× I

correlator imager visibilities calibration sky-model sky-image imaging ionosphere i n c

• m

i n g r a d i

• w

a v e s

Correlator: combine signal into ‘visibility’ (with associated ‘uvw-coordinate’)

9

Gridding using AW-projection (and W-stacking)

W-term: correct for curvature of the earth A-term: correct for direction-dependent effects

10

W-projection gridding and Image-Domain gridding

W-projection gridding

using convolution kernels

Image-Domain gridding

using subgrids grid: visibility: convolution: updated pixel:

channels time

visibilities Fourier grid gridder kernel visibilities image subgrids Fourier subgrids Fourier grid gridder kernel FFT adder For more details: Image-Domain Gridding on Graphics Processors, Bram Veenboer, Matthias Petschow and John. W Romein, IPDPS 2017 11

Square Kilometre Array

SKA1 Low, Australia SKA1 Mid, Africa

Data rates up to ≈ 10.000.000.000 visibilities/second

12

Results: runtime/throughput

Runtime: time spend in one imaging cycle: gridding, fft and degridding Throughput: number of visibilities processed per second

10 20 30 40 50 60 Haswell KNL Pascal Vega Runtime [seconds] gridder subgrid-ifft adder grid-fft splitter subgrid-fft degridder

20 40 60 80 100 120 140 160 180 200 Haswell KNL Pascal Vega Throughput [MVisibilities/s] gridding degridding

Most time spent in gridder/degridder GPUs perform > order of magnitude better than CPU and Xeon Phi Very similar throughput for gridding and degridding

13

Roofline analysis: overview

1 2 4 8 16 32 64 128 256 512 1024 0.1 1 10

Haswell KNL Pascal Vega

gridder degridder gridder degridder

Operational intensity [Op/Byte] Performance [TOp/s] Haswell KNL Pascal Vega

14

Throughput limitation: host-device transfers

PCIe: ≈ 12 GB/s vs. NVLINK: ≈ 68 GB/s Fast interconnect needed to keep GPU computing.

15

Roofline analysis: overview

1 2 4 8 16 32 64 128 256 512 1024 0.1 1 10

Haswell KNL Pascal Vega

gridder degridder gridder degridder

Operational intensity [Op/Byte] Performance [TOp/s] Haswell KNL Pascal Vega

16

Inner loop for (de)gridder kernel: instruction mix

Many fused-multiply-add (FMA) and one sine/cosine computation:

1 α = . . . ; 2 3 for c=1,. . . , ˜

C do // channel

4

Φ = cos (α) + i sin (α);

5 6

Re(pix11) += Re(vis11[c]) ∗ Re(Φ[c]);

7

Im(pix11) += Re(vis11[c]) ∗ Im(Φ[c]);

8

Re(pix11) −= Im(vis11[c]) ∗ Im(Φ[c]);

9

Im(pix11) += Im(vis11[c]) ∗ Re(Φ[c]);

10 11

// [... same for pix12, pix21 and pix22]

12 end

FMA: peak performance on all architectures sine/cosine: poor performance on Intel architectures

17

Roofline analysis: instruction mix

1 2 4 8 16 32 64 128 256 512 1024 0.1 1 10

Haswell KNL Pascal Vega

gridder degridder gridder degridder

Operational intensity [Op/Byte] Performance [TOp/s] Haswell KNL Pascal Vega

18

Roofline analysis: shared memory

1 4 1 2

1 2 4 8 0.1 1 10

Pascal Vega

gridder degridder

Operational intensity [Op/Byte] Performance [TOp/s] Pascal Vega

19

Results: energy consumption/efficiency

2 4 6 8 10 12 14 16 18 Haswell KNL Pascal Vega Energy consumption [kJ] gridder subgrid-ifft adder grid-fft splitter subgrid-fft degridder host 5 10 15 20 25 30 35 Haswell KNL Pascal Vega Energy efficiency [GFlop/W] gridder degridder

Most energy spent in gridder/degridder GPUs perform > order of magnitude better than CPU and Xeon Phi

20

Results: comparison with AW-projection

8 16 24 32 40 48 56 64 107 108 W-kernel size NW Throughput [Visibilities/s] IDG Pascal WPG Pascal AWPG Pascal

IDG outperforms W-projection, while it also corrects for the challenging A-terms

21

Results: creating very large images (gpu-only)

1024 2048 4096 8192 16384 32768 65536 180 200 220 240 Size [pixels2] Throughput [MVisibilities/s] GPU only, gridding GPU only, degridding

The size of the image is restricted by the amount of GPU device memory

22

Results: creating very large images (gpu+cpu)

1024 2048 4096 8192 16384 32768 65536 180 200 220 240 Size [pixels2] Throughput [MVisibilities/s] Hybrid, gridding Hybrid, degridding GPU only, gridding GPU only, degridding

The adder kernel is executed by the host CPU

23

Results: creating very large images (Unified Memory)

1024 2048 4096 8192 16384 32768 65536 180 200 220 240

tiling in adder/splitter

Size [pixels2] Throughput [MVisibilities/s] Unified, gridding Unified, degridding Hybrid, gridding Hybrid, degridding GPU only, gridding GPU only, degridding

Unified memory (and tiling) enables the GPU to create very large images

24

Image-Domain Gridding for the Square Kilometre Array

SKA-1 Low SKA-1 Mid # receivers 512 133 # baselines 13,0816 8778 # channels 65,536 65.536 # polarizations 4 4 integration time 0.9 (s) 0.14 (s) data rate 8.3 (GVis/s) 9.53 (GVis/s)

Imaging data rate: 200 GVis/s Compute: 50 PFlop/s (DP) Power budget: ≈ 1 MW (De)gridding: ≈ 60% IDG on Tesla V100/NVLINK: ≈ 0.26 GVis/s per GPU → 770 V100s required Required compute: 770 × 7.8 ≈ 6 PFlop/s ≪ 15 PFlop/s available Power budget: 770 × 300 ≈ 231 KW ≪ 600 KW available

25

Summary

High-performance gridding and degridding, including AW-term correction GPUs much faster and more (energy)-efficient than CPUs and Xeon Phi On GPUs, IDG outperforms AW-projection IDG is able to make very large images (using Unified Memory) Most challenging sub-parts of imaging for SKA is solved!

More details: Image-Domain Gridding on Graphics Processors, Bram Veenboer, Matthias Petschow and John. W Romein, IPDPS 2017 Source available at: https://gitlab.com/astron-idg/idg 26
