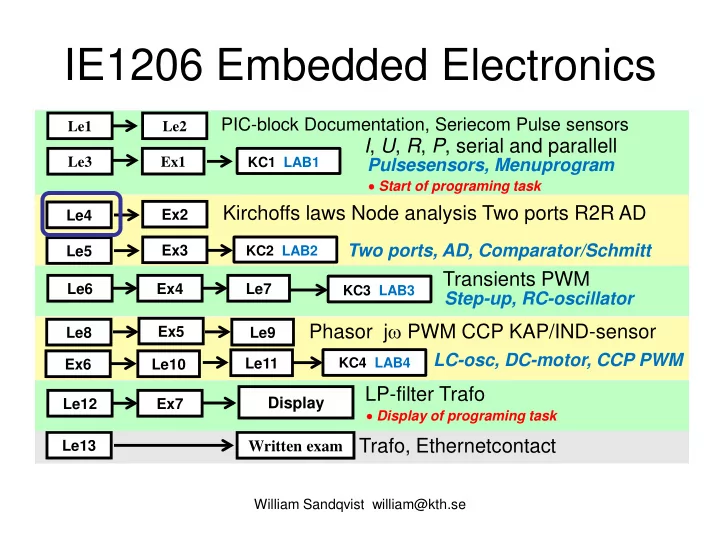

IE1206 Embedded Electronics

Transients PWM Phasor jω PWM CCP KAP/IND-sensor

Le1 Le3 Le6 Le8 Le2 Ex1 Le9 Ex4 Le7

Written exam

William Sandqvist william@kth.se

PIC-block Documentation, Seriecom Pulse sensors

I, U, R, P, serial and parallell

Ex2 Ex5

Kirchoffs laws Node analysis Two ports R2R AD Trafo, Ethernetcontact

Le13

Pulsesensors, Menuprogram

Le4

KC1 LAB1 KC3 LAB3 KC4 LAB4

Ex3 Le5

KC2 LAB2

Two ports, AD, Comparator/Schmitt Step-up, RC-oscillator

Le10 Ex6

LC-osc, DC-motor, CCP PWM

LP-filter Trafo

Le12 Ex7

Display

Le11

• Start of programing task
• Display of programing task

William Sandqvist william@kth.se

Batteries

It is becoming more commonplace with devices that run on

• batteries. In the car, the screwdriver, laptops, MP3 players and

mobile phones - we all come into daily contact with battery- powered equipment. This can apply to primary batteries, which contain a predefined amount of energy, and then are discarded and replaced when exhausted, or secondary batteries that can be charged and discharged with new energy again and again. (If they are managed properly ...)

William Sandqvist william@kth.se

Batteries

• Voltaic pile

William Sandqvist william@kth.se

Batteries

Today there are many different types of batteries to choose from, each with their strengths and weaknesses. Primary batteries have been around since 1800, when the Alessandro Volta built a “pile" of zinc and silver plates with salt-soaked blotting paper in between. The more elements that were included in the stack, the stronger "shock", he received when he touched it. This experiment is why the unit for the electric voltage is Volt. Practical manageable and economical batteries, we have had since the 1890s in the form of the so-called manganese battery. It is the classic type of battery for example in flashlights, and other applications where low price is more important than capacity. It is the type of battery that is easiest to take care of at our recycling centers.

William Sandqvist william@kth.se

The electrochemical cell function

William Sandqvist william@kth.se

The electrochemical cell function

In a battery or electrochemical cell, the energy is stored within the electrode materials and the

• chemicals. When we take out electric energy

from the battery the electro-chemical energy is converted to electrical, and some of the chemicals are used. If a metal is put in an electrically conductive liquid, an electrolyte, it takes place an exchange

• f electrons between the metal and the liquid. A

portion of the metal atoms become charged, become ions, and gets into the liquid. It then forms a small electrical voltage between the metal and the electrolyte, the size of this depends onthe metal. Lithium and Zinc provide a negative voltage, while Copper, Silver and Mercury gives positive voltages. Battery Designers are trying to find two materials with such a large voltage difference as possible, because it is this difference that becomes the cell voltage.

William Sandqvist william@kth.se

The electrochemical cell function

If two such different pieces of metal electrodes are placed in an electrolyte, there arises a chemical reaction between the ions from these. The one substance loses an electron, oxidation, while the other takes up an electron, reduction (collectively, there is a redox reaction). The oxidation reaction

• ccurs at the electrode that is taking up electrons. This becomes the negative
• electrode. The reduction reaction occurs at the other electrode, the positive

electrode. When the electrodes in this way becomes charged they repel further ions so that the chemical reaction stops. If, however, the two electrodes are connected to each other with an electric conductor outside the battery the charge difference between them will be averaged, and the chemical reaction is kept going. The resistance of the connected electrical load determines the chemical reaction rate. The chemical reaction proceeds as long as the electrical circuit is closed and there is chemically active material left in the cell.

William Sandqvist william@kth.se

The electrochemical cell function

The electrochemical cell in figure above is of "wet" type, but if the electrolyte is sucked by a porous material you get a dry cell. Dry Cells can be rotated and reversed anyway without any fluid leaking out - and that's how we are used to handle today's batteries.

Dry cell Wet cell

William Sandqvist william@kth.se

Discharge curve and capacity

A battery's capacity is expressed in Ampere Hours [Ah], which is the same as the amount of charge present in the chemically active materials in the

• battery. Ampere Hour number is defined as the current [A] battery could

supply for one hour and then running out. A battery's capacity rating C is based on the discharge curves from real-discharge

• experiments. Discharging proceeds at constant

current until the battery voltage drops to a final value, EoDV (End Of Discharge Voltage). Curve midpoint is called MPV (Midpoint Voltage) and it is this value of voltage that is usually stated as the terminal voltage. The discharge does not necessarily have last for one hour. The discharge time is therefore indicated with the capacity number index. C20 = 60 Ah means that the discharge lasted for 20 hours and the battery capacity I×t was 60 Ah. The constant discharge current used I then was 60/20 = 3 A.

William Sandqvist william@kth.se

Example - capacity calculations

• (Ex. 4.1) Suppose a battery with the capacity rating C20 = 60 Ah is

used for a lamp that consumes the current 1 A. How long will the battery last? The capacity number was developed at the current 3 A. Then one can assume that the battery capacity is unchanged at the nearby current value of 1 A. We get t = C/I = 60/1 = 60 h.

• Suppose now that the battery will power a starter motor with the current

300 A. How long does the battery last? The high current 300 A is a completely different operating condition than that used by the manufacturer to develop the capacity number. From experience (here given) we know that the capacity gets lower at high currents. Therefore, it is expected that the capacity rate is to be reduced to 70%. C' = 0,7×C = 0,7×60 = 42. We get t = C'/I = 42/300 = 0,14 h 0,14×60 = 8,4 min.

William Sandqvist william@kth.se

Different discharge cases, self-discharge

Normal current Low current High current Discharged capacity Voltage

William Sandqvist william@kth.se

Different discharge cases, self-discharge

Capacity of a battery depends of course on the size and how much chemically active material are available. That is why you can buy as many different sizes. In addition to the battery size, the actual capacity depends largely on the manner in which the discharge is performed. We have already mentioned that the very high discharge currents reduces the capacity of a battery. The high current gives rise to losses in the battery's internal resistance, and the part of the energy that can leave the battery will therefore be lower. With normal currents the capacity is 100%, but at low currents the capacity will be

• less. This is because the battery has a certain self-discharge, the electrolyte has a

certain electrical conductivity. So even without external discharge current the capacity decreases with time. Self-discharge is temperature dependent. It is customary to store batteries in the refrigerator to reduce self-discharge.

William Sandqvist william@kth.se

Different discharge cases, intermittent use

Discharge time Continuous discharge Intermittent discharge Voltage

William Sandqvist william@kth.se

Different discharge cases, intermittent use

Anyone who used a flashlight in the dark has certainly noticed that you get longer battery life if you give the battery opportunity to occasionally

• recover. (This fact has an electro-chemical explanation). If you have

multiple batteries and can switch between batteries so they may alternately be discharged or recovered. Then you get totally more energy out than using the batteries in succession. This effect is so pronounced that it should be used by electronics engineers - something that is not done yet...

William Sandqvist william@kth.se

Different discharge cases, battery temperature

Discharge time Voltage High temperature Low Temper- ature

William Sandqvist william@kth.se

Different discharge cases, battery temperature

With increasing temperature the electrochemical processes are faster, this will increase capacity, but note that this is counteracted by increased self-discharge at high temperatures. Probably it would pay to heat/cool the battery to an optimum working temperature even if one were to take the energy to this from the battery itself! The electrochemical processes are temperature dependent. At low temperatures the batteries only able to deliver a fraction of the energy that can be extracted at normal

• temperature. Whoever listens to the advice to

store batteries in the refrigerator, do well to wait to use them until they warmed up to room temperature.

William Sandqvist william@kth.se

Cell and Battery

If you are to be careful with the concepts so is a cell a single electrochemical system with its own positive and negative electrodes, while what is called a battery is a collection of such cells. The term is borrowed from the artillery where a battery is a number of guns that can be fired serially or simultaneously. The electrical battery is composed of cells in series or in

• parallel. In the figure above, there is really only one battery,

the 9V battery.

William Sandqvist william@kth.se

Cell and Batteri

The 9V battery has six 1.5V cells in series to achieve total voltage 9 volts.

The car battery has 6 2V cells in series to achieve total voltage of 12 V. The cells are here

• f a type derived from the Frenchman Gaston

Planté (1859), and they can both be discharged and recharged. The chemical processes which take place at the plates are reversible. Batterys that can be charged are called secondary batteries.

William Sandqvist william@kth.se

Comparisons between battery types

If you draw the discharge curves for different battery types in the same graph,

• ne can compare their properties. The

figure shows standard 1.5V AA cells that

• n the outside look the same, but the

inside are of different technologies. The cells have been discharged at the constant current I = 100 mA. The area under the discharge curves is proportional to the extracted electric energy ( W = U×I×t, I is constant ).

William Sandqvist william@kth.se

C-Zn

This is the oldest cell-type, but still in use (why?). The capacity is low and it drops the voltage fast. Could be stored a long time with low self-discharge.

William Sandqvist william@kth.se

NiCd

Nickel-Cadmium cell voltage falls rapidly down to 1.2V where it stays until the end. The cell can be recharged with the current I = C/10 for 14 hours which is then 40% longer than theoretically needed to charge the cell. At this low charging current the cell can withstand overcharging. You can also Rapid Charge the cell for example with current I = C. Charging then takes theoretically one hour, but the charger must besides the charging time also monitor the cell voltage and temperature, as overcharging with this high current is very harmful to the cell. NiCd cell self-discharge is approximately 1%/day - after three months, the cell is completely empty. If you want to store a fully charged NiCd cell it must be connected to a trickle charger that constantly charging it with a small current that outweigh the self discharge current ( I = 0,05C ).

If NiCd cells frequently recharged before being fully discharged, there may be a so-called memory effect. The discharge curvethen falls by about 150 mV long before the cell depleted. This should not have any significance, but it can "fool" electronics erroneously indicating "battery exhausted"

William Sandqvist william@kth.se

NiMh, Li

NiMH Nickel-metal hydride battery has higher capacity than NiCd cell, but

• therwise similar properties. NiMH cell has no "memory effect". The cell

contains no environmentally hazardous metals.. Li Lithium cells can provide terminal voltage up to 3.3 V. There is 1.5V cells and it is such as depicted in the diagram. Lithium is the lightest metal and a lithium cell is about half as heavy as the other cell types. Self discharge is low so the cell can be stored for up to 10 years. Capacity is the comparison by far the highest - but this is a very expensive cell! Rechargeable Lithium 3.3V cells found in your mobile phone.

William Sandqvist william@kth.se

Alk

Alkaline cell is a further development of manganese cell. It has much higher capacity than this and has therefore become the most common and most used type of battery. Nowadays, Alkaline cells are made without mercury, and therefore contain no harmful metals.

William Sandqvist william@kth.se

Emf internal resistance and terminal voltage

As a simple model for batteries one usually use an emf (an ideal voltage source) in series with an internal

• resistance. These are not constants, but

numerical values that change with

• perating cases and with battery

condition. One speaks of a battery emf E, internal resistance RI and terminal voltage U . The terminal voltage can be measured outside of the battery. If you connect a load, for example a lamp to the battery, so the battery current will cause a voltage drop across the internal resistance (I × RI). The terminal voltage is therefore lower than the battery emf, E > U. Bigger batteries with higher capacity, lower internal resistance, will thus have a terminal voltage that is closer to emf.

Discharge Charge

William Sandqvist william@kth.se

Emf internal resistance and terminal voltage

If you connect a terminal voltage that is greater than the battery emf, U > E, so the current flows in the opposite direction. If it’s a secondary battery, in which the electro- chemical processes are reversible, so the battery will be recharged. Kirchoff’s voltage law gives: U = I×RI + E If we extend this expression with the "I" we get the relationship between three

• powers. U×I = I2×RI + E×I

U×I is the power to or from the battery. I2×RI is the power losses inside the battery and E×I is a expression for the chemical energy that is consumed from the battery or stored in it. If "over charging" a battery then also the term E×I stands for losses. This means that “over charging” will result in battery overheating!

William Sandqvist william@kth.se

The charging curve

A battery charging curve is basically the discharge curve mirrored backwards. When the battery is fully charged the battery voltage decreases instead of increasing (-dV). "Smart" battery chargers usually use this as "signs" that the battery is fully charged and finishes charging.

Fully charged Charging time Voltage

William Sandqvist william@kth.se

William Sandqvist william@kth.se

A cell voltage is determined by the combination of electrode

• material. Frequently cell

voltages are between 1 ... 3 V. In order to obtain higher voltages one has to series- connect the cells. Examples of this are the 9V battery and the 12V battery.

Centrifugal pumps for liquids can be connected in series to provide higher lifting height. The liquid flow that can pass through the pump remains the same. Similarly, the two series-connected cells gets twice the voltage, but the ability to supply current is unchanged.

Series connection of cells

Double voltage same current limit Double pressure same flow limit

William Sandqvist william@kth.se

Example - How many cells are needed?

Three series-connected cells. Cells E and RI can be summed. The series-connected battery pack can be seen as a cell with 3E and 3RI. The battery to an older laptop is

• broken. The choice is between
• rdering a new one for high "spare

part" prices or to build yourself a battery of common NiCd cells. How many NiCd-cells with E = 1,1 V and RI = 0,1 Ω would be needed? First, we need to know the current

• needs. One finds that the computer

consumes 1.7 A at 14 V.

Battery

William Sandqvist william@kth.se

Example - How many cells are needed?

It is not so simple that it is enough with 13 cells (13 × 1.1 = 14.3) as the battery voltage drops when you pull the current out of it. To calculate how many cells n is needed: Kirchhoff's voltage law provides: n×E - n×RI×I - U = 0 n = U/( E - RI×I ) = 14/(1,1 - 0,1×1,7) = 15,05 The number of cells must of course be an integer, so the practical answer is that the homebuilt computer battery should have 15 cells. You choose a type with "solder ends" to easily connect them in series.

William Sandqvist william@kth.se

I

R E

I

R E

I

R E

a ) b )

I IMAX R

1 0Ω =? William Sandqvist william@kth.se

Calculate the internal resistance (4.2)

In order to determine a battery's internal resistance RI one made two

• measurements. First the battery emf was measured with a good voltmeter

E = 1,4 V, and then the battery was loaded with a known resistor R =10 Ω and the current I through the resistor then was measured to I = 123 mA. a) What was the battery internal resistance? RI = ? [Ω] b) What's largest current IMAX would one be able to take out from the battery if this was short-circuited?

Ω = − = − = ⇒ + = 38 , 1 10 123 , 4 , 1 R I E R R R E I

I I

IMAX = E/RI = 1,4/1,38 = 1,01 A

William Sandqvist william@kth.se

William Sandqvist william@kth.se

The risk with series connection

• reverse cell voltage

A flashlight powered by three series-connected

• cells. We assume that
• ne of them (eg. The one

in the middle) has the worst/less capacity. First light is normal with three cells connected in series and the lamp voltage 4.5 V. After a while, the "worst" cell run out and then the lamp is lit weaker with voltage 3 V. Now if you continue to let the light on, the cell which is the final will receive current from the other two cells. The cell will be chemically uploaded, but with the wrong polarity, finally with full incorrect cell voltage - 1.5 V! The lamp now only has 1.5V and glow faded. In this mode it would be better to take out the empty battery and replace it with a "short circuit wire" - then the lamp voltage again would become 3 V.

Lamp voltage U [V] Cell voltages [V]

Worst Cell

William Sandqvist william@kth.se

Reverse cell voltage

Lamp voltage U [V] Cell voltages [V]

Worst Cell

William Sandqvist william@kth.se

Reverse cell voltage

Lamp voltage U [V] Cell voltages [V]

Worst Cell

William Sandqvist william@kth.se

Reverse cell voltage

Lamp voltage U [V] Cell voltages [V]

Worst Cell

William Sandqvist william@kth.se

The risk with series connection

• reverse cell voltage

This shows that it is important that all cells in a series connection has the same capacity. Therefore, most of the battery-powered devices use battery packs made up of cells which are all taken from the plant at the same time. If the cells have different capacity it is poor battery economy, when it’s rechargeable batteries you run the risk that the reverse cell voltage reduces the cell's lifespan. Capacity number C [Ah] for a series connected battery is the same as for the individual cells. If the cells have different capacities (this should be avoided) the weakest cell will determine the capacity of the battery - when the weakest cell is finished, the entire battery in practice unusable.

William Sandqvist william@kth.se

William Sandqvist william@kth.se

Parallel connection of cells

Centrifugal pumps for liquids can be paralleled to provide greater flow. The lifting height/pressure stays the same. In the same way, two cells connected in parallel together can deliver higher current. The voltage remains unchanged. Capacity C [Ah] is doubled. Same pressure Double flow limit Same voltage Double current capability Double capacity

William Sandqvist william@kth.se

Parallel connection of cells

Cells are available in a variety of standard sizes. The larger the size, the higher capacity. The easiest way to get a higher capacity is thus to change to larger cells. Since the batteries are heavy components, this would sometimes lead to an unfavorable weight distribution - just think of a model plane that has the battery inside one wing, but nothing inside the other! Then it may be better to share capacity across multiple parallel-connected cells.

The number of standardized cell sizes are very large.

William Sandqvist william@kth.se

William Sandqvist william@kth.se

Antalet standardiserade cellstorlekar är mycket stort.

Electric car battery consists of many series connected cells. Special circuitry monitors cell voltages in groups of 12 cells. They balance the charge flows to the cells. A control computer then monitors the entire battery.

Electric Vehicle Battery?
