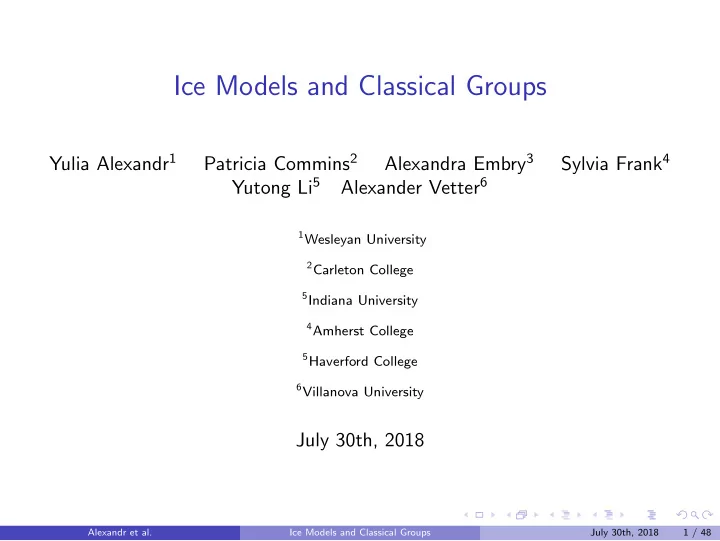

SLIDE 1

Ice Models and Classical Groups

Yulia Alexandr1 Patricia Commins2 Alexandra Embry3 Sylvia Frank4 Yutong Li5 Alexander Vetter6

1Wesleyan University 2Carleton College 5Indiana University 4Amherst College 5Haverford College 6Villanova University

July 30th, 2018

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 1 / 48

SLIDE 2

1

GL(n) Case

2

SO(2n+1) Case Sundaram Tableaux Koike-Terada Tableau Proctor Tableaux

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 2 / 48

SLIDE 3

GL(n) Case: Tableaux

Let λ = (λ1, λ2, · · · , λn) Our alphabet is (1, 2, · · · , n) To form a Young tableau, fill the tableaux with elements of the alphabet such that:

1

Weakly increasing along rows

2

Strictly increasing along columns

λ1 x x · · · x x λ2 x x · · · x . . . . . . λn x x

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 3 / 48

SLIDE 4

GL(n) case: Tableaux Example

Let λ = (4, 2, 1). Our tableau will be of the shape: A possible filling: 1 1 2 3 2 3 3

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 4 / 48

SLIDE 5

Gelfand-Tsetlin Patterns

GL(n) ↓ GL(n − 1) Gelfand-Tsetlin pattern rules:

1

Rows weakly decreasing

2

Interleaving 1 1 1 3 3 2 2 2 3 3 5 3 2 3 3 3

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 5 / 48

SLIDE 6

Gelfand-Tsetlin Patterns

Gelfand-Tsetlin pattern rules:

1

Rows weakly decreasing

2

Interleaving 1 1 1 5 3 2 3 3 3

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 6 / 48

SLIDE 7

Gelfand-Tsetlin Patterns

Gelfand-Tsetlin pattern rules:

1

Rows weakly decreasing

2

Interleaving 1 1 1 2 2 2 5 3 2 3 3 3

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 7 / 48

SLIDE 8

Gelfand-Tsetlin Patterns

Gelfand-Tsetlin pattern rules:

1

Rows weakly decreasing

2

Interleaving 1 1 1 3 3 2 2 2 3 3 5 3 2 3 3 3

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 8 / 48

SLIDE 9

Strict Gelfand-Tsetlin Patterns

ρ = (n − 1, ..., 0) 5 3 2 3 3 3 + ρ = (2, 1, 0) − → + ρ = (1, 0) − → + ρ = (0) − → 7 4 2 4 3 3

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 9 / 48

SLIDE 10

Tokuyama’s Formula

T∈SGT(λ+ρ)

(1 + t)S(T)tL(T)zwt(T) =

i<j

(zi + tzj)sλ(z1, ...zn)

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 10 / 48

SLIDE 11

GL(n) Shifted Tableaux

7 4 2 4 3 3 1 1 1 2 3 3 3 2 2 2 3 3 3

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 11 / 48

SLIDE 12

GL(n) Ice Models: Boundary Conditions

3 2 1 7 6 5 4 3 2 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 12 / 48

SLIDE 13

GL(n) Ice Models: Gelfand-Tsetlin Pattern 1

3 2 1 7 6 5 4 3 2 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 13 / 48

SLIDE 14

GL(n) Ice Models: Gelfand-Tsetlin Pattern 2

3 2 1 7 6 5 4 3 2 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 14 / 48

SLIDE 15

GL(n) Ice Models: Gelfand-Tsetlin Pattern 3

3 2 1 7 6 5 4 3 2 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 15 / 48

SLIDE 16

GL(n) Ice Models: Gelfand-Tsetlin Pattern 4

3 2 1 7 6 5 4 3 2 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 16 / 48

SLIDE 17

GL(n) Ice Models: Gelfand-Tsetlin Pattern 5

3 2 1 7 6 5 4 3 2 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 17 / 48

SLIDE 18

Boltzmann Weights

j j j j j j 1 zi ti zi zi (ti + 1) 1

Figure: Boltzmann weights for Gamma Ice

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 18 / 48

SLIDE 19

Introduction

tableaux Group Gelfand- Tsetlin-type patterns shifted tableaux strict GT-type patterns ice models

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 19 / 48

SLIDE 20

Branching Rule for Sundaram Tableaux

sso

λ =

µ⊆λ

ssp

(µ)

Sp(2n) ↓ Sp(2n − 2) ⊗ U(1)

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 20 / 48

SLIDE 21

Sundaram Tableaux

Partition: λ = (λ1 ≥ λ2 ≥ . . . λn ≥ 1) Alphabet: {1 < ¯ 1 < · · · < n < ¯ n < 0}

1

Rows are weakly increasing.

2

Columns are strictly increasing, but 0s do not violate this condition.

3

No row contains multiple 0s.

4

In row i, all entries are greater than or equal to i. 1

1

2

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 21 / 48

SLIDE 22

Sundaram Gelfand-Tsetlin-type patterns

Gelfand-Tsetlin-type pattern rules:

1

Rows weakly decreasing

2

Interleaving

3

Difference between top rows ≤ 1

4

Even rows cannot end in 0 1

1 2 3 2 3 1 2 1 2 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 22 / 48

SLIDE 23

Sundaram Strict Gelfand-Tsetlin-Type Patterns

3 2 3 1 2 1 2 1 add ρ − → 5 3 5 2 4 2 3 2

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 23 / 48

SLIDE 24

Sundaram Shifted Tableaux

5 3 4 3 3 2 2 1 1 ¯ 1 2 ¯ 2 2 2 ¯ 2

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 24 / 48

SLIDE 25

Sundaram Ice Models: Boundary Conditions

2 ¯ 1 1 ¯ 2 3 2 1

Figure:

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 25 / 48

SLIDE 26

Sundaram Ice Models: Modeling GT-Type Pattern

2 ¯ 1 1 ¯ 2 3 2 1 3 2 3 1 2 1 2 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 26 / 48

SLIDE 27

Sundaram Ice Models: Full Model

2 ¯ 1 1 ¯ 2 3 2 1 3 2 3 1 2 1 2 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 27 / 48

SLIDE 28

Sundaram Boltzmann Weights

j j j j j j ∆ Ice Even rows 1 tzi 1 zi zi (t + 1) 1 j j j j j j Γ Ice Odd rows 1 z−1 i t z−1 i z−1 i (t + 1) 1

Figure: Boltzmann weights for ∆ and Γ Sundaram Ice

z−1 i t

Figure: Boltzmann Weights for Sundaram Bends

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 28 / 48

SLIDE 29

Sundaram Botlzmann Weights

Alternate Bend Weights for B Deformation: z−1

i

·

z−n+i−1

i

(1 + tzi) (1 + tz2

i )

t ·
z−n+i−1

i

(1 + tzi) (1 + tz2

i )

Alexandr et al.

Ice Models and Classical Groups July 30th, 2018 29 / 48

SLIDE 30

Branching Rule for Koike-Terada Tableaux

SO(2n + 1) ↓ SO(2n − 1) ⊗ GL(1)

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 30 / 48

SLIDE 31

Koike-Terada Tableaux

Partition: λ = (λn ≥ λn−1 ≥ · · · ≥ λ1 ≥ 0) Alphabet: {1 < ¯ 1 < 1 < 2 < ¯ 2 < 2 · · · n < ¯ n < n}. Let Ti,j be the entry of the tableau in the i-th row and the j-th column. Then:

1

Rows are weakly increasing

2

Columns are strictly increasing

3

k can only appear in Tk,1

4

Ti,j ≥ i

1

1 2 2

2 2 2

2

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 31 / 48

SLIDE 32

Koike-Terada Gelfand-Tsetlin-type pattern

1

The pattern has 3n rows. Label these rows 1, ¯ 1, 1, · · · , n, ¯ n, n, starting from the bottom of the pattern. Rows i, ¯ i, and i must have i entries.

2

ai,j−1 ≥ ai,j ≥ ai,j+1 ≥ 0

3

ai−1,j ≥ ai,j ≥ ai−1,j+1

4

Row i must end in a 1 or a 0 (for i ∈ {1, · · · , n})

5

Each entry in row i (for i ∈ {1, · · · , n}) must be left-leaning. 5 3

2 4 2 ¯ 2 2 1 2 2

1 1 ¯ 1 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 32 / 48

SLIDE 33

Koike-Terada Shifted Tableaux

1

Rows are weakly increasing.

2

Columns are weakly increasing.

3

Diagonals are strictly increasing.

4

The first entry in row k is k, k or k.

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 33 / 48

SLIDE 34

Koike-Terada Ice: Bends and Ties

To connect rows k and k for each k ∈ {1, · · · , n}: A B C For rows k, where k k ∈ {1, · · · , n}, there are 3 possible ”ties”: U D O Note: Along with ties U, D and O, rows k k ∈ {1, · · · , n} are three-vertex models, the vertices being SW, NW, and NE.

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 34 / 48

SLIDE 35

Koike-Terada Ice: Boundary Conditions

The following depicts the boundary conditions for an ice model with top row λ = (2, 1).

1 ¯ 1 1 2 ¯ 2

2 2 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 35 / 48

SLIDE 36

Koike-Terada Ice: Full Model

A D C O 2 1 2 1 2 1 2 2 2 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 36 / 48

SLIDE 37

Theorem (1)

The following are equivalent:

1

Koike-Terada Gelfand-Tsetlin-type pattern rules 4 and 5 are satisfied.

2

Each ice row labeled k ∈ {1, · · · , n} has no NS, SE, or EW configurations, and tie boundary conditions are satsified.

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 37 / 48

SLIDE 38

Branching Rule for Proctor Tableaux

SO(2n + 1) ↓ SO(2n − 1) ⊗ SO(2)

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 38 / 48

SLIDE 39

Proctor Tableaux

1

Rows are weakly increasing

2

Columns are strictly increasing

3

Follows the 2c orthogonal condition

4

Follows the 2m protection condition

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 39 / 48

SLIDE 40

Proctor Tableaux

2c Orthogonal Condition: Less than or equal to 2c entries that are less than or equal to 2c in the first two columns. 1 1 3 5 x 3 4 5

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 40 / 48

SLIDE 41

Proctor Tableaux

2c Orthogonal Condition: Less than or equal to 2c entries that are less than or equal to 2c in the first two columns. 1 1 3 5 x 3 4 5 1 1 3 5 3 3 4 5

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 40 / 48

SLIDE 42

Proctor Tableaux

2m Protection Condition: For a 2m-1 entry in the first column, specified 2m entries must be ”protected” by 2m-1 entries. 1 1 x 5 3 x 4 5

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 41 / 48

SLIDE 43

Proctor Tableaux

2m Protection Condition: For a 2m-1 entry in the first column, specified 2m entries must be ”protected” by 2m-1 entries. 1 1 x 5 3 x 4 5 1 1 3 5 3 3 4 5

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 41 / 48

SLIDE 44

Proctor Gelfand-Tsetlin-type Patterns

n=4 shape x x x x (9) x x x x (8) x x x x (7) x x x x (6) x x x x (5) x x x x (n = 4) x x x (3) x x (2) x (1)

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 42 / 48

SLIDE 45

Proctor Gelfand-Tsetlin-type Patterns

2c Orthogonal Condition 6 5 3 1 6 5 3 1 = 2 + 2 + 2 + 1 (8) 6 4 2 1 4 3 1 = 2 + 2 + 1 (6) 4 2 1 2 1 = 2 + 1 (4) 2 1 1 = 1 (2) 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 43 / 48

SLIDE 46

Proctor Gelfand-Tsetlin-type Patterns

2m Protection Condition: Add in 0s to make all rows length n 6 5 3 2 6 5 3 2 6 4 2 1 4 3 1 4 2 1 2 1 2 1 1 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 44 / 48

SLIDE 47

Proctor Gelfand-Tsetlin-type Patterns

2m Protection Condition: Identify non-left-leaning 0s in even rows 6 5 3 2 6 5 3 2 6 4 2 1 4 3 1 4 2 1 2 1 2 1 1 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 45 / 48

SLIDE 48

Proctor Gelfand-Tsetlin-type Patterns

2m Protection Condition Check Example: For 0, if 2 > 1 Check: 2 ≥ 2 2 > 1 0 ≤ 1 6 5 3 2 6 5 3 2 6 4 2 1 4 3 1 4 2 1 2 1 2 1 1 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 46 / 48

SLIDE 49

Proctor Strict Gelfand-Tsetlin-type Patterns

Change to be Strict and check Orthogonal Condition: 6 5 3 1 6 5 3 1 6 4 2 1 4 3 1 4 2 1 3 2 1 = 2 + 2 + 1 (4) 2 1 1 1

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 47 / 48

SLIDE 50

Acknowledgements:

Prof. Ben Brubaker and Katy Weber

University of Minnesota, Twin Cities REU NSF

Alexandr et al. Ice Models and Classical Groups July 30th, 2018 48 / 48
