Hydrogen Storage Materials Basic Properties and First Safety Studies Maximilian Fichtner Institute for Nanotechnology Department of Nanostructured Materials Karlsruhe Research Center 1 | M. Fichtner | ESHSS | 30. July 2007 Content

slide-1

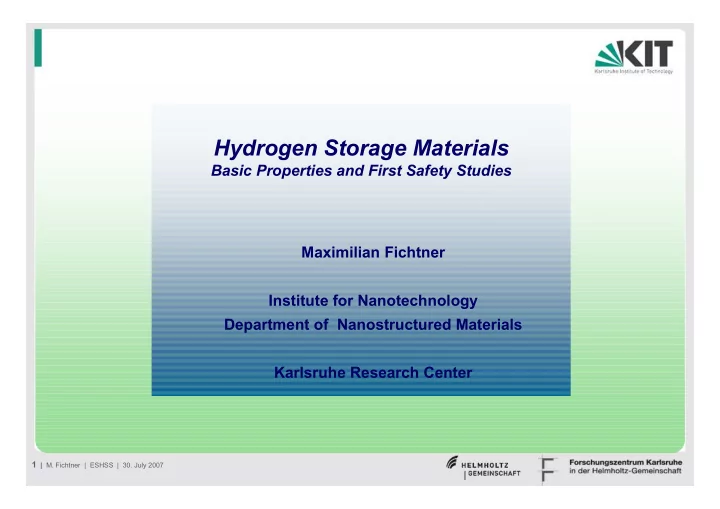

SLIDE 1

1 | M. Fichtner | ESHSS | 30. July 2007

Hydrogen Storage Materials

Basic Properties and First Safety Studies Maximilian Fichtner Institute for Nanotechnology Department of Nanostructured Materials Karlsruhe Research Center

slide-2
SLIDE 2

2 | M. Fichtner | ESHSS | 30. July 2007

Content

  • Introduction / Problem
  • Principles of hydrogen storage

Physisorption and chemisorption materials

  • Safety studies with nanoscale hydride
  • Summary
slide-3
SLIDE 3

3 | M. Fichtner | ESHSS | 30. July 2007

Permanent Issue: Energy storage in vehicles

Speed record: Jenatzy´s world record vehicle „La Jamais Contente“ (1899) reached 106 km/h

The first cars were electric vehicles (1885) !

slide-4
SLIDE 4

4 | M. Fichtner | ESHSS | 30. July 2007

Fossil fuels on a historical timescale

slide-5
SLIDE 5

5 | M. Fichtner | ESHSS | 30. July 2007

Why Hydrogen?

Liquid fuels can store more energy per volume and mass compared to H2 storage-systems (incl. Tank, Valves etc.). Energy Storage in H2 is by a factor 8 better than the best batteries.

slide-6
SLIDE 6

6 | M. Fichtner | ESHSS | 30. July 2007

$0 $5 $10 $15 $20 $/kWh Chemical Hydride Complex Hydride Liquid H2 350 bar 700 bar

Current Cost Estimates

(based on 500,000 units) 2010 target 2015 target

* State of the art in hydrogen storage technologies 2007

source: G. Thomas, US-DoE, 2007 (priv. comm.)

slide-7
SLIDE 7

7 | M. Fichtner | ESHSS | 30. July 2007

Physical limits for H storage

Mean distance between H2 molecules and H atoms volumetric storage density

slide-8
SLIDE 8

8 | M. Fichtner | ESHSS | 30. July 2007

Binding principles for hydrogen

Physisorption Weak binding of H2 –molecules at the surface (long range Van der Waals interactions) Chemisorption Splitting of H2 molecule Chemical bonding of H atoms in host lattice

slide-9
SLIDE 9

9 | M. Fichtner | ESHSS | 30. July 2007

Energy Diagram for Physisorption/Chemisorption EPot Physisorption

  • f H2

H2

z Ephys solid EDiss Eact Chemisorption

  • f 2 H

2 H Echem Ea

Desorb

Ea

chemisorb

slide-10
SLIDE 10

10 | M. Fichtner | ESHSS | 30. July 2007

Physisorption Materials: Carbon-nanotubes?

First reports about high H-contents were most probably experimental errors !

  • M. Hirscher, 2005
slide-11
SLIDE 11

11 | M. Fichtner | ESHSS | 30. July 2007

Examples Physisorption Materials: Metal-organic frameworks (MOFs)!

Yaghi et al., Angew. Chem. Int . Ed. (2005)

ZnO clusters

  • rganic linkers

(carboxylates) Self assembled structures

slide-12
SLIDE 12

12 | M. Fichtner | ESHSS | 30. July 2007

MOFs : H storage capacity

7.5 wt% H @ 77 K, 40 bar

Yaghi et al., JACS, 2006

slide-13
SLIDE 13

13 | M. Fichtner | ESHSS | 30. July 2007

  • M. Fichtner, Adv. Eng. Mater. 6 (2005) 432

Development of low / medium temperature solid storage materials for hydrogen

slide-14
SLIDE 14

14 | M. Fichtner | ESHSS | 30. July 2007

Today´s systems: Nanocomposites on hydride basis

H-Carrier Complex light metal hydrides: Alanates M(AlH4) Boranates M(BH4) Amides M(NH2) Dopants TM Basis Nanoscale Nanoscale mixture

  • f:

The nanocomposite is the actual storage material. Compared to pure H-carrier: considerably improved H exchange properties.

&

slide-15
SLIDE 15

15 | M. Fichtner | ESHSS | 30. July 2007

~ 4.5 wt.% H ~ 4.5 wt.% H reversible reversible @ 80 @ 80 – – 120 °C 120 °C

Sodium alanate, NaAlH4 , as hydrogen carrier

Bogdanovicć 1997 (MPI-KF): “Ti-doped alkali metal aluminium hydrides as potential

novel reversible hydrogen storage materials“ (JALCOM 97)

3 NaAlH 3 NaAlH4

4

Na Na3

3AlH

AlH6

6 + 2 Al + 3 H

+ 2 Al + 3 H2

2

3 NaH + Al + 3/2 H 3 NaH + Al + 3/2 H2

2

C.M. Jensen et al. , J. Appl. Phys. A 72 (2001) 213 – 219

Temp p

slide-16
SLIDE 16

16 | M. Fichtner | ESHSS | 30. July 2007

Safety Issues …

slide-17
SLIDE 17

17 | M. Fichtner | ESHSS | 30. July 2007

Physisorption Materials / Safety issues

Low temperature (77 K) ! No immediate release of stored amount H2 Sorbent combustible ? Combustion energy of: Hydrogen + Sorbent (carbon, MOF)

slide-18
SLIDE 18

18 | M. Fichtner | ESHSS | 30. July 2007

Chemisorption Materials (Hydrides) / Safety issues

No immediate release of stored amount H2 Flame rate Combustion energy of: hydrogen + metal Self ignition in contact with air / water ? General recommendation: Avoid dust explosions with finely dispersed solid storage materials!

slide-19
SLIDE 19

19 | M. Fichtner | ESHSS | 30. July 2007

Methods to extinguish a metal hydride fire Dilute burning powder with inert material (*dry* sand, NaCl) Use a metal fire extinguisher (NaCl + melting polymer

  • crust)

Interrupt air contact Cool it down with liquid N2

  • Laboratory !

Never use ! Water CO2

slide-20
SLIDE 20

20 | M. Fichtner | ESHSS | 30. July 2007

Hydrogen Safety Scoping Tests With Hydride Based Nanocomposite

slide-21
SLIDE 21

21 | M. Fichtner | ESHSS | 30. July 2007

Largest (public) research activity on hydrogen in Germany 50 Researchers in 6 institutes Working on:

slide-22
SLIDE 22

22 | M. Fichtner | ESHSS | 30. July 2007

Hydrogen Safety Center

slide-23
SLIDE 23

23 | M. Fichtner | ESHSS | 30. July 2007

Question: What can we expect if a device filled with a nanoscale complex hydride

  • is at operating conditions (p,T), and then
  • the shell breaks and the material is ejected into the environment ?
slide-24
SLIDE 24

24 | M. Fichtner | ESHSS | 30. July 2007

Principle setup

SS-Tube filled with Ti-doped NaAlH4 Burst Disk Operation: T

  • 130 °C

P rises Disk bursts at p = 10 bar Material shot into various environments

slide-25
SLIDE 25

25 | M. Fichtner | ESHSS | 30. July 2007

4 tests were performed with ca. 100 ml Ti-doped SAH at typical operation temperatures (130°C) and pressures (10 bar) of the material: 1. Reproduction of earlier experiment (ejection in dry air) 2. Spark ignition of hydrogen-dust cloud 3. Ejection into water shower 4. Comparative test with equimolar amount of pure hydrogen

Small scale device failure test

slide-26
SLIDE 26

26 | M. Fichtner | ESHSS | 30. July 2007

Basic Equipment for Experiments: ► High speed camera, Speed Cam Visario 1500 ► Infrared camera, Thermovision A40 ► Digital Video camera, DCR-TRV30E ► Digital camera, Camedia C-1 ► Control unit, LABJACK U12 ► Transient recorder, Krenz PSO 9080 ► Fast sound level meter, RO 1350 ► Fast pressure sensors ► Fast T-sensors

slide-27
SLIDE 27

27 | M. Fichtner | ESHSS | 30. July 2007

Reactor Setup

Electrodes for spark ignition

slide-28
SLIDE 28

28 | M. Fichtner | ESHSS | 30. July 2007

Experiment 1: Shot in dry air

slide-29
SLIDE 29

29 | M. Fichtner | ESHSS | 30. July 2007

Result experiment 1: Reproduction of „Dry Experiment“ from 2005

slide-30
SLIDE 30

30 | M. Fichtner | ESHSS | 30. July 2007

Experiment 2: Spark Ignition / IR camera

0.2 sec 0.6 sec Burning hydrogen ignites dust cloud. Relatively slow combustion

slide-31
SLIDE 31

31 | M. Fichtner | ESHSS | 30. July 2007

Setup experiment 3: Water shower

slide-32
SLIDE 32

32 | M. Fichtner | ESHSS | 30. July 2007

HighSpeed images of rain shower experiment

Ignition by water droplets

30 ms 60 ms 240 ms 560 ms

Flame

slide-33
SLIDE 33

33 | M. Fichtner | ESHSS | 30. July 2007

Experiment 4: Equimolar amount of pure H2 + spark ignition Small flame but very fast combustion (approx. 70 ms)

  • turbulent deflagration
slide-34
SLIDE 34

34 | M. Fichtner | ESHSS | 30. July 2007

Soundlevels, first millisecond

reproduction 2005 Spark ignition Rain Shower Pure hydrogen

  • pening of burst disc
slide-35
SLIDE 35

35 | M. Fichtner | ESHSS | 30. July 2007

Summary

First safety tests with nanocomposite:

  • Dry air experiment was reproduced.
  • Hydrogen/dust cloud with sparks
  • Ignition. High T in the cloud
  • Water shower
  • Self-ignition @ several places. Lower T in the cloud.
  • Experiment 2 with equimolar amount of pure hydrogen (and no hydride) was

much more aggressive

  • explosion !
  • 2., and 3.: flame-thrower like events, no explosion
  • ∆

∆ ∆ ∆p < 5 mbar @ 1 m distance

  • Heat of reaction is damped by the presence of water
  • Combustion of powder/H2 cloud > propagation of flame 10x slower than with

pure H2

  • More energy involved, but much slower propagation of the flame
  • reduced

violence. Solid storage materials have the physical potential to reach the goals set for hydrogen storage

  • t.b.d.
slide-36
SLIDE 36

36 | M. Fichtner | ESHSS | 30. July 2007

Financial support by: Helmholtz Initative „FuncHy“ EU-IP „NESSHy“ EU-IP „StorHy“ EU-RTN „COSY“ Forschungsallianz Brennstoffzelle BW Acknowledgements

slide-37
SLIDE 37

37 | M. Fichtner | ESHSS | 30. July 2007

Krzysztof Chłopek Christoph Frommen Nobuko Hanada Johannes Kostka Aline Léon Wiebke Lohstroh Ravimohan Prasad Stephan Wetterauer Oleg Zabara Maximilian Fichtner Nanostructured Materials Olaf Fuhr Cluster Chemistry Olaf Hübner Theoretical Chemistry

People at the INT…

slide-38
SLIDE 38

38 | M. Fichtner | ESHSS | 30. July 2007

Thank Thank Thank Thank you you you you for for for for your your your your

PATIENCE
