How Can This Happen To Me? Requirements for Compartmentation Mark Hooper Echuca Regional Health #HFMC17 #HFMC17 Ask yourself. How Compliant are you? #HFMC17 Are you relying on the.. Assistant Projects Facilitator Rewarding

slide-1
SLIDE 1

#HFMC17

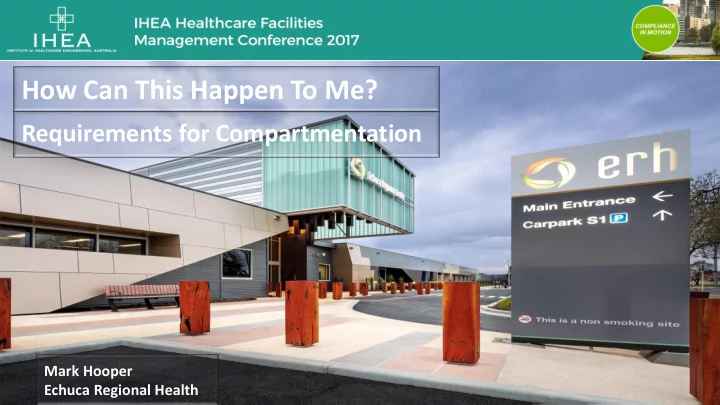

How Can This Happen To Me?

Mark Hooper Echuca Regional Health

Requirements for Compartmentation

slide-2
SLIDE 2

#HFMC17

slide-3
SLIDE 3

#HFMC17

How Compliant are you?

Ask yourself….

slide-4
SLIDE 4

#HFMC17

Rewarding Are you relying on the….. Assistant Projects Facilitator Challenging Extended Tasks & Responsibilities assigned to me are commensurate with my capacity to deliver desired performance outcomes on a consistent basis.

slide-5
SLIDE 5

#HFMC17

I hope not.

slide-6
SLIDE 6

#HFMC17

𝐷 = ΰΆ± 𝑄 π‘ˆπΌπΉ 𝑃𝑄 𝑃𝐷

Compliance – Lets test the factors

Occupancy Permit = Safe Facility

𝑃𝑑 βˆ’ π‘ƒπ‘‘π‘‘π‘£π‘žπ‘π‘œπ‘‘π‘§ π·π‘π‘›π‘žπ‘šπ‘—π‘π‘œπ‘‘π‘“ m βˆ’π‘π‘π‘œπ‘’π‘π‘’π‘π‘ π‘§ π·π‘π‘›π‘žπ‘šπ‘—π‘π‘œπ‘‘π‘“ 𝑗𝑒𝑓𝑛𝑑 𝑒𝑝 π‘π‘π‘’π‘π‘—π‘œ π‘π‘‘π‘‘π‘£π‘žπ‘π‘œπ‘‘π‘§ 𝐢𝑗 βˆ’πΆπ‘£π‘—π‘šπ‘’π‘“π‘ π‘‘ π½π‘œπ‘‘π‘žπ‘“π‘‘π‘’π‘—π‘π‘œπ‘‘ π·π‘”βˆ’π‘ βˆ’ π·π‘π‘œπ‘’π‘ π‘π‘‘π‘’π‘π‘  𝐹𝑔𝑔𝑝𝑠𝑒 (𝐺𝑓𝑓𝑑 βˆ’ π΅π‘‘π‘’π‘£π‘π‘š π‘ˆπ‘—π‘›π‘“ π‘π‘œ 𝑑𝑗𝑒𝑓)

𝑃𝑑 = ෍

𝑛=0 ∞

πΆπ‘—π·π‘”βˆ’π‘

C βˆ’π·π‘π‘›π‘žπ‘šπ‘—π‘π‘œπ‘’ πΆπ‘£π‘—π‘šπ‘’π‘—π‘œπ‘• P βˆ’π‘„π‘ π‘π‘˜π‘“π‘‘π‘’ π‘ˆπ‘“π‘π‘› π‘ˆπΌπΉ βˆ’ π‘ˆβ„Žπ‘“ πΌπ‘“π‘π‘šπ‘’β„Žπ‘‘π‘π‘ π‘“ πΉπ‘œπ‘•π‘—π‘œπ‘“π‘“π‘  𝑃𝑄 βˆ’ π‘ƒπ‘‘π‘‘π‘£π‘žπ‘π‘œπ‘‘π‘§ 𝑄𝑓𝑠𝑛𝑗𝑒 π‘†π‘“π‘π‘ π‘ π‘π‘œπ‘•π‘“ π‘’β„Žπ‘“ π‘”π‘π‘ π‘›π‘£π‘šπ‘:

𝐷 = π‘ˆπΌπΉ 𝑄𝑃𝑑𝑃𝑄

(π½π‘œ π‘ˆβ„Žπ‘“ π‘„π‘π‘π‘ž)

C = THE 𝑄𝑃𝑑𝑃𝑄

Be a large factor in compliance

slide-7
SLIDE 7

#HFMC17

Fire Compartmenation Some examples

slide-8
SLIDE 8

#HFMC17

The Compliance Framework to achieve effective compartmentation

slide-9
SLIDE 9

#HFMC17

Building Act 1993 (inc amendments to 16Aug 2017)

Stuff in Red is YOU Stuff in Blue is NOT YOU

slide-10
SLIDE 10

#HFMC17

PART 1β€”PRELIMINARY 1 Purposes The main purposes of this Act areβ€”

Building Act 1993 (inc amendments to 16Aug 2017)

(b) to provide for the accreditation of building products, …… (c) to provide an efficient and effective system for issuing building and

  • ccupancy permits ……
slide-11
SLIDE 11

#HFMC17

PART 1β€”PRELIMINARY 3 Definitions (1)In this Actβ€”

Building Act 1993 (inc amendments to 16Aug 2017)

building practitioner meansβ€” (h) a person responsible for a building project…. who belongs to a class or category of people prescribed to be building practitionersβ€” but does not includeβ€” (i) an architect;

slide-12
SLIDE 12

#HFMC17

PART 1β€”PRELIMINARY 4 Objectives of Act (1) The objectives of this Act areβ€”

Building Act 1993 (inc amendments to 16Aug 2017)

(a) to protect the safety and health

  • f people who use buildings and places of

public entertainment;

slide-13
SLIDE 13

#HFMC17

PART 2β€”BUILDING STANDARDS 14 Accreditation of building products

Building Act 1993 (inc amendments to 16Aug 2017)

AS1530.4-2005 (5 year certification) AS1530.4-2014 (will see compliance in 2019) Methods for fire tests on building materials, components and structures Fire-resistance test of elements of construction

slide-14
SLIDE 14

#HFMC17

PART 3β€”BUILDING PERMITS

Building Act 1993 (inc amendments to 16Aug 2017)

(4) A building practitioner or an architect who is engaged to carry out building work must ensure thatβ€” – (b) the work is carried out in accordance with this Act, the building regulations and the building permit issued in relation to that work.

slide-15
SLIDE 15

#HFMC17

PART 4β€”INSPECTION OF BUILDING WORK Division 3β€”Certificates of final inspection

Building Act 1993 (inc amendments to 16Aug 2017)

38 Certificate of final inspection (1) The relevant building surveyor must issue a certificate of final inspection on completion of the inspection…..

slide-16
SLIDE 16

#HFMC17

PART 4β€”INSPECTION OF BUILDING WORK Division 3β€”Certificates of final inspection

Building Act 1993 (inc amendments to 16Aug 2017)

38 Certificate of final inspection (2) A certificate of final inspection is not evidence that the building or building work concerned complies with this Act or the building regulations.

slide-17
SLIDE 17

#HFMC17

PART 5β€”OCCUPATION OF BUILDINGS AND PLACES OF PUBLIC ENTERTAINMENT Division 1β€”Occupancy permits (building work)

Building Act 1993 (inc amendments to 16Aug 2017)

46 Effect of occupancy permit (1) An occupancy permit under this Division is evidence that the building or part of a building to which it applies is suitable for occupation.

slide-18
SLIDE 18

#HFMC17

PART 5β€”OCCUPATION OF BUILDINGS AND PLACES OF PUBLIC ENTERTAINMENT Division 1β€”Occupancy permits (building work)

Building Act 1993 (inc amendments to 16Aug 2017)

46 Effect of occupancy permit (2) An occupancy permit under this Division is not evidence that the building

  • r part of a building to which it applies

complies with this Act or the building regulations.

slide-19
SLIDE 19

#HFMC17

HANDS UP IF YOU HAVE READ THIS PART OF YOUR OP

slide-20
SLIDE 20

#HFMC17

C = THE 𝑄𝑃𝑑𝑃𝑄

Be a large factor in compliance

slide-21
SLIDE 21

#HFMC17

Compartmentation Compliance

For a system installation to be compliant, the install must have no modifications, assumptions or leniency from the manufacturer’s product tests.

If the install isn’t a direct replica of the tested prototype, the β€œFire Certificate” at the end of the job isn’t worth the paper it is printed on.

slide-22
SLIDE 22

#HFMC17

262 defects

slide-23
SLIDE 23

#HFMC17

C = THE 𝑄𝑃𝑑𝑃𝑄

Be a large factor in compliance

slide-24
SLIDE 24

#HFMC17

PART 8β€”ENFORCEMENT OF SAFETY AND BUILDING STANDARDS Division 2β€”Building notices and building orders

Building Act 1993 (inc amendments to 16Aug 2017)

106 Building notices a … building surveyor may cause a building notice to be served on an owner of a building … if the following circumstances existsβ€” (ba) safety or emergency services installations or equipment have not been maintained in accordance with the

  • ccupancy permit and the regulations;
slide-25
SLIDE 25

#HFMC17

PART 9β€”LIABILITY Division 1β€”Immunity

Building Act 1993 (inc amendments to 16Aug 2017)

128 Immunity for building surveyor relying on certificate A …building surveyor …is not liable for anything done or

  • mitted to be done … in reliance on a certificate given

by a registered building practitioner under section 238.c

slide-26
SLIDE 26

#HFMC17

slide-27
SLIDE 27

#HFMC17

PART 13β€”GENERAL ENFORCEMENT PROVISIONS Division 3β€”Evidence and notices

Building Act 1993 (inc amendments to 16Aug 2017)

238 Building surveyor may rely on certificate by other registered building practitioner (1) A … building surveyor … may rely on a certificate by a registered building practitioner

slide-28
SLIDE 28

#HFMC17

238 Building surveyor may rely on certificate by other registered building practitioner (2) A registered building practitioner must not give a certificate … unless the certificate states that the registered building practitioner has inspected that building work.

PART 13β€”GENERAL ENFORCEMENT PROVISIONS Division 3β€”Evidence and notices

Building Act 1993 (inc amendments to 16Aug 2017)

slide-29
SLIDE 29

#HFMC17

Compliant or Not Compliant?

slide-30
SLIDE 30

#HFMC17

Compliant or Not Compliant?

slide-31
SLIDE 31

#HFMC17

Compliant or Not Compliant?

slide-32
SLIDE 32

#HFMC17

How can this happen?

Compliant or Not Compliant?

slide-33
SLIDE 33

#HFMC17

VBA website > Building Practitioners FAQs.

  • FAQ8. Does the VBA have a Continuing Professional Development (CPD) program?

Victorian Building Authority

No.

The voluntary Continuing Professional Development (CPD) program previously administered by the Building Commission is not provided by the Victorian Building Authority (VBA). The VBA encourages building and plumbing practitioners to undertake continuing professional development to maintain the currency of their skills and knowledge, however, the VBA will not be recording their attendance or results.

Practitioners may determine what training opportunities are suitable for them to participate in. Industry associations may also provide assistance with professional development programs and activities.

slide-34
SLIDE 34

#HFMC17

Passive Fire Protection is used to contain

  • r slow the spread of fire through the use
  • f fire rated elements and approved

tested systems to achieve compliance with building codes

Passive Fire Protection

slide-35
SLIDE 35

#HFMC17

Penetrations Sealed with TESTED Systems

β€œThe BCA states in C3.15 and NZBC Section C, you must adequately seal any service penetrations passing through a building element with a Fire Resistance Level (FRL) with respect to integrity or insulation or a resistance to the incipient spread of fire. As compliance with Specification may not be practical for your building, following the Deemed-to-Satisfy Provisions is an adequate measure of compliance.” Compliance can be attained in the form of Tested Systems & Compliance with Specification C3.15. Systems that are identical with a prototype assembly of the service, building element and protection method which has been tested in accordance with AS/NZS 4072.1 and AS/NZS 1530.4 and has achieved the required FRL. Compliance regarding services such as hydraulic, electrical, active fire, mechanical and structural services detailed in the BCA & NZBC.

slide-36
SLIDE 36

#HFMC17

Tested systems have been proven to work

slide-37
SLIDE 37

#HFMC17

slide-38
SLIDE 38

#HFMC17

slide-39
SLIDE 39

#HFMC17

Types of Passive systems

Fire Rated Boards Fire Rated Mortars Intumescent Devices Fire Rated Sealants Vermiculite Coatings Intumescent Paint Rockwool Batts Thermal Ceramic Fibre Wraps

C = THE 𝑄𝑃𝑑𝑃𝑄

Be a large factor in compliance

slide-40
SLIDE 40

#HFMC17

Compliant or Not Compliant?

slide-41
SLIDE 41

#HFMC17

Compliant or Not Compliant?

slide-42
SLIDE 42

#HFMC17

Baseline Data & PFP Registers

β€œLegislation states (AS/NZS 1851-2012 FP-001) that there must be baseline data to accompany any passive fire reports and installations. Baseline Data is the process of registering service penetrations before and after the works have been rectified.”

β–ͺ Maintenance Tags β–ͺ Asset Identification β–ͺ Date Inspected β–ͺ Inspector & Technician Details β–ͺ Fire Resistance Level

slide-43
SLIDE 43

#HFMC17

C = THE 𝑄𝑃𝑑𝑃𝑄

Be a large factor in compliance

slide-44
SLIDE 44

#HFMC17

COMMON FIRE COMPLIANCE ERRORS

Foam Fill (PU Foam): It is often incorrectly assumed that it can be used to fill large voids or service penetrations to provide a compliant seal. In all cases, it can only be used in narrow voids or gaps.

slide-45
SLIDE 45

#HFMC17

Foam Fill (PU Foam) meets the criteria?

slide-46
SLIDE 46

#HFMC17

no no no

slide-47
SLIDE 47

#HFMC17

Fire Collars:

  • they should never be fixed

with nylon anchors.

  • there should not be caulk

covering the intumescent stopping the collar from reacting.

  • collar should never be cut or

altered from its original shape.

slide-48
SLIDE 48

#HFMC17

Mechanical Dampers: Should always be connected to duct work with β€˜break away joints’ as per AS1682.2 allowing the duct to collapse and not get dislodged in the damper within a fire.

slide-49
SLIDE 49

#HFMC17

All cable trays: If passing through a -/120/120 wall or floor must be treated for insulation

slide-50
SLIDE 50

#HFMC17

Structural steel members: The thickness of vermiculite sprays applied to structural steel members and ductwork is in accordance with the tested parameters.

slide-51
SLIDE 51

#HFMC17

slide-52
SLIDE 52

#HFMC17

With thanks to

How Compliant are you? If something goes wrong will you need to…..

C = THE 𝑄𝑃𝑑𝑃𝑄

Be a large factor in compliance
