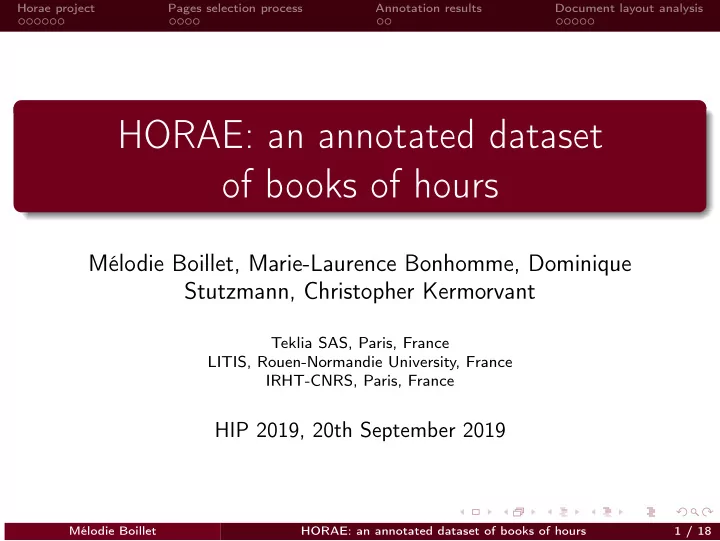

Horae project Pages selection process Annotation results Document layout analysis HORAE: an annotated dataset of books of hours Mlodie Boillet, Marie-Laurence Bonhomme, Dominique Stutzmann, Christopher Kermorvant Teklia SAS, Paris, France

SLIDE 1

Horae project Pages selection process Annotation results Document layout analysis

HORAE: an annotated dataset

f books of hours

Mélodie Boillet, Marie-Laurence Bonhomme, Dominique Stutzmann, Christopher Kermorvant

Teklia SAS, Paris, France LITIS, Rouen-Normandie University, France IRHT-CNRS, Paris, France

HIP 2019, 20th September 2019

Mélodie Boillet HORAE: an annotated dataset of books of hours 1 / 18

SLIDE 2

Horae project Pages selection process Annotation results Document layout analysis

Horae project

Book of hours, the medieval best-seller: more than 10,000 witnesses Personal prayer books, owned by rich laypersons Content:

perpetual calendar of the Church feasts texts for each of the eight canonical hours (payer times) of the day rich illustrations

300 pages, complex organization Surprisingly, no complete transcriptions of books of hours HORAE Project: automatic text recognition and structuration of book

f hours

Mélodie Boillet HORAE: an annotated dataset of books of hours 2 / 18

SLIDE 3

Horae project Pages selection process Annotation results Document layout analysis

Les Très Riches Heures du duc de Berry

Mélodie Boillet HORAE: an annotated dataset of books of hours 3 / 18

SLIDE 4

Horae project Pages selection process Annotation results Document layout analysis

Project overview

Mélodie Boillet HORAE: an annotated dataset of books of hours 4 / 18

SLIDE 5

Horae project Pages selection process Annotation results Document layout analysis

Manuscripts collection

Provider City Manuscripts UGent Gent 1 BVMM ≤ 10 124 Angers 21 Autun 12 Beaune 15 Chantilly 30 Nantes 18 Paris 17 Rennes 23 Toulouse 15 Gallica Paris 183 Harvard Cambridge 32 UBC Vancouver 1 Stanford University Stanford 6 WDL Baltimore 2 Total 500

Mélodie Boillet HORAE: an annotated dataset of books of hours 5 / 18

SLIDE 6

Horae project Pages selection process Annotation results Document layout analysis

Layout examples I

Mélodie Boillet HORAE: an annotated dataset of books of hours 6 / 18

SLIDE 7

Horae project Pages selection process Annotation results Document layout analysis

Layout examples II

Mélodie Boillet HORAE: an annotated dataset of books of hours 7 / 18

SLIDE 8

Horae project Pages selection process Annotation results Document layout analysis

How to select the most representative set of pages ?

✗ Randomly : overrepresentation of the text pages and the large manuscripts; ✓ Selection process.

Mélodie Boillet HORAE: an annotated dataset of books of hours 8 / 18

SLIDE 9

Horae project Pages selection process Annotation results Document layout analysis

Selection process schema

Mélodie Boillet HORAE: an annotated dataset of books of hours 9 / 18

SLIDE 10

Horae project Pages selection process Annotation results Document layout analysis

Selection process schema

Mélodie Boillet HORAE: an annotated dataset of books of hours 9 / 18

SLIDE 11

Horae project Pages selection process Annotation results Document layout analysis

Selection process schema

Mélodie Boillet HORAE: an annotated dataset of books of hours 9 / 18

SLIDE 12

Horae project Pages selection process Annotation results Document layout analysis

Selection process schema

Mélodie Boillet HORAE: an annotated dataset of books of hours 9 / 18

SLIDE 13

Horae project Pages selection process Annotation results Document layout analysis

Selection process schema

Mélodie Boillet HORAE: an annotated dataset of books of hours 9 / 18

SLIDE 14

Horae project Pages selection process Annotation results Document layout analysis

Random selection

Mostly text pages

Mélodie Boillet HORAE: an annotated dataset of books of hours 10 / 18

SLIDE 15

Horae project Pages selection process Annotation results Document layout analysis

Our selection

More illustrations

Mélodie Boillet HORAE: an annotated dataset of books of hours 11 / 18

SLIDE 16

Horae project Pages selection process Annotation results Document layout analysis

Distribution of the annotated elements using Transkribus

Mélodie Boillet HORAE: an annotated dataset of books of hours 12 / 18

SLIDE 17

Horae project Pages selection process Annotation results Document layout analysis

Annotation examples

Mélodie Boillet HORAE: an annotated dataset of books of hours 13 / 18

SLIDE 18

Horae project Pages selection process Annotation results Document layout analysis

Annotation examples

Mélodie Boillet HORAE: an annotated dataset of books of hours 13 / 18

SLIDE 19

Horae project Pages selection process Annotation results Document layout analysis

How many documents to annotate ?

Line and region detection with dhSegment

Training size Task IoU with post-processing 220 Line detection 0.88 Layout analysis 0.71

Mélodie Boillet HORAE: an annotated dataset of books of hours 14 / 18

SLIDE 20

Horae project Pages selection process Annotation results Document layout analysis

How many documents to annotate ?

Line and region detection with dhSegment

Training size Task IoU with post-processing 220 Line detection 0.88 Layout analysis 0.71 510 Line detection 0.88 Layout analysis 0.72

More data not needed with dhSegment model

Mélodie Boillet HORAE: an annotated dataset of books of hours 15 / 18

SLIDE 21

Horae project Pages selection process Annotation results Document layout analysis

Visualization of the predictions I

Mélodie Boillet HORAE: an annotated dataset of books of hours 16 / 18

SLIDE 22

Horae project Pages selection process Annotation results Document layout analysis

Visualization of the predictions II

Mélodie Boillet HORAE: an annotated dataset of books of hours 17 / 18

SLIDE 23

Horae project Pages selection process Annotation results Document layout analysis

Conclusion and future work

Introduction of a new dataset Horae including a large variety of types

f pages;

First reference results for line segmentation and layout analysis; Satisfactory results that can be improved using more complex neural networks. Classification for double-pages → only one class assigned; Ambiguity considering the initials → Inside or outside the text lines; Confusions between the initials; Problem with the post-processing step → Only rectangles are created for now.

Mélodie Boillet HORAE: an annotated dataset of books of hours 18 / 18

SLIDE 24

Horae project Pages selection process Annotation results Document layout analysis

Freely available

https://github.com/oriflamms/HORAE

Mélodie Boillet HORAE: an annotated dataset of books of hours 18 / 18
