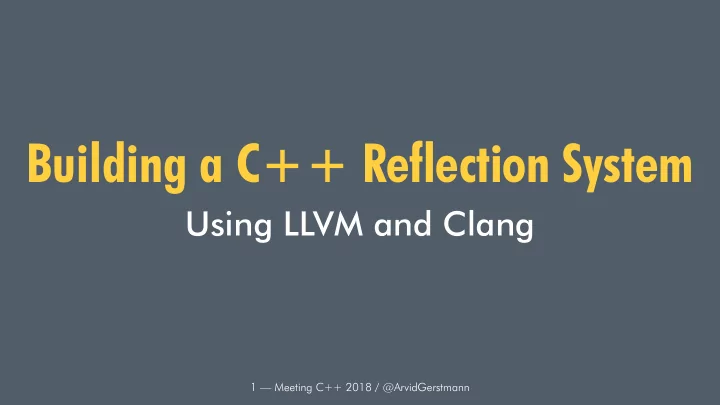

Building a C++ Reflection System

Using LLVM and Clang

1 — Meeting C++ 2018 / @ArvidGerstmann

slide-2
SLIDE 2

Storytime

2 — Meeting C++ 2018 / @ArvidGerstmann

slide-3
SLIDE 3

Wouldn't it be great ...

3 — Meeting C++ 2018 / @ArvidGerstmann

slide-4
SLIDE 4

struct User { uint64_t id; string name; vector<string> pets; }; User user; user.id = 42; user.name = "John"; user.pets.push_back("Buddy"); user.pets.push_back("Cooper"); string json = json::Stringify(&user);

4 — Meeting C++ 2018 / @ArvidGerstmann

slide-5
SLIDE 5

{ "id": 42, "name": "John", "pets": ["Buddy", "Cooper"] }

5 — Meeting C++ 2018 / @ArvidGerstmann

slide-6
SLIDE 6

How do we do this?

6 — Meeting C++ 2018 / @ArvidGerstmann

slide-7
SLIDE 7

string json::Stringify(User const *user) { JsonSerializer serializer; serializer.SerializeInt64("id", user->id); serializer.SerializeString("name", user->name); serializer.BeginArray("pets"); for (auto const &pet : user->pets) serializer.ArrayAddString(pet); serializer.EndArray(); return serializer.ToString(); }

7 — Meeting C++ 2018 / @ArvidGerstmann

slide-8
SLIDE 8

class User { public ulong id; public string name; public List<string> pets = new List<string>(); } User user = new User(); user.id = 42; user.name = "John"; user.pets.Add("Buddy"); user.pets.Add("Cooper"); string json = JsonConvert.SerializeObject(user);

8 — Meeting C++ 2018 / @ArvidGerstmann

slide-9
SLIDE 9

Reflection

9 — Meeting C++ 2018 / @ArvidGerstmann

slide-10
SLIDE 10

Type t = user.GetType();

10 — Meeting C++ 2018 / @ArvidGerstmann

slide-11
SLIDE 11
  • GetField(String, BindingFlags)
  • GetFields(BindingFlags)
  • GetInterface(String, Boolean)
  • GetInterfaces()
  • GetMethodImpl(String, BindingFlags, Binder, CallingConventions, Type[], ParameterModifier[])
  • GetMethods(BindingFlags)
  • GetNestedType(String, BindingFlags)
  • GetNestedTypes(BindingFlags)
  • GetProperties(BindingFlags)
  • GetPropertyImpl(String, BindingFlags, Binder, Type, Type[], ParameterModifier[])
  • HasElementTypeImpl()
  • InvokeMember(String, BindingFlags, Binder, Object, Object[], ParameterModifier[], CultureInfo, String[])
  • IsArrayImpl()
  • IsByRefImpl()
  • IsCOMObjectImpl()
  • IsPointerImpl()
  • IsPrimitiveImpl()

11 — Meeting C++ 2018 / @ArvidGerstmann

slide-12
SLIDE 12
  • GetField(String, BindingFlags)
  • GetFields(BindingFlags)
  • GetInterface(String, Boolean)
  • GetInterfaces()
  • GetMethodImpl(String, BindingFlags, Binder, CallingConventions, Type[], ParameterModifier[])
  • GetMethods(BindingFlags)
  • GetNestedType(String, BindingFlags)
  • GetNestedTypes(BindingFlags)
  • GetProperties(BindingFlags)
  • GetPropertyImpl(String, BindingFlags, Binder, Type, Type[], ParameterModifier[])
  • HasElementTypeImpl()
  • InvokeMember(String, BindingFlags, Binder, Object, Object[], ParameterModifier[], CultureInfo, String[])
  • IsArrayImpl()
  • IsByRefImpl()
  • IsCOMObjectImpl()
  • IsPointerImpl()
  • IsPrimitiveImpl()

12 — Meeting C++ 2018 / @ArvidGerstmann

slide-13
SLIDE 13

Type t = user.GetType(); FieldInfo[] fields = t.GetFields(...); foreach (var field in fields) { Console.WriteLine("Name: {0}", field.Name); Console.WriteLine("Type: {0}", field.FieldType); Console.WriteLine(); }

13 — Meeting C++ 2018 / @ArvidGerstmann

slide-14
SLIDE 14

Name: id Type: System.UInt64 Name: name Type: System.String Name: pets Type: System.Collections.Generic.List`1[System.String]

14 — Meeting C++ 2018 / @ArvidGerstmann

slide-15
SLIDE 15

Back to C++

15 — Meeting C++ 2018 / @ArvidGerstmann

slide-16
SLIDE 16

Class const *c = GetClass<User>(); for (auto &field : c->Fields()) { printf("Name: %s\n", field.Name()); printf("Type: %s\n", field.Type().Name()); printf("\n"); }

16 — Meeting C++ 2018 / @ArvidGerstmann

slide-17
SLIDE 17

Blueprint

17 — Meeting C++ 2018 / @ArvidGerstmann

slide-18
SLIDE 18

struct Type { char const *name; size_t size; };

18 — Meeting C++ 2018 / @ArvidGerstmann

slide-19
SLIDE 19

struct Class : public Type { Field fields[N]; Function functions[N]; };

19 — Meeting C++ 2018 / @ArvidGerstmann

slide-20
SLIDE 20

struct Field { Type *type; char const *name; size_t offset; }; struct Function { Field returnValue; Field parameters[N]; char const *name; };

20 — Meeting C++ 2018 / @ArvidGerstmann

slide-21
SLIDE 21

struct Type { char const *name; size_t size; }; struct Field { Type *type; char const *name; size_t offset; }; struct Function { Field returnValue; Field parameters[N]; char const *name; }; struct Class : public Type { Field fields[N]; Function functions[N]; };

21 — Meeting C++ 2018 / @ArvidGerstmann

slide-22
SLIDE 22

Data?

22 — Meeting C++ 2018 / @ArvidGerstmann

slide-23
SLIDE 23

struct User { uint64_t id; string name; vector<string> pets; };

23 — Meeting C++ 2018 / @ArvidGerstmann

slide-24
SLIDE 24

Class const * GetClass<User>() { static Class clazz; clazz.fields[0].type = GetType<uint64_t>(); clazz.fields[0].name = "id"; clazz.fields[0].offset = offsetof(User, id); clazz.fields[1].type = GetType<string>(); clazz.fields[1].name = "name"; clazz.fields[1].offset = offsetof(User, name); clazz.fields[2].type = GetType<vector<user>>(); clazz.fields[2].name = "pets"; clazz.fields[2].offset = offsetof(User, pets); return &clazz; }

24 — Meeting C++ 2018 / @ArvidGerstmann

slide-25
SLIDE 25

Undefined symbols for architecture x86_64: "Type const* GetType<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >()", referenced from: _main in Untitled 7-0fb8bc.o "Type const* GetType<std::__1::vector<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::allocator<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > > > >()", referenced from: _main in Untitled 7-0fb8bc.o "Type const* GetType<unsigned long long>()", referenced from: _main in Untitled 7-0fb8bc.o ld: symbol(s) not found for architecture x86_64

25 — Meeting C++ 2018 / @ArvidGerstmann

slide-26
SLIDE 26

"Primitive" Types

26 — Meeting C++ 2018 / @ArvidGerstmann

slide-27
SLIDE 27

template<> Type const * GetType<int>() { static Type t{"int", sizeof(int)}; return &t; }

27 — Meeting C++ 2018 / @ArvidGerstmann

slide-28
SLIDE 28

template<class T> Type const * GetType() { return detail::GetTypeImpl(TypeTag<T>{}); } template<class T> Type const * GetTypeImpl(TypeTag<vector<T>>) { /* ... */ }

28 — Meeting C++ 2018 / @ArvidGerstmann

slide-29
SLIDE 29

Class const * GetClassImpl(ClassTag<User>) { static Class clazz; clazz.fields[0].type = GetType<uint64_t>(); clazz.fields[0].name = "id"; clazz.fields[0].offset = offsetof(User, id); clazz.fields[1].type = GetType<string>(); clazz.fields[1].name = "name"; clazz.fields[1].offset = offsetof(User, name); clazz.fields[2].type = GetType<vector<user>>(); clazz.fields[2].name = "pets"; clazz.fields[2].offset = offsetof(User, pets); return &clazz; }

29 — Meeting C++ 2018 / @ArvidGerstmann

slide-30
SLIDE 30

Class const *c = GetClass<User>(); for (auto &field : c->Fields()) { printf("Name: %s\n", field.Name()); printf("Type: %s\n", field.Type().Name()); printf("\n"); }

30 — Meeting C++ 2018 / @ArvidGerstmann

slide-31
SLIDE 31

Name: id Type: uint64_t Name: name Type: std::string Name: pets Type: std::vector<std::string>

31 — Meeting C++ 2018 / @ArvidGerstmann

slide-32
SLIDE 32

LLVM

32 — Meeting C++ 2018 / @ArvidGerstmann

slide-33
SLIDE 33

Clang

33 — Meeting C++ 2018 / @ArvidGerstmann

slide-34
SLIDE 34

LibTooling

34 — Meeting C++ 2018 / @ArvidGerstmann

slide-35
SLIDE 35

How?

35 — Meeting C++ 2018 / @ArvidGerstmann

slide-36
SLIDE 36

Hello, AST

36 — Meeting C++ 2018 / @ArvidGerstmann

slide-37
SLIDE 37

struct Foo { volatile int bar; float baz; };

37 — Meeting C++ 2018 / @ArvidGerstmann

slide-38
SLIDE 38

% clang -Xclang -ast-dump -fsyntax-only foo.h TranslationUnitDecl 0x7ff8b00264d0 <<invalid sloc>> <invalid sloc> `-RecordDecl 0x7f9f2a827120 <foo.h:1:1, line:4:1> line:1:8 struct Foo definition |-FieldDecl 0x7f9f2a877400 <line:2:5, col:18> col:18 bar 'volatile int' `-FieldDecl 0x7f9f2a877460 <line:3:5, col:11> col:11 baz 'float'

38 — Meeting C++ 2018 / @ArvidGerstmann

slide-39
SLIDE 39

libTooling AST Visitor

39 — Meeting C++ 2018 / @ArvidGerstmann

slide-40
SLIDE 40

struct DumpASTAction : public ASTFrontendAction { std::unique_ptr<ASTConsumer> CreateASTConsumer(CompilerInstance &ci, StringRef inFile) override { return clang::CreateASTDumper( nullptr,/* dump to stdout */ "", /* no filter */ true, /* dump decls */ true, /* deserialize */ false /* don't dump lookups */ ); } }; static llvm::cl::OptionCategory gToolCategory("metareflect options"); int main(int argc, char **argv) { CommonOptionsParser optionsParser(argc, argv, gToolCategory); ClangTool tool(optionsParser.getCompilations(), optionsParser.getSourcePathList()); return tool.run(newFrontendActionFactory<DumpASTAction>().get()); } 40 — Meeting C++ 2018 / @ArvidGerstmann

slide-41
SLIDE 41

% ./metareflect foo.h -- -I. $CFLAGS TranslationUnitDecl 0x7ff8b00264d0 <<invalid sloc>> <invalid sloc> `-RecordDecl 0x7f9f2a827120 <foo.h:1:1, line:4:1> line:1:8 struct Foo definition |-FieldDecl 0x7f9f2a877400 <line:2:5, col:18> col:18 bar 'volatile int' `-FieldDecl 0x7f9f2a877460 <line:3:5, col:11> col:11 baz 'float'

41 — Meeting C++ 2018 / @ArvidGerstmann

slide-42
SLIDE 42

#include <stdint.h> #include <vector> #include <string> struct User { uint64_t id; std::string name; std::vector<std::string> pets; };

42 — Meeting C++ 2018 / @ArvidGerstmann

slide-43
SLIDE 43

106320 lines of AST

43 — Meeting C++ 2018 / @ArvidGerstmann

slide-44
SLIDE 44

2370 CXXRecordDecl nodes

44 — Meeting C++ 2018 / @ArvidGerstmann

slide-45
SLIDE 45

1004 FieldDecl nodes

45 — Meeting C++ 2018 / @ArvidGerstmann

slide-46
SLIDE 46

We need a better plan

46 — Meeting C++ 2018 / @ArvidGerstmann

slide-47
SLIDE 47

struct __attribute__((annotate("reflect"))) User { __attribute__((annotate("reflect"))) uint64_t id; __attribute__((annotate("reflect"))) string name; __attribute__((annotate("reflect"))) vector<string> pets; };

47 — Meeting C++ 2018 / @ArvidGerstmann

slide-48
SLIDE 48

#define CLASS() class __attribute__((annotate("reflect-class"))) #define PROPERTY() __attribute__((annotate("reflect-property"))) CLASS() User { public: PROPERTY() uint64_t id; PROPERTY() string name; PROPERTY() vector<string> pets; };

48 — Meeting C++ 2018 / @ArvidGerstmann

slide-49
SLIDE 49

ClassFinder classFinder; MatchFinder finder; DeclarationMatcher classMatcher = cxxRecordDecl(decl().bind("id"), hasAttr(attr::Annotate)); DeclarationMatcher propertyMatcher = fieldDecl(decl().bind("id"), hasAttr(attr::Annotate)); DeclarationMatcher functionMatcher = functionDecl(decl().bind("id"), hasAttr(attr::Annotate)); finder.addMatcher(classMatcher, &classFinder); finder.addMatcher(propertyMatcher, &classFinder); finder.addMatcher(functionMatcher, &classFinder);

49 — Meeting C++ 2018 / @ArvidGerstmann

slide-50
SLIDE 50

struct ClassFinder : public MatchFinder::MatchCallback { virtual void run(MatchFinder::MatchResult const &result); virtual void onStartOfTranslationUnit(); virtual void onEndOfTranslationUnit(); };

50 — Meeting C++ 2018 / @ArvidGerstmann

slide-51
SLIDE 51

virtual void ClassFinder::run(MatchFinder::MatchResult const &result) override { CXXRecordDecl const *record = result.Nodes.getNodeAs<clang::CXXRecordDecl>("id"); if (record) return FoundRecord(record); FieldDecl const *field = result.Nodes.getNodeAs<clang::FieldDecl>("id"); if (field) return FoundField(field); FunctionDecl const *function = result.Nodes.getNodeAs<clang::FunctionDecl>("id"); if (function) return FoundFunction(function); }

51 — Meeting C++ 2018 / @ArvidGerstmann

slide-52
SLIDE 52

void ClassFinder::FoundRecord(CXXRecordDecl const *record) { record->dump(); } void ClassFinder::FoundField(FieldDecl const *field) { field->dump(); } void ClassFinder::FoundFunction(FunctionDecl const *function) { function->dump(); }

52 — Meeting C++ 2018 / @ArvidGerstmann

slide-53
SLIDE 53

int main(int argc char **argv) { /* ... */ return tool.run(newFrontendActionFactory(&finder).get()); }

53 — Meeting C++ 2018 / @ArvidGerstmann

slide-54
SLIDE 54 CXXRecordDecl 0x7fcda1bae7e0 <./metareflect.hxx:19:24, test.hxx:130:1> line:115:9 class User definition |-DefinitionData aggregate standard_layout | |-DefaultConstructor exists non_trivial needs_implicit | |-CopyConstructor simple non_trivial has_const_param needs_overload_resolution implicit_has_const_param | |-MoveConstructor exists simple non_trivial needs_overload_resolution | |-CopyAssignment non_trivial has_const_param needs_implicit implicit_has_const_param | |-MoveAssignment exists simple non_trivial needs_overload_resolution | `-Destructor simple non_trivial needs_overload_resolution |-AnnotateAttr 0x7fcda1bae908 <./metareflect.hxx:19:45, col:83> "reflect-class;" |-CXXRecordDecl 0x7fcda1bae960 <col:24, test.hxx:115:9> col:9 implicit class User |-AccessSpecDecl 0x7fcda1bae9f8 <line:118:1, col:7> col:1 public |-FieldDecl 0x7fcda1baea80 <./metareflect.hxx:21:27, test.hxx:121:14> col:14 id 'uint64_t':'unsigned long long' | `-AnnotateAttr 0x7fcda1baeac8 <./metareflect.hxx:21:42, col:83> "reflect-property;Serialized" |-FieldDecl 0x7fcda1baebb0 <col:27, test.hxx:125:12> col:12 name 'string':'std::__1::basic_string<char>' | `-AnnotateAttr 0x7fcda1baebf8 <./metareflect.hxx:21:42, col:83> "reflect-property;Serialized" |-FieldDecl 0x7fcda227a228 <col:27, test.hxx:129:20> col:20 pets 'vector<string>':'std::__1::vector<std::__1::basic_string<char>, std::__1::allocator<std::__1::basic_string<char> > >' | `-AnnotateAttr 0x7fcda227a270 <./metareflect.hxx:21:42, col:83> "reflect-property;Serialized" |-CXXConstructorDecl 0x7fcda227a328 <test.hxx:115:9> col:9 implicit User 'void (const User &)' inline default noexcept-unevaluated 0x7fcda227a328 | `-ParmVarDecl 0x7fcda227a460 <col:9> col:9 'const User &' |-CXXConstructorDecl 0x7fcda227a4f8 <col:9> col:9 implicit User 'void (User &&)' inline default noexcept-unevaluated 0x7fcda227a4f8 | `-ParmVarDecl 0x7fcda227a630 <col:9> col:9 'User &&' |-CXXMethodDecl 0x7fcda227a6c8 <col:9> col:9 implicit operator= 'User &(User &&)' inline default noexcept-unevaluated 0x7fcda227a6c8 | `-ParmVarDecl 0x7fcda227a7f0 <col:9> col:9 'User &&' `-CXXDestructorDecl 0x7fcda227a878 <col:9> col:9 implicit ~User 'void ()' inline default noexcept-unevaluated 0x7fcda227a878 FieldDecl 0x7fcda1baea80 <./metareflect.hxx:21:27, test.hxx:121:14> col:14 id 'uint64_t':'unsigned long long' `-AnnotateAttr 0x7fcda1baeac8 <./metareflect.hxx:21:42, col:83> "reflect-property;Serialized" FieldDecl 0x7fcda1baebb0 <./metareflect.hxx:21:27, test.hxx:125:12> col:12 name 'string':'std::__1::basic_string<char>' `-AnnotateAttr 0x7fcda1baebf8 <./metareflect.hxx:21:42, col:83> "reflect-property;Serialized" FieldDecl 0x7fcda227a228 <./metareflect.hxx:21:27, test.hxx:129:20> col:20 pets 'vector<string>':'std::__1::vector<std::__1::basic_string<char>, std::__1::allocator<std::__1::basic_string<char> > >' `-AnnotateAttr 0x7fcda227a270 <./metareflect.hxx:21:42, col:83> "reflect-property;Serialized"

54 — Meeting C++ 2018 / @ArvidGerstmann

slide-55
SLIDE 55

void ClassFinder::FoundRecord(CXXRecordDecl const *record) { m_fileName = m_sourceman->getFilename(record->getLocation()); m_fileName.erase(m_fileName.end() - 4, m_fileName.end()); m_fileName.append(".generated.hxx"); m_classes.emplace_back(ReflectedClass(record)); } void ClassFinder::FoundField(FieldDecl const *field) { m_classes.back().AddField(field); } void ClassFinder::FoundFunction(FunctionDecl const *function) { m_classes.back().AddFunction(function); }

55 — Meeting C++ 2018 / @ArvidGerstmann

slide-56
SLIDE 56

virtual void ClassFinder::onEndOfTranslationUnit() override { std::error_code ec; raw_fd_ostream os(m_fileName, ec); assert(!ec && "error opening file"); for (auto &ref : m_classes) ref.Generate(m_context, os); m_classes.clear(); }

56 — Meeting C++ 2018 / @ArvidGerstmann

slide-57
SLIDE 57

Code Generation

57 — Meeting C++ 2018 / @ArvidGerstmann

slide-58
SLIDE 58

void ReflectedClass::Generate(ASTContext *ctx, raw_ostream &os) { /* ... */

  • s << "template<>\n"

<< "Class const *\n" << "detail::GetClassImpl(ClassTag<" << type << ">)\n" << "{\n" << "static Class c;\n"; FieldGenerator fieldGenerator(ctx, type); for (size_t i = 0, n = m_fields.size(); i < n; ++i) fieldGenerator.Generate(m_fields[i], i, os);

  • s << "}\n";

}

58 — Meeting C++ 2018 / @ArvidGerstmann

slide-59
SLIDE 59

void FieldGenerator::Generate(FieldDecl const *field, size_t i, raw_ostream &os) {

  • s << "c.fields[" << i << "].type = "

<< typeName << ";\n";

  • s << "c.fields[" << i << "].name = "

<< fieldName << ";\n";

  • s << "c.fields[" << i << "].offset = "

<< "offsetof(" << typeName << ", " << fieldName << ");\n"; }

59 — Meeting C++ 2018 / @ArvidGerstmann

slide-60
SLIDE 60

Demo

60 — Meeting C++ 2018 / @ArvidGerstmann

slide-61
SLIDE 61

Future

61 — Meeting C++ 2018 / @ArvidGerstmann

slide-62
SLIDE 62

Thank You

62 — Meeting C++ 2018 / @ArvidGerstmann

slide-63
SLIDE 63

Links

→Working implementation: github.com/leandros/metareflect →Twitter: twitter.com/ArvidGerstmann →My Blog: arvid.io

63 — Meeting C++ 2018 / @ArvidGerstmann

slide-64
SLIDE 64

Bonus

64 — Meeting C++ 2018 / @ArvidGerstmann

slide-65
SLIDE 65

Class Storage

class Class { /* ... */ protected: Class *m_baseClass; Field *m_fields; Field *m_fieldsEnd; Function *m_functions; Function *m_functionsEnd; char const *m_name; size_t m_flags; };

65 — Meeting C++ 2018 / @ArvidGerstmann

slide-66
SLIDE 66

Class Storage

template<class Type, size_t NFields, size_t NFunctions, size_t NTemplateArgs> struct ClassStorage { template<class Lambda> ClassStorage(Lambda &&ctor) noexcept { ctor(this); } size_t const numFields = NFields; size_t const numFunctions = NFunctions; size_t const numTemplateArgs = NTemplateArgs; Field fields[NFields + 1]; Function functions[NFunctions + 1]; TemplateArgument templateArgs[NTemplateArgs + 1]; };

66 — Meeting C++ 2018 / @ArvidGerstmann

slide-67
SLIDE 67

LLVM Setup

  • 1. Clone LLVM

$ git clone https://git.llvm.org/git/llvm.git/ llvm

  • 2. Clone clang into '$LLVM/tools/'

$ cd llvm/tools $ git clone https://git.llvm.org/git/clang.git/

  • 3. Clone clang-extra-tools into '$LLVM/tools/clang/tools/extra'

$ cd clang/tools $ git clone https://git.llvm.org/git/clang-tools-extra.git/ extra

  • 4. Add your project project

$ mkdir yourproject $ touch yourproject/CMakeLists.txt $ echo "add_subdirectory(yourproject)" >> extra/CMakeLists.txt

  • 5. Generate the project using CMake

$ cmake -G"Ninja"

67 — Meeting C++ 2018 / @ArvidGerstmann

slide-68
SLIDE 68

Annotations

#define CLASS(...) class __attribute__((annotate("reflect-class;" #__VA_ARGS__))) #define UNION(...) union __attribute__((annotate("reflect-class;" #__VA_ARGS__))) #define PROPERTY(...) __attribute__((annotate("reflect-property;" #__VA_ARGS__))) #define FUNCTION(...) __attribute__((annotate("reflect-function;" #__VA_ARGS__))) CLASS(Serialized) User { PROPERTY(Serialized) uint64_t id; PROPERTY(Serialized) string name; PROPERTY(Serialized) vector<string> pets; }; 68 — Meeting C++ 2018 / @ArvidGerstmann
