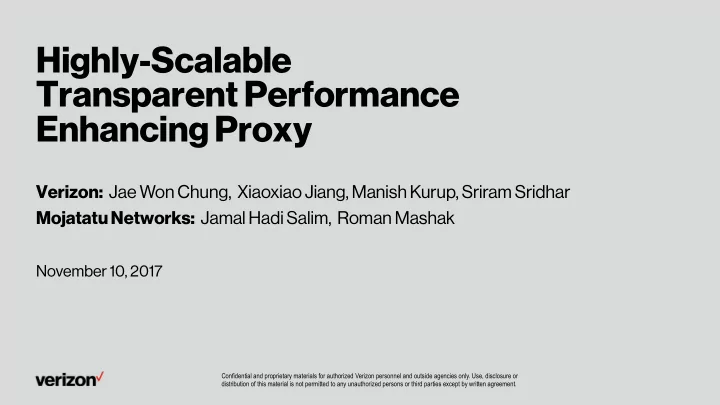

Highly-Scalable Transparent Performance Enhancing Proxy Verizon: Jae Won Chung, Xiaoxiao Jiang, Manish Kurup, Sriram Sridhar Mojatatu Networks: Jamal Hadi Salim, Roman Mashak November 10, 2017 Confidential and proprietary materials for


slide-1
SLIDE 1

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

Highly-Scalable Transparent Performance Enhancing Proxy

Verizon: Jae Won Chung, Xiaoxiao Jiang, Manish Kurup, Sriram Sridhar Mojatatu Networks: Jamal Hadi Salim, Roman Mashak

November 10, 2017

slide-2
SLIDE 2

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

Improve end-to-end TCP performance over a wireless network. TCP congestion avoidance algorithms widely used today are designed for wired networks, and may not work well on wireless environment. New TCP congestion avoidance algorithms that may work well on wireless environments are proposed, but require thorough evaluation to be widely adopted in the Internet. PEP can bridge two different TCP congestion avoidance algorithms; one suitable for wireless and another for wired network.

2

Performance Enhanced Proxy (PEP)

slide-3
SLIDE 3

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

Technical Challenges Fast time-to-market Fast adaptation to emerging technology Reduce software maintenance headache Attractive Potential Solution Transparent PEP using

  • Open source TCP proxy
  • Linux TCP and networking stack
  • Existing / new / home-grown TCP Congestion Avoidance Module

3

PEP Service Implementation

slide-4
SLIDE 4

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

PEP Design & Evaluation

4

slide-5
SLIDE 5

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement. 5

PEP Service PoC Setup

  • Ixia: Client and Server
  • x86 Blade with HAProxy: Transparent PEP
  • HAProxy: 20 processes

Architecture x86_64 Number of Socket 2 Cores per Socket 14 Thread per Core 2 Model Name Intel Xeon E5-2648L@1.80GHz NIC Intel XL710 40GbE Kernel Linux 4.11.0

slide-6
SLIDE 6

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

Maximize Parallel Processing Pining packets from a pair of proxy flows to the same CPU core using receive side scaling (RSS) Minimize Memory Access across the NUMA boundary Reduce interrupts and context switches Running all HAProxy instances on the same NUMA node responsible for the NIC PCI management Containers Simplify transparent proxy routing and the service orchestration

6

Design Principles

slide-7
SLIDE 7

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

Host Network VLAN for differentiating client-side and server-side traffic TC Mirred action redirect packets based on VLAN TC VLAN action strips and adds back the VLAN Network Container Default routing to client-side veth HAProxy binds the server-side connection to the server-side veth All incoming traffic is routed to loopback device via table 100

7

Transparent PEP Overview

slide-8
SLIDE 8

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

NO-NF Kernel without Netfilter NF-NO-IPT Kernel with Netfilter but no iptables rule NF-IPT Kernel with iptables rule using TPROXY Target for NAT

8

System Test Scenario

System Scenarios Netfilter Iptables Rule Proxy Listen Port NO-NF Disable None 80 NF-NO-IPT Enable None 80 NF-IPT Enable TPROXY Target 1234

slide-9
SLIDE 9

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement. 9

Performance Tuning Options

NIC RSS Distributing traffic among multiple receiving queues (28 in our experiments) Symmetrical RSS can be achieved by configuring the hash key in NIC Splicing Two sockets can be spliced inside kernel instead of sending traffic to the user-space proxy. Proxy Mode (TCP/HTTP) HTTP proxy has additional cost of parsing HTTP request/response Proxy-NUMA Binding Binding HAProxy processes to the cores within the same NUMA that manages the NIC PCI

slide-10
SLIDE 10

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

Baseline Bottleneck

10

slide-11
SLIDE 11

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

Baseline Environment with container and TC 128 TC graphs, 12 RSS queues, mqprio qdisc, netdev_budge_usece=4000 Qualified Metrics Packets per Second (PPS) and Average Latency Identified Bottlenecks A transmit lock in the prio qdisc when contended by multiple cores A TC action context and statistics update lock in the VLAN action Bottlenecks Elimination Using mqprio qdisc and modifying the TC VLAN action to use the Read Copy Update (RCU) mechanism, instead of a spinlock.

11

Baseline Performance

slide-12
SLIDE 12

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement. 12

Results after Bottleneck Removal

Packet Size (B) Rx PPS Tx PPS Rx Mbps Tx Mbps Rx Avg. Latency Tx Avg. Latency 78 10M 6.8M 6,240 4,261 873 873 256 8.9M 7.7M 18,285 15,736 883 883 800 3M 3M 19,417 19,417 34 34 900 2.7M 2.7M 19,483 19,483 97 190 1500 1.6M 1.6M 19,680 19,680 105 106

slide-13
SLIDE 13

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

Results

13

slide-14
SLIDE 14

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement. 14

Impact of Netfilter and IPTables

97k, 94k, 93k

slide-15
SLIDE 15

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement. 15

Impact of Proxy – NUMA Binding

97k vs. 83k (Δ: 14%)

slide-16
SLIDE 16

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement. 16

Impact of RSS – Symmetric vs. Asymmetric

97k vs. 95k (Δ: 2%)

slide-17
SLIDE 17

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement. 17

Impact of Splicing

97k vs. 94k (Δ: 3%)

slide-18
SLIDE 18

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement. 18

Impact from Proxy Mode

97k vs. 74k (Δ: 23.7%)

slide-19
SLIDE 19

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

Conclusions

19

slide-20
SLIDE 20

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

Build a Highly Scalable Transparent PEP on Linux Using open-sourced HAProxy Simple but efficient Our transparent PEP Achieved Closed to 100K TPS Netfilter is disabled With 14 core CPUs, Hyper-Thread (28 RSS Queues) 8K object size Evaluates Major Performance Tuning Design Symmetric RSS, Splicing, Process-NUMA Binding, TCP/HTTP Proxy Mode

20

Conclusions

slide-21
SLIDE 21

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

Evaluate transparent PEP performance on more realistic traffic models TC scaling as a tool for containerized service orchestration XDP scaling as a mean to enforce service bypass rules

21

Future Work

slide-22
SLIDE 22

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement.

Thanks to our colleagues for providing insight and expertise that assisted this project.

Damascene Joachimpillai Mark Richardson Anh Quach Rekha Sundararajan

22

Acknowledgement

slide-23
SLIDE 23

Thank you.

Confidential and proprietary materials for authorized Verizon personnel and outside agencies only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by written agreement. 23
