MySQL Proxy meets: binlogs Jan Kneschke MySQL Enterprise Tools mailto: jan@mysql.com What is MySQL Proxy Started Feb 2007 Current: MySQL Proxy 0.7.0 Source available on launchpad.net $ bzr branch lp:mysql-proxy Foundation of

slide-1
SLIDE 1

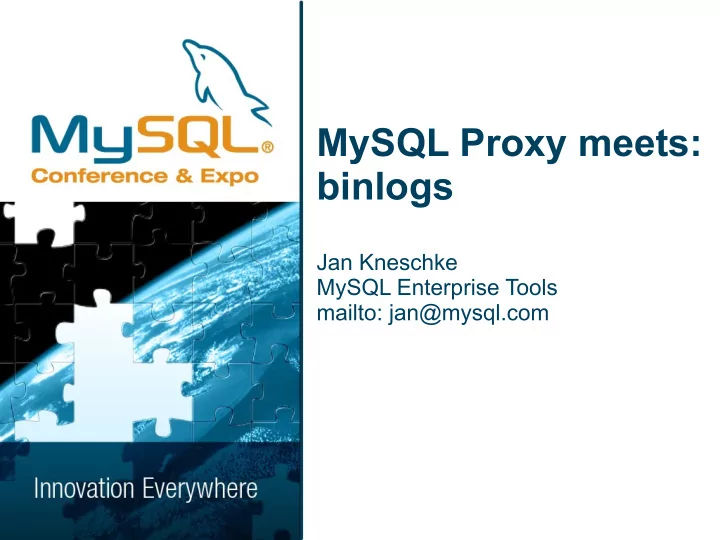

MySQL Proxy meets: binlogs

Jan Kneschke MySQL Enterprise Tools mailto: jan@mysql.com

slide-2
SLIDE 2

What is MySQL Proxy

  • Started Feb 2007
  • Current: MySQL Proxy 0.7.0
  • Source available on launchpad.net

$ bzr branch lp:mysql-proxy

  • Foundation of the MEM 2.0 Agent
  • Fully support for MySQL Enterprise

Customers

  • 2 (+ 1) Developers, 1 QA
slide-3
SLIDE 3

What MySQL Proxy really is

MySQL Proxy Lua Scripting layer Proxy Plugin Admin Plugin Network Core (libmysql-proxy)

libmysql

  • chassis libevent libmysql
  • proto

liblua

slide-4
SLIDE 4

The pieces - chassis

  • Command Line Interface
  • Config-File support
  • Logging (event-log, syslog, stderr, logfiles)
  • Plugin Loading
slide-5
SLIDE 5

The pieces – libmysql-proxy

  • Protocol live-cycle (auth, old-auth, query)
  • Provides the plugin hooks
  • Global Lua scope
  • Network interface
  • MySQL Protocol encoding/decoding
  • libmysql-proto
slide-6
SLIDE 6

Protocols

  • Protocols are stacked

( Looks nice, but isn't )

  • MySQL Client Protocol
  • Binary Logs
  • MyISAM Row Format for RBR
slide-7
SLIDE 7

Proof of Concept

  • mysql-binlog-dump
  • Dumps binlogs
  • First implementation of RBR decoding
  • mysql-myisam-dump
  • Decodes .frm and .myd files
  • Uncoveres “screens”
slide-8
SLIDE 8

Lua iterator for binlogs

  • Expose binlog events into lua
  • Reading and writing

local binlog = require(“mysql.binlog”) local f = binlog.open(“jan-binlog.log”) for event in f:next() do if event.type == “QUERY_EVENT” then print(event.query.query) end end

slide-9
SLIDE 9

Filtering

  • Filter statements from a binlog
  • Remove or rewrite Queries

INSERT INTO answers VALUES ( 42, “the Answer” ) UPDATE answers SET answer = “Thanks for the Fish” WHERE id = 2 ALTER TABLE answers ADD INDEX (answer); DROP TABLE answers;

slide-10
SLIDE 10

Merging binlogs

  • independent Masters like shards
  • Merge on timestamp
slide-11
SLIDE 11

Druckbetankung

  • Use RBR to push data into a server
  • RBR is already in the native format
  • mysql-data-source
  • Convert input data to a live RBR-binlog-

stream

  • mysqld
  • CHANGE MASTER TO … our data-source
  • START SLAVE
slide-12
SLIDE 12

Slave Accelerator

  • Problem: Replication is synchronized,

single thread

  • Solution: move replication out of the slave
  • Don't pull, push
  • Parallel connections
slide-13
SLIDE 13

mysql-slave-accel

  • Read data from master
  • Maintain slave-state centrally
  • Rules to detect if data is independent
  • e.g. one connection per schema
  • Works transparently for SBR, tricky for RBR
slide-14
SLIDE 14

Master Failover - Classic

  • Master on stand-by
  • On failure, CHANGE MASTER on all slaves
  • Promote the best slave
slide-15
SLIDE 15

Automatic Master Failover

slide-16
SLIDE 16

mysql-master-failover

  • Track active and passive master
  • Only forward data received from both

masters

  • Track matching binlog-file and -position
  • Active dies
  • Trigger switch over
  • Slaves get a continuos binlog stream
  • States
  • Synched, Single, Out-of-Sync
slide-17
SLIDE 17

Thanks

  • Code is on launchpad.net
  • http://launchpad.net/mysql-proxy/
  • Questions to: jan@mysql.com
  • BoF
  • MySQL Proxy: What's Started, What's

Done and What's Next?" Tue 20:30
