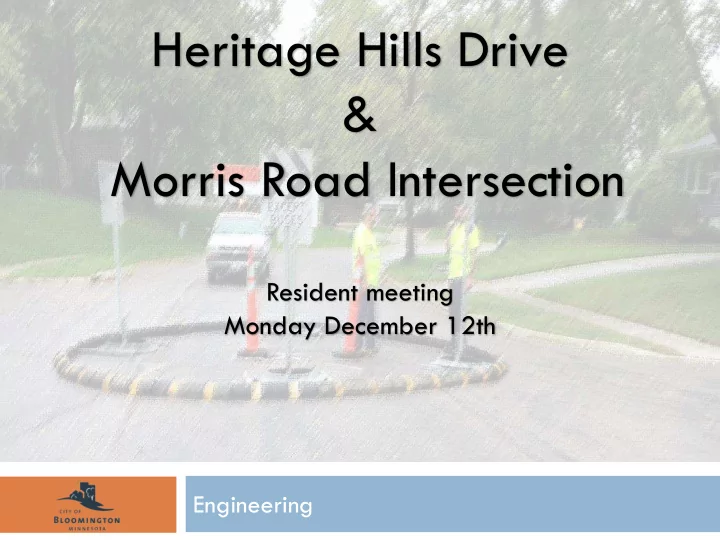

SLIDE 1
Heritage Hills Drive & Morris Road Intersection
Resident meeting Monday December 12th
Engineering
Existing Conditions
Crash Data and Resident Calls
Heritage Hills Drive & Morris Road Intersection Resident - - PowerPoint PPT Presentation
Heritage Hills Drive & Morris Road Intersection Resident - - PowerPoint PPT Presentation
Heritage Hills Drive & Morris Road Intersection Resident meeting Monday December 12th Engineering Existing Conditions Crash Data and Resident Calls Project Goals Crash Reduction - Clarify Assignment of Vehicle Right of Way Speeds -
SLIDE 2
SLIDE 3
Project Goals
Crash Reduction - Clarify Assignment of Vehicle Right
- f Way
Speeds - Maintain or Reduce Vehicle Speeds on Heritage Hills Drive Pedestrian Safety - Improve Pedestrian Guidance and Visibility
SLIDE 4
Temporary Traffic Circle
Device Trial
- Installed September 22
- Removed November 14
- Initial diameter 20’
- Modified diameter 18’
- Center median’s added
- Curb bulb outs with cones
SLIDE 5
Before and After Traffic Data
SLIDE 6
Resident Opinion Survey
65% 35%
#1 Do you think there was a safety concern at the intersection before the trial device was installed
Yes No
31% 45% 24%
#2 Do you feel the traffic circle made this intersection feel safer or more dangerous?
Safer More Dangerous No Change
SLIDE 7
Resident Opinion Survey (cont.)
59% 4% 37%
#3 Do you feel the traffic circle affected vehicle speeds?
Reduced Speed Increased Speed No Change
18% 25% 57%
#4 Do you feel the traffic circle affected pedestrian safety at the intersection?
Safer More Dangerous No Change
SLIDE 8
Project Goals and Evaluation of Trial Device
Crash Reduction - Clarify Assignment of Vehicle Right
- f Way
Speeds - Maintain or Reduce Vehicle Speeds on Heritage Hills Drive Pedestrian Safety - Improve Pedestrian Guidance and Visibility
SLIDE 9
Options Considered
Option 1: Traffic Circle Option 2: Yield Control
Johnson Avenue
SLIDE 10
Options Considered
Option 3: Ped Crossing Option 4: Curb Bump Outs
Johnson Avenue
SLIDE 11
Options Considered
Option 1 Option 2 Option 3 Option 4
Johnson Avenue Crash Reduction Speed Reduction Pedestrian Safety Yield Control Ped Crossing Curb Bump Outs Traffic Circle
SLIDE 12
Preferred Option
SLIDE 13
Questions
Separate discussions with property owners adjacent
to curb realignment
Implementation in 2017 PMP Overlay – no
assessment
???
Johnson Avenue
SLIDE 14
Curb Bump Out Example
SLIDE 15
