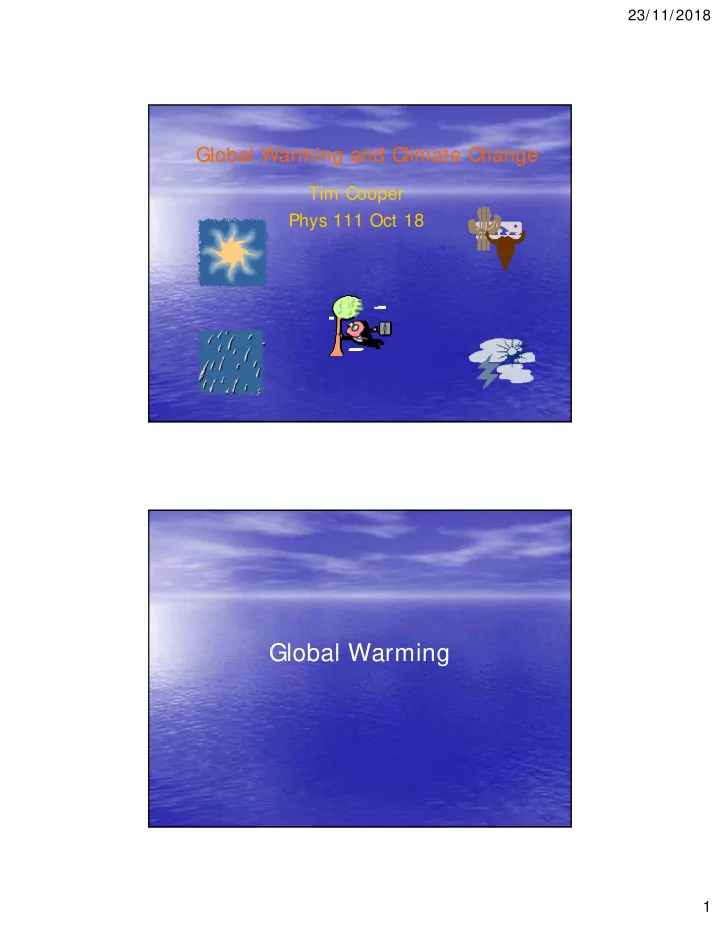

23/11/2018 1

Global Warming and Climate Change

Tim Cooper Phys 111 Oct 18

Global Warming

23/11/2018 2

Satellites measure

• Heat from Sun to Earth
• Heat from Earth to Space
• -Subtract = > Global Warming

23/11/2018 3

Nasa Data: Note Flow of Heat from Oceans to Atmosphere (La Nina and El Nino… every few years)

Global Warming Ended in 1998!

23/11/2018 4

Up to 2016 2017 …. A tad below 2016 so far Including 2017

23/11/2018 5

Climate Change

Why the poles are cold

23/11/2018 6

The Earth’s climate/weather system is a heat engine!

23/11/2018 7

Effect of Rotation (Coriolis force)

Ice and Snow

Ice reflects 90% of light energy Water Absorbs 90% of light energy

Hotter = > ice becomes water = > less sunlight reflected = > hotter Earth A positive feedback

23/11/2018 8

23/11/2018 9

So Pole Warms more than equator As we lower the temperature difference, The “heat engine” falters and slows. Cells become less stable Jet Stream wanders more(“Polar Vortex”) Weather patterns move more slowly

Weather patterns stick in one place longer Droughts and Floods

Calgary AB, 2013

23/11/2018 10

Was the flooding in Calgary caused by global warming?

Pause for dramatic effect, and possibly an answer

99% Yes

Hansen’s Analysis

Science and History

23/11/2018 11

All countries’ scientific councils

• Agree on three points
• The planet is warming
• We are causing it
• It is very, very dangerous

… is this a proof???

Rigg’s Glacier: Muir Inlet. Alaska’s Glacial Bay Nat. Pk; (1941.. 70m feet thick)

23/11/2018 12

Rigg’s Glacier in 2004

But is it a proof? Scientists are split on Global Warming? But is that a proof?

23/11/2018 13

1824: Joseph Fourier Calculated Earth’s temp to be -18C Experiment = > average of + 14C Fourier Deduced… The Earth received energy from the Sun.

5500oC 14oC

Something in the air is blocking heat escape!

23/11/2018 14

John Tyndall measures the heat absorbing properties

• f carbon dioxide

1859

1896 Arrhenius:

Doubling carbon dioxide levels in the earth’s atmosphere (290ppm- > 580ppm)would raise global temperatures 5-6C Consistent with today’s calculations! Included ice and water vapour feedbacks

23/11/2018 15

A tale of two planets…. Venus, 460C Earth 14C Moon, -18C V . Moon, 7C

For the last 1000 years

403ppm in Feb 29 2016 408.5 ppm May 2nd 2017 411 ppm in June 2018

23/11/2018 16

Where did the Carbon Dioxide come from?

Anthropogenic Greenhouse Effect Coal (electricity) Oil (transportation) And Natural Gas

23/11/2018 17

Carbon Dioxide Flows (2005-2014) Total: Human activity = > 10.8 GT Carbon (9.9 GT Fossil Fuels and Cement, 0.9 GT Deforest.) Oceans absorb 2.8 GT Land plants absorb 3.3 GT Atmosphere accumulates 4.8GT

Ice Ages and Carbon Dioxide

Humans appeared 200 Thousand years ago Civilisation started 10kya, in the Holocene

23/11/2018 18

The last time CO2 was 400ppm : 3MYA, the Pliocene Looking ahead by looking back… Carbon Dioxide increasing 200x faster than in history

23/11/2018 19

Looking Ahead

Pliocene(3MYA): 400ppm Carbon Dioxide Sea level was about 15-25m higher (and the temperature 2-3C warmer) Why are London, NY, Shanghai and Chilliwack still here?

The Earth is not in radiative equilibrium. Just give it time… it will get there.

Current sea level rise about 3mm/year, so 25m/(3mm/year)= 8000 years. Or feedbacks and/or new emissions speed it up Hanson recently pointed out the oceans in the past have never taken more than 200 years to respond.. So Chwk?

23/11/2018 20

The State of the Art in Modeling the Climate (2005)

Global Climate Models

Carbon Dioxide Effect vs data

23/11/2018 21

Aerosols (aka Smogs)

Aerosols vs data

23/11/2018 22

All factors vs data

https://www.bloomberg.com/graphics/2015-whats-warming-the-world/

Carbon Dioxide isn’t the only problem Methane traps heat too!

Carbon Dioxide, half life of hundreds of years Methane (natural gas), half life of 10 years (increasing). Over 100 years, one kg of methane traps 33 times one kg of carbon dioxide. But over 20 years, it is 84 times Methane from Fracking= > 3-5% escape. So… actually worse than coal for < 100yrs About 23% of the warming so far from Methane

23/11/2018 23

Land warms more than water (hence IPPC preds look smaller) So with present government policies..

… actually we now expect by 2060 

Why so Hot??? After 2C…

• Water Vapour Feedback
• Ice/Snow feedback
• Carbon dioxide in oceans feedback
• Soil Warming feedback
• Tundra Melting feedback(not in models)
• Not included: Methane Hydrates, 3rd world meat,

23/11/2018 24 Water Vapour….an almost 50% effect! Earth’s atmosphere contains 4-5% more water vapour than before we burned fossil fuels! It traps heat.

Carbon Dioxide from Oceans Feedback

23/11/2018 25

Carbon Dioxide from Oceans Feedback The Holocene; we should be going icy!

23/11/2018 26

Numbers in GT or GT/yr.

Note: Ocean Acidification Soil Warming

Plant Respiration and Soil Activity Fridge or Table???

23/11/2018 27

Permafrost melting = > decay = > Methane/CO2

1672 GTonnes of Carbon: note the compost effect Could triple the Carbon in the atmosphere! Composting!!!

Food Supply

• Fraser Valley dryer summers
• Bigger freshets (30% says Vanc)
• Californian food to be clobbered as

glaciers gone from mountains

• India (25% food loss at 2C)
• China (35% food loss at 2C)
• Spain, Italy, Australia…. All deserts

23/11/2018 28

Does this have to happen? Politics 

23/11/2018 29

The planet’s Top Climate Scientist Says if the Tar sands are fully developed it is ‘game-

• ver’ for the climate; a 40%

increase in CO2 The BC government is subsidising LNG facilities up north(900k EV), the Federal government is supporting Dilbit pipeline extension to fully develop the tar sands.

Does this have to happen?

A recent IMF report estimates that Canada subsidises fossil fuels by $34 Billion per year. $1 Billion Direct Federal Support ($1.3?) $5 Billion Direct Federal and Provincial Support $28 Billion in Indirect Subsidies . http://www.imf.org/external/np/fad/subsidies/

23/11/2018 30

Climate Action Network Europe calculates… Feb 2015

23/11/2018 31

What SHOULD N-America be doing?

Only 15% of Canada’s Carbon Dioxide emissions come From you and me! So…. 85% from industry. To influence industry requires an incentive….. Literally one days work for the feds

23/11/2018 32

Tweaking the Tax System! Use a Pigouvian system

• Tax people when they do bad

(sin taxes)

• Don’t tax them when they do good

(create jobs, serve the public) So reduce business and income taxes, and Start taxing pollution...i.e. a carbon tax

Millio ns of 1995$ Cumula tive GDP Loss Change from prior period Change/ year GDP (1997$) Impact per year as %

• f GDP

2010 4,773

• 4,773
• 1,193

1,326,000

• 0.090%

2015 4,889

• 116
• 23

1,464,011

• 0.002%

2020 4,551 + 338 + 68 1,616,387 + 0.004% 2030 3,829 + 722 + 72 1,970,366 + 0.004%

The Fed. Cons said a carbon tax will ruin the economy Canada’s economic community (M. Jaccard) say: For $50 per tonne of carbon dioxide equivalent (BC carbon tax frozen at $35 per tonne)

23/11/2018 33

Can we substitute for Fossil Fuels?

Top priority, eliminate burning coal for electricity

23/11/2018 34

Photo-Voltaic Panels… work on the ground too Solar Energy Progress up to 2015 UAE contract for 2.5c/kWhr! (cite C… 8c/kWhr) (China 2017 50GW)

23/11/2018 35

Generate Electricity From Wind! 7 Megawatt Turbine In Germany Cost about the Same as coal (4c/kWhr) BUT Cheaper overall!! (40,000/yr dead from coal in US) June ‘16. Mexico. 3c/kWhr

Cost of Wind Energy

23/11/2018 36

Global New Energy Generation Installed in 2015 70% renewable for 2017! During 2017 China added 50GW of PV

Global New Energy Generation 2016

23/11/2018 37

In 2015, Denmark generated 42% of its electricity From wind/solar (mostly wind). It will increase This in the future. 31/3/16: Holland has passed a law to ban all sales of gasoline or diesel powered cars by 2025. India by 2027(ish)

California 100% renewable by 2050

California could meet its energy needs with renewables alone, according to Stanford University researchers. The authors of a recent study say a transition scenario is economically as well as technically feasible.

http://www.dw.de/100-percent-renewable- energy-scenario-for-california/a- 17808841?maca= en-rss-en-all-1573-rdf

23/11/2018 38

• The same group also say…
• After measuring Canada's clean-energy

resources, the Stanford team says Canada can reach this goal through the following breakdown:

• 58 per cent wind.
• 22 per cent solar.
• 16 per cent hydro.
• Two per cent wave.
• Two per cent geothermal.

JOBS

There were 23,700 people directly employed by the clean energy industry in 2013, compared to 22,340 jobs in the

• ilsands, the report found. Those green jobs include people

employed in clean power production, energy efficiency, biofuels and manufacturing of green energy technologies. Clean Energy Canada, 2014.

McDonalds Canada employs 80,000 Kinder Morgan Pipeline.. About 80 permanent jobs 2017 : N. America wide now more jobs in solar than oil, coal & gas combined!

23/11/2018 39

Or (Gen III or IV) Nuclear Energy Or geothermal, tidal, hydro…. Next priority; Stop using Oil! Canada has signed an internation agreement to stop subsidizing oil….but…

23/11/2018 40

Nissan Leaf – 160km range ‘full tank’ about $2 $18k-$22k in Chwk for 2 year old El Cheapo and his car Tesla 3 or Chevy Bolt, Huyndai Kona 4-500km Why Electric Vehicles get cheaper… Britain, France, Germany, Norway, the Netherlands, Scotland and China have all announced they will eventually prohibit the sale of gas- and diesel- fuelled vehicles.

23/11/2018 41

To Conclude: The planet is warming dangerously We are causing it with (mostly) Carbon Dioxide Stopping it (might be) just barely possible now… but not later And don’t ask me about

• cean acidification

23/11/2018 42

What can I do??

Write to your MP Vote appropriately That’s (almost) all Folks!

23/11/2018 43

The End Thorium Fuel Cycle

• Thorium more abundant than Uranium
• Leaves less long lived waste than Uranium
• Does not generate Plutonium in the cycle

Fission U n U Pa Th Th n           

) ( ) (  

Note: needs neutron source to start.

23/11/2018 44

..and in the USA

El Nino Events

23/11/2018 45

World-Wide Fossil Fuel Subsidies 2015 (International Monetary Fund) Local Pollution US$2.734T Global Warming US$1.268T Direct Subsidy US$0.333T Other Local Factors US$0.969T Total US$5.304T Total subsidy for renewable energy US$0.12T

http://www.imf.org/en/Publications/WP/Issues/2016/12/31/How-Large-Are-Global-Energy-Subsidies-42940
