Geometric Firefighting Rolf Klein University of Bonn HMI, June 19, 2018 Rolf Klein Geometric firefighting Firefighting techniques Extinguish the fire Rolf Klein Geometric firefighting Firefighting techniques Extinguish the fire Prevent

slide-1

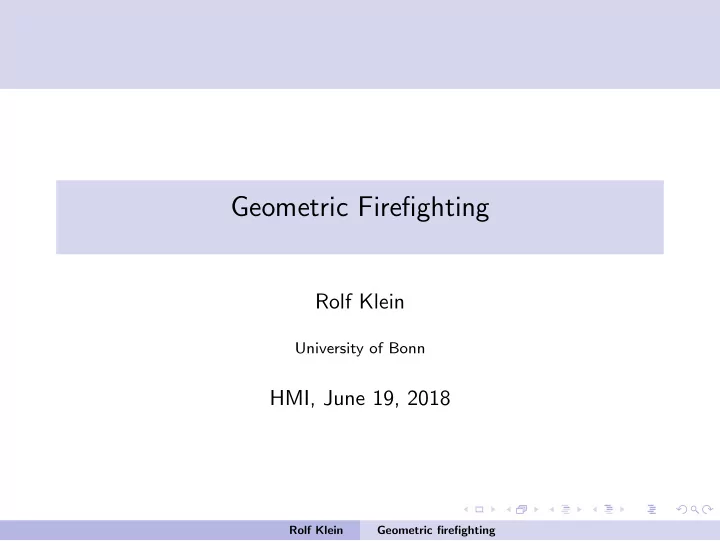

SLIDE 1

Geometric Firefighting

Rolf Klein

University of Bonn

HMI, June 19, 2018

Rolf Klein Geometric firefighting

slide-2
SLIDE 2

Firefighting techniques

Extinguish the fire

Rolf Klein Geometric firefighting

slide-3
SLIDE 3

Firefighting techniques

Extinguish the fire Prevent fire from spreading further

Rolf Klein Geometric firefighting

slide-4
SLIDE 4

Firefighting techniques

Extinguish the fire Prevent fire from spreading further

Rolf Klein Geometric firefighting

slide-5
SLIDE 5
  • A. Bressan, 2006

Problem circular fire spreads in the plane at unit speed

Rolf Klein Geometric firefighting

slide-6
SLIDE 6
  • A. Bressan, 2006

Problem circular fire spreads in the plane at unit speed build, in real time, barrier curves to contain the fire

Rolf Klein Geometric firefighting

slide-7
SLIDE 7
  • A. Bressan, 2006

Problem circular fire spreads in the plane at unit speed build, in real time, barrier curves to contain the fire such that, at each time t, total length of curves built ≤ v · t

Rolf Klein Geometric firefighting

slide-8
SLIDE 8
  • A. Bressan, 2006

Problem circular fire spreads in the plane at unit speed build, in real time, barrier curves to contain the fire such that, at each time t, total length of curves built ≤ v · t How large a speed v is needed?

Rolf Klein Geometric firefighting

slide-9
SLIDE 9

Speed v > 2 is sufficient

p

Rolf Klein Geometric firefighting

slide-10
SLIDE 10

Speed v > 2 is sufficient

1

p

Rolf Klein Geometric firefighting

slide-11
SLIDE 11

Speed v > 2 is sufficient

Rolf Klein Geometric firefighting

slide-12
SLIDE 12

Speed v = 1 is not sufficient

s f EB DB

Rolf Klein Geometric firefighting

slide-13
SLIDE 13

Speed v = 1 is not sufficient

s f EB DB

Rolf Klein Geometric firefighting

slide-14
SLIDE 14

Speed v = 1 is not sufficient

s f πx

s

EB s0 DB

Rolf Klein Geometric firefighting

slide-15
SLIDE 15

Speed v = 1 is not sufficient

s f πf

s

EB s0 DB πf

s0

πf

s ≤ πf s0 ≤ EB+2DB 2

< EB + DB

Rolf Klein Geometric firefighting

slide-16
SLIDE 16

Speed v = 1 is not sufficient

s f πx

s

EB s0 DB

Rolf Klein Geometric firefighting

slide-17
SLIDE 17
  • A. Bressan: conjecture v = 2 necessary

Rolf Klein Geometric firefighting

slide-18
SLIDE 18
  • A. Bressan: conjecture v = 2 necessary

500 USD reward (2011)

Rolf Klein Geometric firefighting

slide-19
SLIDE 19
  • A. Bressan: conjecture v = 2 necessary

500 USD reward (2011) gap (1, 2] still open

Rolf Klein Geometric firefighting

slide-20
SLIDE 20

Difficulty: delaying barriers

s f πf

s

EB s0 DB πf

s0

πf

s ≤ πf s0 ≤ EB+2DB 2

< EB + DB

Rolf Klein Geometric firefighting

slide-21
SLIDE 21

Can delaying barriers be useful?

Rolf Klein Geometric firefighting

slide-22
SLIDE 22

Parallel processes ?

Rolf Klein Geometric firefighting

slide-23
SLIDE 23

Consumption ratio

Rolf Klein Geometric firefighting

slide-24
SLIDE 24

Consumption ratio

sup

t≥t0

barriers consumed by fire at time t t

Rolf Klein Geometric firefighting

slide-25
SLIDE 25

Hitting a vertical barrier

Rolf Klein Geometric firefighting

slide-26
SLIDE 26

Hitting a vertical barrier

Rolf Klein Geometric firefighting

slide-27
SLIDE 27

Hitting a vertical barrier

Rolf Klein Geometric firefighting

slide-28
SLIDE 28

Hitting a vertical barrier

Rolf Klein Geometric firefighting

slide-29
SLIDE 29

Hitting a vertical barrier

Rolf Klein Geometric firefighting

slide-30
SLIDE 30

Hitting a vertical barrier

Rolf Klein Geometric firefighting

slide-31
SLIDE 31

Hitting a vertical barrier

Rolf Klein Geometric firefighting

slide-32
SLIDE 32

Different case

Rolf Klein Geometric firefighting

slide-33
SLIDE 33

Different case

Rolf Klein Geometric firefighting

slide-34
SLIDE 34

Different case

Rolf Klein Geometric firefighting

slide-35
SLIDE 35

Different case

Rolf Klein Geometric firefighting

slide-36
SLIDE 36

Different case

Rolf Klein Geometric firefighting

slide-37
SLIDE 37

Fact 1

zi zi+1

Rolf Klein Geometric firefighting

slide-38
SLIDE 38

Fact 1

zi

Rolf Klein Geometric firefighting

slide-39
SLIDE 39

Fact 1

zi ≥ 2 consumption points for duration ≥ zi

Rolf Klein Geometric firefighting

slide-40
SLIDE 40

Fact 2

zi zi+1

Rolf Klein Geometric firefighting

slide-41
SLIDE 41

Fact 2

zi zi+1

Rolf Klein Geometric firefighting

slide-42
SLIDE 42

Fact 2

zi zi+1 consumption ≥ zi + zi+1

Rolf Klein Geometric firefighting

slide-43
SLIDE 43

RHS consumption ratio

zi zi+1 wi wi+1

Rolf Klein Geometric firefighting

slide-44
SLIDE 44

RHS consumption ratio

zi zi+1 wi wi+1

1

Rolf Klein Geometric firefighting

slide-45
SLIDE 45

RHS consumption ratio

zi zi+1 wi wi+1

1

1 2 Rolf Klein Geometric firefighting

slide-46
SLIDE 46

Low minima

zi zi+1 wi wi+1

1

1 2 + ǫ 1 2

assuming total consumption ratio < 1.5 + ǫ

Rolf Klein Geometric firefighting

slide-47
SLIDE 47

Inequality zi+1 <

1+2ǫ 1−2ǫ wi

Rolf Klein Geometric firefighting

slide-48
SLIDE 48

Lower bound proof

zi zi+1 wi

vj−1 yj vj

Rolf Klein Geometric firefighting

slide-49
SLIDE 49

Lower bound proof

zi zi+1 wi

vj−1 yj vj

Rolf Klein Geometric firefighting

slide-50
SLIDE 50

Lower bound proof

zi zi+1 wi

vj−1 yj vj

Rolf Klein Geometric firefighting

slide-51
SLIDE 51

Lower bound proof

zi zi+1 wi

vj−1 yj vj

> >

Rolf Klein Geometric firefighting

slide-52
SLIDE 52

Lower bound proof

zi zi+1 wi

vj−1 yj vj

> > = ⇒ zi > zi+1

Rolf Klein Geometric firefighting

slide-53
SLIDE 53

Theorem (S.-S. Kim, D. K¨ ubel, E. Langetepe, B. Schwarzwald, R.K.) A horizontal line with vertical line segments attached has consumption ratio ≥ 1.53069.

Rolf Klein Geometric firefighting

slide-54
SLIDE 54

Theorem (S.-S. Kim, D. K¨ ubel, E. Langetepe, B. Schwarzwald, R.K.) A horizontal line with vertical line segments attached has consumption ratio ≥ 1.53069. But a ratio of v = 1.8 can be attained.

Rolf Klein Geometric firefighting

slide-55
SLIDE 55

Construction

1 17 34 34 · 4 1020 34 · 42 34 · 4i−1 1 34 238 51 · 4i−1 34 · 4 51 · 43 51 · 42 34 · 4i 51 · 4i−1

Rolf Klein Geometric firefighting

slide-56
SLIDE 56

Consumption ratios

1 1 1 1 3 RHS LHS 34 · 4i−1 34 · 4i 34 · 4i

Rolf Klein Geometric firefighting

slide-57
SLIDE 57

Consumption ratios

1 1 1 1 3 RHS LHS 34 · 4i−1 34 · 4i 34 · 4i max 1.11 min 0.6266 sum1.8

Rolf Klein Geometric firefighting

slide-58
SLIDE 58

Open

line plus perpendicular segments, L1 : [1.53069, 1.8)

Rolf Klein Geometric firefighting

slide-59
SLIDE 59

Open

line plus perpendicular segments, L1 : [1.53069, 1.8) closed curve with forest inside, L2 : (1, 2] (Bressan conjecture: 2)

Rolf Klein Geometric firefighting
