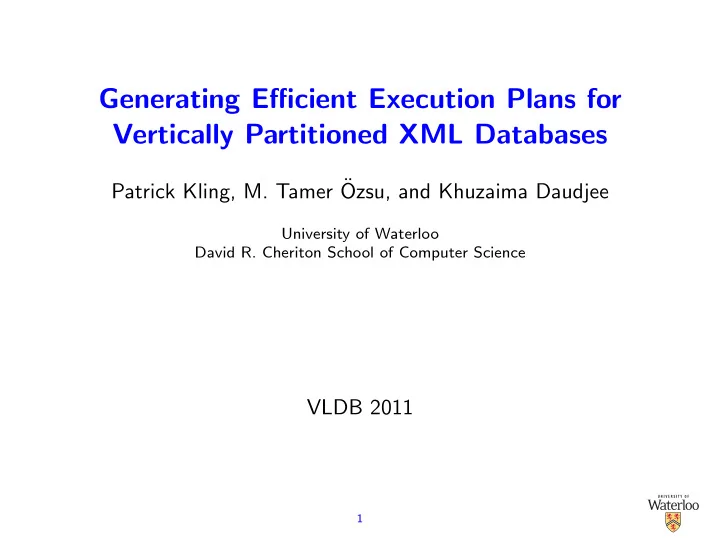

SLIDE 1

Generating Efficient Execution Plans for Vertically Partitioned XML Databases

Patrick Kling, M. Tamer ¨ Ozsu, and Khuzaima Daudjee

University of Waterloo David R. Cheriton School of Computer Science

VLDB 2011

1

SLIDE 2

The Problem

• Centralized query evaluation techniques for XML well

understood

• These techniques do not scale to large collection sizes and

heavy workloads

• Goal: use distribution to improve scalability
• Focus on end-to-end cost of query evaluation

2

SLIDE 3

Distributed XML Query Evaluation: Two Scenarios

• Integrating multiple data sources
• Fragmentation is determined by existing data sources
• Need flexible fragmentation model to express this
• Distribution for performance
• Choose fragmentation to suit workload
• Can use more constrained fragmentation model
• Fragmentation specification allows for distributed query
• ptimization

3

SLIDE 4

Distributed XML Query Evaluation: Two Scenarios

• Integrating multiple data sources
• Fragmentation is determined by existing data sources
• Need flexible fragmentation model to express this
• Distribution for performance
• Choose fragmentation to suit workload
• Can use more constrained fragmentation model
• Fragmentation specification allows for distributed query
• ptimization

3

SLIDE 5

Outline

1 Fragmenting XML Collections 2 Querying Distributed XML Collections

Query Model Distributed Query Evaluation Improving Performance

3 Performance Evaluation 4 Conclusion

4

SLIDE 6

Outline

1 Fragmenting XML Collections 2 Querying Distributed XML Collections

Query Model Distributed Query Evaluation Improving Performance

3 Performance Evaluation 4 Conclusion

5

SLIDE 7

Fragmenting XML Collections

• Ad-hoc fragmentation
• Structure-based fragmentation

6

SLIDE 8

Ad-hoc fragmentation

• Cut arbitrary edges in document tree
• Highly flexible (good for data integration)
• No explicit fragmentation specification
• Limited potential for exploiting fragmentation characteristics

for query optimization

• Not a suitable choice for this work

7

SLIDE 9

Structure-based Fragmentation

• Fragmentation according to characteristics of data or schema
• Yields a fragmentation specification that can be exploited for

query optimization

• Better choice when distributing for performance

8

SLIDE 10

Our Fragmentation Model

• Focus on simplicity and precise fragmentation specification
• Focus on partitioning collection (replication is orthogonal)
• Follow semantics of relational fragmentation techniques
• Horizontal fragmentation (based on predicates/selection)
• Vertical fragmentation (based on partitioning of

schema/projection)

• Hybrid fragmentation (combination of horizontal and vertical

steps)

9

SLIDE 11

Our Fragmentation Model

• Focus on simplicity and precise fragmentation specification
• Focus on partitioning collection (replication is orthogonal)
• Follow semantics of relational fragmentation techniques
• Horizontal fragmentation (based on predicates/selection)
• Vertical fragmentation (based on partitioning of

schema/projection)

• Hybrid fragmentation (combination of horizontal and vertical

steps)

9

SLIDE 12

Vertical Fragmentation

author2 P1→2

13

P1→3

14

f V

1

RP1→2

13

name2 first2 Jane last2 Dean

f V

2

RP1→3

14

pubs2

f V

3 10

SLIDE 13

Vertical Fragmentation Specification

Vertical fragmentation is specified by a fragmentation schema.

author agent

OPT

f V

1

pubs book

MULT

f V

3

name first

ONCE

∗ last

ONCE

∗

f V

2

chapter reference

OPT ONCE

f V

4

ONCE ONCE ONCE MULT

11

SLIDE 14

Outline

1 Fragmenting XML Collections 2 Querying Distributed XML Collections

Query Model Distributed Query Evaluation Improving Performance

3 Performance Evaluation 4 Conclusion

12

SLIDE 15

Query model

XQ, subset of XPath

• Nested paths with child and descendant steps
• Explicit node tests and wild cards
• Value constraints (numeric or textual)
• Q := σ | ∗ | Q//Q | Q/Q |Q[q]

q := Q | . = / = str | . = / = / ≤ / < / ≥ / > num

13

SLIDE 16

Query Example

“Find all references in publications written by authors whose first name is ‘William’ and whose last name is ‘Shakespeare’ ”

14

SLIDE 17

Query Example

“Find all references in publications written by authors whose first name is ‘William’ and whose last name is ‘Shakespeare’ ” /author[./name[./first = “William”and ./last = “Shakespeare”]]//reference

14

SLIDE 18

Query Example

“Find all references in publications written by authors whose first name is ‘William’ and whose last name is ‘Shakespeare’ ” /author[./name[./first = “William”and ./last = “Shakespeare”]]//reference

• Node tests

14

SLIDE 19

Query Example

“Find all references in publications written by authors whose first name is ‘William’ and whose last name is ‘Shakespeare’ ” /author[./name[./first = “William”and ./last = “Shakespeare”]]//reference

• Node tests
• Value constraints

14

SLIDE 20

Query Example

“Find all references in publications written by authors whose first name is ‘William’ and whose last name is ‘Shakespeare’ ” /author[./name[./first = “William”and ./last = “Shakespeare”]]//reference

• Node tests
• Value constraints
• Structural constraints

14

SLIDE 21

Tree Patterns

author name / first

.=’William’

/ last

.=’Shakespeare’

/ reference //

15

SLIDE 22

Tree Patterns

author name / first

.=’William’

/ last

.=’Shakespeare’

/ reference //

• Pattern nodes with node

tests and value constraints

15

SLIDE 23

Tree Patterns

author name / first

.=’William’

/ last

.=’Shakespeare’

/ reference //

• Pattern nodes with node

tests and value constraints

15

SLIDE 24

Tree Patterns

author name / first

.=’William’

/ last

.=’Shakespeare’

/ reference //

• Pattern nodes with node

tests and value constraints

• Edges annotated with XPath

axes

15

SLIDE 25

Tree Patterns

author name / first

.=’William’

/ last

.=’Shakespeare’

/ reference //

• Pattern nodes with node

tests and value constraints

• Edges annotated with XPath

axes

• Extraction point nodes

15

SLIDE 26

Evaluating Tree Pattern Queries

author name / first

.=’William’

/ last

.=’Shakespeare’

/ ae

1

reference //

author4 name4 first4 William last4 Shakespeare pubs4 book4 chapter4 reference4 chapter5

16

SLIDE 27

Evaluating Tree Pattern Queries

author name / first

.=’William’

/ last

.=’Shakespeare’

/ ae

1

reference //

author4 name4 first4 William last4 Shakespeare pubs4 book4 chapter4 reference4 chapter5

16

SLIDE 28

Evaluating Tree Pattern Queries

author name / first

.=’William’

/ last

.=’Shakespeare’

/ ae

1

reference //

author4 name4 first4 William last4 Shakespeare pubs4 book4 chapter4 reference4 chapter5

16

SLIDE 29

Evaluating Tree Pattern Queries

author name / first

.=’William’

/ last

.=’Shakespeare’

/ ae

1

reference //

author4 name4 first4 William last4 Shakespeare pubs4 book4 chapter4 reference4 chapter5

16

SLIDE 30

Evaluating Tree Pattern Queries

author name / first

.=’William’

/ last

.=’Shakespeare’

/ ae

1

reference //

author4 name4 first4 William last4 Shakespeare pubs4 book4 chapter4 reference4 chapter5

16

SLIDE 31

Evaluating Tree Pattern Queries

author name / first

.=’William’

/ last

.=’Shakespeare’

/ ae

1

reference //

author4 name4 first4 William last4 Shakespeare pubs4 book4 chapter4 reference4 chapter5

16

SLIDE 32

Evaluating Tree Pattern Queries

author name / first

.=’William’

/ last

.=’Shakespeare’

/ ae

1

reference //

author4 name4 first4 William last4 Shakespeare pubs4 book4 chapter4 reference4 chapter5

16

SLIDE 33

Evaluating Tree Pattern Queries

author name / first

.=’William’

/ last

.=’Shakespeare’

/ ae

1

reference //

author4 name4 first4 William last4 Shakespeare pubs4 book4 chapter4 reference4 chapter5

16

SLIDE 34

Evaluating Tree Pattern Queries

author name / first

.=’William’

/ last

.=’Shakespeare’

/ ae

1

reference //

author4 name4 first4 William last4 Shakespeare pubs4 book4 chapter4 reference4 chapter5 [ae

1 = reference4]

16

SLIDE 35

Evaluating Tree Pattern Queries

• Various centralized approaches exist
• Navigating document trees
• Structural joins
• We leverage these for distributed query evaluation

17

SLIDE 36

Querying Vertically Distributed XML Collections

• Input
• Fragmentation-unaware tree pattern query
• Fragmentation schema
• Tasks
• Annotate tree pattern nodes with corresponding fragments
• Decompose tree pattern into sub-patterns for individual

fragments

• Convert sub-patterns to local plans using existing techniques

(each site is free to choose local strategy)

• Generate distributed execution plan that specifies how results

are combined

18

SLIDE 37

Querying Vertically Distributed XML Collections

• Annotate tree pattern nodes
• Decompose tree pattern
• Convert sub-patterns into local plans
• Generate distributed execution plan

author name / first

.=’William’

/ last

.=’Shakespeare’

/ reference //

19

SLIDE 38

Querying Vertically Distributed XML Collections

• Annotate tree pattern nodes
• Decompose tree pattern
• Convert sub-patterns into local plans
• Generate distributed execution plan

author f V

1

name f V

2

/ first

.=’William’

f V

2

/ last

.=’Shakespeare’

f V

2

/ reference f V

4

//

19

SLIDE 39

Querying Vertically Distributed XML Collections

• Annotate tree pattern

nodes

• Decompose tree pattern
• Convert sub-patterns

into local plans

• Generate distributed

execution plan

author f V

1

name f V

2

/ first

.=’William’

f V

2

/ last

.=’Shakespeare’

f V

2

/ reference f V

4

//

20

SLIDE 40

Querying Vertically Distributed XML Collections

• Annotate tree pattern

nodes

• Decompose tree pattern
• Convert sub-patterns

into local plans

• Generate distributed

execution plan

author f V

1

name f V

2

/ first

.=’William’

f V

2

/ last

.=’Shakespeare’

f V

2

/ reference f V

4

//

author ap

2

P1→2

∗

/ ap

3

P1→3

∗

//

q1

1(f V 1 )

arp

2

RP1→2

∗

name / first

.=’William’

/ last

.=’Shakespeare’

/

q2

1(f V 2 )

arp

3

RP1→3

∗

ap

4

P3→4

∗

//

q3

1(f V 3 )

arp

4

RP3→4

∗

ae

1

reference //

q4

1(f V 4 ) 20

SLIDE 41

Querying Vertically Distributed XML Collections

• Annotate tree pattern

nodes

• Decompose tree pattern
• Convert sub-patterns

into local plans

• Generate distributed

execution plan

author f V

1

name f V

2

/ first

.=’William’

f V

2

/ last

.=’Shakespeare’

f V

2

/ reference f V

4

//

author ap

2

P1→2

∗

/ ap

3

P1→3

∗

//

q1

1(f V 1 )

arp

2

RP1→2

∗

name / first

.=’William’

/ last

.=’Shakespeare’

/

q2

1(f V 2 )

arp

3

RP1→3

∗

ap

4

P3→4

∗

//

q3

1(f V 3 )

arp

4

RP3→4

∗

ae

1

reference //

q4

1(f V 4 ) 20

SLIDE 42

Querying Vertically Distributed XML Collections

• Annotate tree pattern

nodes

• Decompose tree pattern
• Convert sub-patterns

into local plans

• Generate distributed

execution plan ⋊ ⋉id(ap

3)=id(arp 3 )

⋊ ⋉id(ap

2)=id(arp 2 )

p1

1(f V 1 )

p2

1(f V 2 )

⋊ ⋉id(ap

4)=id(arp 4 )

p3

1(f V 3 )

p4

1(f V 4 ) author ap

2

P1→2

∗

/ ap

3

P1→3

∗

//

q1

1(f V 1 )

arp

2

RP1→2

∗

name / first

.=’William’

/ last

.=’Shakespeare’

/

q2

1(f V 2 )

arp

3

RP1→3

∗

ap

4

P3→4

∗

//

q3

1(f V 3 )

arp

4

RP3→4

∗

ae

1

reference //

q4

1(f V 4 ) 21

SLIDE 43

Querying Vertically Distributed XML Collections

• Annotate tree pattern

nodes

• Decompose tree pattern
• Convert sub-patterns

into local plans

• Generate distributed

execution plan ⋊ ⋉id(ap

3)=id(arp 3 )

⋊ ⋉id(ap

2)=id(arp 2 )

p1

1(f V 1 )

p2

1(f V 2 )

⋊ ⋉id(ap

4)=id(arp 4 )

p3

1(f V 3 )

p4

1(f V 4 ) author ap

2

P1→2

∗

/ ap

3

P1→3

∗

//

q1

1(f V 1 )

arp

2

RP1→2

∗

name / first

.=’William’

/ last

.=’Shakespeare’

/

q2

1(f V 2 )

arp

3

RP1→3

∗

ap

4

P3→4

∗

//

q3

1(f V 3 )

arp

4

RP3→4

∗

ae

1

reference //

q4

1(f V 4 ) 21

SLIDE 44

Querying Vertically Distributed XML Collections

• Annotate tree pattern

nodes

• Decompose tree pattern
• Convert sub-patterns

into local plans

• Generate distributed

execution plan ⋊ ⋉id(ap

3)=id(arp 3 )

⋊ ⋉id(ap

2)=id(arp 2 )

p1

1(f V 1 )

p2

1(f V 2 )

⋊ ⋉id(ap

4)=id(arp 4 )

p3

1(f V 3 )

p4

1(f V 4 ) author ap

2

P1→2

∗

/ ap

3

P1→3

∗

//

q1

1(f V 1 )

arp

2

RP1→2

∗

name / first

.=’William’

/ last

.=’Shakespeare’

/

q2

1(f V 2 )

arp

3

RP1→3

∗

ap

4

P3→4

∗

//

q3

1(f V 3 )

arp

4

RP3→4

∗

ae

1

reference //

q4

1(f V 4 ) 21

SLIDE 45

Querying Vertically Distributed XML Collections

• Annotate tree pattern

nodes

• Decompose tree pattern
• Convert sub-patterns

into local plans

• Generate distributed

execution plan ⋊ ⋉id(ap

3)=id(arp 3 )

⋊ ⋉id(ap

2)=id(arp 2 )

p1

1(f V 1 )

p2

1(f V 2 )

⋊ ⋉id(ap

4)=id(arp 4 )

p3

1(f V 3 )

p4

1(f V 4 ) author ap

2

P1→2

∗

/ ap

3

P1→3

∗

//

q1

1(f V 1 )

arp

2

RP1→2

∗

name / first

.=’William’

/ last

.=’Shakespeare’

/

q2

1(f V 2 )

arp

3

RP1→3

∗

ap

4

P3→4

∗

//

q3

1(f V 3 )

arp

4

RP3→4

∗

ae

1

reference //

q4

1(f V 4 ) 21

SLIDE 46

Improving Distributed Execution Plans

• Pruning irrelevant fragments
• Join order
• Push cross-fragment joins into local plans

22

SLIDE 47

Improving Distributed Execution Plans

• Pruning irrelevant fragments
• Join order
• Push cross-fragment joins into local plans

22

SLIDE 48

Pushing Cross-Fragment Joins

Large fraction of local results are discarded by cross-fragment join

RP3→4

19

chapter2 reference2 RP3→4

20

chapter3 reference3 RP3→4

21

chapter4 reference4

f V

4 23

SLIDE 49

Pushing Cross-Fragment Joins

Large fraction of local results are discarded by cross-fragment join

RP3→4

19

chapter2 reference2 RP3→4

20

chapter3 reference3 RP3→4

21

chapter4 reference4

f V

4 23

SLIDE 50

Pushing Cross-Fragment Joins

Large fraction of local results are discarded by cross-fragment join

RP3→4

19

chapter2 reference2 RP3→4

20

chapter3 reference3 RP3→4

21

chapter4 reference4

f V

4

• Idea: only access relevant sub-trees in fragment
• Avoid computing irrelevant local results
• Use pipelining to push cross-fragment join into local plan

23

SLIDE 51

A Local Query Plan

πarp

2

⋉a1/a3 ⋉a1/a2

⋊ ⋉arp

2 /a1

scanarp

2 :RP1→2 ∗

scana1:name σa2=’William’ scana2:first σa3=’Shakespeare’ scana3:last

p2

1(f V 2 ) 24

SLIDE 52

A Local Query Plan

πarp

2

⋉a1/a3 ⋉a1/a2

⋊ ⋉arp

2 /a1

scanarp

2 :RP1→2 ∗

scana1:name σa2=’William’ scana2:first σa3=’Shakespeare’ scana3:last

p2

1(f V 2 )

• Plan scans root proxy

nodes in fragment

• Idea: filter these root

proxy nodes before evaluating remainder

• f plan
• Works for navigating

plans and plans based

• n structural joins

(shown here)

24

SLIDE 53

A Local Query Plan

πarp

2 ,...

⋉a1/a3 ⋉a1/a2

⋊ ⋉arp

2 /a1

⋊ ⋉ . . . scanarp

2 :RP1→2 ∗

scana1:name σa2=’William’ scana2:first σa3=’Shakespeare’ scana3:last

p2

1(f V 2 )

• Plan scans root proxy

nodes in fragment

• Idea: filter these root

proxy nodes before evaluating remainder

• f plan
• Works for navigating

plans and plans based

• n structural joins

(shown here)

25

SLIDE 54

Pushing Cross-Fragment Joins

p4′

1 (f V 4 )

⋊ ⋉id(ap

4)=id(arp 4 )

p3′

1 (f V 3 )

⋊ ⋉id(ap

3)=id(arp 3 )

p2′

1 (f V 2 )

⋊ ⋉id(ap

2)=id(arp 2 )

p1

1(f V 1 ) scanarp

2 :RP1→2 ∗

scanarp

3 :RP1→3 ∗

scanarp

4 :RP3→4 ∗ 26

SLIDE 55

Pushing Cross-Fragment Joins

p4′

1 (f V 4 )

⋊ ⋉id(ap

4)=id(arp 4 )

p3′

1 (f V 3 )

⋊ ⋉id(ap

3)=id(arp 3 )

p2′

1 (f V 2 )

⋊ ⋉id(ap

2)=id(arp 2 )

p1

1(f V 1 ) scanarp

2 :RP1→2 ∗

scanarp

3 :RP1→3 ∗

scanarp

4 :RP3→4 ∗ 26

SLIDE 56

Pushing Cross-Fragment Joins

p4′

1 (f V 4 )

⋊ ⋉id(ap

4)=id(arp 4 )

p3′

1 (f V 3 )

⋊ ⋉id(ap

3)=id(arp 3 )

p2′

1 (f V 2 )

⋊ ⋉id(ap

2)=id(arp 2 )

p1

1(f V 1 ) scanarp

2 :RP1→2 ∗

scanarp

3 :RP1→3 ∗

scanarp

4 :RP3→4 ∗ 26

SLIDE 57

Pushing Cross-Fragment Joins

p4′

1 (f V 4 )

⋊ ⋉id(ap

4)=id(arp 4 )

p3′

1 (f V 3 )

⋊ ⋉id(ap

3)=id(arp 3 )

p2′

1 (f V 2 )

⋊ ⋉id(ap

2)=id(arp 2 )

p1

1(f V 1 ) scanarp

2 :RP1→2 ∗

scanarp

3 :RP1→3 ∗

scanarp

4 :RP3→4 ∗ 26

SLIDE 58

Pushing Cross Fragment Joins: Implementation

• Can use full pipelining if both inputs to join are ordered
• Alternatively, can use index on root proxy nodes
• Full parallelism after first tuple received by local plan

27

SLIDE 59

Pushing Cross Fragment Joins

• Avoids accessing large portion of sub-trees within a fragment
• Can only be fully used in left-deep plans
• Decreases flexibility (e.g., where joins are performed)

28

SLIDE 60

Label Path Filtering

• Cross-fragment join pushing works well but decreases flexibility
• Goal: find a solution that can obtain partial benefit for

scenarios where join pushing cannot be applied

• Idea: use selection instead of join to filter out some root proxy

nodes

29

SLIDE 61

Label Path Filtering

• Assign to each proxy node the label path from the document

root

• Filter for label paths that are compatible with the query

author4 name4 first4 William last4 Shakespeare pubs4 book4 chapter4 reference4 chapter5

30

SLIDE 62

Label Path Filtering

• Assign to each proxy node the label path from the document

root

• Filter for label paths that are compatible with the query

author4 name4 first4 William last4 Shakespeare pubs4 book4 chapter4 reference4 chapter5

/author/pubs/book

30

SLIDE 63

Label Path Filtering

⋊ ⋉id(arp

4 )=id(ap 4)

⋊ ⋉id(arp

3 )=id(ap 3)

⋊ ⋉id(arp

2 )=id(ap 2)

p1

1(f V 1 )

p2

1 ∗ (f V 2 )

p3

1(f V 3 )

p4′

1 (f V 4 )

σlabel(arp

4 )=/author/pubs/book

scanarp

4 =(RP3→4 ∗

)

• Assume there are two

types of publications: book and article

• Can use selection to

filter chapters based

• n publication type

31

SLIDE 64

Label Path Filtering

• Can be used in more cases
• Retains higher degree of flexibility
• Benefit is more limited (does not filter all irrelevant root proxy

nodes)

32

SLIDE 65

Determining the Best Distributed Execution Plan

• Join pushing and label path filtering are not always

advantageous

• Determine best execution plan using cost model

33

SLIDE 66

Outline

1 Fragmenting XML Collections 2 Querying Distributed XML Collections

Query Model Distributed Query Evaluation Improving Performance

3 Performance Evaluation 4 Conclusion

34

SLIDE 67

Performance Evaluation

• Implemented techniques within Natix
• 12 GB XMark collection (auction data)
• 1 Amazon EC2 instance for each of each of 10 vertical

fragments

35

SLIDE 68

Performance Evaluation

• XPathMark queries (with few filtering value constraints)
• Modified, more selective XPathMark queries

A1

/site/closed auctions/closed auction/annotation/description/text/keyword

A2

//closed auction//keyword

A3

/site/closed auctions/closed auction//keyword

A4

/site/closed auctions/closed auction[annotation/description/text/keyword]/date

A5

/site/closed auctions/closed auction[descendant::keyword]/date

A6

/site/people/person[profile/gender and profile/age]/name

B7

//person[profile/@income]/name

A1S

/site/closed auctions/closed auction[price > 600]/annotation/description/text/keyword

A2S

//closed auction[price > 600]//keyword

A3S

/site/closed auctions/closed auction[price > 600]//keyword

A4S

/site/closed auctions/closed auction[price > 600][annotation/description/text/keyword]/date

A5S

/site/closed auctions/closed auction[price > 600][descendant::keyword]/date

A6S

/site/people/person[starts-with(name, ’Ry’)][profile/gender and profile/age]/name

B7S

//person[starts-with(name, ’Ry’)][profile/@income]/name 36

SLIDE 69

Performance Evaluation: XPathMark

200 400 600 800 1000 1200 1400 A1 A2 A3 A4 A5 A6 B7 Response time (seconds) Plan cent dist push

37

SLIDE 70

Performance Evaluation: Selective XPathMark

200 400 600 800 1000 1200 1400 A1 A2 A3 A4 A5 A6 B7 Response time (seconds) Plan cent dist push

38

SLIDE 71

Conclusions

• Distribution can make XML query evaluation more scalable
• Join pushing can significantly improve query performance
• A cost model is essential for finding the optimal technique for

a given query

39

SLIDE 72

References

[1] Patrick Kling, M. Tamer ¨ Ozsu, Khuzaima Daudjee: Generating Efficient Execution Plans for Vertically Partitioned XML Databases, PVLDB 2010. [2] Patrick Kling, M. Tamer ¨ Ozsu, Khuzaima Daudjee: Scaling XML Query Processing: Distribution, Localization and Pruning, DAPD 2011.

40
