National Energy Research Scientific Computing Center (NERSC) Highly Scalable Networking Configuration Management For Highly Scalable Systems Nicholas P. Cardo NERSC Center Division, LBNL CUG 2008, Helsinki N ATIONAL E NERGY R ESEARCH S

slide-1

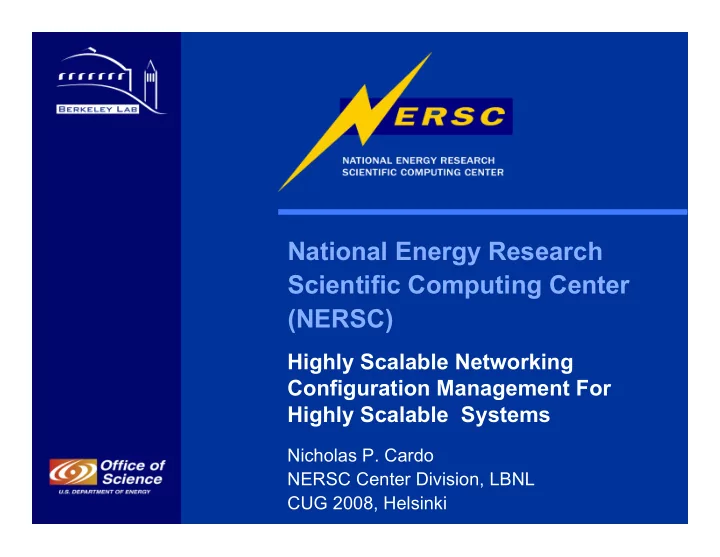

SLIDE 1

National Energy Research Scientific Computing Center (NERSC)

Highly Scalable Networking Configuration Management For Highly Scalable Systems

Nicholas P. Cardo NERSC Center Division, LBNL CUG 2008, Helsinki

slide-2
SLIDE 2

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

2

Setting the Stage

  • Systems are getting large
  • Systems are getting more complex
  • Networking capability is increasing
  • Systems have many nodes
  • Systems have many network interfaces
  • Systems have many different interface types
slide-3
SLIDE 3

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

3

Cardo’s Corollary #3 If it can change, it will change.

slide-4
SLIDE 4

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

4

Network Files

  • /etc/sysconfig/network/ifcfg-eth0
  • /etc/sysconfig/network/ifcfg-eth1
  • /etc/sysconfig/network/ifcfg-ss
  • /etc/sysconfig/network/scripts/
slide-5
SLIDE 5

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

5

Standard Interface Configuration

  • cd /etc/sysconfig/network
  • vi ifcfg-eth0

– Set IPADDR – Set NETMASK – Set MTU – Set other parameters

For each interface. On each node.

slide-6
SLIDE 6

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

6

Now on the Cray

  • ssh root@boot
  • xtopview -n <nid>
  • cd /etc/sysconfig/network
  • xtspec ifcfg-eth0
  • vi ifcfg-eth0

– Set IPADDR – Set NETMASK – Set MTU – Set other parameters

  • exit
  • c
  • <some text>
  • .

Repeat per interface Repeat per node

slide-7
SLIDE 7

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

7

Lets Do the Math

56 Nodes 92 Interfaces 5 minutes per change 1 SS per node 20 10Gb 16 1Gb @ 5 minutes = 460 minutes = 7 hours 40 minutes

slide-8
SLIDE 8

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

8

Goals

  • Single points of data entry for routing and interface

configurations.

  • Scalable to support all service nodes.
  • Flexible to handle complex routing if necessary.
  • Minimal specialization.
slide-9
SLIDE 9

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

9

The Setup

  • ssh root@boot
  • xtopview
  • mkdir /etc/NERSC
  • cd /etc/sysconfig
  • mv ifcfg-ss /etc/NERSC
  • mv ifcfg-eth0 /etc/NERSC
  • ln -s /etc/NERSC/ifcfg-eth0 ifcfg-eth0
  • ln -s /etc/NERSC/ifcfg-ss ifcfg-ss
slide-10
SLIDE 10

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

10

Interface Configuration File

# Node Location Type Dev Address Netmask MTU nid04100 c1-0c0s1n0 login01 eth0 128.55.81.34 255.255.248.0 9000 nid04100 c1-0c0s1n0 login01 ss 128.55.42.134 255.255.255.192 NA

IPADDR NETMASK MTU Needed in ifcfg-<int>

slide-11
SLIDE 11

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

11

# Node Location Type Dev Route Gateway Netmask MTU Fwd nid04100 c1-0c0s1n0 login01 eth0 default 128.55.80.1 NA NA 0 nid04100 c1-0c0s1n0 login01 ss 128.55.32.0 128.55.42.130 255.255.224.0 9000 0

/sbin/route add $TYP $ADR gw $GWY $MSK dev $DEV $MTU

  • net or -host

echo $FOR >/proc/sys/net/ipv4/ip_forward

Route Configuration File

Do this in POST_UP_SCRIPT

slide-12
SLIDE 12

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

12

ARP Table Pre-Load

/sbin/arp -f /etc/NERSC/arp-ss -i ss 128.55.42.130 00:00:10:00

Do This in POST_UP_SCRIPT

slide-13
SLIDE 13

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

13

Summary

  • One file text describes all interfaces
  • One file text file describes all routes
  • One time setup
slide-14
SLIDE 14

NATIONAL ENERGY RESEARCH SCIENTIFIC COMPUTING CENTER

14

Questions?
