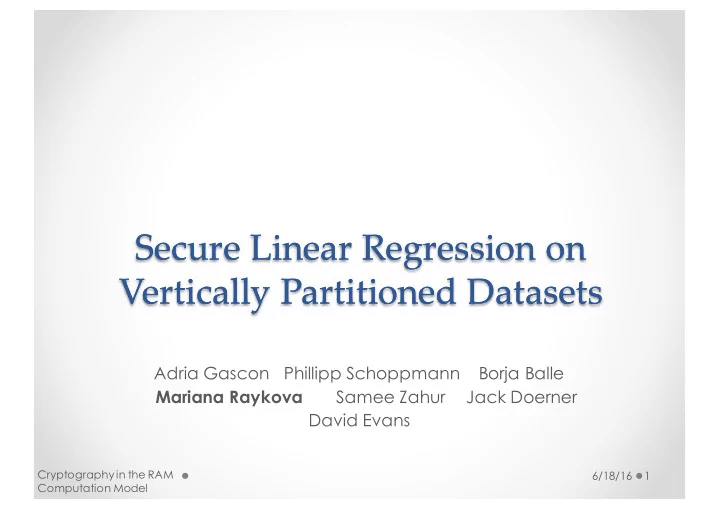

Secure Linear Regression on Vertically Partitioned Datasets Secure Linear Regression on Vertically Partitioned Datasets

Adria Gascon Phillipp Schoppmann Borja Balle Mariana Raykova Samee Zahur Jack Doerner David Evans

6/18/16 Cryptography in the RAM Computation Model 1

Predictive Model Predictive Model

• Given samples (x1, y1), (x2, y2), …, (xn, yn)
• xi∈ℝd, yi∈ℝ
• Learn a function f such that f(xi) = yi

6/18/16

Patient Blood Count Heart Conditions Digestive Track … Medicine Effectiveness

RBC WBC

…

Murmur Arrhyt hmia

…

Inflamm ation Dyspha gia

… A 3.9 10.0 1 1 B 5.0 4.5 1 1 2 1.5 C 2.5 11 1 1 2 D 4.3 5.3 2 1 1 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cryptography in the RAM Computation Model 2

Linear Regression Linear Regression

• Given samples (x1, y1), (x2, y2), …, (xn, yn)
• xi∈ℝd, yi∈ℝ
• Learn a function f such that f(xi) = yi

6/18/16

Patient Blood Count Heart Conditions Digestive Track … Medicine Effectiveness

RBC WBC

…

Murmur Arrhyt hmia

…

Inflamm ation Dyspha gia

… A 3.9 10.0 1 1 B 5.0 4.5 1 1 2 1.5 C 2.5 11 1 1 2 D 4.3 5.3 2 1 1 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . f is well approximated by a linear map yi ≈ 𝜄T xi

Cryptography in the RAM Computation Model 3

Secure Computation Secure Computation

• Shared database - (x1, y1), (x2, y2), …, (xn, yn) do not belong to

the same party

• Compute 𝜄 securely (yi ≈ 𝜄T xi)

6/18/16

Patient Blood Count Heart Conditions Digestive Track … Medicine Effectiveness

RBC WBC

…

Murmur Arrhyt hmia

…

Inflamm ation Dyspha gia

… A 3.9 10.0 1 1 B 5.0 4.5 1 1 2 1.5 C 2.5 11 1 1 2 D 4.3 5.3 2 1 1 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cryptography in the RAM Computation Model 4

Horizontally Partitioned Database Horizontally Partitioned Database

• Different rows belong to different parties
• E.g., each patient has their own information

6/18/16

Patient Blood Count Heart Conditions Digestive Track … Medicine Effectiveness

RBC WBC

…

Murmur Arrhyt hmia

…

Inflamm ation Dyspha gia

… A 3.9 10.0 1 1 B 5.0 4.5 1 1 2 1.5 C 2.5 11 1 1 2 D 4.3 5.3 2 1 1 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cryptography in the RAM Computation Model 5

Vertically Partitioned Database Vertically Partitioned Database

• Different columns belong to different parties
• E.g., different specialized hospitals have different parts of the

information for all patients

6/18/16

Patient Blood Count Heart Conditions Digestive Track … Medicine Effectiveness

RBC WBC

…

Murmur Arrhyt hmia

…

Inflamm ation Dyspha gia

… A 3.9 10.0 1 1 B 5.0 4.5 1 1 2 1.5 C 2.5 11 1 1 2 D 4.3 5.3 2 1 1 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cryptography in the RAM Computation Model 6

Ridge Regression Ridge Regression

• Computing linear model on inputs (x1, y1),…, (xn, yn)
• xi∈ℝd, yi∈ℝ
• Optimization formulation
• Linear System Formulation

6/18/16 Cryptography in the RAM Computation Model 7

Contributions Contributions

• Secure computation for ridge regression for vertically

partitioned database

• Two phase protocol:
• Phase1 – compute 𝐵 =

$ % XT X + 𝛍𝐽

𝑐 = XT Y

• Output is additively shared between two parties
• Phase2 – solve 𝐵𝜄 = 𝑐 where A and b are shared between two

parties

• Two party and multiparty protocol for Phase1
• Two party inner product computation
• Three algorithms for Phase2:
• Cholesky, LDLT, Conjugate Gradient Descent (CGD)
• Implementation and evaluation

6/18/16 Cryptography in the RAM Computation Model 8

Phase 1 Phase 1

• Compute 𝐵 =

$ % XT X + 𝛍𝐽

𝑐 = XT Y

• The output is additively shared between two parties
• Each entry of A is a dot product of the vectors held by two

different parties

• In the multi-party case too
• Two party computation of dot product

6/18/16 9 Cryptography in the RAM Computation Model

Phase 1 Phase 1

• Architecture – inspired by [NWIJBT13]
• Two additional semi-honest, non-colluding parties:
• Crypto Service Provider (CSP) – generates parameters
• Evaluator – helps for the evaluation of the protocols, has no inputs
• Our setting

6/18/16 10 Cryptography in the RAM Computation Model

Two Parties Many Parties

Phase 1 Phase 1

Two Parties Many Parties

6/18/16 11 Cryptography in the RAM Computation Model

a b x, r y, z = 𝒚, 𝒛 - r b’ = b - y a’ = a + x, a’’ = 𝒃, 𝒄′ - r - rA rB = 𝒃′, 𝒛 + a’’- z rA

Dot product protocol Garb Circuit OT OT Garb. labels Garb. labels

Phase 2 Phase 2

• Two party protocol
• Inputs: additive shares of matrix A and vector b
• Outputs: additive shares of 𝜾 such that

𝑩𝜾 = 𝒄

• Gabled circuits computation
• Solutions algorithms
• Two exact algorithms: Cholesky, LDLT
• One approximation algorithm: Conjugate Gradient

Descent (CGD)

• [NWIJBT13] implements Cholesky

6/18/16 12 Cryptography in the RAM Computation Model

Cholesky Cholesky

6/18/16 13

• Cholesky decomposition for

positive definite matrices

• A = LLT
• L: d×d lower triangular matrix
• Idea: solve LLT𝜾 = 𝒄
• L𝜾′ = 𝒄
• LT𝜾 = 𝜾′
• Complexity: O(d3) floating

point operations

• Two properties:
• Data-agnostic – no pivoting
• Numerically robust – suitable

for finite precision implementations

Cryptography in the RAM Computation Model

forward substitution backward substitution

LDLT LDLT

6/18/16 14

• Variant of Cholesky

decomposition

• A = LDLT
• L – lower triangular
• D – diagonal, non-negative

entries

• Idea: solve LDLT𝜾 = 𝒄
• L𝜾” = 𝒄
• D𝜾′ = 𝜾”
• LT𝜾 = 𝜾′
• Complexity: O(d3)
• No square root
• Additional substitution phase
• Same properties

Cryptography in the RAM Computation Model

CGD CGD

6/18/16 15

• Approximate solution
• Solving 𝐵𝜄 = 𝑐 by solving

the optimization 𝐛𝐬𝐡𝐧𝐣𝐨𝜾 ||𝑩𝜾 − 𝒄||𝟑

• Iterative solutions

approach based on conjugate gradients

• Complexity
• Until convergence O(d3)
• Early termination O(d2)

per iteration

• Error: ε after 𝑷( 𝝺 𝐦𝐩𝐡 1/ε)

iterations

• 𝞴 - condition number

Cryptography in the RAM Computation Model

Fixed-Point Arithmetic Fixed-Point Arithmetic

• 𝜚F 𝑠 = [𝑠/𝜀]; 𝜚

JF 𝑨 = 𝑨𝜀, |𝑠 − 𝜚 JF 𝜚F 𝑠 | ≤ 𝜀

• 𝜒 𝑨 = 𝑨 if z ≥ 0 ; 𝜒 𝑨 = 𝑨 + 𝑟 if z < 0
• 𝜒

T 𝑣 = 𝑣 if 0 ≤ u ≤ q/2; 𝜒 T 𝑣 = 𝑣 − 𝑟 if 𝑟/2 < u ≤ q − 1

• Phase1: n-dim vectors with entries of size R
• Error: n(2R𝜀+ 𝜀2)
• Normalize R≤ 𝟐/ 𝒐 ⇒ error ε with 𝜀= ε /2 𝑜 and q = 8n/ ε2
• O(log(n/ ε)) bit representation
• Phase2 – experiments
• q = 232 (4 bits integer part, 1 bit sign) ⇒ 𝜀 = 2-27
• q = 264 (4 bits integer part, 1 bit sign) ⇒ 𝜀 = 2-59

6/18/16 16 Cryptography in the RAM Computation Model

R

φδ

• ˜

φδ

Z

ϕq

• ˜

ϕq

Zq

Implementation and Evaluation Implementation and Evaluation

• Obliv-C
• Most recent optimizations: Free XOR, Garbled Row Reduction,

Fixed Key Block Ciphers, Half Gates

• Fixed point arithmetic on top of Obliv-C
• Algorithms: multiplication (Karatsuba-Comba), division

(Knuth’s algorithm D), square root(Newton’s method)

• 32 bits: 4 bits (integral part) + 28 bit (fractional part)
• Synthetic datasets (vs real datasets)
• Generated with correct 𝛍 parameter – sample from d-

dimensional Gaussian distribution

• Tuning 𝛍 privately is hard question – incorrect 𝛍 makes the
• ptimization too easy or too difficult
• Amazon EC2 C4 (15GB RAM, 8 CPU cores)

6/18/16 17 Cryptography in the RAM Computation Model

Phase 1 Phase 1

2 3 4 Number of parties 0.0 0.2 0.4 0.6 0.8 1.0 1.2 Normalized computation time

Trusted Initializer Parties (average)

6/18/16 18 Cryptography in the RAM Computation Model

Database partitioned equally among parties ( n , d) column1 ( 2000, 20) column2 (10000,100) column3 (50000,500)

Number of parties d 2 3 4 20 0.17 0.033 0.22 0.032 0.26 0.030 100 19 1.7 26 1.6 29 1.4 500 109 146 149 125 166 104

Phase 2 Phase 2

6/18/16 19 Cryptography in the RAM Computation Model

101 102 size d 106 107 108 109 1010 1011 circuit size

CGD 1 CGD 10 CGD 15 Cholesky

Phase 2 Phase 2

6/18/16 20 Cryptography in the RAM Computation Model

Convergence of CGD Fixed vs Floating Point

Conclusions Conclusions

• Machine learning algorithms – target for MPC
• Ridge regression
• Vertically partitioned datasets
• Tailored protocol for Phase1
• Two party computation for solving systems of linear

equations for Phase2

• Exact (Cholesky, LDLT) and approximation (CGD)

algorithms

• Approximation: more efficient with sufficient precision
• Next steps – classification (logistic regression)

6/18/16 21 Cryptography in the RAM Computation Model

6/18/16 22 Cryptography in the RAM Computation Model

Thank You!
