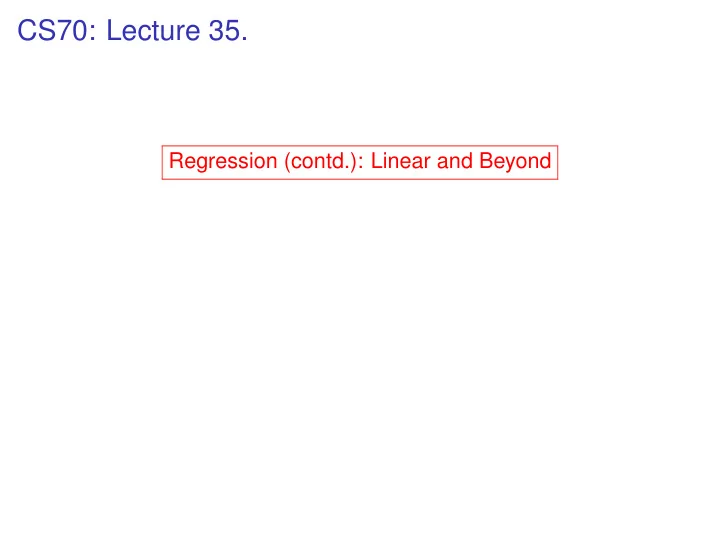

CS70: Lecture 35.

Regression (contd.): Linear and Beyond

CS70: Lecture 35.

Regression (contd.): Linear and Beyond

• 1. Review: Linear Regression (LR), LLSE
• 2. LR: Examples
• 3. Beyond LR: Quadratic Regression
• 4. Conditional Expectation (CE) and properties
• 5. Non-linear Regression: CE = Minimum Mean-Squared

Error (MMSE)

Review: Linear Regression – Motivation

Example: 100 people. Let (Xn,Yn) = (height, weight) of person n, for n = 1,...,100:

E[Y ] Y X

The blue line is Y = −114.3+106.5X. (X in meters, Y in kg.) Best linear fit: Linear Regression.

Review: Covariance

Definition

The covariance of X and Y is cov(X,Y) := E[(X −E[X])(Y −E[Y])]. Fact cov(X,Y) = E[XY]−E[X]E[Y].

Review: Examples of Covariance

Note that E[X] = 0 and E[Y] = 0 in these examples. Then cov(X,Y) = E[XY]. When cov(X,Y) > 0, the RVs X and Y tend to be large or small

• together. X and Y are said to be positively correlated.

When cov(X,Y) < 0, when X is larger, Y tends to be smaller. X and Y are said to be negatively correlated. When cov(X,Y) = 0, we say that X and Y are uncorrelated.

Review: Linear Regression – Non-Bayesian

Definition Given the samples {(Xn,Yn),n = 1,...,N}, the Linear Regression of Y over X is ˆ Y = a+bX where (a,b) minimize

N

∑

n=1

(Yn −a−bXn)2. Thus, ˆ Yn = a+bXn is our guess about Yn given Xn. The squared error is (Yn − ˆ Yn)2. The LR minimizes the sum of the squared errors. Note: This is a non-Bayesian formulation: there is no prior.

Review: Linear Least Squares Estimate (LLSE)

Definition Given two RVs X and Y with known distribution Pr[X = x,Y = y], the Linear Least Squares Estimate of Y given X is ˆ Y = a+bX =: L[Y|X] where (a,b) minimize g(a,b) := E[(Y −a−bX)2]. Thus, ˆ Y = a+bX is our guess about Y given X. The squared error is (Y − ˆ Y)2. The LLSE minimizes the expected value of the squared error. Note: This is a Bayesian formulation: there is a prior.

Review: LR: Non-Bayesian or Uniform?

Observe that 1 N

N

∑

n=1

(Yn −a−bXn)2 = E[(Y −a−bX)2] where one assumes that (X,Y) = (Xn,Yn), w.p. 1 N for n = 1,...,N. That is, the non-Bayesian LR is equivalent to the Bayesian LLSE that assumes that (X,Y) is uniform on the set of

• bserved samples.

Thus, we can study the two cases LR and LLSE in one shot. However, the interpretations are different!

Review: LLSE

Theorem Consider two RVs X,Y with a given distribution Pr[X = x,Y = y]. Then, L[Y|X] = ˆ Y = E[Y]+ cov(X,Y) var(X) (X −E[X]). Non-Bayesian setting:

Review: LLSE

Theorem Consider two RVs X,Y with a given distribution Pr[X = x,Y = y]. Then, L[Y|X] = ˆ Y = E[Y]+ cov(X,Y) var(X) (X −E[X]). Non-Bayesian setting: E[X] =

Review: LLSE

Theorem Consider two RVs X,Y with a given distribution Pr[X = x,Y = y]. Then, L[Y|X] = ˆ Y = E[Y]+ cov(X,Y) var(X) (X −E[X]). Non-Bayesian setting: E[X] = 1 N

N

∑

n=1

Xn; E[Y] =

Review: LLSE

Theorem Consider two RVs X,Y with a given distribution Pr[X = x,Y = y]. Then, L[Y|X] = ˆ Y = E[Y]+ cov(X,Y) var(X) (X −E[X]). Non-Bayesian setting: E[X] = 1 N

N

∑

n=1

Xn; E[Y] = 1 N

N

∑

n=1

Yn

Review: LLSE

Theorem Consider two RVs X,Y with a given distribution Pr[X = x,Y = y]. Then, L[Y|X] = ˆ Y = E[Y]+ cov(X,Y) var(X) (X −E[X]). Non-Bayesian setting: E[X] = 1 N

N

∑

n=1

Xn; E[Y] = 1 N

N

∑

n=1

Yn Var[X] = E[X 2]−(E[X])2 =

Review: LLSE

Theorem Consider two RVs X,Y with a given distribution Pr[X = x,Y = y]. Then, L[Y|X] = ˆ Y = E[Y]+ cov(X,Y) var(X) (X −E[X]). Non-Bayesian setting: E[X] = 1 N

N

∑

n=1

Xn; E[Y] = 1 N

N

∑

n=1

Yn Var[X] = E[X 2]−(E[X])2 = 1 N

N

∑

n=1

(Xn)2 −( 1 N

N

∑

n=1

(Xn))2

Review: LLSE

Theorem Consider two RVs X,Y with a given distribution Pr[X = x,Y = y]. Then, L[Y|X] = ˆ Y = E[Y]+ cov(X,Y) var(X) (X −E[X]). Non-Bayesian setting: E[X] = 1 N

N

∑

n=1

Xn; E[Y] = 1 N

N

∑

n=1

Yn Var[X] = E[X 2]−(E[X])2 = 1 N

N

∑

n=1

(Xn)2 −( 1 N

N

∑

n=1

(Xn))2 Cov(X,Y) = E[XY]−E[X]E[Y]

Review: LLSE

Theorem Consider two RVs X,Y with a given distribution Pr[X = x,Y = y]. Then, L[Y|X] = ˆ Y = E[Y]+ cov(X,Y) var(X) (X −E[X]). Non-Bayesian setting: E[X] = 1 N

N

∑

n=1

Xn; E[Y] = 1 N

N

∑

n=1

Yn Var[X] = E[X 2]−(E[X])2 = 1 N

N

∑

n=1

(Xn)2 −( 1 N

N

∑

n=1

(Xn))2 Cov(X,Y) = E[XY]−E[X]E[Y] = 1 N

N

∑

n=1

(XnYn)−( 1 N

N

∑

n=1

Xn)( 1 N

N

∑

n=1

Yn)

LR: Illustration

LR: Illustration

Note that

◮ the LR line goes through (E[X],E[Y])

LR: Illustration

Note that

◮ the LR line goes through (E[X],E[Y]) ◮ its slope is cov(X,Y) var(X) .

Linear Regression: Examples

Linear Regression: Example 2

Linear Regression: Example 2

We find:

E[X] =

Linear Regression: Example 2

We find:

E[X] = 0;

Linear Regression: Example 2

We find:

E[X] = 0;E[Y] =

Linear Regression: Example 2

We find:

E[X] = 0;E[Y] = 0;

Linear Regression: Example 2

We find:

E[X] = 0;E[Y] = 0;E[X 2] =

Linear Regression: Example 2

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;

Linear Regression: Example 2

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] =

Linear Regression: Example 2

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = 1/2;

Linear Regression: Example 2

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = 1/2; var[X] = E[X 2]−E[X]2 =

Linear Regression: Example 2

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = 1/2; var[X] = E[X 2]−E[X]2 = 1/2;

Linear Regression: Example 2

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = 1/2; var[X] = E[X 2]−E[X]2 = 1/2;cov(X,Y) = E[XY]−E[X]E[Y] =

Linear Regression: Example 2

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = 1/2; var[X] = E[X 2]−E[X]2 = 1/2;cov(X,Y) = E[XY]−E[X]E[Y] = 1/2;

Linear Regression: Example 2

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = 1/2; var[X] = E[X 2]−E[X]2 = 1/2;cov(X,Y) = E[XY]−E[X]E[Y] = 1/2; LR: ˆ Y = E[Y]+ cov(X,Y) var[X] (X −E[X]) =

Linear Regression: Example 2

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = 1/2; var[X] = E[X 2]−E[X]2 = 1/2;cov(X,Y) = E[XY]−E[X]E[Y] = 1/2; LR: ˆ Y = E[Y]+ cov(X,Y) var[X] (X −E[X]) = X.

Linear Regression: Example 3

Linear Regression: Example 3

We find:

E[X] =

Linear Regression: Example 3

We find:

E[X] = 0;

Linear Regression: Example 3

We find:

E[X] = 0;E[Y] =

Linear Regression: Example 3

We find:

E[X] = 0;E[Y] = 0;

Linear Regression: Example 3

We find:

E[X] = 0;E[Y] = 0;E[X 2] =

Linear Regression: Example 3

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;

Linear Regression: Example 3

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] =

Linear Regression: Example 3

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = −1/2;

Linear Regression: Example 3

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = −1/2; var[X] = E[X 2]−E[X]2 =

Linear Regression: Example 3

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = −1/2; var[X] = E[X 2]−E[X]2 = 1/2;

Linear Regression: Example 3

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = −1/2; var[X] = E[X 2]−E[X]2 = 1/2;cov(X,Y) = E[XY]−E[X]E[Y] =

Linear Regression: Example 3

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = −1/2; var[X] = E[X 2]−E[X]2 = 1/2;cov(X,Y) = E[XY]−E[X]E[Y] = −1/2;

Linear Regression: Example 3

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = −1/2; var[X] = E[X 2]−E[X]2 = 1/2;cov(X,Y) = E[XY]−E[X]E[Y] = −1/2; LR: ˆ Y = E[Y]+ cov(X,Y) var[X] (X −E[X]) =

Linear Regression: Example 3

We find:

E[X] = 0;E[Y] = 0;E[X 2] = 1/2;E[XY] = −1/2; var[X] = E[X 2]−E[X]2 = 1/2;cov(X,Y) = E[XY]−E[X]E[Y] = −1/2; LR: ˆ Y = E[Y]+ cov(X,Y) var[X] (X −E[X]) = −X.

Estimation Error

We saw that the LLSE of Y given X is L[Y|X] = ˆ Y = E[Y]+ cov(X,Y) var(X) (X −E[X]).

Estimation Error

We saw that the LLSE of Y given X is L[Y|X] = ˆ Y = E[Y]+ cov(X,Y) var(X) (X −E[X]). How good is this estimator?

Estimation Error

We saw that the LLSE of Y given X is L[Y|X] = ˆ Y = E[Y]+ cov(X,Y) var(X) (X −E[X]). How good is this estimator? That is, what is the mean squared estimation error?

Estimation Error

We saw that the LLSE of Y given X is L[Y|X] = ˆ Y = E[Y]+ cov(X,Y) var(X) (X −E[X]). How good is this estimator? That is, what is the mean squared estimation error? We find

E[|Y −L[Y|X]|2] = E[(Y −E[Y]−(cov(X,Y)/var(X))(X −E[X]))2] = E[(Y −E[Y])2]−2(cov(X,Y)/var(X))E[(Y −E[Y])(X −E[X])] +(cov(X,Y)/var(X))2E[(X −E[X])2 = var(Y)− cov(X,Y)2 var(X) . Without observations, the estimate is E[Y] = 0. The error is var(Y). Observing X reduces the error.

Wrap-up of Linear Regression

Linear Regression

Wrap-up of Linear Regression

Linear Regression

• 1. Linear Regression: L[Y|X] = E[Y]+ cov(X,Y)

var(X) (X −E[X])

Wrap-up of Linear Regression

Linear Regression

• 1. Linear Regression: L[Y|X] = E[Y]+ cov(X,Y)

var(X) (X −E[X])

• 2. Non-Bayesian: minimize ∑n(Yn −a−bXn)2

Wrap-up of Linear Regression

Linear Regression

• 1. Linear Regression: L[Y|X] = E[Y]+ cov(X,Y)

var(X) (X −E[X])

• 2. Non-Bayesian: minimize ∑n(Yn −a−bXn)2
• 3. Bayesian: minimize E[(Y −a−bX)2]

Beyond Linear Regression: Discussion

Beyond Linear Regression: Discussion

Goal: guess the value of Y in the expected squared error

• sense. We know nothing about Y other than its distribution.

Our best guess is?

Beyond Linear Regression: Discussion

Goal: guess the value of Y in the expected squared error

• sense. We know nothing about Y other than its distribution.

Our best guess is? E[Y].

Beyond Linear Regression: Discussion

Goal: guess the value of Y in the expected squared error

• sense. We know nothing about Y other than its distribution.

Our best guess is? E[Y]. Now assume we make some observation X related to Y.

Beyond Linear Regression: Discussion

Goal: guess the value of Y in the expected squared error

• sense. We know nothing about Y other than its distribution.

Our best guess is? E[Y]. Now assume we make some observation X related to Y. How do we use that observation to improve our guess about Y?

Beyond Linear Regression: Discussion

Goal: guess the value of Y in the expected squared error

• sense. We know nothing about Y other than its distribution.

Our best guess is? E[Y]. Now assume we make some observation X related to Y. How do we use that observation to improve our guess about Y? Idea: use a function g(X) of the observation to estimate Y.

Beyond Linear Regression: Discussion

Goal: guess the value of Y in the expected squared error

• sense. We know nothing about Y other than its distribution.

Our best guess is? E[Y]. Now assume we make some observation X related to Y. How do we use that observation to improve our guess about Y? Idea: use a function g(X) of the observation to estimate Y. LR: Restriction to linear functions: g(X) = a+bX.

Beyond Linear Regression: Discussion

Goal: guess the value of Y in the expected squared error

• sense. We know nothing about Y other than its distribution.

Our best guess is? E[Y]. Now assume we make some observation X related to Y. How do we use that observation to improve our guess about Y? Idea: use a function g(X) of the observation to estimate Y. LR: Restriction to linear functions: g(X) = a+bX. With no such constraints, what is the best g(X)?

Beyond Linear Regression: Discussion

Goal: guess the value of Y in the expected squared error

• sense. We know nothing about Y other than its distribution.

Our best guess is? E[Y]. Now assume we make some observation X related to Y. How do we use that observation to improve our guess about Y? Idea: use a function g(X) of the observation to estimate Y. LR: Restriction to linear functions: g(X) = a+bX. With no such constraints, what is the best g(X)? Answer:

Beyond Linear Regression: Discussion

Goal: guess the value of Y in the expected squared error

• sense. We know nothing about Y other than its distribution.

Our best guess is? E[Y]. Now assume we make some observation X related to Y. How do we use that observation to improve our guess about Y? Idea: use a function g(X) of the observation to estimate Y. LR: Restriction to linear functions: g(X) = a+bX. With no such constraints, what is the best g(X)? Answer: E[Y|X].

Beyond Linear Regression: Discussion

Goal: guess the value of Y in the expected squared error

• sense. We know nothing about Y other than its distribution.

Our best guess is? E[Y]. Now assume we make some observation X related to Y. How do we use that observation to improve our guess about Y? Idea: use a function g(X) of the observation to estimate Y. LR: Restriction to linear functions: g(X) = a+bX. With no such constraints, what is the best g(X)? Answer: E[Y|X]. This is called the Conditional Expectation (CE).

Nonlinear Regression: Motivation

Nonlinear Regression: Motivation

There are many situations where a good guess about Y given X is not linear.

Nonlinear Regression: Motivation

There are many situations where a good guess about Y given X is not linear. E.g., (diameter of object, weight),

Nonlinear Regression: Motivation

There are many situations where a good guess about Y given X is not linear. E.g., (diameter of object, weight), (school years, income),

Nonlinear Regression: Motivation

There are many situations where a good guess about Y given X is not linear. E.g., (diameter of object, weight), (school years, income), (PSA level, cancer risk).

Nonlinear Regression: Motivation

There are many situations where a good guess about Y given X is not linear. E.g., (diameter of object, weight), (school years, income), (PSA level, cancer risk).

Nonlinear Regression: Motivation

There are many situations where a good guess about Y given X is not linear. E.g., (diameter of object, weight), (school years, income), (PSA level, cancer risk). Our goal:

Nonlinear Regression: Motivation

There are many situations where a good guess about Y given X is not linear. E.g., (diameter of object, weight), (school years, income), (PSA level, cancer risk). Our goal: explore estimates ˆ Y = g(X) for nonlinear functions g(·).

Quadratic Regression

Quadratic Regression

Let X,Y be two random variables defined on the same probability space.

Quadratic Regression

Let X,Y be two random variables defined on the same probability space. Definition:

Quadratic Regression

Let X,Y be two random variables defined on the same probability space. Definition: The quadratic regression of Y over X is the random variable

Quadratic Regression

Let X,Y be two random variables defined on the same probability space. Definition: The quadratic regression of Y over X is the random variable Q[Y|X] = a+bX +cX 2

Quadratic Regression

Let X,Y be two random variables defined on the same probability space. Definition: The quadratic regression of Y over X is the random variable Q[Y|X] = a+bX +cX 2 where a,b,c are chosen to minimize E[(Y −a−bX −cX 2)2].

Quadratic Regression

Let X,Y be two random variables defined on the same probability space. Definition: The quadratic regression of Y over X is the random variable Q[Y|X] = a+bX +cX 2 where a,b,c are chosen to minimize E[(Y −a−bX −cX 2)2]. Derivation:

Quadratic Regression

Let X,Y be two random variables defined on the same probability space. Definition: The quadratic regression of Y over X is the random variable Q[Y|X] = a+bX +cX 2 where a,b,c are chosen to minimize E[(Y −a−bX −cX 2)2]. Derivation: We set to zero the derivatives w.r.t. a,b,c.

Quadratic Regression

Let X,Y be two random variables defined on the same probability space. Definition: The quadratic regression of Y over X is the random variable Q[Y|X] = a+bX +cX 2 where a,b,c are chosen to minimize E[(Y −a−bX −cX 2)2]. Derivation: We set to zero the derivatives w.r.t. a,b,c. We get = E[Y −a−bX −cX 2]

Quadratic Regression

Let X,Y be two random variables defined on the same probability space. Definition: The quadratic regression of Y over X is the random variable Q[Y|X] = a+bX +cX 2 where a,b,c are chosen to minimize E[(Y −a−bX −cX 2)2]. Derivation: We set to zero the derivatives w.r.t. a,b,c. We get = E[Y −a−bX −cX 2] = E[(Y −a−bX −cX 2)X]

Quadratic Regression

Let X,Y be two random variables defined on the same probability space. Definition: The quadratic regression of Y over X is the random variable Q[Y|X] = a+bX +cX 2 where a,b,c are chosen to minimize E[(Y −a−bX −cX 2)2]. Derivation: We set to zero the derivatives w.r.t. a,b,c. We get = E[Y −a−bX −cX 2] = E[(Y −a−bX −cX 2)X] = E[(Y −a−bX −cX 2)X 2]

Quadratic Regression

Let X,Y be two random variables defined on the same probability space. Definition: The quadratic regression of Y over X is the random variable Q[Y|X] = a+bX +cX 2 where a,b,c are chosen to minimize E[(Y −a−bX −cX 2)2]. Derivation: We set to zero the derivatives w.r.t. a,b,c. We get = E[Y −a−bX −cX 2] = E[(Y −a−bX −cX 2)X] = E[(Y −a−bX −cX 2)X 2] We solve these three equations in the three unknowns (a,b,c).

Quadratic Regression

Let X,Y be two random variables defined on the same probability space. Definition: The quadratic regression of Y over X is the random variable Q[Y|X] = a+bX +cX 2 where a,b,c are chosen to minimize E[(Y −a−bX −cX 2)2]. Derivation: We set to zero the derivatives w.r.t. a,b,c. We get = E[Y −a−bX −cX 2] = E[(Y −a−bX −cX 2)X] = E[(Y −a−bX −cX 2)X 2] We solve these three equations in the three unknowns (a,b,c).

Conditional Expectation

Definition Let X and Y be RVs on Ω.

Conditional Expectation

Definition Let X and Y be RVs on Ω. The conditional expectation of Y given X is defined as E[Y|X] = g(X)

Conditional Expectation

Definition Let X and Y be RVs on Ω. The conditional expectation of Y given X is defined as E[Y|X] = g(X) where g(x) := E[Y|X = x] := ∑

y

yPr[Y = y|X = x].

Conditional Expectation

Definition Let X and Y be RVs on Ω. The conditional expectation of Y given X is defined as E[Y|X] = g(X) where g(x) := E[Y|X = x] := ∑

y

yPr[Y = y|X = x].

Deja vu, all over again?

Have we seen this before?

Deja vu, all over again?

Have we seen this before? Yes.

Deja vu, all over again?

Have we seen this before? Yes. Is anything new?

Deja vu, all over again?

Have we seen this before? Yes. Is anything new? Yes.

Deja vu, all over again?

Have we seen this before? Yes. Is anything new? Yes. The idea of defining g(x) = E[Y|X = x] and then E[Y|X] = g(X).

Deja vu, all over again?

Have we seen this before? Yes. Is anything new? Yes. The idea of defining g(x) = E[Y|X = x] and then E[Y|X] = g(X). Big deal?

Deja vu, all over again?

Have we seen this before? Yes. Is anything new? Yes. The idea of defining g(x) = E[Y|X = x] and then E[Y|X] = g(X). Big deal? Quite!

Deja vu, all over again?

Have we seen this before? Yes. Is anything new? Yes. The idea of defining g(x) = E[Y|X = x] and then E[Y|X] = g(X). Big deal? Quite! Simple but most convenient.

Deja vu, all over again?

Have we seen this before? Yes. Is anything new? Yes. The idea of defining g(x) = E[Y|X = x] and then E[Y|X] = g(X). Big deal? Quite! Simple but most convenient. Recall that L[Y|X] = a+bX is a function of X.

Deja vu, all over again?

Have we seen this before? Yes. Is anything new? Yes. The idea of defining g(x) = E[Y|X = x] and then E[Y|X] = g(X). Big deal? Quite! Simple but most convenient. Recall that L[Y|X] = a+bX is a function of X. This is similar: E[Y|X] = g(X) for some function g(·).

Deja vu, all over again?

Have we seen this before? Yes. Is anything new? Yes. The idea of defining g(x) = E[Y|X = x] and then E[Y|X] = g(X). Big deal? Quite! Simple but most convenient. Recall that L[Y|X] = a+bX is a function of X. This is similar: E[Y|X] = g(X) for some function g(·). In general, g(X) is not linear, i.e., not a+bX.

Deja vu, all over again?

Have we seen this before? Yes. Is anything new? Yes. The idea of defining g(x) = E[Y|X = x] and then E[Y|X] = g(X). Big deal? Quite! Simple but most convenient. Recall that L[Y|X] = a+bX is a function of X. This is similar: E[Y|X] = g(X) for some function g(·). In general, g(X) is not linear, i.e., not a+bX. It could be that g(X) = a+bX +cX 2.

Deja vu, all over again?

Have we seen this before? Yes. Is anything new? Yes. The idea of defining g(x) = E[Y|X = x] and then E[Y|X] = g(X). Big deal? Quite! Simple but most convenient. Recall that L[Y|X] = a+bX is a function of X. This is similar: E[Y|X] = g(X) for some function g(·). In general, g(X) is not linear, i.e., not a+bX. It could be that g(X) = a+bX +cX 2. Or that g(X) = 2sin(4X)+exp{−3X}.

Deja vu, all over again?

Have we seen this before? Yes. Is anything new? Yes. The idea of defining g(x) = E[Y|X = x] and then E[Y|X] = g(X). Big deal? Quite! Simple but most convenient. Recall that L[Y|X] = a+bX is a function of X. This is similar: E[Y|X] = g(X) for some function g(·). In general, g(X) is not linear, i.e., not a+bX. It could be that g(X) = a+bX +cX 2. Or that g(X) = 2sin(4X)+exp{−3X}. Or something else.

Properties of CE

E[Y|X = x] = ∑

y

yPr[Y = y|X = x]

Properties of CE

E[Y|X = x] = ∑

y

yPr[Y = y|X = x] Theorem

Properties of CE

E[Y|X = x] = ∑

y

yPr[Y = y|X = x] Theorem (a) X,Y independent ⇒ E[Y|X] = E[Y];

Properties of CE

E[Y|X = x] = ∑

y

yPr[Y = y|X = x] Theorem (a) X,Y independent ⇒ E[Y|X] = E[Y]; (b) E[aY +bZ|X] = aE[Y|X]+bE[Z|X];

Properties of CE

E[Y|X = x] = ∑

y

yPr[Y = y|X = x] Theorem (a) X,Y independent ⇒ E[Y|X] = E[Y]; (b) E[aY +bZ|X] = aE[Y|X]+bE[Z|X]; (c) E[Yh(X)|X] = h(X)E[Y|X],∀h(·);

Properties of CE

E[Y|X = x] = ∑

y

yPr[Y = y|X = x] Theorem (a) X,Y independent ⇒ E[Y|X] = E[Y]; (b) E[aY +bZ|X] = aE[Y|X]+bE[Z|X]; (c) E[Yh(X)|X] = h(X)E[Y|X],∀h(·); (d) E[E[Y|X]] = E[Y].

Properties of CE

E[Y|X = x] = ∑

y

yPr[Y = y|X = x] Theorem (a) X,Y independent ⇒ E[Y|X] = E[Y]; (b) E[aY +bZ|X] = aE[Y|X]+bE[Z|X]; (c) E[Yh(X)|X] = h(X)E[Y|X],∀h(·); (d) E[E[Y|X]] = E[Y].

Calculating E[Y|X]

Let X,Y,Z be i.i.d. with mean 0 and variance 1.

Calculating E[Y|X]

Let X,Y,Z be i.i.d. with mean 0 and variance 1. We want to calculate E[2+5X +7XY +11X 2 +13X 3Z 2|X].

Calculating E[Y|X]

Let X,Y,Z be i.i.d. with mean 0 and variance 1. We want to calculate E[2+5X +7XY +11X 2 +13X 3Z 2|X]. We find E[2+5X +7XY +11X 2 +13X 3Z 2|X]

Calculating E[Y|X]

Let X,Y,Z be i.i.d. with mean 0 and variance 1. We want to calculate E[2+5X +7XY +11X 2 +13X 3Z 2|X]. We find E[2+5X +7XY +11X 2 +13X 3Z 2|X] = 2+5X +7XE[Y|X]+11X 2 +13X 3E[Z 2|X]

Calculating E[Y|X]

Let X,Y,Z be i.i.d. with mean 0 and variance 1. We want to calculate E[2+5X +7XY +11X 2 +13X 3Z 2|X]. We find E[2+5X +7XY +11X 2 +13X 3Z 2|X] = 2+5X +7XE[Y|X]+11X 2 +13X 3E[Z 2|X] = 2+5X +7XE[Y]+11X 2 +13X 3E[Z 2]

Calculating E[Y|X]

Let X,Y,Z be i.i.d. with mean 0 and variance 1. We want to calculate E[2+5X +7XY +11X 2 +13X 3Z 2|X]. We find E[2+5X +7XY +11X 2 +13X 3Z 2|X] = 2+5X +7XE[Y|X]+11X 2 +13X 3E[Z 2|X] = 2+5X +7XE[Y]+11X 2 +13X 3E[Z 2] = 2+5X +11X 2 +13X 3(var[Z]+E[Z]2)

Calculating E[Y|X]

Let X,Y,Z be i.i.d. with mean 0 and variance 1. We want to calculate E[2+5X +7XY +11X 2 +13X 3Z 2|X]. We find E[2+5X +7XY +11X 2 +13X 3Z 2|X] = 2+5X +7XE[Y|X]+11X 2 +13X 3E[Z 2|X] = 2+5X +7XE[Y]+11X 2 +13X 3E[Z 2] = 2+5X +11X 2 +13X 3(var[Z]+E[Z]2) = 2+5X +11X 2 +13X 3.

CE = MMSE

(Conditional Expectation = Minimum Mean Squared Error) Theorem g(X) := E[Y|X] is the function of X that minimizes E[(Y −g(X))2].

CE = MMSE

(Conditional Expectation = Minimum Mean Squared Error) Theorem g(X) := E[Y|X] is the function of X that minimizes E[(Y −g(X))2]. That is, E[Y|X] is the ‘best’ guess about Y based on X.

CE = MMSE

(Conditional Expectation = Minimum Mean Squared Error) Theorem g(X) := E[Y|X] is the function of X that minimizes E[(Y −g(X))2]. That is, E[Y|X] is the ‘best’ guess about Y based on X. Specifically, it is the function g(X) of X that minimizes E[(Y −g(X))2].

CE = MMSE

(Conditional Expectation = Minimum Mean Squared Error) Theorem g(X) := E[Y|X] is the function of X that minimizes E[(Y −g(X))2]. That is, E[Y|X] is the ‘best’ guess about Y based on X. Specifically, it is the function g(X) of X that minimizes E[(Y −g(X))2].

Summary

Linear and Non-Linear Regression: Conditional Expectation

Summary

Linear and Non-Linear Regression: Conditional Expectation

◮ Linear Regression: L[Y|X] = E[Y]+ cov(X,Y) var(X) (X −E[X])

Summary

Linear and Non-Linear Regression: Conditional Expectation

◮ Linear Regression: L[Y|X] = E[Y]+ cov(X,Y) var(X) (X −E[X]) ◮ Non-linear Regression: MMSE: E[Y|X] minimizes

E[(Y −g(X))2] over all g(·)

◮ Definition: E[Y|X] := ∑y yPr[Y = y|X = x]

Summary

Linear and Non-Linear Regression: Conditional Expectation

◮ Linear Regression: L[Y|X] = E[Y]+ cov(X,Y) var(X) (X −E[X]) ◮ Non-linear Regression: MMSE: E[Y|X] minimizes

E[(Y −g(X))2] over all g(·)

◮ Definition: E[Y|X] := ∑y yPr[Y = y|X = x]
