Gees Bend FERRY Battery Conversion Presented by: Tim Aguirre, HMS Ferries 09.25.2019 taguirre@hmsgm.com Southeast Diesel Collaborative 14th Annual Partners Meeting Collaborative Effort Between Public and Private Organizations GEES BEND

SLIDE 1

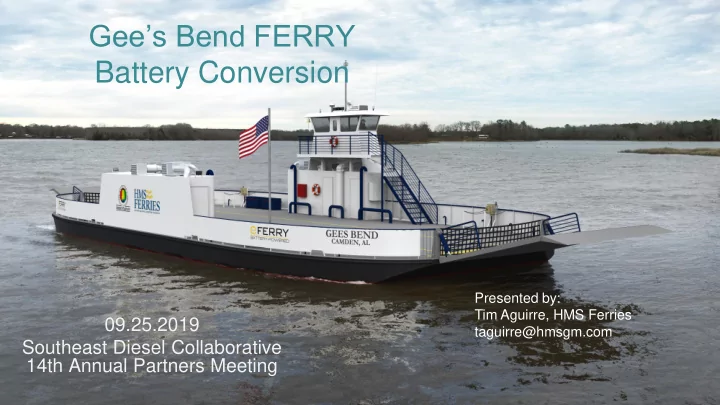

Gee’s Bend FERRY Battery Conversion

09.25.2019 Southeast Diesel Collaborative 14th Annual Partners Meeting

Presented by: Tim Aguirre, HMS Ferries taguirre@hmsgm.com

SLIDE 2

GEES BEND FERRY BATTERY CONVERSION 2

Collaborative Effort Between Public and Private Organizations

SLIDE 3

SLIDE 4

– Project drivers (Tim) – Why batteries here? (Tim) – Project timeline (Tim) – Conversion scope (Tim)

GEES BEND FERRY BATTERY CONVERSION 4

Gee’s Bend Battery Conversion

SLIDE 5

GEES BEND BATTERY CONVERSION 3

Alabama Dept. of Transportation wanted to do something special with this unique part of their transportation network (and HMS wanted to help)!

A Unique Transportation Network

From Humble Beginnings! First 100% Electric Powered Car Ferry in the U.S.!

SLIDE 6

– Pristine area of Alabama that relies on natural resources and needs preservation – The ferry is historically significant and an important symbol of the region’s progress in Civil Rights – Culturally rich and home to the famous Gee’s Bend Quilters – The economically depressed area would benefit from public and private investment – Alabama Dept. of Transportation (ALDOT) wanted to do something special with the Ferry

GEES BEND FERRY BATTERY CONVERSION 6

Project Drivers

SLIDE 7

Minimum energy consumption is key!

– Short route (1.45 NM) – Slow speed (5-8 kts) – 10 runs/day – 30 minute load/unload leave time to charge – Power available on both sides

GEES BEND FERRY BATTERY CONVERSION 7

Batteries make sense on this route

SLIDE 8

GEES BEND FERRY BATTERY CONVERSION 8

Project timeline overview

Mar. 2016
Glosten

completed Feasibility Study

Apr. 2016
Applied for EPA

Grant

June 2016

Notified of

successful grant proposal

Jan. 2017
Began

Preliminary Design

Feb. 2017
RFP issued for

propulsion integrator

July 2017

Contract

award for propulsion system integrator

Oct. 2017
USCG design

submittal

Nov. 2017
Contract

award for shore power integrator

Dec. 2017
Shipyard

Competitive process begins

Feb. 2018
Factory

Acceptance Testing Completed

May 2018

Shipyard work

begins

April 2019

Vessel enters service

SLIDE 9

Equipment removals

4 x 125 HP diesel engines and reduction gears
PTO’s for hydraulic system which powers steering and

loading ramps

4 x fixed pitch propellers and shafts
Pneumatic propulsion controls and misc. equipment

Replace with all electric propulsion system

4 propulsion motors and reduction gears
New shafts and propellers
Electrical conversion equipment and drives
2 battery banks (135kWh each, 270kWh total)
2 new electric HPU (1 each for steering and ramps)
New electronic propulsion controls
New water cooling systems for drives and gears
New HVAC system for battery rooms
New fire suppression system for battery rooms
New shore charging infrastructure!

GEES BEND FERRY BATTERY CONVERSION 9

Project scope

SLIDE 10

Before and After

SLIDE 11

Before and After

SLIDE 12

Before and After

SLIDE 13

Before and After

SLIDE 14

Lessons Learned: Can be more challenging than you might think! Issues encountered for this project:

Working with the power

companies

Working with Neghbors
Finding Contractors

GEES BEND BATTERY CONVERSION 14

Shore side Charging Stations

SLIDE 15

Mike Wilson, ALDOT and Tim Aguirre, HMS Ferries taguirre@hmsgm.com

Thank You EPA and SEDC!!!

GEES BEND BATTERY CONVERSION 15
