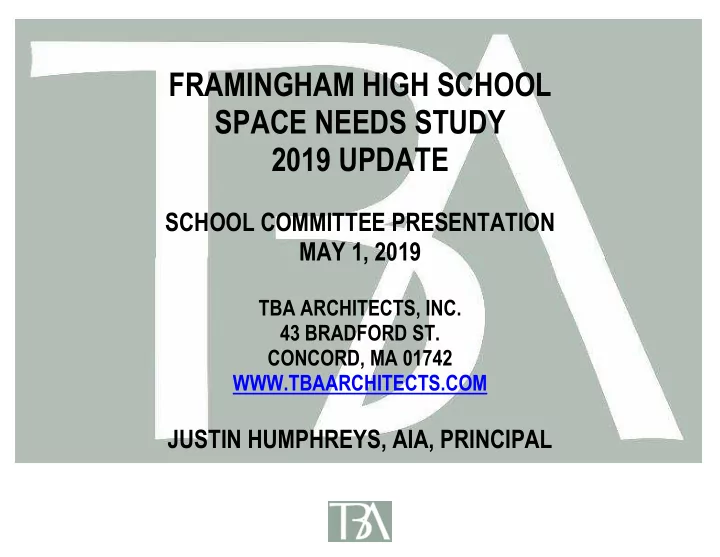

FRAMINGHAM HIGH SCHOOL SPACE NEEDS STUDY 2019 UPDATE

SCHOOL COMMITTEE PRESENTATION MAY 1, 2019

TBA ARCHITECTS, INC. 43 BRADFORD ST. CONCORD, MA 01742 WWW.TBAARCHITECTS.COM

JUSTIN HUMPHREYS, AIA, PRINCIPAL

slide-2
SLIDE 2

Framingham High School Space Needs Study

115 A Street, Framingham, MA 01702 Report Date: May 23, 2017 Updated 2019 Prepared for: Framingham Public Schools 73 Mt. Wayte Ave., Suite 5 Framingham, MA 01702

slide-3
SLIDE 3

Framingham Public Schools Framingham High School Space Needs Study FHS Space Needs Study

Existing School to MSBA Comparison Summary

4/22/2019 DRAFT Students 2087 2250 2692 # area # area # area # area Classrooms 94,814 99,670 107,700 128,320 classrooms - general 82 66,479 71 60,350 76 64,600 92 78,200 classrooms - science 22 25,150 18 25,920 20 28,800 23 33,120 teacher planning 1 476 71 7,100 76 7,600 92 9,200 small group seminar

  • 5

2,500 5 2,500 6 3,000 prep rooms 5 1,629 18 3,600 20 4,000 23 4,600 central chemical storage 3 1,080 1 200 1 200 1 200 Special Education 5,687 20,140 22,150 26,180 Art & Music 17,845 9,850 9,925 11,425 Vocations & Technology 16,104 22,400 25,600 28,800 Health & Physical Education 45,996 27,887 28,800 31,275 Media Center 12,149 12,944 13,963 16,725 Auditorium / Drama 15,696 10,400 10,400 10,400 Dining & Food Service 18,127 15,866 16,926 19,798 Medical 1,320 1,710 1,710 2,010 Administration & Guidance 11,421 7,065 7,589 8,647 Custodial & Maintenance 4,175 3,190 3,313 3,644 Other 8,817

  • Total Building NFA

252,151 231,122 248,074 287,224 Total Building GFA 392,090 327,659 353,250 422,644 Grossing Factor 1.55 1.42 1.42 1.47 FHS Existing 2017 2019 2023-24 TBA Architects, Inc. | 43 Bradford St. | Concord, MA 01742 | 781-893-5828 | www.tbaarchitects.com

slide-4
SLIDE 4

1163 NSF STORAGE 1373 NSF J024 1372 NSF J022 1011 NSF HEALTH J004 582 NSF J006A 406 NSF TV OFFICE J006B 370 NSF MEDIA OFFICE J006C 1000 NSF HEALTH J010 GENERATOR ROOM 195 NSF STORAGE 195 NSF STORAGE 180 NSF STORAGE 286 NSF CUSTODIAN J026A 240 NSF J028 1517 NSF J020 1070 NSF TV STUDIO J003 1050 NSF MEDIA CLASS J007 1050 NSF YOGA J009 126 NSF STOR. 126 NSF STOR. 152 NSF STOR. 150 NSF KILN 129 NSF STOR. 1576 NSF DISTRICT TECHNOLOGY(IT) K013 1310 NSF K015 2251 NSF K019 1600 NSF K011 1120 NSF K009 1151 NSF K007 373 NSF WORK AREA 2611 NSF K008 1117 NSF DISTRICT TECHNOLOGY(IT) K006 1562 NSF DISTRICT TECHNOLOGY(IT) K002 2339 NSF ATHLETIC STORAGE OFFICE OFFICE OFFICE 123 NSF STOR. OFFICE 185 NSF OFFICE 443 NSF DARK ROOM 365 NSF CUSTODIAN J017 3D PRINTING 690 NSF DISTRICT TECHNOLOGY(IT) 66 NSF OFFICE 58 NSF OFFICE 62 NSF OFFICE 334 NSF OFFICE 116 NSF STOR. 582 NSF RECEIVING STORAGE J020 1026 NSF GARAGE J041 BOILER ROOM

J-WING FINE ARTS TECHNOLOGY

TBA ARCHITECTS, INC.

ARCHITECTURE PLANNING PROJECT MANAGEMENT

43 BRADFORD STREET, CONCORD MA. 01742 TEL (781)893-5828 FAX (781)893-5834 www.tbaarchitects.com

HIGH SCHOOL PLANNING TOWN OF FRAMINGHAM 115 A STREET FRAMINGHAM, MA

TBA PROJECT # 1279

18 MAY 2017

NOT FOR CONSTRUCTION

NORTH

1

FRAMINGHAM HIGH SCHOOL EXISTING LOWER LEVEL SPACE USE

GYM CAFETERIA SPED

  • VOC. TECH.

NURSE MEDIA CENTER ADMINISTRATION SCIENCE IT DEPT. M E P GUIDANCE PERFORMING ARTS SHARED/ GENERAL CLASSROOM ENGLISH SOCIAL STUDIES HEALTH LANGUAGE MATH FINE ARTS STORAGE WORKSPACE CUSTODIAN

slide-5
SLIDE 5

TBA ARCHITECTS, INC.

ARCHITECTURE PLANNING PROJECT MANAGEMENT

43 BRADFORD STREET, CONCORD MA. 01742 TEL (781)893-5828 FAX (781)893-5834 www.tbaarchitects.com

HIGH SCHOOL PLANNING TOWN OF FRAMINGHAM 115 A STREET FRAMINGHAM, MA

TBA PROJECT # 1279

18 MAY 2017

NOT FOR CONSTRUCTION

NORTH

2

FRAMINGHAM HIGH SCHOOL EXISTING FIRST FLOOR SPACE USE

12816 NSF AUDITORIUM 291 NSF ARTS DEPT. I104 223 NSF BOX OFFICE I100A 293 NSF I103 179 NSF ARTS DEPT. HEAD H108 100 NSF H110 109 NSF H112 571 NSF KEYBOARD H114 111 NSF STOR. 787 NSF EARLY CHILDHOOD H111 222 NSF I111 370 NSF I113 132 NSF H120 121 NSF MUSIC TEACHER H118 187 NSF H116 211 NSF H116A 866 NSF FINE ARTS STORAGE 2880 NSF ACTING H100 1577 NSF BAND H102 1206 NSF MUSIC H104 107 NSF H109 105 NSF H107 134 NSF H106 135 NSF H103 2516 NSF FOOD PREP FRIDGE FREEZER DRY STOR. 1877 NSF SERVING 11612 NSF CAFETERIA 560 NSF FACULTY LUNCH 274 NSF CAFE OFF. G105 204 NSF CAFE OFF. G107 364 NSF STORAGE 337 NSF STORAGE 408 NSF STORAGE 424 NSF GUIDANCE A110 ELECTRICAL 274 NSF A108 294 NSF GUIDANCE A106 413 NSF A104 9283 NSF LIBRARY OPEN LIBRARY CLASSROOM OPEN LIBRARY CLASSROOM 156 NSF A102D 156 NSF A102C 156 NSF A102B 156 NSF A102A 954 NSF A107 118 NSF A107C 162 NSF OFFICE A107B 286 NSF CONFERENCE A107A 286 NSF A109C 2014 NSF MAIN OFFICE 286 NSF A109B PRINCIPAL RECEP. MAIL 1116 NSF A114 1180 NSF A118 324 NSF A116 1180 NSF A119 1077 NSF A117 1157 NSF B102 781 NSF B101 797 NSF B103 284 NSF B104 805 NSF B105 801 NSF B107 1173 NSF B106 779 NSF B109 1079 NSF B108 102A 1747 NSF GUIDANCE 102B 102C 102D 102E 102F 102G 102H 175 NSF 102K 124 NSF 102L 300 NSF D106 172 NSF STORAGE 85 NSF H115 76 NSF G104 78 NSF STORAGE 398 NSF RFL SPED D110 802 NSF D112 1575 NSF NURSE 1634 NSF COUNSELING 1173 NSF C118 1180 NSF C119 1123 NSF C116 1078 NSF C115 939 NSF C109 192 NSF STORAGE 408 NSF CHEMICAL STORAGE 51 NSF STORAGE 476 NSF C110 786 NSF C107 807 NSF C108 792 NSF C105 784 NSF C106 772 NSF C103 777 NSF C104 297 NSF STORAGE 348 NSF STORAGE 783 NSF E119 783 NSF E119 225 NSF E118 123 NSF E118A 184 NSF E118B 175 NSF SPED 912 NSF E117 304 NSF RFL E115 63 NSF STOR. 182 NSF STOR. 332 NSF PHOENIX SPED E111 95 NSF PHOENIX SPED E111A 882 NSF E114 683 NSF PHOENIX SPED E108 304 NSF E109 386 NSF PHONIEX SPED E109 786 NSF E107 797 NSF E106 769 NSF E105 780 NSF E104 798 NSF E103 809 NSF E102 768 NSF E101 804 NSF E100 1230 NSF CLOTHING F122 806 NSF F115 781 NSF F113 775 NSF F111 1123 NSF F107 1139 NSF FOOD LAB F105 1168 NSF FOOD LAB F103 673 NSF EARLY CHILDHOOD F101 760 NSF EARLY CHILDHOOD F102 778 NSF BLOCKS PROGRAM PRE-K F104 323 NSF EARLY CHILDHOOD HEAD F112 553 NSF EARLY CHILDHOOD F121 345 NSF F120 169 NSF VP OFFICE F120A 126 NSF VP OFFICE F120B 73 NSF STORAGE 159 NSF FOOD STAND 189 NSF K103 180 NSF K105 112 NSF STORAGE 128 NSF K109 4157 NSF WELLNESS CENTER 10443 NSF GYMNASIUM 1193 NSF GIRLS LOCKER ROOM 1249 NSF BOYS LOCKER ROOM 73 NSF K114B 259 NSF LOCKER ROOM 103 NSF STORAGE 746 NSF STORAGE 147 NSF STORAGE 100 NSF STORAGE 705 NSF ATHLETIC TRAINER 300 NSF STORAGE 304 NSF STORAGE 128 NSF OFFICE 127 NSF OFFICE 112 NSF OFFICE 3373 NSF GIRLS LOCKER ROOM 3043 NSF BOYS LOCKER ROOM 102 NSF STOR. 12182 NSF GYMNASIUM 357 NSF STOR. 158 NSF STOR. 90 NSF STOR. 21 NSF STOR. 333 NSF STOR. 121 NSF H102 112 NSF STOR. 32 NSF STOR. 260 NSF STORAGE 778 NSF BLOCKS PROGRAM PRE-K F104 BLOCKS PROGRAM PLAYGROUND

SCIENCE MATH SOCIAL STUDIES ELECTRICAL CHILDCARE PERFORMANCE ARTS C-WING A-WING B-WING LIBRARY GYM E-WING F-WING CAFETERIA ENTRANCE GYM

GYM CAFETERIA SPED

  • VOC. TECH.

NURSE MEDIA CENTER ADMINISTRATION SCIENCE IT DEPT. M E P GUIDANCE PERFORMING ARTS SHARED/ GENERAL CLASSROOM ENGLISH SOCIAL STUDIES HEALTH LANGUAGE MATH FINE ARTS STORAGE WORKSPACE CUSTODIAN

slide-6
SLIDE 6

TBA ARCHITECTS, INC.

ARCHITECTURE PLANNING PROJECT MANAGEMENT

43 BRADFORD STREET, CONCORD MA. 01742 TEL (781)893-5828 FAX (781)893-5834 www.tbaarchitects.com

HIGH SCHOOL PLANNING TOWN OF FRAMINGHAM 115 A STREET FRAMINGHAM, MA

TBA PROJECT # 1279

18 MAY 2017

NOT FOR CONSTRUCTION

NORTH

3

FRAMINGHAM HIGH SCHOOL EXISTING SECOND FLOOR SPACE USE

807 NSF F201 790 NSF F203 802 NSF F205 799 NSF F202 742 NSF F204 797 NSF F206 795 NSF F207 797 NSF F208 796 NSF F210 794 NSF F211 737 NSF F212 794 NSF F213 798 NSF F215 824 NSF F217 280 NSF BOOK STORAGE 86 NSF STORAGE 336 NSF F214 798 NSF E200 798 NSF E202 728 NSF E204 797 NSF E201 797 NSF E203 95 NSF WORKSPACE 90 NSF OFFICE 90 NSF OFFICE 95 NSF WORKSPACE 353 NSF WORKSPACE 799 NSF E206 1205 NSF WRITING CENTER E207 796 NSF E208 899 NSF E210 803 NSF E209 803 NSF E211 175 NSF CONFERENCE 168 NSF CONFERENCE 287 NSF SPED OFFICE 101 NSF SPED OFFICE 130 NSF SPED OFFICE 76 NSF SPED OFFICE 90 NSF OFFICE 228 NSF SPED OFFICE 76 NSF SPED OFFICE 76 NSF SPED OFFICE 126 NSF SPEECH/LANG. 66 NSF STOR. 799 NSF C201 676 NSF SPED E214 813 NSF C203 793 NSF C204 814 NSF C205 797 NSF C208 794 NSF C207 997 NSF C210 113 NSF SCIENCE 113 NSF MATH 171 NSF WORKSPACE 354 NSF WORKSPACE 292 NSF STORAGE 109 NSF STOR. 116 NSF STOR. 102 NSF STORAGE 1150 NSF C216 417 NSF STOR. 1094 NSF C215 1218 NSF C219 1186 NSF C218 796 NSF B211 796 NSF B209 747 NSF B207 796 NSF B205 802 NSF B203 1042 NSF B210 1092 NSF B208 300 NSF B206 1193 NSF B204 241 NSF STORAGE 84 NSF STORAGE 325 NSF OFFICE B202 170 NSF VP OFFICE 134 NSF VP OFFICE 1192 NSF A215 1212 NSF A216 1095 NSF A213 335 NSF WORKSPACE A214 1171 NSF A212 857 NSF A209 799 NSF A207 797 NSF A205 801 NSF A203 207 NSF PHOENIX SPED A210A 489 NSF SPED A210 798 NSF A208 789 NSF A206 999 NSF A204 1003 NSF A202 144 NSF WORLD LANGUAGE 137 NSF ESL 201 NSF WORK SPACE 166 NSF WORK SPACE 797 NSF D212 799 NSF D210 795 NSF D208 797 NSF D206 796 NSF D204 804 NSF D215 794 NSF D213 389 NSF D211 794 NSF D209 792 NSF D207 171 NSF WORKSPACE 368 NSF WORK SPACE A200 256 NSF WORKSPACE 409 NSF BOOK STORAGE

MATH LANGUAGE SCIENCE SOCIAL STUDIES ENGLISH

GYM CAFETERIA SPED

  • VOC. TECH.

NURSE MEDIA CENTER ADMINISTRATION SCIENCE IT DEPT. M E P GUIDANCE PERFORMING ARTS SHARED/ GENERAL CLASSROOM ENGLISH SOCIAL STUDIES HEALTH LANGUAGE MATH FINE ARTS STORAGE WORKSPACE CUSTODIAN

slide-7
SLIDE 7

TBA ARCHITECTS, INC.

ARCHITECTURE PLANNING PROJECT MANAGEMENT

43 BRADFORD STREET, CONCORD MA. 01742 TEL (781)893-5828 FAX (781)893-5834 www.tbaarchitects.com

HIGH SCHOOL PLANNING TOWN OF FRAMINGHAM 115 A STREET FRAMINGHAM, MA

TBA PROJECT # 1279

19 MAY 2017

NOT FOR CONSTRUCTION

NORTH

LOWER LEVEL PLAN EXISTING UTILIZATION

1163 NSF STORAGE 1373 NSF J024 1372 NSF J022 1011 NSF J004 582 NSF J006A 406 NSF TV OFFICE J006B 370 NSF MEDIA OFFICE J006C 1000 NSF HEALTH J010 GENERATOR ROOM 195 NSF STORAGE 195 NSF STORAGE 180 NSF STORAGE 286 NSF CUSTODIAN LUNCH J026A 240 NSF OFFICE J028 1517 NSF J020 1070 NSF TV STUDIO J003 1050 NSF MEDIA CLASS J007 1050 NSF YOGA J009 126 NSF STOR. 126 NSF STOR. 152 NSF STOR. 150 NSF KILN 129 NSF STOR. 1576 NSF DISTRICT TECHNOLOGY(IT) K013 1310 NSF K015 2251 NSF K019 1600 NSF K011 1120 NSF K009 1151 NSF K007 373 NSF WORK AREA 2611 NSF K008 1117 NSF DISTRICT TECHNOLOGY(IT) K006 1562 NSF DISTRICT TECHNOLOGY(IT) K002 2339 NSF ATHLETIC STORAGE OFFICE OFFICE OFFICE 123 NSF STOR. OFFICE 185 NSF OFFICE 443 NSF DARK ROOM 365 NSF CUSTODIAN LOCKERS J017 3D PRINTING 690 NSF DISTRICT TECHNOLOGY(IT) 66 NSF OFFICE 58 NSF OFFICE 62 NSF OFFICE 334 NSF OFFICE 116 NSF OFFICE 582 NSF RECEIVING STORAGE J020 1026 NSF GARAGE J041 BOILER ROOM

UNDER UTILIZED ADEQUATELY UTILIZED OVER UTILIZED

UTILIZATION LEGEND

DETERMINED BY TIME (NUMBER OF PERIODS / WEEK) USED AND/OR BY ROOM SIZE (SQUARE FOOTAGE).

slide-8
SLIDE 8

TBA ARCHITECTS, INC.

ARCHITECTURE PLANNING PROJECT MANAGEMENT

43 BRADFORD STREET, CONCORD MA. 01742 TEL (781)893-5828 FAX (781)893-5834 www.tbaarchitects.com

HIGH SCHOOL PLANNING TOWN OF FRAMINGHAM 115 A STREET FRAMINGHAM, MA

TBA PROJECT # 1279

19 MAY 2017

NOT FOR CONSTRUCTION

NORTH

FIRST FLOOR PLAN EXISTING UTILIZATION

12816 NSF AUDITORIUM 291 NSF ARTS DEPT. I104 223 NSF BOX OFFICE I100A 293 NSF I103 179 NSF ARTS DEPT. HEAD H108 100 NSF H110 109 NSF H112 571 NSF KEYBOARD H114 111 NSF STOR. 787 NSF EARLY CHILDHOOD H111 222 NSF I111 370 NSF I113 132 NSF H120 121 NSF MUSIC TEACHER H118 187 NSF H116 211 NSF H116A 866 NSF FINE ARTS STORAGE 2880 NSF ACTING H100 1577 NSF BAND H102 1206 NSF MUSIC H104 107 NSF H109 105 NSF H107 134 NSF H106 135 NSF H103 2516 NSF FOOD PREP FRIDGE FREEZER DRY STOR. 1877 NSF SERVING 560 NSF FACULTY LUNCH 274 NSF CAFE OFF. G105 204 NSF CAFE OFF. G107 364 NSF STORAGE 337 NSF STORAGE 408 NSF STORAGE 424 NSF LIFE SKILLS SPED A110 ELECTRICAL 274 NSF A108 294 NSF SPED A106 413 NSF A104 9283 NSF LIBRARY OPEN LIBRARY CLASSROOM OPEN LIBRARY CLASSROOM 156 NSF A102D 156 NSF A102C 156 NSF A102B 156 NSF A102A 954 NSF A107 118 NSF A107C 162 NSF OFFICE A107B 286 NSF CONFERENCE A107A 286 NSF A109C 2014 NSF MAIN OFFICE 286 NSF A109B PRINCIPAL RECEP. MAIL 1116 NSF A114 1180 NSF A118 324 NSF A116 1180 NSF A119 1077 NSF A117 1157 NSF B102 781 NSF B101 797 NSF B103 284 NSF B104 805 NSF B105 801 NSF B107 1173 NSF B106 779 NSF B109 1079 NSF B108 102A 1747 NSF GUIDANCE 102B 102C 102D 102E 102F 102G 102H 175 NSF 102K 124 NSF 102L 300 NSF D106 172 NSF STORAGE 85 NSF H115 76 NSF G104 78 NSF STORAGE 398 NSF COLLEGE & CAREER CENTER D110 802 NSF D112 1575 NSF NURSE 1634 NSF COUNSELING 1173 NSF C118 1180 NSF C119 1123 NSF C116 1078 NSF C115 939 NSF C109 192 NSF STORAGE 408 NSF CHEMICAL STORAGE 51 NSF STORAGE 476 NSF C110 786 NSF C107 807 NSF C108 792 NSF C105 784 NSF C106 772 NSF C103 777 NSF C104 297 NSF STORAGE 348 NSF STORAGE 783 NSF E119 783 NSF E119 225 NSF E118 123 NSF E118A 184 NSF E118B 175 NSF STORAGE 912 NSF E117 304 NSF RFL E115 63 NSF STOR. 182 NSF STOR. 332 NSF PHOENIX SPED E111 95 NSF PHOENIX SPED E111A 882 NSF E114 683 NSF PHOENIX SPED E108 386 NSF PHONIEX SPED E109 786 NSF E107 797 NSF E106 769 NSF E105 780 NSF E104 798 NSF E103 809 NSF E102 768 NSF E101 804 NSF E100 1230 NSF CLOTHING F122 806 NSF F115 781 NSF F113 775 NSF F111 1123 NSF F107 1139 NSF FOOD LAB F105 1168 NSF FOOD LAB F103 673 NSF EARLY CHILDHOOD F101 760 NSF EARLY CHILDHOOD F102 778 NSF BLOCKS PROGRAM PRE-K F104 323 NSF EARLY CHILDHOOD HEAD F112 553 NSF EARLY CHILDHOOD F121 345 NSF F120 169 NSF VP OFFICE F120A 126 NSF VP OFFICE F120B 73 NSF STORAGE 159 NSF FOOD STAND 189 NSF K103 180 NSF K105 112 NSF STORAGE 128 NSF K109 4157 NSF WELLNESS CENTER 10443 NSF GYMNASIUM 1193 NSF GIRLS LOCKER ROOM 1249 NSF BOYS LOCKER ROOM 73 NSF K114B 259 NSF LOCKER ROOM 103 NSF STORAGE 746 NSF STORAGE 147 NSF STORAGE 100 NSF STORAGE 705 NSF ATHLETIC TRAINER 300 NSF STORAGE 304 NSF STORAGE 128 NSF OFFICE 127 NSF OFFICE 112 NSF OFFICE 3373 NSF GIRLS LOCKER ROOM 3043 NSF BOYS LOCKER ROOM 102 NSF STOR. 12182 NSF GYMNASIUM 357 NSF STOR. 158 NSF STOR. 90 NSF STOR. 21 NSF STOR. 333 NSF STOR. 121 NSF H102 112 NSF STOR. 32 NSF STOR. 260 NSF STORAGE 778 NSF BLOCKS PROGRAM PRE-K F104 BLOCKS PROGRAM PLAYGROUND 11612 NSF CAFETERIA 717 NSF SERVING 2 G107A 170 NSF FOOD STAND G102 MECHANICAL

UNDER UTILIZED ADEQUATELY UTILIZED OVER UTILIZED

UTILIZATION LEGEND

DETERMINED BY TIME (NUMBER OF PERIODS / WEEK) USED AND/OR BY ROOM SIZE (SQUARE FOOTAGE).

slide-9
SLIDE 9

TBA ARCHITECTS, INC.

ARCHITECTURE PLANNING PROJECT MANAGEMENT

43 BRADFORD STREET, CONCORD MA. 01742 TEL (781)893-5828 FAX (781)893-5834 www.tbaarchitects.com

HIGH SCHOOL PLANNING TOWN OF FRAMINGHAM 115 A STREET FRAMINGHAM, MA

TBA PROJECT # 1279

19 MAY 2017

NOT FOR CONSTRUCTION

NORTH

SECOND FLOOR PLAN EXISTING UTILIZATION

807 NSF F201 790 NSF F203 802 NSF F205 799 NSF F202 742 NSF F204 797 NSF F206 795 NSF F207 797 NSF F208 796 NSF F210 794 NSF F211 737 NSF F212 794 NSF F213 798 NSF F215 824 NSF F217 280 NSF BOOK STORAGE 86 NSF STORAGE 336 NSF F214 798 NSF E200 798 NSF E202 728 NSF E204 797 NSF E201 797 NSF E203 95 NSF WORKSPACE 90 NSF OFFICE 90 NSF OFFICE 95 NSF WORKSPACE 353 NSF WORKSPACE 799 NSF E206 1205 NSF WRITING CENTER E207 796 NSF E208 899 NSF E210 803 NSF E209 803 NSF E211 175 NSF CONFERENCE 168 NSF CONFERENCE 287 NSF SPED OFFICE 101 NSF SPED OFFICE 130 NSF SPED OFFICE 76 NSF SPED OFFICE 90 NSF OFFICE 228 NSF SPED OFFICE 76 NSF SPED OFFICE 76 NSF SPED OFFICE 126 NSF SPEECH/LANG. 66 NSF STOR. 799 NSF C201 676 NSF SPED E214 813 NSF C203 793 NSF C204 814 NSF C205 797 NSF C208 794 NSF C207 997 NSF C210 113 NSF SCIENCE 113 NSF MATH 171 NSF WORKSPACE 354 NSF WORKSPACE 292 NSF STORAGE 109 NSF STOR. 116 NSF STOR. 102 NSF STORAGE 1150 NSF C216 417 NSF STOR. 1094 NSF C215 1218 NSF C219 1186 NSF C218 796 NSF B211 796 NSF B209 747 NSF B207 796 NSF B205 802 NSF B203 1042 NSF B210 1092 NSF B208 300 NSF B206 1193 NSF B204 241 NSF STORAGE 84 NSF STORAGE 325 NSF OFFICE B202 170 NSF VP OFFICE 134 NSF VP OFFICE 1192 NSF A215 1212 NSF A216 1095 NSF A213 335 NSF WORKSPACE A214 1171 NSF A212 857 NSF A209 799 NSF A207 797 NSF A205 801 NSF A203 207 NSF PHOENIX SPED A210A 489 NSF SPED A210 798 NSF A208 789 NSF A206 999 NSF A204 1003 NSF A202 144 NSF WORLD LANGUAGE 137 NSF ESL 201 NSF WORK SPACE 166 NSF WORK SPACE 797 NSF D212 799 NSF D210 795 NSF D208 797 NSF D206 796 NSF D204 804 NSF D215 794 NSF D213 389 NSF D211 794 NSF D209 792 NSF D207 171 NSF WORKSPACE 368 NSF WORK SPACE A200 256 NSF WORKSPACE 409 NSF BOOK STORAGE

UNDER UTILIZED ADEQUATELY UTILIZED OVER UTILIZED

UTILIZATION LEGEND

DETERMINED BY TIME (NUMBER OF PERIODS / WEEK) USED AND/OR BY ROOM SIZE (SQUARE FOOTAGE).

slide-10
SLIDE 10

Framingham Public Schools FHS Space Needs Study FHS Space Needs Study

Conceptual Program Summary

4/22/2019 DRAFT Option 1 - Renovate existing District Technology rooms Option 2 - Renovate existing Blocks - Early Childhood classrooms Option 3 - Repurpose Rm E119 Option 4 - Renovate existing Rm K019 Option 5 - Renovate Office and Small Group Areas to redistribute programs Estimated Expansion Cost $0 $0 $0 $0 $0 Estimated Reno Cost $853,000 $237,000 $42,000 $200,000 $1,897,000 Cost per SF, bldg & site $157 $89 $49 $81 $108 Conceptual Project Cost $994,000 $287,000 $56,000 $245,000 $2,141,000 SF All Renovation 5,440 2,655 861 2,476 17,600 SF Expansion Pros

+ Could create five to six core classroom equivalents + Large area allows for multiple configurations and program uses. + Classroom K017 requires minimal work to make two rooms + Construction work can be confined to these areas with minimal impact on nearby rooms + Adds two additional classroom spaces and two smaller group spaces + New classrooms are main level and closer to specials + two classrooms would require minimal work to renovate into core classrooms + work area can stay relatively confined and has easy access to outside. + Classroom requires minimal work to be core curriculum + Location is adjacent to other core classrooms + Could be converted into small group space or offices + Minimal work needed to divide classroom into two classrooms + Existing program could remain, but in an average sized room + Work area is confined to within the existing walls + Opportunity to do in conjunction with option 1 to create many new classrooms in K-wing + Relocation of administration offices opens up opportunity for efficiencies and right-sizing + Administration can be located more centrally and allow for better engagement with students' schedules and travel paths + Additional classroom space is made available

Cons

  • Requires removal of district-wide technology services from

building or substantial downsizing

  • Rooms may require more work than others due to

configuration for tech and office spaces, not classrooms

  • Distant from other general education classrooms
  • Requires relocation of pre-K programs
  • Classrooms are remote from some core curriculum

classrooms

  • Fewer classrooms gained than option 1, but lower cost
  • Requires displacement of existing program use
  • Single classroom gained, but could be combined with other
  • ptions
  • Distant from other general education classrooms
  • Work creates only 1 additional classroom as a stand alone

project

  • Requires carefully phased work
  • Disruption from work above occupied classrooms
  • Does not provide 6 classrooms
  • Does not allow any flexibility for future growth

Option 6 - Eight Classroom Addition behind auditorium Option 7 - Seven Classroom Addition along E and C- wings Option 8 - Addition of four classrooms and office spaces between F & G-wings Estimated Expansion Cost $6,197,000 $6,243,000 $3,152,000 Estimated Reno Cost $0 $0 $0 Cost per SF, bldg & site $565 $565 $521 Conceptual Project Cost $6,965,000 $7,033,000 $3,648,000 SF All Renovation SF Expansion 10,976 11,053 6,050 TBA Architects, Inc. | 43 Bradford St. | Concord, MA 01742 | 781-893-5828 | www.tbaarchitects.com | pg. 1

slide-11
SLIDE 11

TBA ARCHITECTS, INC.

ARCHITECTURE PLANNING PROJECT MANAGEMENT

43 BRADFORD STREET, CONCORD MA. 01742 TEL (781)893-5828 FAX (781)893-5834 www.tbaarchitects.com

HIGH SCHOOL PLANNING TOWN OF FRAMINGHAM 115 A STREET FRAMINGHAM, MA

TBA PROJECT # 1279

18 MAY 2017

NOT FOR CONSTRUCTION

NORTH

GYM CAFETERIA SPED

  • VOC. TECH.

NURSE MEDIA CENTER ADMINISTRATION SCIENCE IT DEPT. M E P GUIDANCE PERFORMING ARTS SHARED/ GENERAL CLASSROOM ENGLISH SOCIAL STUDIES HEALTH LANGUAGE MATH FINE ARTS STORAGE WORKSPACE CUSTODIAN

ESTIMATED COST: $(See summary) PROS: + Could create five to six core classroom equivalents + Large area allows for multiple configurations and program uses. + Classroom K017 requires minimal work to make two rooms + Construction work can be confined to these areas with minimal impact on nearby rooms CONS:

  • Requires removal of district-wide technology services from

building or substantial downsizing

  • Rooms may require more work than others due to

configuration for tech and office spaces, not classrooms

  • Distant from other general education classrooms

OPTION 1

ESTIMATED COST: $(See summary)

OPTION 4

PROS: + Minimal work needed to divide classroom into two classrooms + Existing program could remain, but in an average sized room + Work area is confined to within the existing walls + Opportunity to do in conjunction with option 1 to create many new classrooms in K-wing CONS:

  • Distant from other general education classrooms
  • Work creates only 1 additional classroom as a stand alone project

SCOPE OF WORK: Area: 1 - 5,000 SF 2 - 3,100 SF 3 - 780 SF 4 - 2,251 SF

1163 NSF STORAGE 1373 NSF J024 1372 NSF J022 1011 NSF HEALTH J004 582 NSF J006A 406 NSF TV OFFICE J006B 370 NSF MEDIA OFFICE J006C 1000 NSF HEALTH J010 GENERATOR ROOM 195 NSF STORAGE 195 NSF STORAGE 180 NSF STORAGE 286 NSF CUSTODIAN J026A 240 NSF J028 1517 NSF J020 1070 NSF TV STUDIO J003 1050 NSF MEDIA CLASS J007 1050 NSF YOGA J009 126 NSF STOR. 126 NSF STOR. 152 NSF STOR. 150 NSF KILN 129 NSF STOR. 1576 NSF DISTRICT TECHNOLOGY(IT) K013 1310 NSF K015 2251 NSF K019 1600 NSF K011 1120 NSF K009 1151 NSF K007 373 NSF WORK AREA 2611 NSF K008 1117 NSF DISTRICT TECHNOLOGY(IT) K006 1562 NSF DISTRICT TECHNOLOGY(IT) K002 2339 NSF ATHLETIC STORAGE OFFICE OFFICE OFFICE 123 NSF STOR. OFFICE 185 NSF OFFICE 443 NSF DARK ROOM 365 NSF CUSTODIAN J017 3D PRINTING 690 NSF DISTRICT TECHNOLOGY(IT) 66 NSF OFFICE 58 NSF OFFICE 62 NSF OFFICE 334 NSF OFFICE 116 NSF STOR. 582 NSF RECEIVING STORAGE J020 1026 NSF GARAGE J041 BOILER ROOM 56 NSF MECHANICAL

1 1 4

SPACE MINING OPTIONS 1 & 4

slide-12
SLIDE 12

TBA ARCHITECTS, INC.

ARCHITECTURE PLANNING PROJECT MANAGEMENT

43 BRADFORD STREET, CONCORD MA. 01742 TEL (781)893-5828 FAX (781)893-5834 www.tbaarchitects.com

HIGH SCHOOL PLANNING TOWN OF FRAMINGHAM 115 A STREET FRAMINGHAM, MA

TBA PROJECT # 1279

18 MAY 2017

NOT FOR CONSTRUCTION

NORTH

GYM CAFETERIA SPED

  • VOC. TECH.

NURSE MEDIA CENTER ADMINISTRATION SCIENCE IT DEPT. M E P GUIDANCE PERFORMING ARTS SHARED/ GENERAL CLASSROOM ENGLISH SOCIAL STUDIES HEALTH LANGUAGE MATH FINE ARTS STORAGE WORKSPACE CUSTODIAN

12816 NSF AUDITORIUM 291 NSF ARTS DEPT. I104 223 NSF BOX OFFICE I100A 293 NSF I103 179 NSF ARTS DEPT. HEAD H108 100 NSF H110 109 NSF H112 571 NSF KEYBOARD H114 111 NSF STOR. 787 NSF EARLY CHILDHOOD H111 222 NSF I111 370 NSF I113 132 NSF H120 121 NSF MUSIC TEACHER H118 187 NSF H116 211 NSF H116A 866 NSF FINE ARTS STORAGE 2880 NSF ACTING H100 1577 NSF BAND H102 1206 NSF MUSIC H104 107 NSF H109 105 NSF H107 134 NSF H106 135 NSF H103 2516 NSF FOOD PREP FRIDGE FREEZER DRY STOR. 1877 NSF SERVING 11612 NSF CAFETERIA 560 NSF FACULTY LUNCH 274 NSF CAFE OFF. G105 204 NSF CAFE OFF. G107 364 NSF STORAGE 337 NSF STORAGE 408 NSF STORAGE 424 NSF GUIDANCE A110 ELECTRICAL 274 NSF A108 294 NSF GUIDANCE A106 413 NSF A104 9283 NSF LIBRARY OPEN LIBRARY CLASSROOM OPEN LIBRARY CLASSROOM 156 NSF A102D 156 NSF A102C 156 NSF A102B 156 NSF A102A 954 NSF A107 118 NSF A107C 162 NSF OFFICE A107B 286 NSF CONFERENCE A107A 286 NSF A109C 286 NSF A109B PRINCIPAL RECEP. MAIL 1116 NSF A114 1180 NSF A118 324 NSF A116 1180 NSF A119 1077 NSF A117 1157 NSF B102 781 NSF B101 797 NSF B103 284 NSF B104 805 NSF B105 801 NSF B107 1173 NSF B106 779 NSF B109 1079 NSF B108 102A 1747 NSF GUIDANCE 102B 102C 102D 102E 102F 102G 102H 175 NSF 102K 124 NSF 102L 300 NSF D106 172 NSF STORAGE 85 NSF H115 76 NSF G104 78 NSF STORAGE 398 NSF RFL SPED D110 802 NSF D112 1575 NSF NURSE 1634 NSF COUNSELING 1173 NSF C118 1180 NSF C119 1123 NSF C116 1078 NSF C115 939 NSF C109 192 NSF STORAGE 408 NSF CHEMICAL STORAGE 51 NSF STORAGE 476 NSF C110 786 NSF C107 807 NSF C108 792 NSF C105 784 NSF C106 772 NSF C103 777 NSF C104 297 NSF STORAGE 348 NSF STORAGE 703 NSF E119 225 NSF E118 123 NSF E118A 184 NSF E118B 175 NSF SPED 912 NSF E117 304 NSF RFL E115 63 NSF STOR. 182 NSF STOR. 332 NSF PHOENIX SPED E111 95 NSF PHOENIX SPED E111A 882 NSF E114 683 NSF PHOENIX SPED E108 304 NSF E109 386 NSF PHONIEX SPED E109 786 NSF E107 797 NSF E106 769 NSF E105 780 NSF E104 798 NSF E103 809 NSF E102 768 NSF E101 804 NSF E100 1230 NSF CLOTHING F122 806 NSF F115 781 NSF F113 775 NSF F111 1123 NSF F107 1139 NSF FOOD LAB F105 1168 NSF FOOD LAB F103 673 NSF EARLY CHILDHOOD F101 760 NSF EARLY CHILDHOOD F102 778 NSF BLOCKS PROGRAM PRE-K F104 323 NSF EARLY CHILDHOOD HEAD F112 553 NSF EARLY CHILDHOOD F121 345 NSF F120 169 NSF VP OFFICE F120A 126 NSF VP OFFICE F120B 73 NSF STORAGE 159 NSF FOOD STAND 189 NSF K103 180 NSF K105 112 NSF STORAGE 128 NSF K109 4157 NSF WELLNESS CENTER 10443 NSF GYMNASIUM 1193 NSF GIRLS LOCKER ROOM 1249 NSF BOYS LOCKER ROOM 73 NSF K114B 259 NSF LOCKER ROOM 103 NSF STORAGE 746 NSF STORAGE 147 NSF STORAGE 100 NSF STORAGE 705 NSF ATHLETIC TRAINER 300 NSF STORAGE 304 NSF STORAGE 128 NSF OFFICE 127 NSF OFFICE 112 NSF OFFICE 3373 NSF GIRLS LOCKER ROOM 3043 NSF BOYS LOCKER ROOM 102 NSF STOR. 12182 NSF GYMNASIUM 357 NSF STOR. 158 NSF STOR. 90 NSF STOR. 21 NSF STOR. 333 NSF STOR. 121 NSF H102 112 NSF STOR. 32 NSF STOR. 260 NSF STORAGE 778 NSF BLOCKS PROGRAM PRE-K F104 BLOCKS PROGRAM PLAYGROUND 808 NSF MAIN OFFICE 185 NSF

2 3

ESTIMATED COST: $(See summary) PROS: + Adds two additional classroom spaces and two smaller group spaces + New classrooms are main level and closer to specials + Two classrooms would require minimal work to renovate into core classrooms + Work area can stay relatively confined and has easy access to outside. CONS:

  • Requires relocation of pre-K programs
  • Classrooms are remote from some core curriculum classrooms
  • Fewer classrooms gained than option 1, but lower cost

OPTION 2

ESTIMATED COST: $(See summary)

OPTION 3

PROS: + Classroom requires minimal work to be core curriculum + Location is adjacent to other core classrooms + Could be converted into small group space or offices CONS:

  • Requires displacement of existing program use
  • Single classroom gained, but could be combined with other options

SCOPE OF WORK: Area: 1 - 5,000 SF 2 - 3,100 SF 3 - 780 SF 4 - 2,251 SF

SPACE MINING OPTIONS 2 & 3

slide-13
SLIDE 13

TBA ARCHITECTS, INC.

ARCHITECTURE PLANNING PROJECT MANAGEMENT

43 BRADFORD STREET, CONCORD MA. 01742 TEL (781)893-5828 FAX (781)893-5834 www.tbaarchitects.com

HIGH SCHOOL PLANNING TOWN OF FRAMINGHAM 115 A STREET FRAMINGHAM, MA

TBA PROJECT # 1279

18 MAY 2017

NOT FOR CONSTRUCTION

NORTH

GYM CAFETERIA SPED

  • VOC. TECH.

NURSE MEDIA CENTER ADMINISTRATION SCIENCE IT DEPT. M E P GUIDANCE PERFORMING ARTS SHARED/ GENERAL CLASSROOM ENGLISH SOCIAL STUDIES HEALTH LANGUAGE MATH FINE ARTS STORAGE WORKSPACE CUSTODIAN

PROS: + Relocation of administration offices opens up opportunity for efficiencies and right-sizing + Administration can be located more centrally and allow for better engagement with students' schedules and travel paths + Additional classroom space is made available CONS:

  • Requires work in many locations and careful programming
  • Scope may require work to be done in phases
  • Potential to address classroom need, but not the total number

needed

OPTION 5

ESTIMATED COST: $(See summary) SCOPE OF WORK: Area: 1 - approx. 16,000 SF

12816 NSF AUDITORIUM 291 NSF ARTS DEPT. I104 223 NSF BOX OFFICE I100A 293 NSF I103 179 NSF ARTS DEPT. HEAD H108 100 NSF H110 109 NSF H112 571 NSF KEYBOARD H114 111 NSF STOR. 787 NSF EARLY CHILDHOOD H111 222 NSF I111 370 NSF I113 132 NSF H120 121 NSF MUSIC TEACHER H118 187 NSF H116 211 NSF H116A 866 NSF FINE ARTS STORAGE 2880 NSF ACTING H100 1577 NSF BAND H102 1206 NSF MUSIC H104 107 NSF H109 105 NSF H107 134 NSF H106 135 NSF H103 2516 NSF FOOD PREP FRIDGE FREEZER DRY STOR. 1877 NSF SERVING 11612 NSF CAFETERIA 560 NSF FACULTY LUNCH 274 NSF CAFE OFF. G105 204 NSF CAFE OFF. G107 364 NSF STORAGE 337 NSF STORAGE 408 NSF STORAGE 424 NSF GUIDANCE A110 ELECTRICAL 274 NSF A108 294 NSF GUIDANCE A106 413 NSF A104 9283 NSF LIBRARY OPEN LIBRARY CLASSROOM 156 NSF A102D 156 NSF A102C 156 NSF A102B 156 NSF A102A 954 NSF A107 118 NSF A107C 162 NSF OFFICE A107B 286 NSF CONFERENCE A107A 286 NSF A109C 2014 NSF MAIN OFFICE 286 NSF A109B PRINCIPAL RECEP. MAIL 1116 NSF A114 1180 NSF A118 324 NSF A116 1180 NSF A119 1077 NSF A117 1157 NSF B102 781 NSF B101 797 NSF B103 284 NSF B104 805 NSF B105 801 NSF B107 1173 NSF B106 779 NSF B109 1079 NSF B108 102A 1747 NSF GUIDANCE 102B 102C 102D 102E 102F 102G 102H 175 NSF 102K 124 NSF 102L 300 NSF D106 172 NSF STORAGE 85 NSF H115 76 NSF G104 78 NSF STORAGE 398 NSF RFL SPED D110 802 NSF D112 1575 NSF NURSE 1634 NSF COUNSELING 1173 NSF C118 1180 NSF C119 1123 NSF C116 1078 NSF C115 939 NSF C109 192 NSF STORAGE 408 NSF CHEMICAL STORAGE 51 NSF STORAGE 476 NSF C110 786 NSF C107 807 NSF C108 792 NSF C105 784 NSF C106 772 NSF C103 777 NSF C104 297 NSF STORAGE 348 NSF STORAGE 783 NSF E119 783 NSF E119 225 NSF E118 123 NSF E118A 184 NSF E118B 175 NSF SPED 912 NSF E117 304 NSF RFL E115 63 NSF STOR. 182 NSF STOR. 332 NSF PHOENIX SPED E111 95 NSF PHOENIX SPED E111A 882 NSF E114 683 NSF PHOENIX SPED E108 304 NSF E109 386 NSF PHONIEX SPED E109 786 NSF E107 797 NSF E106 769 NSF E105 780 NSF E104 798 NSF E103 809 NSF E102 768 NSF E101 804 NSF E100 1230 NSF CLOTHING F122 806 NSF F115 781 NSF F113 775 NSF F111 1123 NSF F107 1139 NSF FOOD LAB F105 1168 NSF FOOD LAB F103 673 NSF EARLY CHILDHOOD F101 760 NSF EARLY CHILDHOOD F102 778 NSF BLOCKS PROGRAM PRE-K F104 323 NSF EARLY CHILDHOOD HEAD F112 553 NSF EARLY CHILDHOOD F121 345 NSF F120 169 NSF VP OFFICE F120A 126 NSF VP OFFICE F120B 73 NSF STORAGE 159 NSF FOOD STAND 189 NSF K103 180 NSF K105 112 NSF STORAGE 128 NSF K109 4157 NSF WELLNESS CENTER 10443 NSF GYMNASIUM 1193 NSF GIRLS LOCKER ROOM 1249 NSF BOYS LOCKER ROOM 73 NSF K114B 259 NSF LOCKER ROOM 103 NSF STORAGE 746 NSF STORAGE 147 NSF STORAGE 100 NSF STORAGE 705 NSF ATHLETIC TRAINER 300 NSF STORAGE 304 NSF STORAGE 128 NSF OFFICE 127 NSF OFFICE 112 NSF OFFICE 3373 NSF GIRLS LOCKER ROOM 3043 NSF BOYS LOCKER ROOM 102 NSF STOR. 12182 NSF GYMNASIUM 357 NSF STOR. 158 NSF STOR. 90 NSF STOR. 21 NSF STOR. 333 NSF STOR. 121 NSF H102 112 NSF STOR. 32 NSF STOR. 260 NSF STORAGE 778 NSF BLOCKS PROGRAM PRE-K F104 BLOCKS PROGRAM PLAYGROUND OPEN LIBRARY CLASSROOM 185 NSF

SPACE MINING OPTION 5

slide-14
SLIDE 14

TBA ARCHITECTS, INC.

ARCHITECTURE PLANNING PROJECT MANAGEMENT

43 BRADFORD STREET, CONCORD MA. 01742 TEL (781)893-5828 FAX (781)893-5834 www.tbaarchitects.com

HIGH SCHOOL PLANNING TOWN OF FRAMINGHAM 115 A STREET FRAMINGHAM, MA

TBA PROJECT # 1279

18 MAY 2017

NOT FOR CONSTRUCTION

NORTH

EXPANSION OPTIONS

12816 NSF AUDITORIUM 291 NSF ARTS DEPT. I104 223 NSF BOX OFFICE I100A 293 NSF I103 179 NSF ARTS DEPT. HEAD H108 100 NSF H110 109 NSF H112 571 NSF KEYBOARD H114 111 NSF STOR. 787 NSF EARLY CHILDHOOD H111 222 NSF I111 370 NSF I113 132 NSF H120 121 NSF MUSIC TEACHER H118 187 NSF H116 211 NSF H116A 866 NSF FINE ARTS STORAGE 2880 NSF ACTING H100 1577 NSF BAND H102 1206 NSF MUSIC H104 107 NSF H109 105 NSF H107 134 NSF H106 135 NSF H103 2516 NSF FOOD PREP FRIDGE FREEZER DRY STOR. 1877 NSF SERVING 11612 NSF CAFETERIA 560 NSF FACULTY LUNCH 274 NSF CAFE OFF. G105 204 NSF CAFE OFF. G107 364 NSF STORAGE 337 NSF STORAGE 172 NSF STORAGE 85 NSF H115 76 NSF G104 1123 NSF F107 1139 NSF FOOD LAB F105 1168 NSF FOOD LAB F103 673 NSF EARLY CHILDHOOD F101 760 NSF EARLY CHILDHOOD F102 778 NSF BLOCKS PROGRAM PRE-K F104 323 NSF EARLY CHILDHOOD HEAD F112 553 NSF EARLY CHILDHOOD F121 345 NSF F120 169 NSF VP OFFICE F120A 126 NSF VP OFFICE F120B 73 NSF STORAGE 778 NSF BLOCKS PROGRAM PRE-K F104 BLOCKS PROGRAM PLAYGROUND

68 788 sq ft 830 sq ft

  • Gr. Area:

Net Area: 69 788 sq ft 831 sq ft

  • Gr. Area:

Net Area: 71 788 sq ft 831 sq ft

  • Gr. Area:

Net Area: 72 791 sq ft 839 sq ft

  • Gr. Area:

Net Area: 73 791 sq ft 839 sq ft

  • Gr. Area:

Net Area: 74 788 sq ft 831 sq ft

  • Gr. Area:

Net Area: 75 788 sq ft 831 sq ft

  • Gr. Area:

Net Area: 76 788 sq ft 831 sq ft

  • Gr. Area:

Net Area:

Option 6 - First Floor

Scale: 1/32" = 1'-0" 6

1163 NSF STORAGE 1373 NSF J024 1372 NSF J022 1011 NSF HEALTH J004 582 NSF J006A 406 NSF TV OFFICE J006B 370 NSF MEDIA OFFICE J006C 1000 NSF HEALTH J010 GENERATOR ROOM 195 NSF STORAGE 195 NSF STORAGE 180 NSF STORAGE 286 NSF CUSTODIAN J026A 240 NSF J028 1517 NSF J020 1070 NSF TV STUDIO J003 1050 NSF MEDIA CLASS J007 1050 NSF YOGA J009 126 NSF STOR. 126 NSF STOR. 152 NSF STOR. 150 NSF KILN 129 NSF STOR. 1576 NSF DISTRICT TECHNOLOGY(IT) K013 1310 NSF K015 2251 NSF K019 1600 NSF K011 1120 NSF K009 1151 NSF K007 373 NSF WORK AREA 2611 NSF K008 1117 NSF DISTRICT TECHNOLOGY(IT) K006 1562 NSF DISTRICT TECHNOLOGY(IT) K002 2339 NSF ATHLETIC STORAGE OFFICE OFFICE OFFICE 123 NSF STOR. OFFICE 185 NSF OFFICE 443 NSF DARK ROOM 365 NSF CUSTODIAN J017 3D PRINTING 690 NSF DISTRICT TECHNOLOGY(IT) 66 NSF OFFICE 58 NSF OFFICE 62 NSF OFFICE 334 NSF OFFICE 116 NSF STOR. 582 NSF RECEIVING STORAGE J020 1026 NSF GARAGE J041 BOILER ROOM 437 NSF STORAGE 812 NSF CLASSROOM 812 NSF CLASSROOM 812 NSF CLASSROOM 812 NSF CLASSROOM 812 NSF CLASSROOM 812 NSF CLASSROOM 812 NSF CLASSROOM

UP UP

56 NSF MECHANICAL 1163 NSF STORAGE 1373 NSF J024 1372 NSF J022 1011 NSF HEALTH J004 582 NSF J006A 406 NSF TV OFFICE J006B 370 NSF MEDIA OFFICE J006C 1000 NSF HEALTH J010 GENERATOR ROOM 195 NSF STORAGE 195 NSF STORAGE 180 NSF STORAGE 286 NSF CUSTODIAN J026A 240 NSF J028 1517 NSF J020 1070 NSF TV STUDIO J003 1050 NSF MEDIA CLASS J007 1050 NSF YOGA J009 126 NSF STOR. 126 NSF STOR. 152 NSF STOR. 150 NSF KILN 129 NSF STOR. 1576 NSF DISTRICT TECHNOLOGY(IT) K013 1310 NSF K015 2251 NSF K019 1600 NSF K011 1120 NSF K009 1151 NSF K007 373 NSF WORK AREA 2611 NSF K008 1117 NSF DISTRICT TECHNOLOGY(IT) K006 1562 NSF DISTRICT TECHNOLOGY(IT) K002 2339 NSF ATHLETIC STORAGE OFFICE OFFICE OFFICE 123 NSF STOR. OFFICE 185 NSF OFFICE 443 NSF DARK ROOM 365 NSF CUSTODIAN J017 3D PRINTING 690 NSF DISTRICT TECHNOLOGY(IT) 66 NSF OFFICE 58 NSF OFFICE 62 NSF OFFICE 334 NSF OFFICE 116 NSF STOR. 582 NSF RECEIVING STORAGE J020 1026 NSF GARAGE J041 BOILER ROOM 56 NSF MECHANICAL

Option 7 - Lower Level

Scale: 1/32" = 1'-0" 7

12816 NSF AUDITORIUM BOX OFFICE I100A 293 NSF I103 179 NSF ARTS DEPT. HEAD H108 100 NSF H110 109 NSF H112 571 NSF KEYBOARD H114 111 NSF STOR. 787 NSF EARLY CHILDHOOD H111 222 NSF I111 370 NSF I113 132 NSF H120 121 NSF MUSIC TEACHER H118 187 NSF H116 211 NSF H116A 866 NSF FINE ARTS STORAGE 2880 NSF ACTING H100 1577 NSF BAND H102 1206 NSF MUSIC H104 107 NSF H109 105 NSF H107 134 NSF H106 135 NSF H103 2516 NSF FOOD PREP FRIDGE FREEZER DRY STOR. 1877 NSF SERVING 11612 NSF CAFETERIA 560 NSF FACULTY LUNCH 274 NSF CAFE OFF. G105 204 NSF CAFE OFF. G107 364 NSF STORAGE 337 NSF STORAGE 172 NSF STORAGE 85 NSF H115 76 NSF G104 912 NSF 304 NSF RFL E115 63 NSF STOR. 182 NSF STOR. 332 NSF PHOENIX SPED E111 95 NSF PHOENIX SPED E111A 882 NSF E114 683 NSF PHOENIX SPED E108 304 NSF E109 386 NSF PHONIEX SPED E109 786 NSF E107 797 NSF E106 769 NSF E105 780 NSF E104 798 NSF E103 809 NSF E102 768 NSF E101 804 NSF E100 1230 NSF CLOTHING F122 760 NSF EARLY CHILDHOOD F102 778 NSF BLOCKS PROGRAM PRE-K F104 323 NSF EARLY CHILDHOOD HEAD F112 553 NSF EARLY CHILDHOOD F121 345 NSF F120 169 NSF VP OFFICE F120A 126 NSF VP OFFICE F120B 112 NSF STOR. 32 NSF STOR. 260 NSF STORAGE 778 NSF BLOCKS PROGRAM PRE-K F104 BLOCKS PROGRAM PLAYGROUND 747 NSF CLASSROOM 234 NSF OFFICE 747 NSF CLASSROOM 747 NSF CLASSROOM 747 NSF CLASSROOM 234 NSF OFFICE

Option 8 - First Floor

Scale: 1/32" = 1'-0" 8
