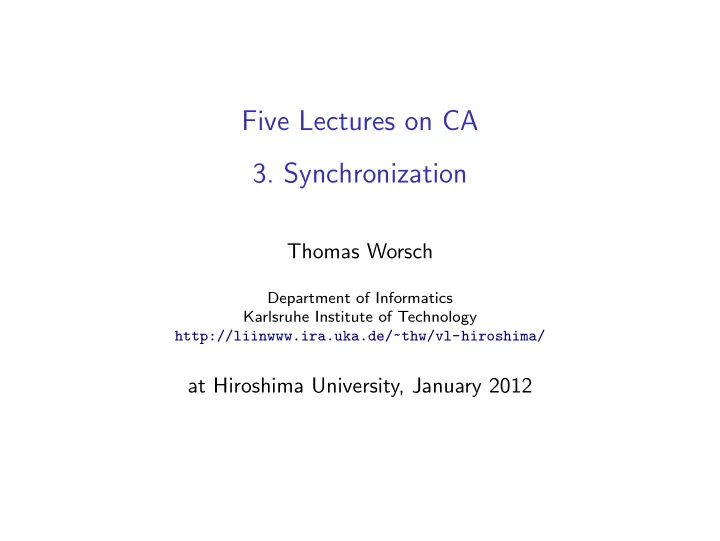

Five Lectures on CA

• 3. Synchronization

Thomas Worsch

Department of Informatics Karlsruhe Institute of Technology http://liinwww.ira.uka.de/~thw/vl-hiroshima/

at Hiroshima University, January 2012

Outline

Classical Firing Squad Synchronization Problem General at an arbitrary position Two-dimensional FSSP Outlook

Classical Firing Squad Synchronization Problem General at an arbitrary position Two-dimensional FSSP Outlook

FSSP (Firing Squad Synchronisation Problem)

◮ Fixed: R = Z, N = {−1, 0, 1}, and Q′ = {#, g, s, f}

◮ # is the border state ◮ g is the general state ◮ s is the soldier state ◮ f is the firing state

◮ Wanted: CA with Q ⊇ Q′ and some f , such that

◮ for all local configurations ℓ:

if ℓ(0) = # then f (ℓ) = #

◮ for all local configurations ℓ:

if ∀n ∈ N : ℓ(n) ∈ {#, s} then f (ℓ) = ℓ(0)

◮ C transforms each global start configuration #gss · · · s#

in a finite number of steps into the firing configuration #fff · · · f# having the same support

◮ such that in no configuration occuring before the firing

configuration state f appears anywhere.

FSSP (2)

please note:

◮ activities can only start at the general g and spread

throughout the grid cell by cell

◮ no matter how large the support of the initial configuration is,

it should always be the same Q and the same f

◮ the CA should work for arbitrarily large numbers of s cells

How could one try to achieve that?

Algorithm (Balzer)

Algorithm (Balzer)

( 1> > ( 2> > ( 3> > ( 1> > ( 2> > ( 3> > ( 1> > ( 2> > ( 3> > ( 1> < ) ( 2> < ) ( 3> < ) ( 1> < ) ( 2> < ) ( < <1 ) ( 1> > )

Algorithm (Balzer)

( 1> > ( 2> > ( 3> > ( 1> > ( 2> > ( 3> > ( 1> > ( 2> > ( 3> > ( 1> < ) ( 2> < ) ( 3> < ) ( 1> < ) ( 2> < ) ( < <1 ) ( 1> > ) ( < <2 ) ( 2> > ) ( < <3 ) ( 3> > ) ( < <1 ) ( 1> > ) ( > <2 ) ( 2> < ) ( > <3 ) ( 3> < ) ( <<1)(1>> ) ( <<1)(1>> )

Algorithm (Balzer)

( 1> > ( 2> > ( 3> > ( 1> > ( 2> > ( 3> > ( 1> > ( 2> > ( 3> > ( 1> < ) ( 2> < ) ( 3> < ) ( 1> < ) ( 2> < ) ( < <1 ) ( 1> > ) ( < <2 ) ( 2> > ) ( < <3 ) ( 3> > ) ( < <1 ) ( 1> > ) ( > <2 ) ( 2> < ) ( > <3 ) ( 3> < ) ( <<1)(1>> ) ( <<1)(1>> ) ( < <2)(2> > ) ( < <2)(2> > ) ( > <3)(3> < ) ( > <3)(3> < ) ( <<1)(1>> )( <<1)(1>> ) ( <<1)(1>> )( <<1)(1>> )

Algorithm (Balzer)

( 1> > s s s s s s s s s ( 2> > s s s s s s s s ( 3> > s s s s s s s ( 1> > s s s s s s ( 2> > s s s s s ( 3> > s s s s ( 1> > s s s ( 2> > s s ( 3> > s ( 1> < ) ( 2> < ) ( 3> < ) ( 1> < ) ( 2> < ) ( < <1 ) ( 1> > ) ( < <2 ) ( 2> > ) ( < <3 ) ( 3> > ) ( < <1 ) ( 1> > ) ( > <2 ) ( 2> < ) ( > <3 ) ( 3> < ) ( <<1)(1>> ) ( <<1)(1>> ) ( < <2)(2> > ) ( < <2)(2> > ) ( > <3)(3> < ) ( > <3)(3> < ) ( <<1)(1>> )( <<1)(1>> ) ( <<1)(1>> )( <<1)(1>> ) f f f f f f f f f f

Running time (of Balzer’s algorithm)

for the synchronisation of n cells approximately t(n) ≈ 3 2n + t(n 2) which results in t(n) ≈ 3n + lower order terms Is that optimal? Or can you do faster?

Theorem

◮ Goto (1962):

There is a CA solving the FSSP for all n ≥ 2 in time 2n − 2.

◮ Mazoyer (1987):

There is such a CA which only uses 7 states. (i.e. only 3 more besides #, g, s, f) we will see fast algorithms later

Theorem

Waksman (1966): There is no CA which solves the FSSP for all n and needs only 2n − 3 steps for one n ≥ 2.

Proof of Waksman’s theorem

indirect proof

◮ given: a CA C solving the FSSP ◮ assumption:

There is a k for which the C needs at most 2k − 3 steps.

◮ will show: C does not solve the FSSP for all n

• ✁

• ✁

• ✁

• ✁

• ✁

• ✁

• ✁

• ✁

• ✠
• ✁

• ✁

1 2 3 4 k g s s s s s s s s s s s s s s s s s s s s s f f f f f f f 1 2 3 4 k 2k − 1 1 2 k − 2 k − 1 2k − 4 2k − 3 g s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s f s s s s s s

Wrong!

Algorithm (Gerken)

Algorithm (Gerken)

Algorithm (Gerken)

Algorithm (Gerken)

Algorithm (Gerken)

Algorithm (Gerken)

Algorithm (Gerken)

Algorithm (Gerken)

Algorithm (Gerken)

Algorithm (Gerken)

Algorithm (Mazoyer)

7 states are sufficient for that!

Algorithm (infinitely many signals with different speeds)

> <> 1 <> 1 <0 <> 1 < <> 1 1 < <> 1 1 <0 < <> 1 <0 < < <> 1 1 < < <> 1 1 <0 < < <> 1 < < < < <> 1 1 1 < < < <> 1 1 1 <0 < < < 1 1 < < < < < 1 1 <0 1 < < < 1 <0 1 <0 < < < 1 < < < < 1 < 1 < < < 1 1 1 <0 < < 1 1 < < < < 1 1 < 1 < < 1 1 <0 1 <0 < < 1 < < < < 1 1 < 1 < < 1 1 < 1 <0 < 1 1 1 < < < 1 1 1 < 1 < 1 1 1 < 1 <0 < 1 1 1 <0 < < 1 1 < < 1 < 1 1 <0 < 1 <0 1 <0 < < < 1 1 < 1 1 1 < 1 <0 1 1 < < 1 1 <0 < 1

Classical Firing Squad Synchronization Problem General at an arbitrary position Two-dimensional FSSP Outlook

Problem

◮ Fixed: R = Z, N = {−1, 0, 1}, and Q′ = {#, g, s, f} ◮ Wanted: CA with Q ⊇ Q′ and some f , such that

◮ for all local configurations ℓ:

if ℓ(0) = # then f (ℓ) = #

◮ for all local configurations ℓ:

if ∀n ∈ N : ℓ(n) ∈ {#, s} then f (ℓ) = ℓ(0)

◮ C transforms each global start configuration #ss · · · sgs · · · s#

in a finite number of steps into the firing configuration #fff · · · f# having the same support

◮ such that in no configuration occuring before the firing

configuration state f appears anywhere.

Theorem

Each configuration to be fired has the form #sagsb# for some a, b ∈ N0. Let k = min{a, b} and n = a + 1 + b.

◮ The FSSP with a General at an arbitrary position can be

solved in 2n − 2 − k = a + b + max{a, b} steps.

◮ For n ≥ 2 this time is optimum.

Proof

◮ upper bound: algorithm; see later ◮ lower bound: analogously to the proof by Waksman:

Each end must “know”, how far the other end is away. Therefore time 2(n − k) − 2 in general is not enough.

Algorithm

• ✁
• ✂
• ✄

Classical Firing Squad Synchronization Problem General at an arbitrary position Two-dimensional FSSP Outlook

FSSP for rectangles

◮ analogously to the one-dimensional case ◮ as neighborhood use

N = {(0, 1), (−1, 0), (0, 0), (1, 0), (0, −1)}

◮ initial configurations:

rectangles of s-cells with a g-cell in the upper left corner

• ✁

Simple (slow) algorithm

Simple (slow) algorithm

◮ synchronize the first row ◮ instead of firing, create “row-generals” ◮ time: 2m − 2 + 2n − 2 steps

Simple (slow) algorithm

◮ synchronize the first row ◮ instead of firing, create “row-generals” ◮ time: 2m − 2 + 2n − 2 steps ◮ a faster algorithm?

◮ each border cell must “know” the “size” of the rectangle ◮ lower bound is m + n + max{m, n} − 3 steps ◮ this is enough for synchronization (see next slide)

Algorithm (optimum time)

Algorithm (optimum time)

◮ synchronize each L-shaped part using

the one-dimensional algorithm (general at arbitrary position)

◮ initialize the corners as generals

• ne after the other every 3 steps

◮ time: m + n + max{m, n} − 3 steps

Classical Firing Squad Synchronization Problem General at an arbitrary position Two-dimensional FSSP Outlook

More generalizations

◮ d-dimensional “rectangles” with the general at an arbitrary

position (Szwerinski, 1982)

◮ arbitrary d-dimensional connected pattern ◮ several generals (Schmid, 2003) ◮ Early-Bird-Problem (Rosenstiehl, Katona/Legendi, Vollmar)

Summary

◮ The one-dimensional FSSP can be solved

in time 2n − 2 − k (where k is . . . )

◮ This matches a lower bound exactly.
