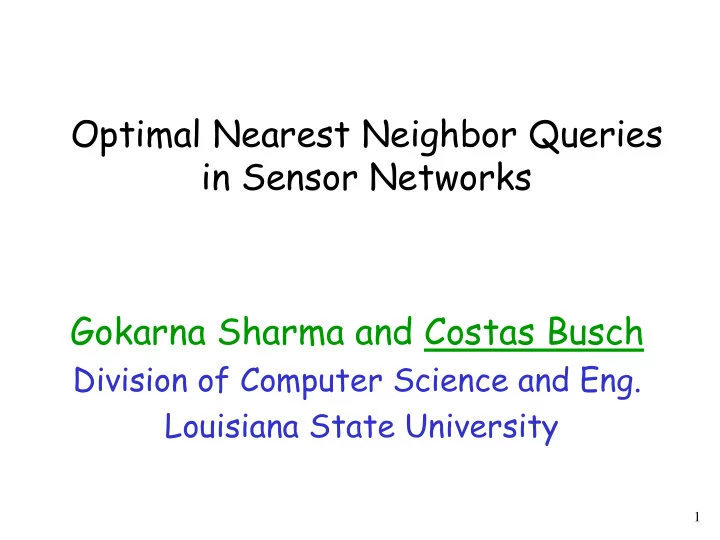

Optimal Nearest Neighbor Queries in Sensor Networks Gokarna Sharma and Costas Busch
Division of Computer Science and Eng. Louisiana State University
1
Problem Description
2
Optimal Nearest Neighbor Queries in Sensor Networks Gokarna Sharma - - PowerPoint PPT Presentation
Optimal Nearest Neighbor Queries in Sensor Networks Gokarna Sharma - - PowerPoint PPT Presentation
Optimal Nearest Neighbor Queries in Sensor Networks Gokarna Sharma and Costas Busch Division of Computer Science and Eng. Louisiana State University 1 Problem Description Distributed sensor network 2 Problem Description Objects are tracked
SLIDE 2
SLIDE 3
Problem Description
3
Objects are tracked by the sensors Red nodes are proxy nodes that detect the objects (one proxy per object)
SLIDE 4
Problem Description
4
Query from a node: find the closest object Where is the closest object?
SLIDE 5
Problem Description
5
Response to query: proxy to closest object Closeness is measured with graph hops (or graph distance)
SLIDE 6
Problem Challenges
6
- Queries may initiate from arbitrary nodes
- Objects can move
- Unknown number of objects
SLIDE 7
Performance Metrics
7
Use a distributed data structure to maintain position information for the objects Two performance cost metrics: Query cost: distance to returned proxy node Update cost: total communication cost to maintain data structure as the objects move
SLIDE 8
Update Cost
8
Update cost lower bound: the total distance that the objects (proxies) have moved in the graph
1
d
2
d
3
d
4
d
5
d
i
d
SLIDE 9
Contributions
9
A distributed directory approach based on a hierarchical clustering of the graph Low doubling dimension graphs: Query cost approximation: Update cost approximation:
1 O
n O log n is the number of nodes
SLIDE 10
Contributions
10
General weighted graphs: Query cost approximation: Update cost approximation:
n O
4
log
n O
3
log n is the number of nodes
The results can be generalized to general graphs
SLIDE 11
Closeness
11
Due to the directory structure, the absolute nearest object may be missed We guarantee closeness in low doubling dimension graphs
d ) (d O
Query node closest proxy node returned proxy
) 1 ( O
SLIDE 12
Distributed Directory Approaches (for single object)
12
Protocol Move Cost Network Kind Runs on Arrow [DISC’98] O(SST)=O(D) General Spanning tree Relay [OPODIS’09] O(SST)=O(D) General Spanning tree Combine [SSS’10] O(SOT)=O(D) General Overlay tree Ballistic [DISC’05] O(log D) Constant- doubling dimension Hierarchical directory with independent sets Spriral [IPDPS/12] Arbitrary Graphs Hierarchical directory with sparse covers
➢ D is the diameter of the network kind ➢ S is the stretch of the tree used
D n O log log2
SLIDE 13
13
Problem of Spanning Tree Approaches These two nodes are far in tree
SLIDE 14
14
Network graph
Hierarchical Clustering
SLIDE 15
15
Alternative representation as a hierarchy tree with leader nodes
Hierarchical Clustering
SLIDE 16
16
At the lowest level (level 0) every node is a cluster
Hierarchical Clustering
SLIDE 17
p-Doubling Dimension Graphs
Every ball of radius R can be completely covered by at most balls of radius R/2.
2-doubling dimension
2
SLIDE 18
Overlay Tree
18
Layers of independent sets of leaders Graph nodes root
1
2
k 2
2
k 3
2
k
D k log
k
1 k 2 k
… ……
SLIDE 19
Parent Node
19
Level i+1 Level i
1
2
i i
2
Refinement of independent sets
SLIDE 20
Parent Set
20
Level i+1 Level i
1
2
i i
2
Useful for query lookups Constant number of potential parent nodes
SLIDE 21
21
General Graphs
The clusters are built from sparse covers Each cluster has diameter The parent set size is at most
) log 2 (
1
n O
i
) (logn O
SLIDE 22
Multiple Objects
22
SLIDE 23
23
proxy node
root
➢ Assume that is the creator of which invokes the Publish operation ➢ Nodes know their parent in the hierarchy
ξ ξ
Publish Object
SLIDE 24
24
root
Send request to the parent leader
Publish Object
SLIDE 25
25
root
Continue up phase
Sets downward pointer while going up
Publish Object
SLIDE 26
26
root
Continue up phase
Sets downward pointer while going up
Publish Object
SLIDE 27
27
root
Root node found, stop up phase
Publish Object
SLIDE 28
28
root
A successful Publish operation ξ
Publish Object
SLIDE 29
29
root
The publish operation ends at any node with downward path
Publish Object – multiple objects
SLIDE 30
30
destination
- rigin
root
➢ Initially, nodes point downward to object owner (predecessor node) due to Publish operation ➢ Nodes know their parent in the hierarchy
ξ
Move Object
Classic directory approach
SLIDE 31
31
Send request to parent leader node
root
Move Object
SLIDE 32
32
Continue up phase until downward pointer found
root
Sets downward path while going up
Move Object
SLIDE 33
33
Continue up phase
root
Sets downward path while going up
Move Object
SLIDE 34
34
Continue up phase
root
Sets downward path while going up
Move Object
SLIDE 35
35
Downward pointer found, start down phase
root
Discards path while going down
Move Object
SLIDE 36
36
Continue down phase
root
Discards path while going down
Move Object
SLIDE 37
37
Continue down phase
root
Discards path while going down
Move Object
SLIDE 38
38
Predecessor reached, object move completed
root
Query Lookup is similar without changing the directory structure
Move Object
SLIDE 39
39
Move Object - Limitation
For multiple objects the origin path and destination path may not be matched with the same object. move delete wrong path
x
SLIDE 40
40
Concurrent -
Insert operations from destination
& Synchronous
Delete operations from source
Common ancestor
Move Object – new scenario
insert delete Inserts and delete eventually meet at lowest common ancestor
SLIDE 41
41
Move Object – 2 approaches
SLIDE 42
Conclusions
42
O(1) query lookup, and polylog update cost In low doubling dimension graphs Polylog approximation for general graphs Open problem:
- Prove matching lower bounds for move costs
- r improve upper bounds
- Analyze concurrent multiple moves
