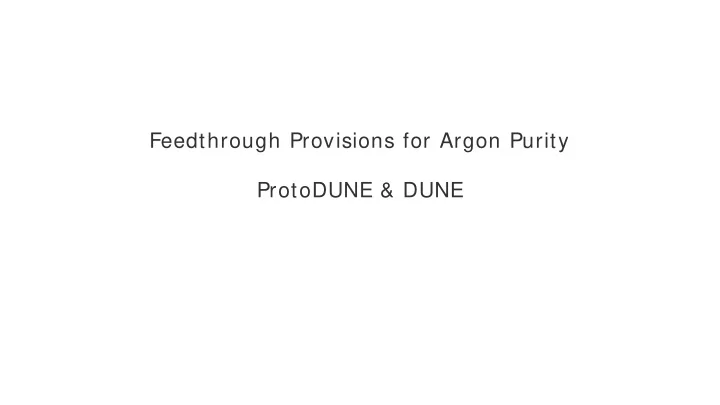

Feedthrough Provisions for Argon Purity ProtoDUNE & DUNE CFD - PowerPoint PPT Presentation

Feedthrough Provisions for Argon Purity ProtoDUNE & DUNE CFD Study of ProtoDUNE Signal Feedthrough ProtoDUNE Cross Tube Cable (CTC) Support Adjustment Screws for PD Flange Tube Alignment CE Flange Tee Cross Tube Cryostat Insulation


  1. Feedthrough Provisions for Argon Purity ProtoDUNE & DUNE

  2. CFD Study of ProtoDUNE Signal Feedthrough

  3. ProtoDUNE Cross Tube Cable (CTC) Support Adjustment Screws for PD Flange Tube Alignment CE Flange Tee Cross Tube Cryostat Insulation Hood Cable Strain Relief 3

  4. CFD Model of Signal Feedthrough Chimney Gas outlet: 0.35 g/s Liquid Surface Boil Off Flux of ProtoDUNE: 21 g/s from Liquid Outer surfaces Model (see Ref) 6 W/m 2 -K @ 293 K Water mass flux from Teflon cable GAr temperature in ullage insulation 87.93 K @ LAr/GAr interface Reference: ProtoDUNE Ullage Space CFD Model, Erik Voirin 4

  5. Water release of Teflon wire insulation H2O mass flux at Teflon surface Assume after 100 days drying H2O_Flux = 0.216*sqrt(2.715e-12*exp(-4988[K]/T)) [kg m^-2 s^-1] Reference: Mass Transport of Water in Teflon Down to Cryogenic Temperatures; a Transient Numerical Analysis, Erik Voirin 5

  6. Diffusion Coefficient of Water in Argon Gas kg kg 3 − kmol kmol 3 2 ⋅ ⋅ ⋅ + 1.86 10 T M1 M2 Diffusion12 T ( )   1   2     MAr − 6 ⋅ ⋅  ⋅    2.6693 10 T  kg    2       ( ) P 1 kmol ⋅  2 σ 1 + σ 2  ⋅   atm 2 µ Ar T  σ Ar  ( )   ⋅ ⋅   Pa s Angstrom The curve can be fitted as H2O_Diff = 0.275 [cm^2 s^-1] * (T/300[K])^1.9*(1 [atm] /Pressure) Reference: Diffusion Coefficients of Water and Oxygen in Argon, Erik Voirin 6

  7. Results: Gas Flow, Temperature and Moisture Diffusion Gas flow in chimney Temperature Moisture Diffusion Moisture diffused into ullage ~ 9x10 -16 g/sec 7

  8. DUNE Signal Feedthrough

  9. Cryostat Signal Penetration PDS flange CE flange and crate CE flange and crate Cross- Shaped Spool Piece (cyan) Cross-Shaped Spool Piece (cyan) Cryostat Crossing Cryostat Crossing Tube CE Crossing Tube (green) (green) Tube (yellow) Crossing Tube Cable Support System CE Crossing Tube (yellow)

  10. Cryostat crossing Teflon flexible duct attached to tube (green) cryostat crossing tube with hose clamp Exploded view CE crossing tube (orange and yellow) Cryostat crossing tube (green) Hose clamp Teflon flexible duct (transparent)

  11. Gas Flow Path in the Cryostat Penetration With Teflon Duct Cryostat To purge port crossing on flanges tube CECT Teflon flex duct crossing tube cable support system The only entrance between penetration and ullage

  12. Gas Flow Path in the Cryostat Penetration Without Teflon Duct Two gas entrances. Flow direction difficult to predict.

  13. A simplified CFD (fluid volume only, no solid parts included) Assumed Teflon duct is not installed. No thermal or gravity is considered in this simulation. Although it shows all gas flows upwards, not sure if flow direction will change once include thermal and gravity in the CFD. Z-X middle plane Z-Y middle plane
