Faradays Law Part II Motional emf Faradays Law for motion emf: A note for Example I B You need an external force to I maintain a constant velocity, R because of the magnetic field. You can calculate this force either by v L (i)

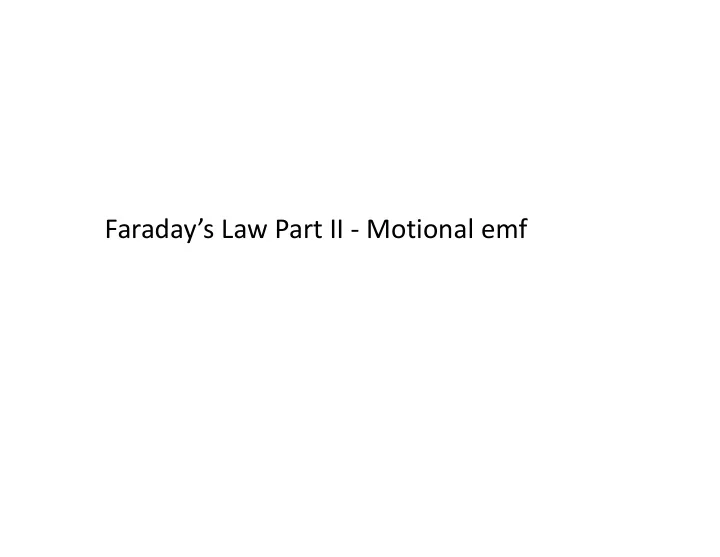

  1. Faraday’s Law Part II ‐ Motional emf

  2. Faraday’s Law for motion emf: A note for Example I B You need an external force to I maintain a constant velocity, R because of the magnetic field. You can calculate this force either by v L (i) Newton’s Law of motion: F = - F B (ii) Conservation of energy: x I 2 R = Fv

  3. Faraday’s Law for motion emf: Example I – nothing new B I  Assuming there is an induced emf .   R      F I L B ILB B     Pulling force F - F ILB P B    v   L Power of Pulling force F v P  ILBv But power of Pulling force x  power dissipated at resistance R  2 | |     2 ILBv | | RI LBv  Motion emf is just a result of Lorentz R   | | force acting on the charge carriers    | | LBv due to the magnetic field.

  4. Faraday’s Law for motion emf : Example I – New approach However, we can rewrite previous result as :   | | LBv B dx  BL dt d(Lx)  B v L dt dA  B dt x  d  B dt  d    B Including sign, dt This merges and has the same form as the Faraday’s Law for changing B field!

  5. Faraday’s Law for motion emf: Example II The flexible loop in the figure has a radius and is in a magnetic field of magnitude B. The loop is grasped at points A and B and stretched until its area is nearly zero. If it takes  t to close the loop, what is the magnitude of the average induced emf in it during this time interval?

  6. The Faraday’s Law So the two parts of Faraday’s Law can be written in one single equation:  d    B dt  B depends on B and A: 1. If you change B, you will get the Maxwell’s 4 th equation. 2. If you change A, you will get the motion emf.

  7. Faraday’s Law, Maxwell’s 4 th Equation, and the Lorentz Force Law Feynman Lectures on Faraday’s Law of Induction Physics Vol. 2 p.17-2:  d  E B - …We know of no other place in dt physics where such a simple and accurate general principle requires for its real understanding an You need two of analysis in terms of two different phenomena . Usually such a these to “derive” the beautiful generalization is found to other. stem from a single deep underlying principle. Nevertheless, in this case there does not appear to be any such profound implication. We have to understand the “rule” as the Lorentz Force Law Maxwell’s 4 th Equation  combined effects of two quite    F     separate phenomena. B v B    E - q  t

  8. Class 37 Lenz’s Law

  9. Lenz’s Law    B    E -  t Lenz’s Law : The induced current in a loop is in the direction that creates a magnetic field that opposes the change in magnetic flux through the area enclosed by the loop.

  10. Lenz’s Law: Example 1 B I R The induced current in a   v L loop is in the direction that creates a magnetic field that opposes the change in x magnetic flux through the   IR loop area enclosed by the loop.  BLv    loop I - R R Meaning of negative sign

  11. Lenz’s Law: Example 2 The flexible loop in the figure has a radius and is in a magnetic field of magnitude B. The loop is grasped at points A and B and stretched until its  area is nearly zero. If it takes  t to close the loop, what is the magnitude of the average induced emf in it during this time interval?

  12. Lenz’s Law: Example 3 N S

  13. Lenz’s Law: Example 4
