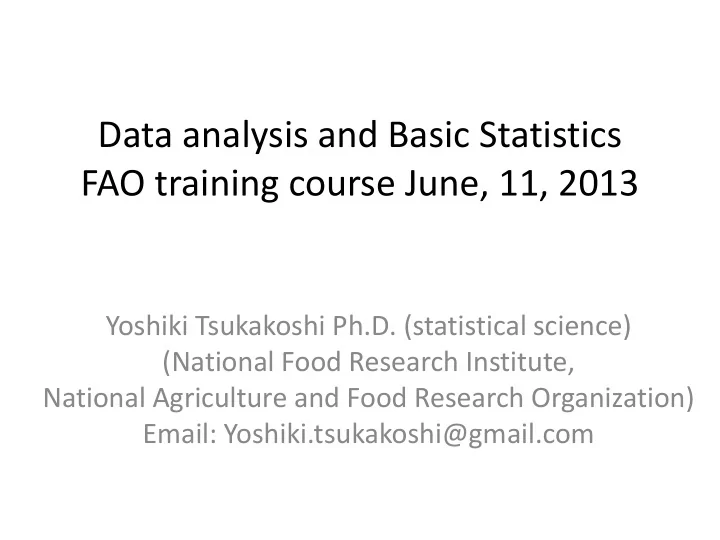

Data analysis and Basic Statistics FAO training course June, 11, 2013

Yoshiki Tsukakoshi Ph.D. (statistical science) (National Food Research Institute, National Agriculture and Food Research Organization) Email: Yoshiki.tsukakoshi@gmail.com

Today’s Agenda

• Descriptive statistics

– Summary statistics – Graphical presentation

• Statistical Inference

– Estimation (Point/Interval) – Hypothesis testing – Regression analysis – Analysis of variance

• Statistical Packages

Analytical Results (Repeated Analysis) AAS for cereal

Test Cadmium mg/kg 1 0.0394 2 0.0412 3 0.0420 4 0.0398 5 0.0407 6 0.0395

Know Data Types

• Univariate Data

– Single variable from a sample

• Bivariate Data

– Two variable from a sample – Analytical value and Brand, origin – Comparison of two method

• Multivariate Data

– Multiple data from single sample – ICP-MS, DNA arrays

Univariate Data

• Single set of samples

Test Cadmium mg/kg 1 0.0394 2 0.0412 3 0.0420 4 0.0398 5 0.0407 6 0.0395 Average 0.0404

What can be done with Univariate Data Descriptive Statistics

• Location/Shift/Central Tendency

– Mean (arithmetic, geometrical, harmonic)

• Trimmed
• Interquartile mean

– Median, Mode

• Scatter/Scale/Dispersion

– Variance, median absolute deviation – Range, interquartile range

• Shape

– Skewness, kurtosis

• Frequency distribution

– Histogram, cumulative distribution，stem and leaf

Location Parameters

• Sample data set (5,4,5,6,5)
• Arithmetic mean

– ((5+4+5+6+5)/5) = 5

• Geometrical mean

– (5*4*5*6*5)^(1/5) = 4.959344… – Positive number only

• Harmonic mean

– (1/5) + (1/4) + (1/5) + (1/6) + (1/5) = 4.918033…

• Arithemetic >= geometrical >= harmonic

Location parameter - 2

• Location based on quantile

– Median = 5 (Symmetric case, mean) – Quartile

• 1ST, 2ND 3RD

– Percentile 1st, 2nd...100th

• Mode

– If continuous, kernel density method

• Empirically, 3(mean-median)≒ (mean-mode)

Scale parameters

• Variance, Standard Deviation
• Coefficient of Variation

– Geometric coefficient of variation

• Range

– (minimum, maximum)

Population variance

Test result Deviance Deviance2 1 0.0394

• 0.00103

1.06778E-06 2 0.0412 0.000767 5.87778E-07 3 0.0420 0.001567 2.45444E-06 4 0.0398

• 0.00063

4.01111E-07 5 0.0407 0.000267 7.11111E-08 6 0.0395

• 0.00093

8.71111E-07 Average 0.0404 9.08889E-07

Coefficient of variance, Relative standard error s/μ

Descriptive Statistics Graphical representation of data

• Histogram
• Stem-and-leaf

– (1.1, 1.1, 1.1, 1.2, 1.2, 2.5, 2.5) – 1|1 1 1 2 2 – 2|5 5

Histogram of r0

r0 Frequency

• 6
• 4
• 2

2 4 6 6000

Starting R

Command line window

Exercise Plotting histogram

• >Orange
• Tree age circumference
• 1 1 118 30
• 2 1 484 58
• 3 1 664 87
• > hist(Orange$circumference)

Histogram of Orange$circumference

Orange$circumference Frequency 50 100 150 200 2 4 6

Exercise Plotting Stem and Leaf Plot

• > stem(Orange$circumference)
• The decimal point is 1 digit(s) to the right of the |
• 2 | 00023
• 4 | 918
• 6 | 295
• 8 | 17
• 10 | 81255
• 12 | 059
• 14 | 02256
• 16 | 72479
• 18 |
• 20 | 3394

Exercise Plotting empirical distribution

• >plot(ecdf(Orange$ci

rcumference))

50 100 150 200 0.0 0.4 0.8

ecdf(Orange$circumference)

x Fn(x)

Shape parameter

• Skewness
• Kurtosis

Histogram of rnorm(1000)

rnorm(1000) Frequency

• 3
• 2
• 1

1 2 3 50 150

Histogram of rnorm(100)^2

rnorm(100)^2 Frequency 2 4 6 8 20 40 60

Histogram of rnorm(1000)

rnorm(1000) Frequency

• 3
• 2
• 1

1 2 3 50 150

skewness

• Non parametric skew = (mean-median)/s.d.

Histogram of rnorm(100)^2

rnorm(100)^2 Frequency 2 4 6 8 20 40 60

Histogram of rnorm(1000)

rnorm(1000) Frequency

• 3
• 2
• 1

1 2 3 50 150

Histogram of rnorm(100)^2

rnorm(100)^2 Frequency 2 4 6 8 20 40 60

negative Positive

Calculating skewness

Test result Deviance Deviance3 1 0.0394 -0.00103

• 1.10337E-09

2 0.0412 0.000767 4.5063E-10 3 0.0420 0.001567 3.8453E-09 4 0.0398 -0.00063

• 2.54037E-10

5 0.0407 0.000267 1.8963E-11 6 0.0395 -0.00093

• 8.13037E-10

Average 0.0404 3.57407E-10

• Divide mean deviance3 by s.d.3

Interval Range

• 1 standard deviation (σ)
• Inter-Quartile Range (IQR)
• 3rd quartile (75%th quantile) - 1st quartile (25%th quantile)
• Normalized IQR 0.7413×IQR

– If data is normally distributed, converge to standard deviation

Terminology : Shape

• Unimodal

– Single peak

• Bimodal

– Dual peak

• Multimodal

Histogram of rnorm(1e+06, 0, 1)

rnorm(1e+06, 0, 1) Frequency

• 4
• 2

2 4 50000 150000

istogram of c(rnorm(1e+06, 0, 1), rnorm(1e+0

c(rnorm(1e+06, 0, 1), rnorm(1e+06, 8, 2)) Frequency

• 5

5 10 15 100000 250000

Terminology : Shape - 2

• Symmetric
• Asymmetric

– Skewness not zero

istogram of c(rnorm(1e+06, 0, 1), rnorm(1

c(rnorm(1e+06, 0, 1), rnorm(1e+06, 4, 2)) Frequency

• 5

5 10 0e+00 2e+05

Histogram of rnorm(1e+06, 0, 1)

rnorm(1e+06, 0, 1) Frequency

• 4
• 2

2 4 50000 150000

Terminology : Shape - 3

• Heavy tail

– Decreases slower than exponential distribution

• Light tail

– Decreases faster than exponential distribution

Histogram of c(rlnorm(1000, 0, 1))

c(rlnorm(1000, 0, 1)) Frequency 5 10 15 20 25 200 400 600

Graphical Distribution Box-plot

• 4
• 2

2 4

Outlier ( outside 1.5 IQR) Median 1st Quadrant 3rd Quadrant +1.5 IQR Outlier ( outside 1.5 IQR)

• 1.5 IQR

Graphical Distribution Error bars

• The width can be:

– Standard error – Confidence interval

1 2 3 4 5 Replicates Value (arbitrary units) 0.0 0.4 0.8 1.2 1 2 3 4 5 Replicates Value (arbitrary units) 0.0 0.4 0.8 1.2

Exercise on calculation

• =RAND()
• Copy

=NORM.INV(RAND(), 0, 1)

Generating (pseudo) random number

• > rnorm(10,0,1)
• 0.11896589 0.34946077

0.69093896 0.12069319

• 0.39211479 0.04787566

0.17911326 0.67266441 1.16644580 -0.35335929

• > r0 = rnorm(1e5, 0, 1)
• > r1 = rnorm(1e5, 1, 1)
• >hist(r0),xlim=c(-6,6))
• >hist(r1),xlim=c(-6,6))

Histogram of r0

r0 Frequency

• 6
• 4
• 2

2 4 6 6000

Histogram of r1

r1 Frequency

• 6
• 4
• 2

2 4 6 6000

Expectation and variance

• E[aX+bY]=aE[X]+bE[Y]
• V[X+Y] =V[X]+V[Y]+2cov(X,Y)
• SD[X+Y] = √V[X+Y]

Exercise Adding variable (cont.)

• # E[aX+bY]=aE[X]+bE[Y]
• > mean(r0)
• [1] 0.001574978
• > mean(r1)
• [1] 0.9990033
• > mean(r0+r1)
• [1] 1.000578
• > mean(r0-r1)
• [1] -0.9974283

Exercise Estimating Standard Deviation

• # V[X+Y]=V[X]+V[Y]+Cov(X,Y)
• > sd(r0)
• [1] 0.999807 (1)
• > sd(r1)
• [1] 0.997682 (1)
• > sd(r0+r1) # (Adding independent variables)
• [1] 1.411946 # √(1×1 + 1×1 )
• > sd(r0-r1)
• [1] 1.412932 # √(1×1 + 1×1 )
• > sd(r0+r0) # (Adding correlated variables)
• [1] 1.999614 # √(1×1 + 1×1 + 2×1)
• > sd(r0-r0)
• [1] 0 (0) # √(1×1 + 1×1 - 2×1)

Probability Process and Distributions (Univariate)

• Discrete Distribution

– Count data (colony count) – Food poisoning incidents

• Continuous Distribution

– Concentration of chemicals

Discrete distribution

• Constant
• Binominal
• Poisson
• Negative binominal

Distribution and Random Process Binominal Distribution

• Toss of coin – Heads or tails

– Number of heads

• Throwing dice

– Probability of getting the number one

• Bernoulli test
• n trials
• probability of p

Binominal Distribution

• Expectation (pn)
• Variance(np(1-p) )
• Standard deviation

1 2 3 4 5 6 7 8 9 10 0.00 0.10 0.20 0.30 1 2 3 4 5 6 7 8 9 10 0.00 0.10 0.20 0.30

Probability mass function N=10,p=0.1 Probability mass function N=10,p=0.3

n n

Poisson distribution

• Well dispersed solution

Binominal n: large p: small np : constant

Poisson Distribution Probability mass functions

1 2 3 4 5 6 7 8 9 0.00 0.15 0.30

Poisson distribution λ=1 Binominal distribution n=10,p=0.1 Poisson distribution λ=3 Binominal distribution n=10,p=0.3

Other discrete distributions

• Geometric distribution

– The number of needed to get one success – Parameter p

• Hyper-geometric distribution

– k success in n draws without replacement of N

• Negative binominal distribution

– The number of successes before n failures

Central Limit Theorem

• Addition of Several Variables from any

distribution

• gram of sample(1:6, 10000, replace

sample(1:6, 10000, replace = TRUE) Frequency 1 2 3 4 5 6 1000

:6, 10000, replace = TRUE) + sample(

, 10000, replace = TRUE) + sample(1:6, 10000 Frequency 5 10 15 20 25 600

Central limit theorem an example

• gram of sample(1:6, 10000, replace

sample(1:6, 10000, replace = TRUE) Frequency 1 2 3 4 5 6 1000

:6, 10000, replace = TRUE) + sample(

, 10000, replace = TRUE) + sample(1:6, 10000 Frequency 2 4 6 8 10 14 1000

TRUE) + sample(1:6, 10000, replace

RUE) + sample(1:6, 10000, replace = TRUE) + Frequency 5 10 15 800

:6, 10000, replace = TRUE) + sample(

, 10000, replace = TRUE) + sample(1:6, 10000 Frequency 5 10 15 20 25 600

Continuous Distribution Normal (Gaussian ) Distribution distributional shape

• 3
• 2
• 1

1 2 3 0.0 0.1 0.2 0.3 0.4 k dnorm(k, 0, 1)

• Bell shape
• Symmetrical
• Converges to zero and +-infinity

Probability Density Distribution

Normal Distribution cumulative density funtiction

• 68% in ±1 σ
• 97% in ±1 σ
• 3
• 2
• 1

1 2 3 0.0 0.2 0.4 0.6 0.8 1.0 k pnorm(k, 0, 1)

Log normal Distribution

Skewed shape Mean and mode different Heavy tail

2 4 6 8 10 0.0 0.2 0.4 0.6 k dlnorm(k, 0, 1)

Exponential distribution and Gamma distribution

• Exponential distribution

– Time until an event occurs which is expected to

• ccur at the same rate
• Gamma distribution

– Time until k events occur at the same rate which are expected to occur at the same rate

Gamma Distribution

• Shape parameter k
• Scale parameter θ

Histogram of rgamma(1e+05, 1)

rgamma(1e+05, 1) Frequency 2 4 6 8 10 12 30000

Histogram of rgamma(1e+05, 2)

rgamma(1e+05, 2) Frequency 5 10 15 15000

γ

K=1，θ=1 K=2，θ=1

Gamma Distribution

• Mean = k・θ

Histogram of rgamma(1e+05, 3)

rgamma(1e+05, 3) Frequency 5 10 15 10000 25000

Histogram of rgamma(1e+05, 4)

rgamma(1e+05, 4) Frequency 5 10 15 10000

K=3，θ=1 K=4，θ=1

Exponential Distribution

• Exp(-λx)
• Monotonically decreasing
• Gamma distribution of Shape = 0

Histogram of rexp(1e+05)

rexp(1e+05) Frequency 2 4 6 8 10 12 14 40000

Histogram of rexp(1e+05, 3)

rexp(1e+05, 3) Frequency 1 2 3 30000

Generating random number

• R

– rnorm(n, mean, s.d.) – >hist(rnorm(1e5, 0, 1)) – >hist(rnorm(1e5, 0, 2))

• Excel 2010

– Norm.dist()

Histogram of rnorm(1e+05, 0, 1)

rnorm(1e+05, 0, 1) Frequency

• 4
• 2

2 4 15000

Histogram of rnorm(1e+05, 0, 2)

rnorm(1e+05, 0, 2) Frequency

• 5

5 15000

Central Limit theorem exercise

• >hist (runif(1e5))

Histogram of r0

r0 Frequency 0.0 0.2 0.4 0.6 0.8 1.0 3000

• >hist (runif(1e5)+runif(1e5))

Histogram of runif(1e+05) + runif(1e+0

runif(1e+05) + runif(1e+05) Frequency 0.0 0.5 1.0 1.5 2.0 6000

Central Limit theorem exercise

gram of runif(1e+05) + runif(1e+05) + ru

runif(1e+05) + runif(1e+05) + runif(1e+05) Frequency 0.0 1.0 2.0 3.0 10000

f runif(1e+05) + runif(1e+05) + runif(1e+0

runif(1e+05) + runif(1e+05) + runif(1e+05) + runif(1e Frequency 1 2 3 4 8000

Chi-square distribution

• Distribution of square of normal random number

Histogram of apply(r0, 1, var

apply(r0, 1, var) * 3 Frequency 5 10 20 600

Sample size = 10 Degree of freedom = 9 Sample size = 4 Degree of freedom = 3

Exercise Plant Growth

• >data(PlantGrowth)
• >> PlantGrowth
• weight group
• 1 4.17 ctrl
• 2 5.58 ctrl
• 3 5.18 ctrl

Exercise Plotting notched Box Plot

ctrl trt1 trt2 3.5 4.0 4.5 5.0 5.5 6.0

boxplot(weight ~ group, data = PlantGrowth, main = "PlantGrowth data", ylab = "Dried weight of plants", col = "lightgray", notch = TRUE, varwidth = TRUE)

Level of Measurement

• Ratio Data
• Interval Data
• Ordinal Data

– Can put rank

• Categorical Data

– Binary Data

Quantitative Data Qualitative Data

Descriptive Statistic Bivariate Data

• Dependence index

– Correlation: Pearson’ chi-square, Kendall’ τ, Spearman’ ρ

• Cross-tabulation

– Binary and binary – Binary and nominal – Nominal and nominal

• Scatterplots

– Ordinal/Interval and ordinal/Interval

• Quantile-Quantile plots

– Ordinal and ordinal

• 4
• 2

2 4

• 4
• 2

2 4 c(rr0) c(rr1)

Statistical inference

• Drawing conclusions from data based on

model/assumption

• Data is independently identically distributed

– Random sampling from population – Randomized experiment

• Set Model or Assumption
• Estimate

– Parameter (mean, proportion, variance)

• Interval

– Confidential, Tolerance, Prediction

• Test of Hypothesis

Types of statistical inference

• Point Estimate

– Obtain single estimate

• Estimate Interval

– Interval of possible values

• Hypothesis testing

– Making decision from data

• Check model assumption

Point Estimation

• Obtain best single value of a population

parameter from a subset

• Unbiasness
• minimum variance
• Parametric Distribution

– Maximum Likelihood Estimator – Moment Estimator

Unbiasness

• True parameter: θ0
• Estimate:θ
• E[θ]= θ0
• Estimator of standard deviation

– Variance calculated from 5 normal samples – Left: mean=0.8, right: mean=1.0

Histogram of aa

aa Frequency 1 2 3 4 5

Histogram of aa

aa Frequency 1 2 3 4 5 6

Unbiased variance

Test result Deviance Deviance2 1 0.0394

• 0.00103

1.06778E-06 2 0.0412 0.000767 5.87778E-07 3 0.0420 0.001567 2.45444E-06 4 0.0398

• 0.00063

4.01111E-07 5 0.0407 0.000267 7.11111E-08 6 0.0395

• 0.00093

8.71111E-07 Average 0.0404 Biased Estimate 9.08889E-07 Unbised Estimate =(sum of Deviance)/(6-1)

Minimum variance

• Normal distribution mean
• 5 samples
• True mean=0

gram of apply(matrix(rnorm(5e+05), ncol = 5

apply(matrix(rnorm(5e+05), ncol = 5), 1, mean) Frequency

• 2
• 1

1 2 5000 10000

ram of apply(matrix(rnorm(5e+05), ncol = 5),

apply(matrix(rnorm(5e+05), ncol = 5), 1, median) Frequency

• 2
• 1

1 2 5000 10000 15000

Goodness-of-fit Test

• Graphical method

– Quantile-Quantile plot

Exercise plotting Q-Q plot

• Fit to normal distribution
• > qqnorm(rnorm(1e2))
• > qqnorm(rlnorm(1e2))
• 2
• 1

1 2

• 2

2

Normal Q-Q Plot

Theoretical Quantiles Sample Quantiles

• 2
• 1

1 2 2 4 6 8

Normal Q-Q Plot

Theoretical Quantiles Sample Quantiles

Pearson’s Chi-square

• Yate’s correction

Observed 10 2 7 9 Hypothesis 8 4 9 7 Diff 2

• 2

2 2

Other test of fit

• Based on empirical distribution function

– Kolmogrov-smirnov test – Anderson-Darling test – Lilliefors test – Cramer-von Mises test

• For normality

– Jarque-Bera

• Based on skewness and kurtosis

– Shapiro-wilk test

• Statistic based on variance and covariance of rank

Interval Estimation Types of Interval

• Confidential

– True parameter with probability of alpha – Nominal and actual coverage probability

• Prediction

– Another sample falls within the prediction interval with the probability of alpha

• Tolerance

– N percent of data falls within the interval with confidence level of alpha

Confidence Intervals Example of 95%

Table of T-values

d.f. t0.95 t0.975 t0.995 1 6.3 12.7 63.7 2 2.9 4.3 10 3 2.4 3.2 5.8 4 2.13 2.8 4.6 5 2.02 2.6 4.0 6 1.94 2.4 3.7 Z(∞) 1.645 1.960 2.326

Statistical inference

• Model, Assumption, Hypothesis-
• Parametric

– Data generation process is parametricized

• Non-parametric

– Data generation process is not parametericized

• Asymptotical – commonly used

– Critical value based on table

• Exact – computer intensive

– Critical values based on data

Statistical inference and error

• Type I error

– False Positive – α error – Rejecting a hypothesis that should have been accepted

• Type Ⅱerror

– False negative – β error – Accepting a hypothesis that should have been rejected

Statistical Test

• Test for location
• Test for dispersion
• Test for outlier
• P-value, error
• Detection Power
• Uniformly most powerful test

Ratio data

• Quantitative data
• Unlike interval data, it has natural zero
• Can do multiplication or division
• Age, Length, etc.

Interval Data

• Quantitative data
• Can add or subtract the data
• Can not do multiplication or division
• Ex. Temperature

Z-test

• Critical value does not depend on sample size
• Standard deviation : known
• Exercise
• Proficiency testing
• Target : 700μg/g
• Standard deviation: 25μg/g
• Test if one laboratory reports 640μg/g, they

significantly differs from target

Test for normal interval data single set of samples

• One sample t-test
• What is tested

– Whether population mean differs from 0 – Standard deviation: unknown

• C.f. z-test
• Threfore, s.d. is estimated from data
• Error included
• Mean of data set of (150, 120, 180, 130)

significantly differs from 100.

Test for interval data 2 levels

• T-test (paired or unpaired)
• Variance of two gourps

– Same Students test – Unsame Welch-Aspin test

T-distribution

• Distribution of sample mean divided by

sample variance

• Normality assumed
• Degree of freedom
• probability
• If standard deviation is known or the degree
• f freedom is infinity. It is z test.

T-distribution and normal distribution

• Green = degree of freedom (d.f.) 2
• Blue = degree of freedom (d.f.) 10
• Red = degree of freedom (d.f.) +infinity
• 10
• 5

5 10 0.0 0.1 0.2 0.3 0.4 seq(-10, 10, by = 0.01) dnorm(seq(-10, 10, by = 0.01))

T-test assumptions

• Each of two data set follow a normal

distribution

– especially when sample size is small

• Each of two data set are sampled

independently

• There are few cases where those assumptions

are strictly met, care is needed for strict discussions.

Robustness of inference

• How violation to assumptions affects the test
• Outliers

– Against outlier

• Distribution

– Mixture distribution of different s.d.

• T-test is somehow robust to some violations
• Some discuss to apply tests to check if those assumption

holds in the data, but there are other discussions.

Case of unequal variance, equal sample size n=10, σ1/σ2＝4

• Student

Histogram of p

p Frequency 0.0 0.2 0.4 0.6 0.8 1.0 1000 3000 5000

• Aspin-Welch

Histogram of p

p Frequency 0.0 0.2 0.4 0.6 0.8 1.0 2000 4000 6000

T test exercise Sample Data

• > ToothGrowth
• len supp dose
• 1 4.2 VC 0.5
• 2 11.5 VC 0.5
• 3 7.3 VC 0.5
• 4 5.8 VC 0.5
• 5 6.4 VC 0.5
• 6 10.0 VC 0.5
• 7 11.2 VC 0.5

T test exercise 2 Sample Data

• d0 <- ToothGrowth$len[1:10]

– VitaminC dose 0.5mg

• d1<- ToothGrowth$len[11:20]

– VitaminC dose 1.0mg

T-test using R

• exercise 3-
• t.test(x, y = NULL, alternative = c("two.sided", "less", "greater"), mu = 0,

paired = FALSE, var.equal = FALSE, conf.level = 0.95, ...)

• >t.test(d0, d1)
• Welch Two Sample t-test
• data: d0 and d1
• t = -7.4634, df = 17.862, p-value = 6.811e-07
• alternative hypothesis: true difference in means is not equal to 0
• 95 percent confidence interval:
• 11.265712 -6.314288
• sample estimates:
• mean of x mean of y
• 7.98 16.77

T-test exercise using random number

• alpha error-
• > t.test(rnorm(1e1),rnorm(1e1))
• t = -0.9106, df = 17.085, p-value = 0.3752
• t = 0.7685, df = 17.982, p-value = 0.4522
• t = 0.8858, df = 12.341, p-value = 0.3927
• t = -1.0532, df = 17.886, p-value = 0.3063
• t = 0.0694, df = 17.496, p-value = 0.9455
• t = -0.0784, df = 13.86, p-value = 0.9386
• t = -0.606, df = 17.528, p-value = 0.5523

Summary

Actual Nominal P-value>=0.5 50% P-value<0.5 50%

Test for Proportions

• > prop.test(10,20,p=0.5)
• 1-sample proportions test without continuity correction
• data: 10 out of 20, null probability 0.5
• X-squared = 0, df = 1, p-value = 1
• alternative hypothesis: true p is not equal to 0.5
• 95 percent confidence interval:
• 0.299298 0.700702
• sample estimates:
• p
• 0.5

One-sided(tailed) and two- sided(tailed) test

• One sided

– Null hypothesis μ=μ0 – Alternative hypothesis μ>μ0

• Two sided

– Null hypothesis μ=μ0 – Alternative hypothesis μ≠μ0

• One-sided p-value = ½ two-sided p-value

Balanced v.s. Unbalanced

• Balanced

– Equal sample or experiment assigned to each treatment

• Unbalanced

– Unequal sample or experiment assigned to each treatment

Ordinal Data

• Several levels with order
• Excellent – good – fair
• Ranks in the race
• Interval data is an ordinal data
• But ordinal data is not always interval data

What can be done with Ordinal data

• Wilcoxon rank sum test

– Mann-Whitney’s U test – Unpaired t-test – interval data

• Wilcoxon signed rank test

– Paired t-test – interval data

Wilcoxon test

• exercise-
• > wilcox.test(d0,d1)
• Wilcoxon rank sum test with continuity correction
• data: d0 and d1
• W = 0, p-value = 0.0001796
• alternative hypothesis: true location shift is not equal to 0
• Warning message:
• In wilcox.test.default(d0, d1) : cannot compute exact p-

value with ties

Wilcoxon test

• unequal variance-

Histogram of p

p Frequency 0.0 0.2 0.4 0.6 0.8 1.0 2000 6000

Histogram of p

p Frequency 0.0 0.2 0.4 0.6 0.8 1.0 2000 6000

Equal variance P(p<0.05)=0.044 Unequal variance P(p<0.05)=0.12

Comparison of t-test and wilcoxin test

• Detection power – 98%
• Extremely low sample size and high difference

– t test

Detection power of t-test

• S.d. =1
• μ1-μ2 = 1, 0.5, 0.1

Detection power of wilcox test norm, diff=1

20 40 60 80 100 0.0 0.4 0.8 mvec powvec

• S.d. =1
• μ1-μ2 = 1

T-test Detection power

• > power.t.test(n=10,delta=1, sd=NULL, sig.level =0.05, power=.5)
• Two-sample t test power calculation
• n = 10
• delta = 1
• sd = 1.079782
• sig.level = 0.05
• power = 0.5
• alternative = two.sided
• NOTE: n is number in *each* group

Calculating sample size - t-test

• power.t.test(delta=1, sd=1, sig.level =0.05, power=.95)
• Two-sample t test power calculation
• n = 26.98922
• delta = 1
• sd = 1
• sig.level = 0.05
• power = 0.95
• alternative = two.sided
• NOTE: n is number in *each* group

t.test detection power (β-error)

• exercise-
• >t.test(rnorm(1e1,sd=1.079782),rnorm(1e1,sd

=1.079082))

• t = -1.0004, df = 10.752, p-value = 0.3391
• t = 0.1531, df = 17.229, p-value = 0.8801

P>0.05 P<=0.05

What is Nominal Data

• Categorically discrete
• Order of category is arbitrary
• Red, blue, green
• Origin(Region)

Analysis of Nominal Data

• Contigency table
• Binominal test
• Chisquare-test
• Fisher’s exact test
• McNemer test

Correlation

• analysis of bivariate data-
• r=0(left), 1.0(middle), 0.7(right)
• 4
• 2

2 4

• 4
• 2

2 4 rr0 rr1

• 4
• 2

2 4

• 4
• 2

2 4 rr0 rr0

• 4
• 2

2 4

• 4
• 2

2 4 (rr0 + rr1)/2 rr0

Exercise Formaldehyde

• carb optden
• 1 0.1 0.086
• 2 0.3 0.269
• 3 0.5 0.446
• 4 0.6 0.538
• 5 0.7 0.626
• 6 0.9 0.782

Covariance

Data A 0.1 0.3 0.5 0.6 0.7 0.9 mean Devianc nce A

• 0.41667

67 -0.2166 667 -0.0166 667 0.08333 333 0.18333 333 0.38333 333 0.51666 667 Data B 0.086 0.269 0.446 0.538 0.626 0.782 Devianc nce B

• 0.37183

83 -0.1888 883 -0.0118 183 0.08016 167 0.16816 167 0.32416 167 0.45783 833 D.

• D. A2

A2 0.17361 61 1 0.04694 944 0.00027 278 0.00694 944 0.03361 611 0.14694 944 0.06805 056

• D. B2

0.13826 26 0.03565 658 0.00014 14 0.00642 427 0.02828 28 0.10508 084 0.05230 308 D.A X X D.B 0.15493 93 1 0.04091 914 0.00019 197 0.00668 681 0.03083 831 0.12426 264 0.05963 636

Correlation=covariance/( (s.d.ofA)×(s.d.ofB) )

Exercise Formaldehyde

> plot(Formaldehyde$carb, Formaldehyde$optden) > cor(Formaldehyde$carb, Formaldehyde$optden)

0.2 0.4 0.6 0.8 0.1 0.3 0.5 0.7 Formaldehyde$carb Formaldehyde$optden

Correlation - exercise

> rr0=rnorm(1e2,0,1)

• rr1=rnorm(1e2,0,1)
• > plot(rr0,rr1,xlim=c(-4,4),ylim=c(-4,4))
• > plot(rr0,rr0,xlim=c(-4,4),ylim=c(-4,4))
• > plot((rr0+rr1)/2,rr0,xlim=c(-4,4),ylim=c(-4,4))

Correlation test

• > cor.test(rr0, rr1)
• Pearson's product-moment correlation
• data: rr0 and rr1
• t = 0.2471, df = 98, p-value = 0.8054
• alternative hypothesis: true correlation is not equal to 0
• 95 percent confidence interval:
• -0.1723101 0.2202910
• sample estimates:
• cor
• 0.02495251
• 4
• 2

2 4

• 4
• 2

2 4 c(rr0) c(rr1)

Regression and correlation Goodness-of-fit

• R

– Pearson’s correlation coefficient

• R2

– Coefficient of determination – proportion of variance in Y explained by a linear function of X

• 1-R2

– Fraction of variance unexplained

Correlation and outlier exercise

• > cor.test(c(rr0,5), c(rr1,5))
• Pearson's product-moment correlation
• data: c(rr0, 5) and c(rr1, 5)
• t = 2.0633, df = 99, p-value = 0.0417
• alternative hypothesis: true correlation is not equal to 0
• 95 percent confidence interval:
• 0.007928624 0.383282118
• sample estimates:
• cor
• 0.2030532
• 4
• 2

2 4 6

• 4
• 2

2 4 6 c(rr0, 5) c(rr1, 5)

Regression analysis

• ordinal data to ordinal data-
• Spearman or Kendall correlation

– Spearman : convert data to ranks and calculate Pearson’s correlation coefficient – Kendall : concordant pair and discordant pairs

• They can also be used for interval data

Rank correlation test

• exercise-
• > cor.test(c(rr0,5), c(rr1,-5), method="spearman")
• Spearman's rank correlation rho
• data: c(rr0, 5) and c(rr1, -5)
• S = 164262, p-value = 0.6666
• alternative hypothesis: true rho is not equal to 0
• sample estimates:
• rho
• 0.04331974
• > cor.test(c(rr0,5), c(rr1,-5), method=“kendall")

Regression Analysis

• Relation between 2 independent variables

– Y ～ a + bX

• Scatter plot
• Uni-varialte and Multi-variate
• Linear Regression
• Non-linear Regression
• R^2 and Prediction Interval

Y ～ a + bX

• Y

– Dependent variable – Regressand – Endogenous variable – Response variables – Measured variables

• X

– Independent variable – Regressors – Exogeneous variables – Explanetory variables – Covariate – Predictor variables

20 30 40 50 60 70 80 90 20 40 60 80 x y

Regression Predicted and mean response

• Standard deviation (S.D.)
• Standard error of mean (S.E.M.)

20 30 40 50 60 70 80 90 20 40 60 80 x y

Outer:Predicted Inner:Mean

Regression

• assumption-
• Error is mean zero and its variance is consistent

across observations

• If not, try transforming variable

– exp(X) – log(X) – Sqrt(x)

• Weighted least square

Regression – Robustness against

• utliers
• Ridge/Lasso regression
• Least absolute deviation regression

Regression by polynomials relation is not straight line

• 2
• 1

1 2

• 6
• 5
• 4
• 3
• 2
• 1

rr

• rr * rr

Regression diagnosis

• Residual
• Standarized residual

– Residual divided by error

• Studentized residual

– Remove the data and do regression analysis – Residual divided by error

• Durvin-watson statsitics
• Graphical

Regression analysis fitting binary data to continuous function

• Logistic Regression

– Logistic function – Logit p = log (p/(1-p)) = a + bx

• Probit regression

– Inverse of cumulative density function of normal distribution

Level 1

2 3 4 5 6 7 8 9

Positive 0

1 1 1 1 1

Logistic regression

• Logit p = log (p/(1-p)) = a + bx

Level 1

2 3 4 5 6 7 8 9

Positive 0

1 1 1 1 1

2 4 6 8

• 0.5

0.0 0.5 1.0 1.5 res$fit

Other data

• Poisson regression

– Count data

• Multinominal logistic/Probit regression
• Ordered logistic/Probit regression

Design of Experiment Principle by R.A. Fisher

• Comparison
• Randomization
• Replication
• Blocking
• Orthgonality
• Factorial experiment

Completely Randomised Design

Spray A Spray B Spray C 10 11 7 17 1 20 21 7 14 11 2 14 16 3

• Data(InsectSprays)

Analysis of several sets of data Analysis of Variance

• Compare variances between group means and

variance in a group

• Extension of two sample test to multi samples
• One-way ANOVA
• Two-way ANOVA
• Repeated measure ANOVA

– Measurement on same block or subject

• 2 or more levels

One-way ANOVA

• 1 interval and 1 nominal data
• Group 1 1.1 1.3 1.4
• Group 2 1.3 1.7 1.5
• Group 3 1.2 1.1 1.0

T-test and ANOVA

• ne way ANOVA and unpaired t
• Compare the results
• Generate 10 normal random number
• >r0 <- rnorm(10, 0, 1)

– -0.73 0.61 1.03 1.81 -0.05 -1.21 1.04 0.65 -0.99 0.18

• >r1 <- rnorm(10, 1, 1)

– 1.94 0.82 0.23 2.07 -1.04 0.18 -1.80 1.35 -0.06 -0.61

Output for (Student’s) T-test

• test(r1, r0, var.equal=TRUE)
• Two Sample t-test
• data: r1 and r0
• t = 2.827, df = 18, p-value = 0.01117
• alternative hypothesis: true difference in means is not equal to 0
• 95 percent confidence interval:
• 0.2579993 1.7510822
• sample estimates:
• mean of x mean of y
• 1.2375198 0.2329791

Output for anova

• > group <- c(rep(0,10), rep(1,10))
• > rs <- c(r0,r1)
• > aov(rs ~ group)

ANOVA result

• Df Sum Sq Mean Sq F value p-value
• group 1 5.046 5.046 7.992 0.0112
• Residuals 18 11.364 0.631

s11 s12 s13 s14 s15 s16 s17 s18 S19 s110 m1 m1 m1 m1 m1 m1 m1 m1 m1 m1 s11- m1 s12- m1 s13- m1 s14- m1 s15- m1 s16

• m1

s17- m1 s18- m1 s19- m1 s110- m1 S21 S22 s23 s24 s25 s26 s27 s28 s29 s210 M2 M2 m2 m2 m2 m2 m2 m2 m2 m2 s21- m2 s22- m2 s23- m2 s24- m2 s25- m2 s26- m2 s27- m2 s28

• m2

s29- m2 s210

• m2

m1 m2 m12 m12 m1-m12 m2-m12

F-value

• Distribution of Ratio sample variance of

dataset A and sample variance of dataset B

F-table

df2 df1 1 2 5 20

1 40 50 57 62 2 8.5 9.0 9.3 9.4 5 4.1 4.3 4.1 3.2 20 3.0 2.6 2.2 1.8

df2 df1 1 2 5 20

1 161 200 230 248 2 19 19 19 19 5 6.6 5.8 5.1 4.6 20 4.4 3.5 2.7 2.1 alpha=0.1 alpha=0.05

ANOVA with unequal variances

• > oneway.test(rs ~ group)
• One-way analysis of means (not assuming

equal variances)

• data: rs and group
• F = 7.9918, num df = 1.000, denom df =

13.923, p-value = 0.01351

t.test by Aspin-Welch

• > t.test(r1, r0)
• Welch Two Sample t-test
• data: r1 and r0
• t = 2.827, df = 13.923, p-value = 0.01351 # slightly larger p-

value

• alternative hypothesis: true difference in means is not equal

to 0

• 95 percent confidence interval:
• 0.2420163 1.7670653
• sample estimates:
• mean of x mean of y
• 1.2375198 0.2329791

Exercise Plant Growth

• >data(PlantGrowth)
• >> PlantGrowth
• weight group
• 1 4.17 ctrl
• 2 5.58 ctrl
• 3 5.18 ctrl

Exercise ANOVA

• Anova(weight ~ group, data = PlantGrowth))
• Analysis of Variance Table
• Response: weight
• Df Sum Sq Mean Sq F value Pr(>F)
• group 2 3.7663 1.8832 4.8461 0.01591 *
• Residuals 27 10.4921 0.3886
• ---
• Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’

0.1 ‘

Multiple Comparison

• Tukey’s range test

– Also as Tukey’s honest significance test – Compares all possible pair of means

• Sceffe’s test

Exercise Tukey HSD

• > TukeyHSD(fit)
• Tukey multiple comparisons of means
• 95% family-wise confidence level
• Fit: aov(formula = weight ~ group, data = PlantGrowth)
• $group
• diff lwr upr p adj
• trt1-ctrl -0.371 -1.0622161 0.3202161 0.3908711
• trt2-ctrl 0.494 -0.1972161 1.1852161 0.1979960
• trt2-trt1 0.865 0.1737839 1.5562161 0.0120064
• In fact comparison to control Dunnet’s is better but have to install

multicomp package (requires internet connection)

Analysis of variance

• assumptions-
• Normality of data

– Deviance is normally distributed

• Homoscedastic

– variance of each group are equal

• All data are independent

Anova for ordinal data

• One-way

– Kruskal-Wallis – Van der Waerden test

• One-way repeated measure

– Friedman test

Exercise Kruskal-wallis

• >kruskal.test(weight~group,data=PlantGrowth

)

• Kruskal-Wallis rank sum test
• data: weight by group
• Kruskal-Wallis chi-squared = 7.9882, df = 2, p-

value = 0.01842

Comparison of wilcoxon and Kruskal-Wallis tests

• >wilcox.test(weight~group,data=PlantGrowth,subset=g

roup!='trt1',exact=FALSE, correct=FALSE)

• W = 25, p-value = 0.05878
• >kruskal.test(weight~group,data=PlantGrowth,subset=

group!='trt1')

• Kruskal-Wallis chi-squared = 3.5714, df = 1, p-value =

0.05878

One way repeated measures Age 1 Age 2 Age 3 Age 4 Tree 1 30 58 87 115 Tree 2 33 69 111 156 Tree 3 30 51 75 108

• Data(Orange)

Subset data

• Compare circumference at age 118 and age

484

• > Orange.1<-subset(Orange, age==118)
• > Orange.2<-subset(Orange, age==484)

Paired t-test

• >t.test(Orange.1$circumference,Orange.2$circumference,paired

=TRUE)

• Paired t-test
• data: Orange.1$circumference and Orange.2$circumference
• t = -8.6768, df = 4, p-value = 0.000971
• alternative hypothesis: true difference in means is not equal to 0
• 95 percent confidence interval:
• -35.37558 -18.22442
• sample estimates:
• mean of the differences
• -26.8

ANOVA

• Repeated measures-
• > summary(aov(circumference ~ age + Error(Tree/age),

data=rbind(Orange.1,Orange.2)))

• Error: Tree
• Df Sum Sq Mean Sq F value Pr(>F)
• Residuals 4 179.4 44.85
• Error: Tree:age
• Df Sum Sq Mean Sq F value Pr(>F)
• age 1 1795.6 1795.6 75.29 0.000971 ***
• Residuals 4 95.4 23.8
• ---
• Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Wilcox signed rank

• >wilcox.test(Orange.1$circumference,Orange.2$c

ircumference,paired=TRUE)

• Wilcoxon signed rank test
• data: Orange.1$circumference and

Orange.2$circumference

• V = 0, p-value = 0.0625
• alternative hypothesis: true location shift is not

equal to 0

Friedman test

• friedman.test(circumference ~ age | Tree,

data=rbind(Orange.1,Orange.2))

• Friedman rank sum test
• data: circumference and age and Tree
• Friedman chi-squared = 5, df = 1, p-value =

0.02535

Factorial Design

• two-way anova-

Low Dose Middle Dose High Dose

Vitamine C

4.2/11.5 16.5/16.5 23.6/18.5

OrangeJuice 15.2/21.5

19.7/23.3 25.5/26.4

> ToothGrowth

ANOVA on toothgrowth (2-way)

• > summary(aov(len ~ supp*dose,

data=ToothGrowth))

• Df Sum Sq Mean Sq F value Pr(>F)
• supp 1 205.3 205.3 12.317 0.000894 ***
• dose 1 2224.3 2224.3 133.415 < 2e-16 ***
• supp:dose 1 88.9 88.9 5.333 0.024631 *
• Residuals 56 933.6 16.7
• ---
• Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1

Test for heteroscedasticity

• F-test
• Cochran’s C
• Bartlett’s test
• Levene’s test
• Brown-Forsythe test
• Goldfeld-Quandt test
• Breuseh-Pagan test

Histogram of rnorm(10000, 0, 2)

rnorm(10000, 0, 2) Frequency

• 5

5 500 1000 1500

Histogram of rnorm(10000, 0, 1)

rnorm(10000, 0, 1) Frequency

• 4
• 2

2 4 500 1000 1500 2000

Cochran’ C

• Data 1=(1,2,1,3,1,2)
• Data 2=(1,3,5,2,5,2)
• Data 3=(1,4,1,5,1,2)
• Detects high within-group variation
• H0: all variance equal
• H1: At least one variance not equal or outlier

included

Cochran’s C

• >library(outlier)
• > cochran.test(rs ~ group)
• Cochran test for outlying variance
• data: rs ~ group
• C = 0.7706, df = 10, k = 2, p-value = 0.0856
• alternative hypothesis: Group 0 has outlying variance
• sample estimates:
• 0 1
• 0.9729731 0.2896914

Extension of ANOVA

• ANCOVA

– Analysis of Covariance

• MANOVA

– Multivariate ANOVA

Mechanism of missing data

• Missing Completely at Random
• Missing at Random
• Impossible to Observe
• Censored data (Left censored, Right censored)

Statistical packages

• Open source

– Free redistribution, no royalty – Source code open

• Freeware

– Free distribution, no royalty

• Proprietary

– Requires royalty

excel2010

• One way ANOVA
• Two-way ANOVA
• Two-way with replication
• Correlation
• Covariance
• Basic Statistics

Excel - 2

• Generating random number
• Rank and percentile
• regression
• sampling
• Paried t test
• t test (same variance)
• T test (unsame variance)
• Z test

Excel - 3

• Summary statistics
• F test
• Fourier analysis
• Histogram
• Moving average

Paired t

Two way ANOVA

Exporting Data from Excel

• Prepare

data

• 1st line =

tiltle

• 2nd-later

= data

Exporting Data from Excel

• Save the

data in a csv forman

Exporting data from R to Excel

• >write.csv(data, “filename”)

Using real data Read the csv file

• >sp = read.csv(“filename”)
• To see the filename,
• Drop the file to console window
• >load("C:\\Users\\yoshiEPSON\\Documents\\ICC

AGSA2013.docx")

• Change “load” to “read.csv”
• >read.csv("C:\\Users\\yoshiEPSON\\Documents\\

ICCAGSA2013.docx“)
