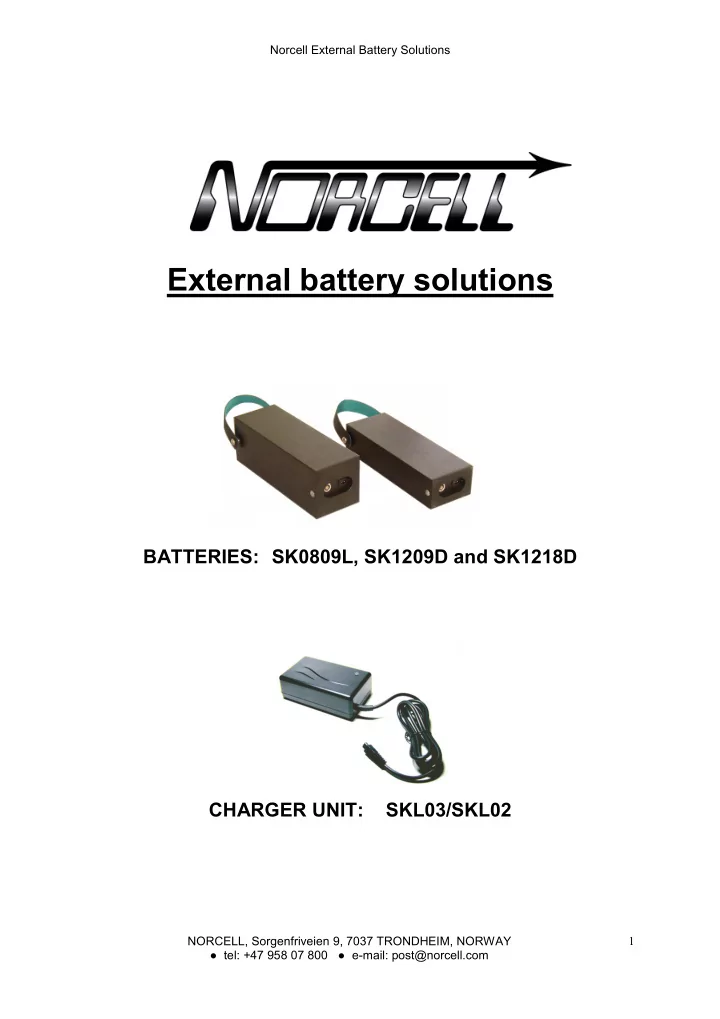

External battery solutions

BATTERIES: SK0809L, SK1209D and SK1218D CHARGER UNIT: SKL03/SKL02

slide-2
SLIDE 2

Norcell External Battery Solutions NORCELL, Sorgenfriveien 9, 7037 TRONDHEIM, NORWAY

  • tel: +47 958 07 800 ● e-mail: post@norcell.com

2

FEATURES:

  • LONG BATTERY SERVICE LIFE
  • HIGH CAPACITY, LOW WEIGHT AND SMALL SIZE
  • SUPERIOR PERFORMANCE AT LOW TEMPERATURE
  • NO MEMORY EFFECT – MINIMAL MAINTENANCE*

*) Please see Norcell Maintenance Guide

  • SUPERIOR STORAGE CHARACTERISTICS
  • ENVIRONMENTALLY FRIENDLY NiMH TECHNOLOGY
slide-3
SLIDE 3

Norcell External Battery Solutions NORCELL, Sorgenfriveien 9, 7037 TRONDHEIM, NORWAY

  • tel: +47 958 07 800 ● e-mail: post@norcell.com

3

NORCELL NiMH batteries characteristics:

DATA: SK0809L SK1209D SK1218D Voltage: 8,4 V 12,0 V 12,0 V Capacity: 9,0 Ah 9,0 Ah 18,0 Ah Charging time: 3¹/5²/5³ hrs 3¹/5²/5³ hrs 6¹/10²/10³ hrs Size [mm]: 50x80x175 50x80x230 80x80x230 Weight: 1,3 kg 1,7 kg 3,1 kg

¹) Charger unit SKL03. ²) Charger unit SKL02. ³) Trimble Super Charger in normal mode (see User Manual for batteries).

Temperature ranges: Discharge: ÷20 to +55 ° ° ° °C Charge: 0 to +40 ° ° ° °C Battery technology: NiMH (NickelMetalHydrid, no contents of cadmium, lead or mercury).

slide-4
SLIDE 4

Norcell External Battery Solutions NORCELL, Sorgenfriveien 9, 7037 TRONDHEIM, NORWAY

  • tel: +47 958 07 800 ● e-mail: post@norcell.com

4

Norcell NiMH versus Standard Lead Acid:

► NiMH has much longer service life than standard lead acid: ► NiMH offers much higher capacity versus weight and size compared to standard lead acid:

Capacity and weight/volume comparison for Standard Lead Acid and NiMH

7,2 9 18 9 18 3,1 1,7 2,3 2,7 1,3 1,5 0,9 1,1 0,7 1,3 Standard Lead Acid 12V 7,2Ah NiMH 8,4V 9Ah NiMH 8,4V 18Ah NiMH 12V 9Ah NiMH 12V 18Ah Capacity [Ah] Weight [kg] Volume [dm^3]

Typical cycle performance

50 60 70 80 90 100 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 Number of cycles Amount of capacity [%] Standard Lead Acid NiMH

slide-5
SLIDE 5

Norcell External Battery Solutions NORCELL, Sorgenfriveien 9, 7037 TRONDHEIM, NORWAY

  • tel: +47 958 07 800 ● e-mail: post@norcell.com

5

► NiMH shows superior capacity performance compared to standard lead acid, especially at low temperatures: ► NiMH requires minimal maintainance, has no memory effect and has superior storage characteristics compared to standard lead acid. ► NiMH has no contents of environmentally dangerous substances and is an environmentally friendlier choice than lead acid.

True capacity compared to rated capacity versus temperature (discharge: 1A)

50 65 80 85 95 100 20 40 60 80 100

  • 15

25 Temperature [Celsius] True capacity [% of rated capacity] Standard Lead Acid 12V 7,2Ah NiMH 8,4V/12V 9Ah/18Ah

slide-6
SLIDE 6

Norcell External Battery Solutions NORCELL, Sorgenfriveien 9, 7037 TRONDHEIM, NORWAY

  • tel: +47 958 07 800 ● e-mail: post@norcell.com

6

The following explains the last two points on last page: ► NiMH requires minimal maintainance, has no memory effect and has superior storage characteristics compared to standard lead acid: Standard lead acid NiMH Loss of capacity from shallow charge/discharge: YES NO¹ Always recharge after use: YES

  • -- ²

Recharge during storage Every 3rd month

  • -- ²

¹) Please see Norcell Maintenance Guide. ²) NiMH can be stored undefinitely in either in a charged or a discharged state in a temperature range between –20 and +30 °C. NiMH also shows superior recovery after storage compared to standard lead acid. ► NiMH has no contents of environmentally dangerous substances and is an environmentally friendlier choice than lead acid: NiMH has no contents of environmentally dangerous substances as cadmium, lead or mercury.

slide-7
SLIDE 7

Norcell External Battery Solutions NORCELL, Sorgenfriveien 9, 7037 TRONDHEIM, NORWAY

  • tel: +47 958 07 800 ● e-mail: post@norcell.com

7

Practical advantages with Norcell NiMH batteries:

► Black anodised aluminium capsule ensures: >> Superior protection against shock and vibration >> Total protection against rain and snow >> Effective heat dissipation >> Cost savings: Fast and easy exchange of inner battery pack

slide-8
SLIDE 8

Norcell External Battery Solutions NORCELL, Sorgenfriveien 9, 7037 TRONDHEIM, NORWAY

  • tel: +47 958 07 800 ● e-mail: post@norcell.com

8

► Smart suspension hook ensures: >> Easy and stable suspension of battery on tripod >> The weight of the battery contributes to a more stable tripod >> Precipitation protection of electrical connections

slide-9
SLIDE 9

Norcell External Battery Solutions NORCELL, Sorgenfriveien 9, 7037 TRONDHEIM, NORWAY

  • tel: +47 958 07 800 ● e-mail: post@norcell.com

9

► Small and practical charger unit ensures: >> Quick and easy charging procedure for all Norcell battery types >> Automatic charge termination indicated by green light
