Wynkoop Street Rapid Implementation Project Existing Conditions Public Meeting 01/13/16 Wynkoop @ 17th Wynkoop @ 17th Area Map Wynkoop Street Rapid Implementation Project Phase 1 Enlargement of 17th/Wynkoop Intersection Public Meeting


slide-1

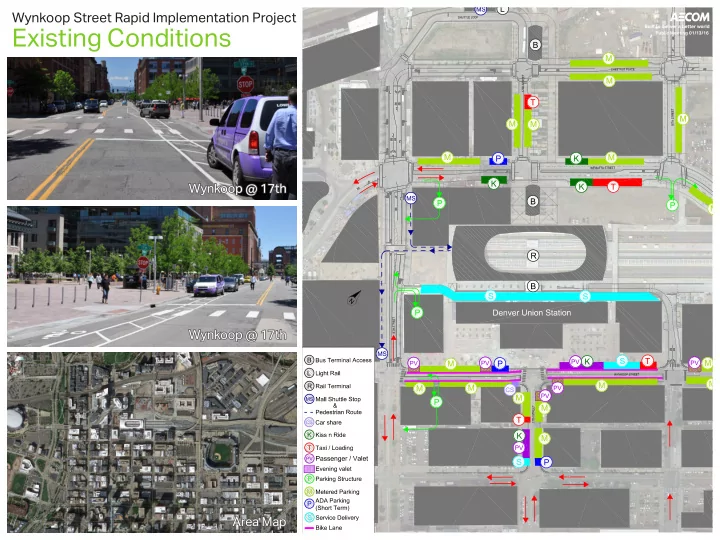

SLIDE 1

Wynkoop Street Rapid Implementation Project

Existing Conditions

Area Map Wynkoop @ 17th Wynkoop @ 17th

Public Meeting 01/13/16

slide-2
SLIDE 2

Wynkoop Street Rapid Implementation Project

Phase 1

Public Meeting 01/13/16

Enhanced Crosswalk

Enlargement of 17th/Wynkoop Intersection

17TH WYNKOOP

Painted Bump-outs Enhanced Bicycle lanes

Enhanced Crosswalk ‘Khaki’ Painted Median Green Bike Lane Bike Lane Marking

slide-3
SLIDE 3

Wynkoop Street Rapid Implementation Project

Ultimate (Concept)

Curbless Option Interim Phase

18TH ST. 16TH ST.

UNION STATION

STORMWATER PLANTER/ BUS DROP-OFF/PULLOUT STORMWATER PLANTER/ PARALLEL PARKING URBAN TRAIL SIDEWALK NORTHBOUND ROADWAY SOUTHBOUND ROADWAY WYNKOOP PLAZA @ UNION STATION

WNKOOP STREET CURBLESS

SCALE: 1” = 10’

21st/Wynkoop Street Design Plan Precedents

Public meeting 01/13/16
