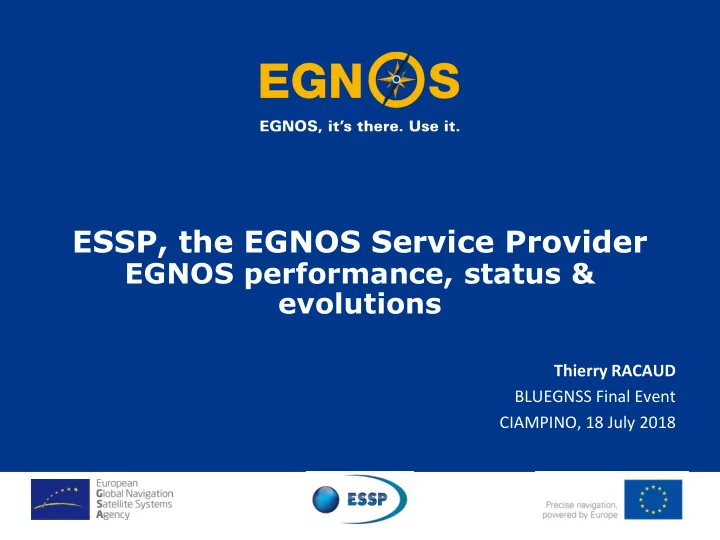

ESSP, the EGNOS Service Provider

EGNOS performance, status & evolutions

Thierry RACAUD BLUEGNSS Final Event CIAMPINO, 18 July 2018

slide-2
SLIDE 2

Table of Contents

2

  • 1. European Satellite Services Provider, the EGNOS Service Provider
  • 2. EGNOS Services Status
  • 3. EGNOS SoL Service Performance Status
  • 4. LPV Implementation Status
  • 5. New EGNOS User available tools
slide-3
SLIDE 3

A European private company under French law

A joint venture of 7 key European Air Navigation Service Providers

Toulouse Madrid GERMANY UK FRANCE SPAIN ITALY SWITZERLAND PORTUGAL

3

slide-4
SLIDE 4

European Satellite Services Provider

  • Created in 2008
  • 120 staff of 10 nationalities (70 persons in Toulouse, 50 in Madrid)
  • ESSP’s main mission is to act as the EGNOS Service Provider for the

European Commission

4

slide-5
SLIDE 5

SBAS in the world

EGNOS is the European Satellite Based Augmentation System, it improves the GPS signal and makes it suitable for safety critical applications

WAAS / CWAAS American SBAS

Operational since 2003

EGNOS European SBAS

Operational since 2011

SDCM Russian SBAS

Operational in 2018 ?

MSAS Japanese SBAS

Operational since 2007

GAGAN Indian SBAS

Operational since 2013

KASS Korean SBAS

Operational in 2022 ?

BDSBAS Chinese SBAS

Operational in 2020 ?

AUSTRALIA pending

AFRICA / ASECNA pending

5

slide-6
SLIDE 6

we operate the system we provide the service

System Operations Unit & Compliance Management Unit

ESSP Toulouse office

Service Provision Unit

ESSP Madrid office

NLES (x6)

CPF (x5)

RIMS (x39) MCC (x2)

triangulation data

reference

error calculation

processing

uplink

users

mission control centre

IMPROVES

AVAILABILITY CONTINUITY ACCURACY INTEGRITY

GPS

User Support Service

It’s there, use it.

Fostering adoption Receiver Lab Service Development EDAS Service Service Definition & Reporting NOTAM proposals users Operations Coordination System Engineering & Maintenance Assets Management

+ +

6

slide-7
SLIDE 7

Table of Contents

7

  • 1. ESSP, the EGNOS Service Provider
  • 2. EGNOS Services Status
  • 3. EGNOS SoL Service Performance Status
  • 4. LPV Implementation Status
  • 5. New EGNOS User available tools
slide-8
SLIDE 8

describe the characteristics, terms and conditions of access to the corresponding EGNOS services offered to users

Service Definition Documents

EGNOS SoL SERVICE Service Definition Document

  • Sixth issue v3.1 published on the 26th September 2016

Commitment maps based on EGNOS Release 241M

  • New Safety of Life Service Definition Document expected by Q3 2018

8

slide-9
SLIDE 9

EGNOS SoL Service – Commitment

Current SoL SDD commitments for APV-I availability and continuity

9

slide-10
SLIDE 10

Current SoL SDD commitments for LPV-200 availability and continuity

EGNOS SoL Service – Commitment

10

slide-11
SLIDE 11

SoL SDD publication

  • LPV200 Extension

EGNOS Services Evolution : 2018-2019

USER INTERFACES SERVICE AREA

2019 2019 2018 2018 2018

SoL SDD publication : Q3-2018

  • LPV-200 Extension

LPV200: Improvement @North

  • Safety of Life Service

Service area extension to 72º N

  • Safety of Life Service

Q3

RIMS Haïfa Entry into Operations

All EGNOS Services

Q1 Q4

EGNOS Services Roadmap

Next Publication (Q3 2018)

SoL SDD publication : Q1-2019

  • Extension to 72ºN

SoL SDD publication : Q4-2019

RIMS Haïfa 11

slide-12
SLIDE 12

1 2

EGNOS Service area extension e.g. for APV-I service level covering EU-28 as allowed by the system Service Performance Stability specially increased robustness against IONO activity

3

Paving the way towards the transition from EGNOS V2 to V3

EGNOS Services Evolution Beyond 2018 … up to 2020

12

slide-13
SLIDE 13

Table of Contents

13

  • 1. ESSP, the EGNOS Service Provider
  • 2. EGNOS Services Status
  • 3. EGNOS SoL Service Performance Status
  • 4. LPV Implementation Status
  • 5. New EGNOS User available tools
slide-14
SLIDE 14

APV-I Availability – April 2018

APV-I performance vs SDD commitment (April‘18)

  • 94,74% of SoL SDD Service Area covered with APV-I Availability (99%).
  • 96,93% of SoL SDD Service Area covered with APV-I Continuity (5x10-4/15s).

APV-I Continuity – April 2018

EGNOS SoL SERVICE PERFORMANCES

14

slide-15
SLIDE 15

All the airports with APV-I EGNOS based procedures presented an availability higher than 99% (exception Kirkenes at 98,86%). All the airports with LPV-200 EGNOS based procedures presented an availability higher than 99%

EGNOS SoL SERVICE PERFORMANCES APV-I + LPV-200 performance over the airports (April 2018)

15

slide-16
SLIDE 16

EGNOS SoL SERVICE For more information…

16

slide-17
SLIDE 17

Table of Contents

17

  • 1. ESSP, the EGNOS Service Provider
  • 2. EGNOS Services Status
  • 3. EGNOS SoL Service Performance Status
  • 4. LPV Implementation Status
  • 5. New EGNOS User available tools
slide-18
SLIDE 18

23 5

28 EU Member States EWA No EWA

5 10 15 20 25

Austria Belgium Bulgaria Croatia Czech Republic Denmark Estonia Finland France Germany Greece Guernsey* Hungary Ireland Italy Jersey* Malta Netherlands Norway* Poland Portugal Romania Slovak Republic Spain Sweden Switzerland* United Kingdom

1 1 1 1 3 4 2 1 1 1 1 1 1 4 1 1 1 2 1 2 1 1 1 2 5 1 21

EGNOS Working Agreement (EWA)

18

* non-EU States EWA with Cyprus : ongoing discussion

slide-19
SLIDE 19

COUNTRY Airports LPV Procedures RNP 0.3 Procs APV baro Procs (EGNOS enabled) APV-I LPV- 200 APV-I LPV-200 Austria 4 7 Belgium 5 9 Croatia 4 1 6 1 Czech Republic 5 9 4 Denmark 4 1 8 2 Estonia 1 2 Finland 1 2 33 France 68 48 103 67 4 Germany 23 6 37 10 56 Guernsey 1 2 Hungary 1 4 Ireland 1 1 Italy 10 3 21 3 Netherlands 3 4 Norway 17 9 26 19 10 Poland 12 26 Portugal 2 3 Romania 1 2 Slovak Republic 2 3 4 4 Spain 4 9 Sweden 7 12 Switzerland 8 2 10 3 4 United Kingdom 13 28 Total 180 90 298 146 4 107

LPV Implementation Status

19

EWA signed 3 Number of published LPV procedures 5 Number of Airports/Procedures

slide-20
SLIDE 20

444 LPV approaches 4 RNP 0.3 Procedures 107 ‘EGNOS enabled’ APV Baro Plans up to 2020 > 350 LPV procedures planned

20

Implementation Status

slide-21
SLIDE 21

As of June 2018: 444 LPVs (APV-I and LPV-200) serving 254 airports Malta: Luqa airport (2 RWYs APV-I) being processed

SIGNIFICANT HIGHLIGHTS:

Implementation Status – Further Plans

21

New PBN Implementing rule: requires the implementation of EGNOS based approach procedures at all Instrument Runway ends without precision approach procedures (e.g. ILS CAT I) in place by December 2020, and 2024 elsewhere

slide-22
SLIDE 22

Table of Contents

22

  • 1. ESSP, the EGNOS Service Provider
  • 2. EGNOS Services Status
  • 3. EGNOS SoL Service Performance Status
  • 4. LPV Implementation Status
  • 5. New EGNOS User available tools
slide-23
SLIDE 23

New EGNOS User Available tools

Online LPV Flight Simulator. https://www.essp-sas.eu/

slide-24
SLIDE 24

24

Thank you!

www.essp-sas.eu egnos-helpdesk@essp-sas.eu +34 911 236 555 (H24/7) http://egnos-user-support.essp-sas.eu thierry.racaud@essp-sas.eu
