Results from GOCE++ Dynamical Coastal Topography and tide gauge unification using altimetry and GOCE. Ole B. Andersen, P Knudsen, K. Nielsen, C. Hughes, P. L. Woodworth, R. Bingham, G. Woppelmann, M. Gravelle, L. Fenoglio-Marc, M. Kern ESA

slide-1
SLIDE 1

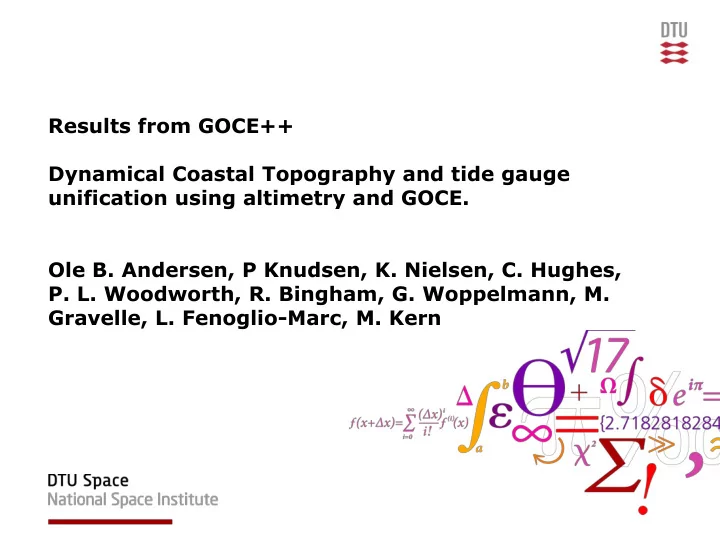

Results from GOCE++ Dynamical Coastal Topography and tide gauge unification using altimetry and GOCE. Ole B. Andersen, P Knudsen, K. Nielsen, C. Hughes,

  • P. L. Woodworth, R. Bingham, G. Woppelmann, M.

Gravelle, L. Fenoglio-Marc, M. Kern

slide-2
SLIDE 2

2 DTU Space, Technical University of Denmark

ESA (ITT) Goce + Height System Unification Roadmap (2011-2014):

2015: ESA issued an ITT (GOCE ++) To focus on individual elements Project still

  • ngoing until

late 2017

Courtesy: Gruber et al., 2014)

slide-3
SLIDE 3

3 DTU Space, Technical University of Denmark

Objectives and scope.

  • Propose and develop an approach to estimate a consistent

DT at tide gauges, coastal areas, and open ocean

  • Determine a consistent MDT using GOCE with consistent

error covariance fields.

  • Connect measurements of a global set of tide gauges and

investigate trends

  • Develop and outlook how the approach could be further

improved using improved coastal altimetry.

  • Validate the approach in well-surveyed areas where DT

can be determined at tide gauges

slide-4
SLIDE 4

4 DTU Space, Technical University of Denmark

Test Regions.

slide-5
SLIDE 5

5 DTU Space, Technical University of Denmark

Evaluating Ocean MDT vs TG MDT (= MSS-N)

Geoid MDT

slide-6
SLIDE 6

6 DTU Space, Technical University of Denmark

slide-7
SLIDE 7

7 DTU Space, Technical University of Denmark

Australia Getting MSS closer to the coast

slide-8
SLIDE 8

8 DTU Space, Technical University of Denmark

Coastal Altimetry Updating the Coastal MSS GOT 4.10 vs FES2012.

slide-9
SLIDE 9

9 DTU Space, Technical University of Denmark

Software Architecture for creating coastal MDT

GOCE++DYCOT Coastal MDT Software Toolbox.

  • Written in R.
  • Command line interface.
  • Allow filtering combining different MSS + GOCE geoids
  • Allos integration of MDT with TG,
  • Error estimation.
slide-10
SLIDE 10

10 DTU Space, Technical University of Denmark

Creation a consistent MDT in coastal region and the coast using GOCE+Altimetry+TG. Here test-region with ”well known” MDT

slide-11
SLIDE 11

11 DTU Space, Technical University of Denmark

Here: Raw unfiltered MDT = DTU13MSS – EIGEN-6C4 GEODETIC MDT DOES FREQUENTY NOT SATISFY COASTAL DYNAMICS

Bridging the Coastal Gap for Geodetic MDT.

slide-12
SLIDE 12

12 DTU Space, Technical University of Denmark

Gaussian Filtering 0.6 dg. Each Contour line represent 1 cm MDT

slide-13
SLIDE 13

13 DTU Space, Technical University of Denmark

GOCE++ Approach Iterative box-car filtering with resetting of land values at each iteration. Here: R = 0.15deg, 15 iterations. Land values set to 5 cm. Better contours at coast. But

slide-14
SLIDE 14

14 DTU Space, Technical University of Denmark

Integrating with Drifters enhances sw signal (DTU17MDT+Drifter)

slide-15
SLIDE 15

15 DTU Space, Technical University of Denmark

ROMS MDT (courtesy of John Wilkin@Rudgers) Contour interval = 1 cm

slide-16
SLIDE 16

16 DTU Space, Technical University of Denmark

MDT Error estimate

A new bootstrap approach is used The selected region is divided into blocks Sample with replacement between the different blocks count the number of repetitions per block Use the iterative average filter function

slide-17
SLIDE 17

17 DTU Space, Technical University of Denmark

Integration with Tide gauges

  • Setteled for a fixed period (2003-2007) where ocean/altim MDT

and TG are processed consistenly.

  • IB correction must me accounted for.
  • Tide System convertion must me accounted for.
  • System is sensitive to the value on land

GOCE++ SW accounts for this

slide-18
SLIDE 18

18 DTU Space, Technical University of Denmark

Integration with SONEL GPS Measured Tide Gauges (Ellipsoidal height)

slide-19
SLIDE 19

19 DTU Space, Technical University of Denmark

Summary

  • GOCE ++ DYCOT results are appearing on gocedt.eu and paper is

in preparation.

  • MDT evaluation with Tide Gauges is promising for ”geodetic

approach”, and in general agreement on the 5-10 cm is found.

  • GOCE++DYCOT has developed an approach to estimate a

consistent DT at tide gauges, coastal areas, and open ocean

  • An approach to determine error estimates on MDT is being tested
  • Connect measurements of a global set of SONEL tide gauges

performed and trends are now available.

  • More to follow.
  • Develop and outlook how the approach could be further improved

using improved coastal altimetry.
