Environmental Management Plan Slope Stabilization Project Canada Post Corporation Saint John Mail Processing Plant Rob Fiander, P.Eng., Stantec Consulting Ltd. April 2016 Agenda 1 Project Description 2 Project Setting 3 Objectives and Risks 4

SLIDE 1

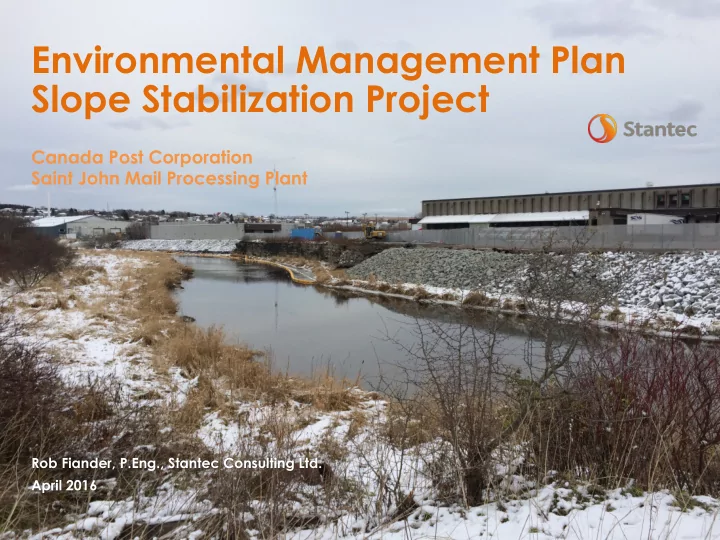

Rob Fiander, P.Eng., Stantec Consulting Ltd. April 2016

Environmental Management Plan Slope Stabilization Project

Canada Post Corporation Saint John Mail Processing Plant

SLIDE 2

Agenda

1 Project Description 2 Project Setting 3 Objectives and Risks 4 Strategies 5 Conclusions

SLIDE 3

Failure of timber crib retaining wall Wall ~ 250 m in length and 3.5 m in height Options analysis: Rip Rap Slope Removal of creosoted timbers, soil backfill, and construction of slope 2013 - 2014 1 Project Description

SLIDE 4

2 Project Setting

Saint John Mail Processing Plant (early 1970s – present) Urban setting Operations include plant, garage and vehicle loading Former location of sawmill, lumber yard and creosote wood treatment facility Contamination from historical use

Plant Marsh Creek Crib Wall G a r a g e

SLIDE 5

2 Project Setting

Creosote contamination identified in 1996 Options analysis: Waterloo Barrier sheet pile cut-off wall installed in 1998-1999

Plant Marsh Creek Waterloo Barrier Garage Creosote Plume

SLIDE 6

2 Project Setting

Creosote contamination found in 1996 Options analysis: Waterloo Barrier sheet pile cut-off wall installed in 1998-1999 WB sheet pile cut-off wall includes groundwater drainage system and recovery wells Groundwater monitoring and recovery ongoing

SLIDE 7

3 Objectives and Risks Risks Disruption of plant

perations

Damage to Waterloo Barrier sheet pile cut-off wall Release of contamination Unforeseen conditions or upsets Management Objectives Maintain continuity in mail

perations

Maintain function and access to Waterloo Barrier sheet pile cut-off wall

Mitigate risks

SLIDE 8

4 Strategies Strategies Safety and access controls Design of rip rap slope Waste Management Plan Environmental Protection Plan Environmental Monitoring Plan (Air Monitoring Protocol) Construction oversight

SLIDE 9

4 Strategies Safety and access controls Vehicle movements Staging / decontamination areas Work fence screening

SLIDE 10

4 Strategies Design of rip rap slope Hydraulic design Slope stability Rip rap protection Soil liner Toe drain

SLIDE 11

Waste Management Plan Waste streams Soil sampling and testing program Waste soil classifications ~ 9300 MT 4 Strategies

SLIDE 12

Environmental Protection Plan Procedures Erosion and siltation controls Equipment decontamination Creosote timbers and excavation management Vapour, dust and particulate management Dewatering and groundwater management Waste management 4 Strategies

SLIDE 13

4 Strategies Environmental Monitoring Plan Air monitoring Surface water monitoring Groundwater monitoring

SLIDE 14

4 Strategies Air Monitoring On-site: Construction zone and Plant (5) Off-site: 10 locations Point (real time) surveys (Benzene, TVOC, PM) Sample collection (Benzene, VOC, PAH, PM, metals, CTPV, SPL)

SLIDE 15

4 Strategies Surface Water Monitoring Water level data-logging Upstream and downstream chemistry (4) Groundwater Monitoring Waterloo Barrier groundwater drainage chemistry

SLIDE 16

5 Conclusions Waste Management Plan = cost savings Environmental Protection Plan = protection Monitoring = limited, if any impact
