EMRAS II WG 9 Urban Areas Short range Dejan Trifunovi , Vienna, Austria, 24. 28. January 2011 Experiment SET UP Orientation of the blast: PARALEL TO THE GROUND BACK BLAST WAVE due to explosion set up Modelling

SLIDE 1

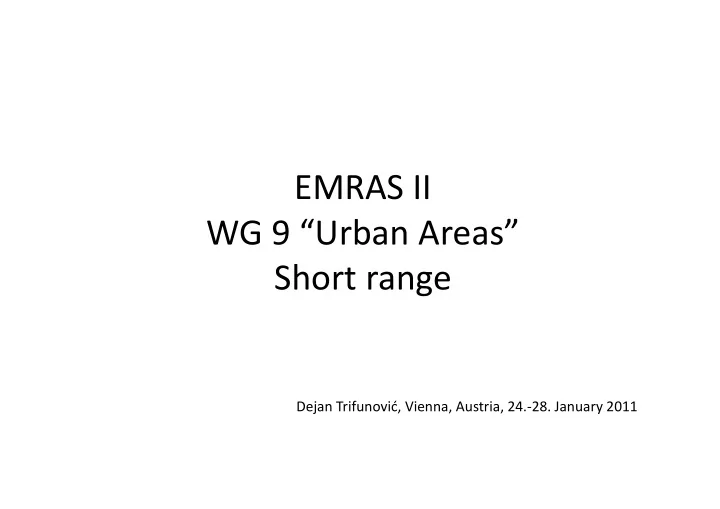

EMRAS II WG 9 “Urban Areas” Short range

Dejan Trifunović, Vienna, Austria, 24.‐28. January 2011

SLIDE 2

Experiment SET‐UP

Orientation of the blast: “PARALEL” TO THE GROUND Modelling requirement: Unbounded upwards BACK BLAST WAVE – due to explosion set‐up Modelling requirement: Unrestricted 360° geometry explosion

SLIDE 3

Experiment SET‐UP dispersion outcome

Shift of the maximum deposition location around explosion point forward for about 10 ‐ 15 m.

SLIDE 4

HotSpot model Explosion geometry

SLIDE 5

HotSpot Airborne Fraction DEFAULT

CT=76*(W)ˆ0,25

SLIDE 6

HotSpot model Dispersion and Deposition

SLIDE 7

HotSpot model INPUT

SLIDE 8

HotSpot model INPUT

SLIDE 9

HotSpot model INPUT

SLIDE 10

Plume Centraline Vertical Profile

SLIDE 11

Plume Centraline Vertical Profile

SLIDE 12

Plume Centraline Vertical Profile

SLIDE 13

Short range scenario TEST 2

Wind speed: 0,6 m/s Weather stability class: B Source term: 1058 MBq Cloud top: 5 m Respirable Deposition velocity=0,0008 m/s Respirable release fr.=99%

SLIDE 14

HotSpot “Calibration”

SLIDE 15

HotSpot “Calibration”

SLIDE 16

HotSpot “Calibration”

CT=35 m ; Respirable Deposition velociy=0,03 m/s ; Respirable release fr.=97,5% CT=5 m ; Respirable Deposition velocity=0,0008 m/s ; Respirable release fr.=99%

SLIDE 17

ENDPOINTS TEST 2

SLIDE 18

ENDPOINTS TEST 2

200000 400000 600000 800000 1000000 1200000 20 40 60 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3 20000 40000 60000 80000 100000 120000 140000 160000 180000 200 400 600 800 1000 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3 200 400 600 800 1000 1200 1400 1600 1800 2000 500 1000 1500 2000 2500 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3

SLIDE 19

Short range scenario TEST 3

Wind speed: 1,3 m/s Weather stability class: D Source term: 1222 MBq Cloud top: 13 m Respirable Deposition velocity=0,0008 m/s Respirable release fr.=99%

SLIDE 20

ENDPOINTS TEST 3

SLIDE 21

ENDPOINTS TEST 3

100000 200000 300000 400000 500000 600000 700000 800000 900000 1000000 20 40 60 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3 20000 40000 60000 80000 100000 120000 140000 160000 180000 200 400 600 800 1000 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3 1000 2000 3000 4000 5000 6000 500 1000 1500 2000 2500 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3

SLIDE 22

Short range scenario TEST 4

Wind speed: 0,1 m/s Weather stability class: C Source term: 1088 MBq Cloud top: 13 m Respirable Deposition velocity=0,0008 m/s Respirable release fr.=99%

SLIDE 23

ENDPOINTS TEST 4

SLIDE 24

ENDPOINTS TEST 4

2000000 4000000 6000000 8000000 10000000 12000000 20 40 60 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3 200000 400000 600000 800000 1000000 1200000 1400000 200 400 600 800 1000 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 500 1000 1500 2000 2500 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3

SLIDE 25

EMRASII WG 9 “Urban Areas” Mid range

Dejan Trifunović, Vienna, Austria, 24.‐28. January 2011

SLIDE 26

MID‐RANGE Cs‐137 Ground deposition

2000 4000 6000 8000 10000 12000 200 400 600 800 1000 Cs D Bq/m2 Cs E Bq/m2 1000 2000 3000 4000 5000 6000 7000 8000 9000 20000 40000 60000 80000 100000 Cs D Bq/m2 Cs E Bq/m2

SLIDE 27

MID‐RANGE I‐131 Ground deposition

50000 100000 150000 200000 250000 300000 350000 200 400 600 800 1000 I D Bq/m2 I E Bq/m2 50000 100000 150000 200000 250000 20000 40000 60000 80000 100000 I D Bq/m2 I E Bq/m2

SLIDE 28

MID‐RANGE SUMMARY Ground deposition

Guadalajara ‐ Ground depoosition in Bq/m2 Madrid ‐ Ground deposition in Bq/m2 D E D E Cs 14 120 Cs 9,1 79 I 400 3500 I 230 2000 STABLE NEUTRAL Atmospheric stability class: E Atmospheric stability class: D Wind speed at 10 m height: 3,0 m/s Wind speed at 10 m height: 6,0 m/s Effective release height: 50 m Cs‐137 Deposition velocity = 0,04 cm/s, Source term = 4E+12 Bq Release time: 1 hour I‐131 Deposition velocity = 0,22 cm/s, Source term = 21E+12 Bq
