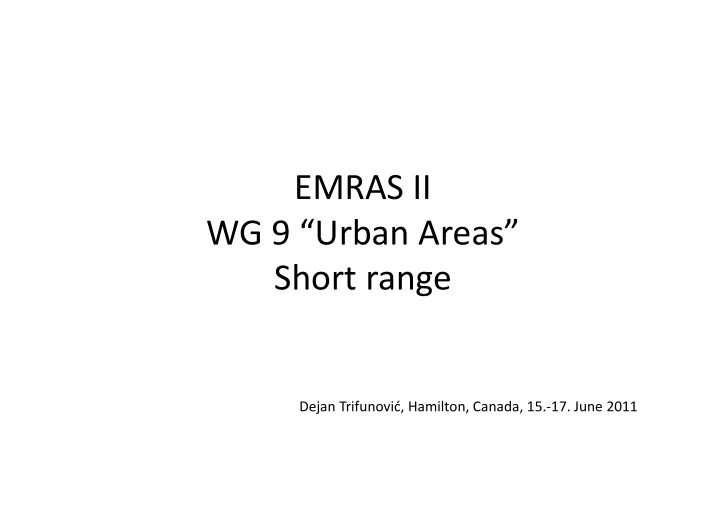

EMRAS II WG 9 “Urban Areas” Short range

Dejan Trifunović, Hamilton, Canada, 15.‐17. June 2011

slide-2
SLIDE 2

Experiment SET‐UP

Orientation of the blast: “PARALEL” TO THE GROUND Modelling requirement: Unbounded upwards BACK BLAST WAVE – due to explosion set‐up Modelling requirement: Unrestricted 360° geometry explosion

slide-3
SLIDE 3

Experiment SET‐UP dispersion outcome

Shift of the maximum deposition location around explosion point forward for about 10 ‐ 15 m.

slide-4
SLIDE 4

HotSpot model Explosion geometry

slide-5
SLIDE 5

HotSpot Airborne Fraction DEFAULT

CT=76*(W)ˆ0,25

slide-6
SLIDE 6

HotSpot model Dispersion and Deposition

slide-7
SLIDE 7

HotSpot model INPUT

slide-8
SLIDE 8

HotSpot model INPUT

slide-9
SLIDE 9

HotSpot model INPUT

slide-10
SLIDE 10

Plume Centraline Vertical Profile

slide-11
SLIDE 11

Plume Centraline Vertical Profile

slide-12
SLIDE 12

Plume Centraline Vertical Profile

slide-13
SLIDE 13

Short range scenario TEST 2

Wind speed: 0,6 m/s Weather stability class: B Source term: 1058 MBq Cloud top: 5 m Respirable Deposition velocity=0,0008 m/s Respirable release fr.=99%

slide-14
SLIDE 14

HotSpot “Calibration”

slide-15
SLIDE 15

HotSpot “Calibration”

slide-16
SLIDE 16

HotSpot “Calibration”

CT=35 m ; Respirable Deposition velociy=0,03 m/s ; Respirable release fr.=97,5% CT=5 m ; Respirable Deposition velocity=0,0008 m/s ; Respirable release fr.=99%

slide-17
SLIDE 17

ENDPOINTS TEST 2

slide-18
SLIDE 18

ENDPOINTS TEST 2

200000 400000 600000 800000 1000000 1200000 20 40 60 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3 20000 40000 60000 80000 100000 120000 140000 160000 180000 200 400 600 800 1000 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3 200 400 600 800 1000 1200 1400 1600 1800 2000 500 1000 1500 2000 2500 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3

slide-19
SLIDE 19

Short range scenario TEST 3

Wind speed: 1,3 m/s Weather stability class: D Source term: 1222 MBq Cloud top: 13 m Respirable Deposition velocity=0,0008 m/s Respirable release fr.=99%

slide-20
SLIDE 20

ENDPOINTS TEST 3

20000 40000 60000 80000 100000 120000 140000 160000 180000 200 400 600 800 1000 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3 1000 2000 3000 4000 5000 6000 500 1000 1500 2000 2500 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3 100000 200000 300000 400000 500000 600000 700000 800000 900000 1000000 10 20 30 40 50 60 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3

slide-21
SLIDE 21

Short range scenario TEST 4

Wind speed: 0,1 m/s Weather stability class: C Source term: 1088 MBq Cloud top: 13 m Respirable Deposition velocity=0,0008 m/s Respirable release fr.=99%

slide-22
SLIDE 22

ENDPOINTS TEST 4

200000 400000 600000 800000 1000000 1200000 1400000 200 400 600 800 1000 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 500 1000 1500 2000 2500 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3 2000000 4000000 6000000 8000000 10000000 12000000 10 20 30 40 50 60 0 m Bq/m2 5 m Bqmin/m3 10 m Bqmin/m3 15 m Bqmin/m3

slide-23
SLIDE 23

EMRASII WG 9 “Urban Areas” Mid range

Dejan Trifunović, Hamilton, Canada, 15.‐17. June 2011

slide-24
SLIDE 24

MID‐RANGE Cs‐137 Ground deposition

200 400 600 800 1000 1200 1400 1600 1800 200 400 600 800 1000 Cs D Bq/m2 Cs E Bq/m2 200 400 600 800 1000 1200 1400 20000 40000 60000 80000 100000 Cs D Bq/m2 Cs E Bq/m2

slide-25
SLIDE 25

MID‐RANGE I‐131 Ground deposition

10000 20000 30000 40000 50000 60000 200 400 600 800 1000 I D Bq/m2 I E Bq/m2 5000 10000 15000 20000 25000 30000 35000 40000 45000 20000 40000 60000 80000 100000 I D Bq/m2 I E Bq/m2

slide-26
SLIDE 26

MID‐RANGE SUMMARY
