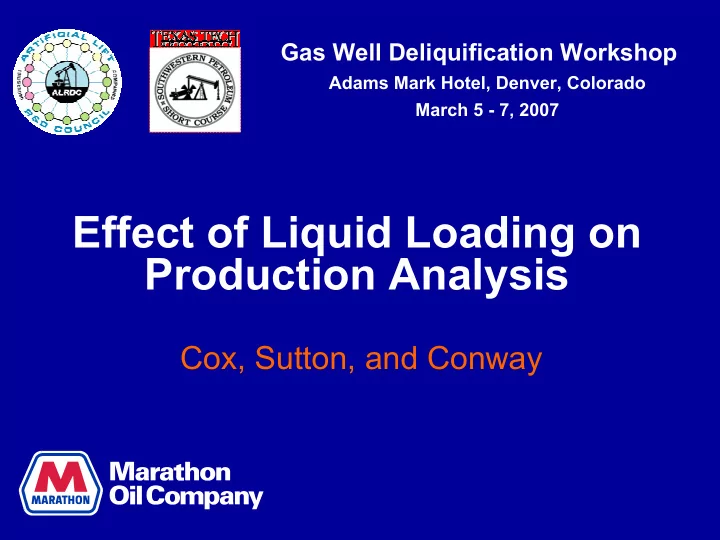

Gas Well Deliquification Workshop Adams Mark Hotel, Denver, Colorado March 5 - 7, 2007 Effect of Liquid Loading on Production Analysis Cox, Sutton, and Conway
U.S. Gas Facts US Historical Gas Well Facts 500 10 Avg Well Rate MCFD 450 Unload Rate 9 Avg Wellhead Price $/MCF 400 8 Avg Wellhead Price, $/MCF Avg Gas Rate, MCFD/Well 350 7 300 6 250 5 200 4 150 3 100 2 50 1 0 0 1965 1970 1975 1980 1985 1990 1995 2000 2005 2010 Source: EIA Natural Gas Annual 2007 Gas Well Deliquification Workshop 2 Mar. 5 - 7, 2007 Denver, Colorado
IHS Data Summary � 91% or 287,000 of US gas wells are potentially liquid loaded � These wells account for 65% of the total gas production � Average rate of unloaded wells – 1050 MCFD � Average rate of loaded wells – 56 MCFD 2007 Gas Well Deliquification Workshop 3 Mar. 5 - 7, 2007 Denver, Colorado
Purpose � Examine the affects of gas well liquid loading as it relates to production analysis and well performance. 2007 Gas Well Deliquification Workshop 4 Mar. 5 - 7, 2007 Denver, Colorado
Outline of Talk � Liquid loading what’s the problem � Laboratory experiments � Eclipse modeling work � Production analysis results � Field examples 2007 Gas Well Deliquification Workshop 5 Mar. 5 - 7, 2007 Denver, Colorado
Wellbore Dynamics - Loading 2007 Gas Well Deliquification Workshop 6 Mar. 5 - 7, 2007 Denver, Colorado
SLC Pressure Profile 2007 Gas Well Deliquification Workshop 7 Mar. 5 - 7, 2007 Denver, Colorado
Condensed Water Water Vapor Content, Bbls/MMCF 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 0 Water Condensation 2,000 4,000 6,000 Depth, ft 8,000 10,000 12,000 14,000 2007 Gas Well Deliquification Workshop 8 Mar. 5 - 7, 2007 Denver, Colorado
Liquid Loading – What’s the Problem? � Bottomhole pressure from surface data? � Additional back pressure on formation? � Imbibition of water into the formation flowing and static? � Will the well production improve if unloaded? � Do loaded well’s result in a false depletion stem and reservoir shape? 2007 Gas Well Deliquification Workshop 9 Mar. 5 - 7, 2007 Denver, Colorado
Field Examples of Production Analysis for a Loaded Well Wyoming Gas Well Radial Flow in 1 to 1 Rectangular Boundary Pre-loading 2000 100 1000 MCFD Match Unloading Rate, MCFD Kh = 20 md-ft BOPD Skin = -1.1 BWPD Area = 190 Acres 100 1500 75 P wD or P wD 'x 0.1 MCFD/FTP/CP BWPD/BOPD 10 1000 50 1 Actual PwD Actual PwD' 500 25 Analytical PwD Analytical PwD' 0.1 0.0001 0.001 0.01 0.1 1 10 100 1000 10000 100000 0 0 t DA 7/28/2001 12/10/2002 4/23/2004 9/5/2005 1/18/2007 2007 Gas Well Deliquification Workshop 10 Mar. 5 - 7, 2007 Denver, Colorado
Simulation Cases Uniform – 40 acres Model Parameters Model Parameters Formation Top, ft 10,000 Initial Reservoir Pressure, psi 5000 Net Pay, ft 40 Gas Specific Gravity 0.69 Effective Gas Perm. Md 0.05, 0.5, 5 Fracture Half Length, ft 200 Fracture Conductivity, md-ft 75 Cases Simulation Controls • Base case no liquid in tubing • Flowing tubing pressure - 350 psia • Consider standing fluid to tubing tail • 2-3/8-in Tubing set at 8000’ (10,000’ well) • Consider imbibition • Single layer model 2007 Gas Well Deliquification Workshop 11 Mar. 5 - 7, 2007 Denver, Colorado
Production Profile - 0.5 md Case 2007 Gas Well Deliquification Workshop 12 Mar. 5 - 7, 2007 Denver, Colorado
Production analysis results Dry Gas Base Case SLC – 8000 ft Infinite Conductivity Fracture in 1 to 1 Rectangular Boundary at 2 years Infinite Conductivity Fracture in 1 to 1 Rectangular Boundary at 2 years 1000 1000 Match Simulation Match Simulation Kh = 16 md-ft, 20 md-ft Kh = 20 md-ft, 20 md-ft X f = 120 ft, 120 ft X f = 70 ft, 120 ft Area= 40 Acres, 40 Acres Area= 40 Acres, 40 Acres 100 100 P wD or P wD ' P wD or P wD ' 10 10 1 1 Actual PwD Actual PwD Actual PwD' Actual PwD' Analytical PwD Analytical PwD Analytical PwD' Analytical PwD' 0.1 0.1 0.0001 0.001 0.01 0.1 1 10 100 0.0001 0.001 0.01 0.1 1 10 100 t DA t DA Back pressure alone does not account for field observations. 2007 Gas Well Deliquification Workshop 13 Mar. 5 - 7, 2007 Denver, Colorado
Support for Imbibition Under Flowing Conditions Performed by Mike Conway the at Stim-lab Test parameters � 20/40 Brady sand 8 ft Gas dP � Determine effective 4 ft permeability. Water dP gal um � Liquid level Exit Pressure Metered controlled at the exit. Gas Rate Water Pump 2007 Gas Well Deliquification Workshop 14 Mar. 5 - 7, 2007 Denver, Colorado
East Texas Well 1000 500 MCFD FTP BWPD Installed Gas Rate & Tubing Pressure, (mscf/D, psi) Pumping Unit 750 Water Rate, bbl/D 500 250 250 0 0 8/1/2004 8/1/2005 8/1/2006 2007 Gas Well Deliquification Workshop 15 Mar. 5 - 7, 2007 Denver, Colorado
West Texas Well 1500 150 MCFD BWPD 1250 125 1000 100 BOPD/BWPD MCFD 750 75 500 50 250 25 0 0 4/20/2004 5/20/2004 6/19/2004 7/19/2004 8/18/2004 9/17/2004 10/17/2004 11/16/2004 12/16/2004 1/15/2005 2/14/2005 3/16/2005 4/15/2005 2007 Gas Well Deliquification Workshop 16 Mar. 5 - 7, 2007 Denver, Colorado
Alaska Well 20000 300 Gas Water FTP coil in coil chamber lift Installed 2-3/8x 1-3/4" 250 15000 200 Psi & Bw/D Mscf/D 10000 150 100 5000 50 0 0 5/24/2003 9/1/2003 12/10/2003 3/19/2004 6/27/2004 10/5/2004 1/13/2005 4/23/2005 8/1/2005 Date 2007 Gas Well Deliquification Workshop 17 Mar. 5 - 7, 2007 Denver, Colorado
Production Analysis Results Effects of Imbibition Transient Time Infinite Conductivity Fracture in 4 to 1 Rectangular Boundary at 2 years 1000 Match Simulation Kh = 18 md-ft, 20 md-ft X f = 30 ft, 120 ft L/W = 4 1 100 Area = 40 Acres, 40 Acres P wD or P wD ' 10 1 Actual PwD Actual PwD' Analytical PwD Analytical PwD' 0.1 0.0001 0.001 0.01 0.1 1 10 100 t DA Geometry change from radial to a 4 to 1 rectangle. 2007 Gas Well Deliquification Workshop 18 Mar. 5 - 7, 2007 Denver, Colorado
Production Analysis Imbibition During Boundary Dominated Flow Infinite Conductivity Fracture in 2.8 to 1 Rectangular Boundary at 2 years 1000 Match Simulation Kh = 18 md-ft, 20 md-ft X f = 45 ft, 120 ft Area = 29 Acres, 40 Acres 100 P wD or P wD 'x 0.1 10 1 Actual PwD Actual PwD' Analytical PwD Analytical PwD' 0.1 0.0001 0.001 0.01 0.1 1 10 100 t DA Liquid fills near wellbore fracture and matrix. Flow becomes slightly linear. 2007 Gas Well Deliquification Workshop 19 Mar. 5 - 7, 2007 Denver, Colorado
Observations � Static liquid column from a wellbore hydraulics view had little effect on the drainage volume estimates for the well. � High permeability cases under estimate flow capacity if the additional pressure drop was not accounted for. � Standing liquid above the perforations causes damage to the near well permeability. 2007 Gas Well Deliquification Workshop 20 Mar. 5 - 7, 2007 Denver, Colorado
Observations � Loading during the transient flow results in a reduced flow capacity and a change in reservoir geometry. � Dropout during BDF results in a reduction in apparent drainage volume and a change in flow geometry. 2007 Gas Well Deliquification Workshop 21 Mar. 5 - 7, 2007 Denver, Colorado
