New Brighton Pier Earthquake Repairs Safety in Design Considerations Mark Humphery Senior Structural Engineer CCC Facilities & Structures Team Christchurch City Council 1 New Brighton Pier L I B R A R Y Christchurch City Council

slide-1
SLIDE 1

Christchurch City Council

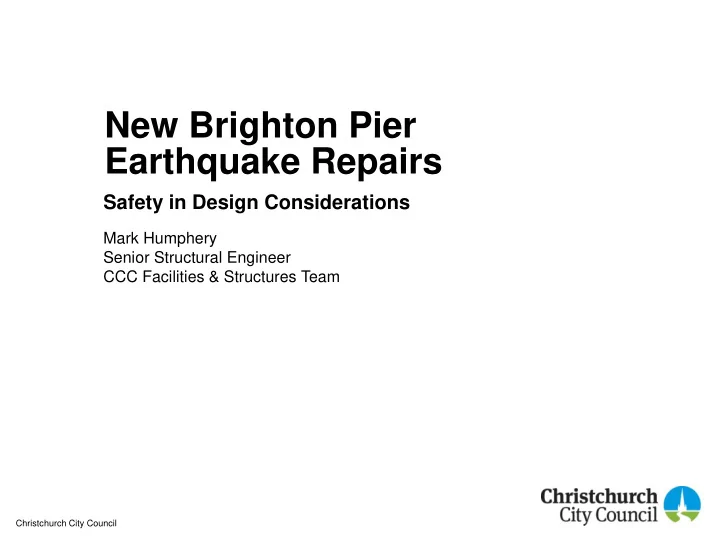

New Brighton Pier Earthquake Repairs

Safety in Design Considerations

Mark Humphery Senior Structural Engineer CCC Facilities & Structures Team

slide-2
SLIDE 2

Christchurch City Council

New Brighton Pier

L I B R A R Y

1

slide-3
SLIDE 3

Christchurch City Council

February 2011 Earthquake 2

slide-4
SLIDE 4

Christchurch City Council

February 2016 Earthquake 3

slide-5
SLIDE 5

Christchurch City Council

EQ Damage

  • Loss of Seismic Strength
  • Corrosion of reinforcement
  • Settlement of column #4

4

slide-6
SLIDE 6

Christchurch City Council

Repair Aims

1. Re-instate Pier to its Pre-Earthquake Condition 2. Repairs must be SIMPLE to construct 3. Repairs must be SAFE to install 4. Repairs must reinstate DURABILITY 5. Repairs must be COST effective

5

slide-7
SLIDE 7

Christchurch City Council

Critical Safety Issues

  • Working in marine environment
  • Very difficult conditions for divers
  • Safety of the public
  • Reduced seismic capacity and limited live load capacity of pier deck
  • Deep excavations below sea bed/beach level
  • Unique construction methodology for NZ

6

slide-8
SLIDE 8

Christchurch City Council

Design Solution 7

slide-9
SLIDE 9

Christchurch City Council

Contractor Selection 8

  • Expression of Interest (6 Contractors)
  • Evaluation & Selection (3 Contractors)
  • Payment for Detailed Methodology (3 Contractors)
  • Evaluation and Award (1 Contractor) – Fulton Hogan
slide-10
SLIDE 10

Christchurch City Council

Methodology 9

slide-11
SLIDE 11

Christchurch City Council

Construction Issues 10

slide-12
SLIDE 12

Christchurch City Council

Construction Safety 11

slide-13
SLIDE 13

Christchurch City Council

Providing a controlled environment 12

slide-14
SLIDE 14

Christchurch City Council

Flyby of Pier during Construction 13

slide-15
SLIDE 15

Christchurch City Council

What worked Well? 14

  • Plan ahead
  • Collaborative relationships throughout
  • Focus on safety from initial concept
  • Keep reviewing safety as works progress
  • Allow inclement weather days
slide-16
SLIDE 16

Christchurch City Council

Project H&S Stats 15

As of April 2018

  • Man Hours = 32835
  • Incidents = 4
  • LTI’s = 0
  • Medical Treatment

Injuries = 4

  • Near Misses = 11
slide-17
SLIDE 17

Christchurch City Council

Any Questions? 16
