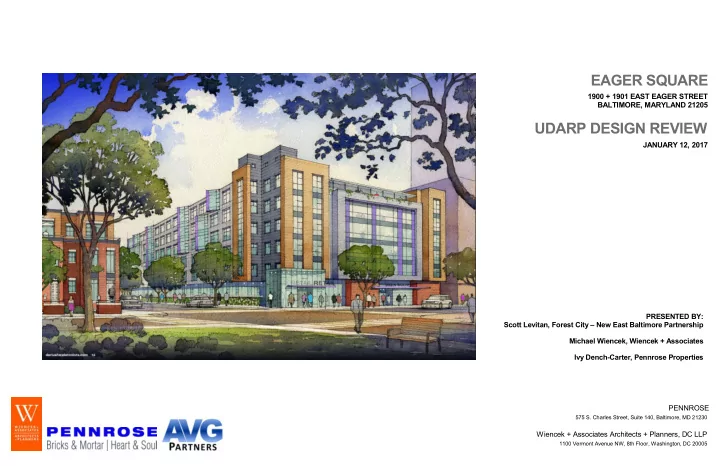

EAGER SQUARE 1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND - - PowerPoint PPT Presentation

PRESENTED BY: Scott Levitan, Forest City – New East Baltimore Partnership Michael Wiencek, Wiencek + Associates Ivy Dench-Carter, Pennrose Properties

EAGER SQUARE

JANUARY 12, 2017 1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

UDARP DESIGN REVIEW

PENNROSE Wiencek + Associates Architects + Planners, DC LLP

575 S. Charles Street, Suite 140, Baltimore, MD 21230 1100 Vermont Avenue NW, 8th Floor, Washington, DC 20005

BALTIMORE VICINITY MAP AERIAL - FACING SE AERIAL - PUD USES

EAGER SQUARE

JANUARY 12, 2017

CONTEXT + PUD OVERVIEW

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

E EAGER STREET N WOLFE STREET N WASHINGTON STREET BUILDING B BUILDING A EAGER PARK EAGER PARK

FUTURE RESIDENTIAL BUILDING HEIGHT DIAGRAM EAGER PARK PLAN EBDI PUD MASTER PLAN

EAGER SQUARE

JANUARY 12, 2017

MASTER PLAN

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

TRUE

VICINITY MAP

EAGER SQUARE

JANUARY 12, 2017

VICINITY SERVICES

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

RESIDENTIAL PARK SPACE DINING / ENTERTAINMENT PHARMACY STUDENT RESIDENCES EDUCATIONAL

N WOLFE ST - NORTH OF EAGER + ALLEY INTERSECTION OF E EAGER + N WOLFE (LOOKING EAST) N WOLFE STREET - SOUTH OF EAGER N WASHINGTON - SOUTH OF EAGER CANOPY ALONG EAGER N WASHINGTON - NORTH OF EAGER

EAGER SQUARE

JANUARY 12, 2017

SITE PHOTOS - EXISTING CONDITIONS

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

EAGER SQUARE

JANUARY 12, 2017

PUD STREETSCAPE STANDARDS

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

EAGER SQUARE

JANUARY 12, 2017

BUILDING MASSING CONCEPT

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

AERIAL VIEW STREET VIEW

EAGER SQUARE

JANUARY 12, 2017

BUILDING CHARACTER

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

N WOLFE STREET N WASHINGTON STREET

(ALLEY) JHI GARAGE

900 N. WASHINGTON ST EXISTING 10+ STORY BUILDING

JOHN HOPKINS UNI.

929 WOLFE ST EXISTING 8-STORY BUILDING

RETAIL ENTRY ENTRY RAMP DOWN TO GARAGE

BUILDING B

GREEN ROOF

1901 E EAGER ST

BUILDING A

1900 E EAGER ST

FUTURE RESIDENTIAL

E EAGER STREET

EAGER PARK EAGER PARK

TOWNHOMES TOWNHOMES

FUTURE RESIDENTIAL

EAGER SQUARE

JANUARY 12, 2017

SITE PLAN

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205 N

MECH/UTILITY MECH/UTILITY TRASH ABOVE ACCESS FROM NORTH WASHINGTON STREET TO GARAGE MECHANIZED PARKING LIFTS STORAGE UTILITY

20' - 0" 4' - 0"

RETAIL & LOBBY S.O.G. ABOVE

E EAGER STREET N WOLFE STREET N WASHINGTON STREET

LEGEND 1.1A 1.1B 1.1C 2.2A 2.2B AMENITY CIRCULATION PARKING RETAIL 1.1C SERVICE TENANT SUPPORT FLAT TH - A TH - B PARKING SPACES STANDARD 44 LIFT (DDL LIFTS) 80 SUBTOTAL 124

EAGER SQUARE

JANUARY 12, 2017

BUILDING B - PARKING FLOOR PLAN

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

64 32

N

PF

2.2B 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1C 1.1C 1.1B 1.1B 1.1C 1.1C 1.1B 1.1C 1.1C 1.1A 1.1A 1.1C 1.1C 1.1C 1.1C 1.1C 1.1C LOUNGE MAINT, STORAGE + TRASH LOBBY/AMENITY RETAIL LEASING OFFICE VESTIBULE RAMP TO GARAGE DOG WASH FITNESS MAIL TRASH / COMPACTOR 1.1A EXTENSIVE GREEN ROOF TREX PATIOS, PAVER PATHS POOL

E EAGER STREET N WOLFE STREET N WASHINGTON STREET

0" 5' - 0"

LEGEND 1.1A 1.1B 1.1C 2.2A 2.2B AMENITY CIRCULATION PARKING RETAIL 1.1C SERVICE TENANT SUPPORT FLAT TH - A TH - B

EAGER SQUARE

JANUARY 12, 2017

BUILDING B - FIRST FLOOR PLAN

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

64 32

N

2.2B 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1C 2.2B 1.1A 1.1A 1.1A 1.1C 1.1C 1.1C 1.1C 1.1C 1.1C 1.1C 1.1C 1.1C 1.1A 1.1A 1.1A 2.2A 2.2A 1.1C 1.1B 1.1C 1.1C 1.1B 1.1C 1.1C 1.1A OPEN TO BELOW

LEGEND 1.1A 1.1B 1.1C 2.2A 2.2B AMENITY CIRCULATION PARKING RETAIL 1.1C SERVICE TENANT SUPPORT FLAT TH - A TH - B

EAGER SQUARE

JANUARY 12, 2017

BUILDING B - TYPICAL FLOOR PLAN

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

64 32

N

PF

2.2B 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 1.1C 2.2B 1.1C 2.2B 1.1C 1.1C 1.1B 1.1B 1.1B 1.1B 1.1C 1.1C 1.1B 1.1C LOUNGE 1.1A 1.1A 1.1C 1.1C 1.1C 8' - 0" 1.1A GREEN ROOF TRELLIS OPEN TO BELOW GREEN ROOF

LEGEND 1.1A 1.1B 1.1C 2.2A 2.2B AMENITY CIRCULATION PARKING RETAIL 1.1C SERVICE TENANT SUPPORT FLAT TH - A TH - B

EAGER SQUARE

JANUARY 12, 2017

BUILDING B - SIXTH FLOOR PLAN

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

64 32

N

TERRA COTTA PANELS. TAN BRICKS CEMENTITIOUS PLANK TAN BRICK OUTLINE OF PARKING GARAGE N WASHINGTON ST (ONE WAY TRAFFIC) N WOLFE ST (ONE WAY TRAFFIC) EAGER PARK HOTEL BEYOND FUTURE RESIDENTIAL 929 APARTMENTS BEYOND ASHLAND GARAGE BEYOND BUILDING HEIGHT 79' - 6"

EAGER SQUARE

JANUARY 12, 2017

BUILDING B - ELEVATIONS

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

BUILDING B - NORTH ELEVATION ENLARGED ELEVATION CONCEPT

64 32

(ALLEY) (ALLEY) E EAGER STREET (ALLEY) OUTLINE OF GROUND FLOOR OUTLINE OF PARKING GARAGE ASHLAND GARAGE TOWNHOMES 72' - 0" TERRA COTTA PANELS TAN BRICK DARK BRICK CEMENTITIOUS PLANK TAN BRICK E EAGER STREET (TWO-WAY TRAFFIC) (ALLEY) (ALLEY) OUTLINE OF PARKING GARAGE 929 APARTMENTS TOWNHOMES ROOF DECK W/ TRELLIS

EAGER SQUARE

JANUARY 12, 2017

BUILDING B - ELEVATIONS

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

BUILDING B - EAST ELEVATION BUILDING B - WEST ELEVATION

64 32

• S. C

PARKING GARAGE N WOLFE STREET N WASHINGTON STREET MECHANIZED PARKING BEYOND 1.1A 1.1A 1.1A LOUNGE 1.1A 1.1A 1.1A 1.1A 1.1A 1.1A 2.2B 1.1A 1.1A 1.1A 1.1A 1.1A 1.1C 1.1C 1.1C 1.1C 1.1C 1.1C

WOOD FRAME CONSTRUCTION

GREEN ROOF COURTYARD GREEN ROOF W/ TRELLIS LOBBY ENTRY ELEVATOR CORE GARAGE ENTRY 67' - 10"

64' - 0" 79' - 6"

POOL

LEGEND 1.1A 1.1B 1.1C 2.2A 2.2B AMENITY CIRCULATION PARKING RETAIL 1.1C SERVICE TENANT SUPPORT FLAT TH - A TH - B

EAGER SQUARE

JANUARY 12, 2017

BUILDING B SECTION

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

EAST - WEST SECTION

64 32

E EAGER STREET (TWO-WAY TRAFFIC)

MECHANIZED PARKING TYPE 3 (WOOD FRAME CONSTRUCTION) 5 STORIES

1.1A 1.1A 1.1C 1.1C 1.1C 1.1C 1.1C 1.1C 1.1A 1.1A 1.1A 1.1A 1.1C 1.1C 1.1C

RTU SOLAR PANELS POOL BUILDING HEIGHT 73' - 0" GREEN ROOF COURTYARD ASHLAND GARAGE LEGEND 1.1A 1.1B 1.1C 2.2A 2.2B AMENITY CIRCULATION PARKING RETAIL 1.1C SERVICE TENANT SUPPORT FLAT TH - A TH - B

EAGER SQUARE

JANUARY 12, 2017

BUILDING B SECTION

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

NORTH - SOUTH SECTION

32 16

TH - B FLAT TH - B TH - B TH - B FLAT FLAT FLAT FLAT FLAT FLAT FLAT

E EAGER STREET (ALLEY) W WOLFE STREET N WASHINGTON STREET

TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - B TH - B TH - B TH - B TH - B TH - B TH - B TH - B TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A TH - A

LEGEND 1.1A 1.1B 1.1C 2.2A 2.2B AMENITY CIRCULATION PARKING RETAIL 1.1C SERVICE TENANT SUPPORT FLAT TH - A TH - B PARKING SPACES STANDARD 28 SUBTOTAL 28

EAGER SQUARE

JANUARY 12, 2017

BUILDING A - FLOOR PLANS

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

FIRST FLOOR PLAN SECOND FLOOR PLAN THIRD FLOOR PLAN

64 32

N

BRICK CEMENTITIOUS PANEL BRICK N WOLFE STREET (ONE-WAY TRAFFIC) N WASHINGTON STREET (ONE-WAY TRAFFIC) EAGER PARK FUTURE RESIDENTIAL TOWNHOMES TOWNHOMES

EAGER SQUARE

JANUARY 12, 2017

BUILDING A - ELEVATIONS

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

BUILDING A - SOUTH ELEVATION BUILDING A - ENLARGED ELEVATION DETAIL ENLARGED ELEVATION CONCEPT

64 32

N WASHINGTON STREET (ONE-WAY TRAFFIC) N WOLFE STREET (ONE-WAY TRAFFIC) FUTURE RESIDENTIAL OUTLINE OF PARKING GARAGE OUTLINE OF FIRST FLOOR N WOLFE STREET (TWO-WAY TRAFFIC) N WASHINGTON STREET (TWO-WAY TRAFFIC) EAGER PARK BRICK CEMENTITIOUS PLANK PENTHOUSE SCREEN FUTURE RESIDENTIAL BRICK

EAGER SQUARE

JANUARY 12, 2017

REAR ELEVATIONS

1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205

BUILDING B - SOUTH ELEVATION BUILDING A - NORTH ELEVATION

64 32

EAGER SQUARE

JANUARY 12, 2017 1900 + 1901 EAST EAGER STREET BALTIMORE, MARYLAND 21205
