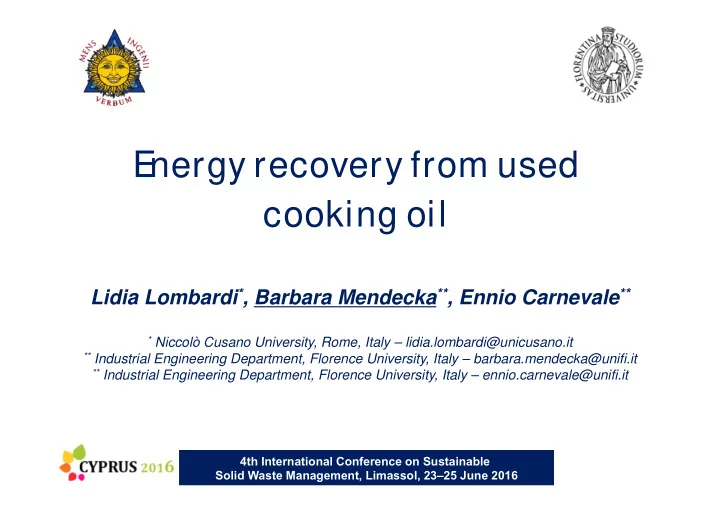

E nergy recovery from used cooking oil Lidia Lombardi * , Barbara Mendecka ** , Ennio Carnevale ** * Niccol Cusano University, Rome, Italy lidia.lombardi@unicusano.it ** Industrial Engineering Department, Florence University, Italy
* Niccolò Cusano University, Rome, Italy – lidia.lombardi@unicusano.it ** Industrial Engineering Department, Florence University, Italy – barbara.mendecka@unifi.it ** Industrial Engineering Department, Florence University, Italy – ennio.carnevale@unifi.it
4th International Conference on Sustainable Solid Waste Management, Limassol, 23–25 June 2016
2
4th International Conference on Sustainable Solid Waste Management, Limassol, 23–25 June 2016
3
4th International Conference on Sustainable Solid Waste Management, Limassol, 23–25 June 2016 1.Introduction 2.LCA: goal and scope definition 3.LCA: inventory analysis 4.Results and discussion 5.Sensitivity and uncertainty analyses 6.Conclusions
4
4th International Conference on Sustainable Solid Waste Management, Limassol, 23–25 June 2016 1.Introduction 2.LCA: goal and scope definition 3.LCA: inventory analysis 4.Results and discussion 5.Sensitivity and uncertainty analyses 6.Conclusions
The purpose of this LCA study was to analyse and compare the environmental impacts due to the different alternative ways of energy recovery from UCO. The impact assessment was carried out adopting:
CML‐IA)
exergy. The analysis was carried out, reported and described according to the LCA phases (ISO 14040‐44, 2009).
5
4th International Conference on Sustainable Solid Waste Management, Limassol, 23–25 June 2016 1.Introduction 2.LCA: goal and scope definition 3.LCA: inventory analysis 4.Results and discussion 5.Sensitivity and uncertainty analyses 6.Conclusions
1 CHP plant fed by regenerated UCO CHP 2 Alkali‐NaOH catalytic conventional biodiesel production NaOH 3 Alkali‐KOH catalytic conventional biodiesel production KOH 4 Acid‐H2SO4 catalytic conventional biodiesel production ACID 5 Non catalytic supercritical biodiesel production Supercritical
