SHORT-TERM VARIATIONS IN CARBON EXCHANGE AT PEATLAND VEGETATION IN WEST SIBERIA ESTIMATED USING AUTOMATIC CHAMBER MEASUREMENTS AND MATHEMATICAL MODELLING E.A. Dyukarev, E.A. Golovatskaya Institute of monitoring of climatic and ecological

slide-1
SLIDE 1

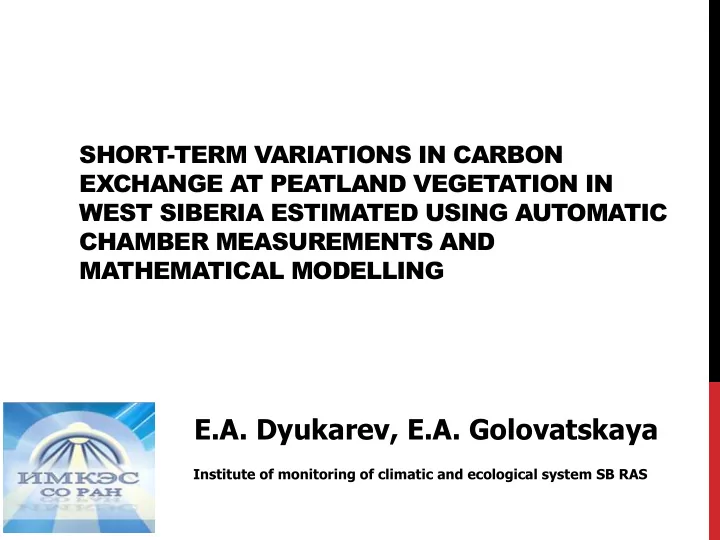

SHORT-TERM VARIATIONS IN CARBON EXCHANGE AT PEATLAND VEGETATION IN WEST SIBERIA ESTIMATED USING AUTOMATIC CHAMBER MEASUREMENTS AND MATHEMATICAL MODELLING

E.A. Dyukarev, E.A. Golovatskaya

Institute of monitoring of climatic and ecological system SB RAS

slide-2
SLIDE 2
slide-3
SLIDE 3

WEST SIBERIA PEATLANDS TOTAL AREA

  • 592 440 KM2,

PEAT STORAGES

  • 148 PG

CARBON STORAGES

  • 70 PG C

Sheng et al., GBC 2004

*

slide-4
SLIDE 4

MESOOLIGOTROPHIC FEN AT “TIMIRYAZEVSKOE” BOG

4

slide-5
SLIDE 5

NEE is the balance between two large fluxes: photosynthesis and ecosystem respiration

5

NEE = ER - GPP ER = AR + HR NPP = GPP - HR

slide-6
SLIDE 6

Automated soil flux sustem Li-Cor LI-8100А with transparent chamber

slide-7
SLIDE 7

7

Li-Cor LI-8100A Raw data processing

slide-8
SLIDE 8

MOSS (SPHAGNUM FALLAX) SEDGE (CAREX ROSTRATA) DWARF SHRUB (ANDROMEDA POLIFOLIA)

8

slide-9
SLIDE 9

CO2 FLUX MEASUREMENTS

22.06.2015 13.07.2015 27.07.2015 11.08.2015 31.08.2015 09.10.2015

9

LIGHT DARK SHADOW

slide-10
SLIDE 10

10 10

slide-11
SLIDE 11

LINEAR RELATION OF LEAF AREA WITH PLANT DRY MASS

11 11 S = 123,4 cm2, M = 2,7 g

slide-12
SLIDE 12

MEASUREMENT RESULTS (LIGHT CHAMBER - ASSIMILATION)

12 12

  • 16
  • 12
  • 8
  • 4

NEE, mol/m2/s Moss Sedge DShrub 22 Jun 13 Jul 27 Jul 11 Aug 31 Aug 9 Oct

slide-13
SLIDE 13

MODEL

NEE(veg) = AR – GPP AR = R0×exp(kTa×Ta) GPP = α·PAR·Gm / (α·PAR + Gm)

13 13

slide-14
SLIDE 14

RELATIONS WITH ENVIRONMENTAL PARAMETERS

14 14

AR - Ta GPP - PAR

slide-15
SLIDE 15

MODEL PARAMETERS

15 15

Parameter Moss Sedge D Shrub AR model EA 0,020 0,083 0,036 kA 0,131 0,085 0,135 R2 0,89 0,90 0,77 GPP model α 0,004 0,009 0,056 Gm 2,99 10,26 15,18 R2 0,69 0,82 0,88

slide-16
SLIDE 16

AIR TEMPERATURE AND PHOTOSYNTHETICALLY ACTIVE RADIATION

16 16

slide-17
SLIDE 17

MODELED GROSS PRIMARY PRODUCTIVITY AND AUTOTROPHIC RESPIRATION

17 17

AR GPP AR GPP

slide-18
SLIDE 18

TEMPERATURE STATE IMPACT ON PHOTOSYNTHESIS

18 18

fG(Tst) = (Tst – Tst0) /TstM, Tsti = TstTi-1 + (Tai – TstTi-1)/kst TstM = 20 oC, Tst0 = 0 oC.

slide-19
SLIDE 19

VEGETATION FADING AND DYING

DG = G2 – G1 + DD; DD = D2 – D1 + DL; DL = L2 – L1 + DM; G – green vegetation; D – dead vegetation; L – litter; D M – litter decomposition.

19 19

slide-20
SLIDE 20

NET PRIMARY PRODUCTIVITY

NPP = S (GPP(PAR,T) – AR(T) – D(T))

20 20 Прирост фитомассы (max) – 254 gC/m2 Истинный прирост (end) – 83 gC/m2

slide-21
SLIDE 21

HETEROTROPHIC AND ROOT RESPIRATION

21 21

HR = fE(Ta) = E0×exp(kTa×Ta) E0 = 0.063 µмоль×m-2s-1; kTa = 0.084 К-1;

slide-22
SLIDE 22

NET ECOSYSTEM PRODUCTIVITY , NET PRIMARY PRODUCTIVITY , HETEROTROPHIC RESPIRATION

22 22

HR NPP

HR + NPP = NEP

slide-23
SLIDE 23

DIURNAL VARIATIONS OF NET PRIMARY PRODUCTIVITY AND HETEROTROPHIC RESPIRATION

23 23

0,02 0,04 0,06 0,08 HR, gC/m2/hr

Apr May Jun Jul Aug Sep Oct

HR NPP

slide-24
SLIDE 24

NET ECOSYSTEM PRODUCTIVITY

NEP = - 48 гС/м2 (накопление С)

24 24

NEP NPP

slide-25
SLIDE 25

25 25

slide-26
SLIDE 26

СПАСИБО ЗА ВНИМАНИЕ

26 26
