DTC SOFT-CLOSING DRAWER SLIDE SETS M01270A L 270mm M01350A L 350mm M01400A L 400mm M01450A L 450mm Ht - 100mm M01500A L 500mm White or Silver WITH SINGLE ROUND RAILS M01450B L 450mm M01500B L 500mm Ht - 160mm White or

slide-1
SLIDE 1

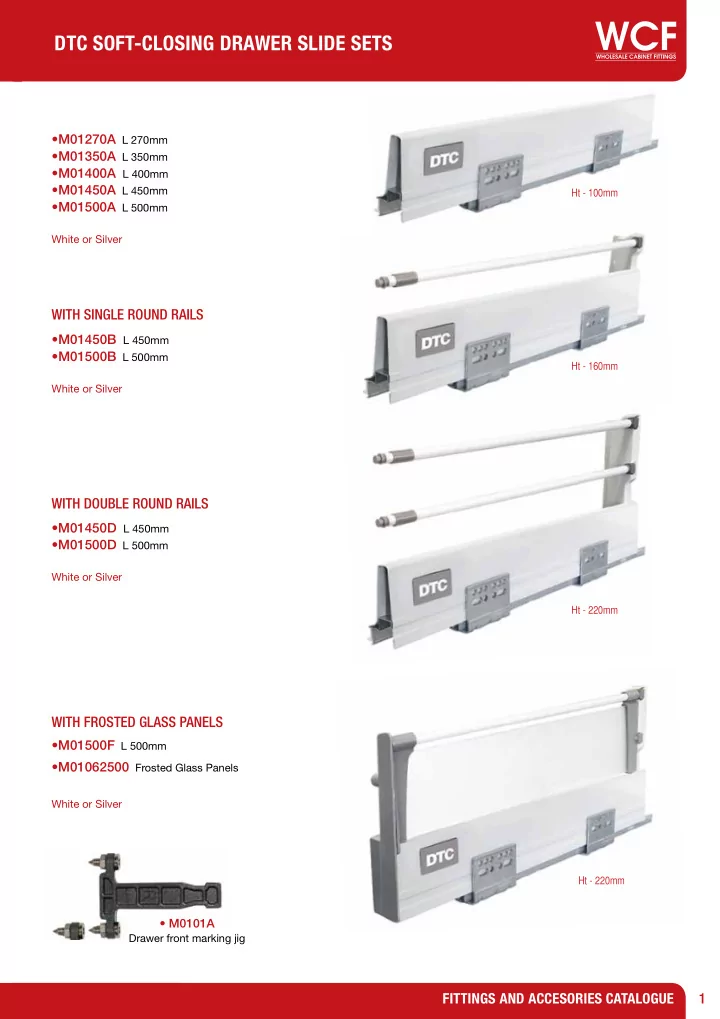

FITTINGS AND ACCESORIES CATALOGUE 1

DTC SOFT-CLOSING DRAWER SLIDE SETS

  • M0101A

Drawer front marking jig

  • M01270A L 270mm
  • M01350A L 350mm
  • M01400A L 400mm
  • M01450A L 450mm
  • M01500A L 500mm

White or Silver

  • M01450B L 450mm
  • M01500B L 500mm

White or Silver

  • M01450D L 450mm
  • M01500D L 500mm

White or Silver

  • M01500F L 500mm
  • M01062500 Frosted Glass Panels

White or Silver

WITH SINGLE ROUND RAILS WITH DOUBLE ROUND RAILS WITH FROSTED GLASS PANELS

Ht - 160mm Ht - 100mm Ht - 220mm Ht - 220mm

slide-2
SLIDE 2

FITTINGS AND ACCESORIES CATALOGUE 2

DTC SOFT-CLOSING INTERNAL DRAWER SLIDE SETS

  • M01500Q L 500mm

White or Silver

  • M01500Q L 500mm

White or Silver

  • M01500T L 500mm

White or Silver

  • M01500V L 500mm
  • M01062500 Frosted Glass Panels

White or Silver

WITH SINGLE ROUND RAILS WITH DOUBLE ROUND RAILS WITH FROSTED GLASS PANELS

Ht - 160mm Ht - 100mm Ht - 220mm Ht - 220mm

*A - M01021W

Front Panel (L 1100mm) (not included in set) Cut to length as required.

*B - M01078-W

Front Square Rail (L 1100mm) (not included in set) Cut to length as required

NOTE: Back panels and drawer bottoms of Melamine faced chipboard are not included or supplied.

*A *A *A *B *B *A

slide-3
SLIDE 3

FITTINGS AND ACCESORIES CATALOGUE 3

BALL BEARING SLIDES

  • 45 series (Steel Thickness 1.2/1.2/1.4mm)

H 45mm 3-part Ball Bearing Extension Slides (Pairs) ZP or Black Lengths: 300, 350, 400, 450, 500, 550, 600, 700, 800 or 900mm

  • 45 - 1 series (T 1.0/1.0/1.2mm)

H 45mm 3-part Ball Bearing Extension Slides (Pairs) ZP Lengths: 250, 300, 350, 400, 450 or 500mm

  • 35 series (Steel Thickness 1.0/1.0/1.0mm)

H 35mm 3-part Ball Bearing Extension Slides (Pairs) ZP or Black Lengths: 250, 300, 350, 400, 450 or 500mm

  • 35-L series (Steel Thickness 0.9/0.9/1.0mm)

H 35mm 3-part Ball Bearing Extension Slides (Pairs) ZP Lengths: 300, 350, 400 or 450mm

  • 27 series (Steel Thickness 0.9/0.9mm)

H 27mm 2-part Ball Bearing Extension Slides (Pairs) ZP or Black Lengths: 350, 400 or 440mm

DTC •4506 (Steel Thickness 1.2/1.2/1.5mm)

H 45mm 3-part Soft-Closing Ball Bearing Slides (Pairs) ZP Lengths: 400, 450 or 500mm

  • 5766 (Steel Thickness 1.5/1.5mm)

H 35mm 2-part Ball Bearing Extension Slide (Pairs) ZP Lengths: 400 or 500mm Clip-On for steel cabinet application

DTC •4507 (Steel Thickness 1.2/1.2/1.5mm)

H 45mm 3-part Push-to-Open Ball Bearing Slide (Pairs) ZP Lengths: 400, 450 or 500mm

  • 570 series (Steel Thickness 0.9/0.9mm)

H 17mm 2-part Ball Bearing Extension Slides (Pairs) ZP Lengths: 310, 346 or 378mm Wooden follow-strip (Not supplied) Front and rear views

  • TB331 L 500mm Black

Pocket-door slide set Pocket-door slide set

Also available:

  • 71915

915mm follow-strip (ZP or Black) Includes L 610mm follow-strip

  • 7134
  • 7155
  • 57166
  • 57167

L 450mm ZP or Black L 500mm ZP or Black L 550mm ZP L 600mm ZP

  • 6669 (D 20mm)

Pocket door eccentric guide Black

slide-4
SLIDE 4

FITTINGS AND ACCESORIES CATALOGUE 4

DRAWER SLIDES

Height - 85mm

  • S085

L 270mm White L 350mm White L 400mm White or Black L 450mm White or Black L 500mm White or Black

  • S149

L 450mm White L 500mm White

  • SS01

Front marking jig for S085 and S149 Drawer Box Slides

Height - 150mm

  • 3PRT40

3-part Full extension (L 400mm) Beige

  • 689 series (0.9mm Thickness)

Lengths: 250, 300, 350, 400, 450, 500, 550 and 600mm White, Brown or Black

  • 741 series (1.0mm Thickness)

Lengths: 250, 300, 350, 400, 450, 500, 550 and 600mm White, Brown or Black

  • 84 series (1.2mm Thickness)

Lengths: 300, 350, 400, 450, 500, 550 and 600mm White, Brown or Black

  • 3514.270 L 270mm
  • 3514.300 L 300mm
  • 3514.350 L 350mm
  • 3514.400 L 400mm
  • 3514.450 L 450mm
  • 3514.500 L 500mm

DTC UNDERMOUNT SOFT-CLOSING DRAWER SLIDE SET (Pairs) DTC BOX DRAWER SLIDES BOTTOM MOUNTED DRAWER SLIDES Acetal Wheels (Pairs)

slide-5
SLIDE 5

FITTINGS AND ACCESORIES CATALOGUE 5

‘SAFA’ PLASTIC DRAWER SLIDES

  • DS11 Black or Brown
  • DS12 with locating dowels - Black or Brown
  • DS/DS03 White or Black
  • DS07 with locating dowels - Black
  • DS10

with locating dowels - White

  • DSO5-L

Drawer stopper L-piece White

  • DSO5

Drawer slide centre bracket White

  • DS04 with locating dowels - Black
  • DSD/DS02 with locating dowels - Black
