C2-1 DRAWER SYSTEMS AND SLIDES Doublewall Drawer System - New Accessories Specifications Front Fixing Bracket Flip Lock with Easy Dowel Simply press in the dowel and flip down the rest, securing your drawer fronts and cabinet doors from

slide-1
SLIDE 1

Specifications

www.marathonhardware.com 1-800-840-1228 1-800-465-8665 info@marathonhardware.com Western Canada Ontario and East

09-2016

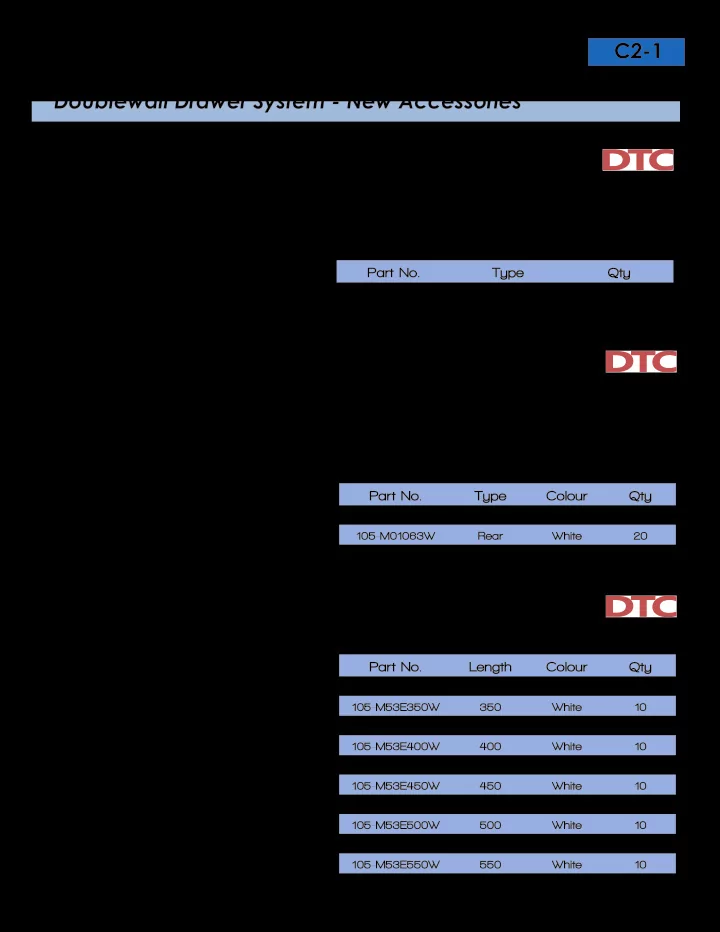

DRAWER SYSTEMS AND SLIDES

C2-1 Doublewall Drawer System - New Accessories

Part No. Type Qty

105-M01019B 8mm Dowel 120

Simply press in the dowel and flip down the rest, securing your drawer fronts and cabinet doors from scratches and other damage that can occur during shipping or before final installation.

Flip Lock with Easy Dowel

Front Fixing Bracket

Part No. Type Colour Qty

105-M01061W Front White 20 105-M01063W Rear White 20

Now available in White

White Adapters for Glass Boxsides

  • Holds glass boxsides securely to your doublewall drawer
  • No longer do you need to use Grey adapters with your white

doublewall drawers to install the glass boxsides

  • Rear and Front Adaptors are now stocked in White

Part No. Length Colour Qty

105-M53E350G 350 Grey 10 105-M53E350W 350 White 10 105-M53E400G 400 Grey 10 105-M53E400W 400 White 10 105-M53E450G 450 Grey 10 105-M53E450W 450 White 10 105-M53E500G 500 Grey 10 105-M53E500W 500 White 10 105-M53E550G 550 Grey 10 105-M53E550W 550 White 10

Double-Sided Metal Boxsides

  • Snaps easily into place
  • Install using the with double rear-fixing

brackets and one pair of round lateral rails.

slide-2
SLIDE 2

Part Numbers

www.marathonhardware.com 1-800-840-1228 1-800-465-8665 info@marathonhardware.com Western Canada Ontario and East

09-2016

DRAWER SYSTEMS AND SLIDES

C2-2

Drilling Pattern

Length Part No. Load Capacity (kg) Qty

250 mm 105-TS10-250H 40 10 300 mm 105-TS10-300H 40 10 350 mm 105-TS10-350H 40 10 400 mm 105-TS10-400H 40 10 450 mm 105-TS10-450H 40 10 500 mm 105-TS10-500H 40 10 550 mm 105-TS10-550H 40 10 600 mm 105-TS10-600H 40 10

250 300 350 400 450 500 550 600

9 9 9 96

250 L 300 L 350 L 400 L 450 L 500 L 550 L 600 L

37 32 128 160 192 224 74 NL

Cabinet edge

Fo urth hole

256 36

  • Soft-Close Undermount slide
  • Includes 6-way adjustable locking clip (with up/

down, left/right, and front/back adjustments)

  • Tool Free assembly and removal
  • Silent system guarantees smooth no noise operation
  • Limited Lifetime Warranty
  • Load capacity: 40 kg

Undermount Soft-Close Slides

Heavy Duty, Full Extension with 6-Way Adjustment

slide-3
SLIDE 3

Specifications

www.marathonhardware.com 1-800-840-1228 1-800-465-8665 info@marathonhardware.com Western Canada Ontario and East

09-2016

DRAWER SYSTEMS AND SLIDES

C2-3

Cabinet Depth Dimensions Cabinet Width Dimensions Drawer Size and Boring Dimensions Assembly & Removal

  • 4. For removal, press the release tab and pull out the drawer.
  • 3. Lay the drawer bottom onto the slides, then push the

drawer into the cabinet.

  • 1. Fix the slide to the cabinet.
  • 2. Fix the locking device to the drawer bottom. To better access mounting holes,

unscrew the depth adjusting bracket and rotate. Fix screws and reattach. Very careful attention must be made to the rear pinhole. A solid connec- tion must be made between slide and box. A straight or angled sawcut has been used as a better alternative to the suggested drill hole.

NL=Nominal Slide Length LT = Internal Cabinet Depth NL-10 NL LT 37 4

Cabinet edge

min

Standard Drawer: LT = NL + 3 X NL-10+X 37 20

Cabinet edge

min

Internal drawer: LT = NL + 21

slide-4
SLIDE 4

www.marathonhardware.com 1-800-840-1228 1-800-465-8665 info@marathonhardware.com Western Canada Ontario and East

09-2016

DRAWER SYSTEMS AND SLIDES

C2-4

Part No. Qty

SA6869400000202 300

Stabilizer for Wide Drawers

Stabilizer for Drawers

  • Recommended for wider drawers (800mm or greater)
  • Should be installed on both right and left sides
  • Cam adjustment allows for perfect bearing of the wheels to

the cabinet side

  • Prevents racking when a non-centred action is applied
  • Can be combined with push slides, to allow for non-centered

push action to help initiate the drawer opening

  • Improves the overall stability and smooth action

Undermount Slides - New Accessories

DTC Undermount Drilling and Installation Jig

Part No. Qty

105-DT01 1

  • Precise drilling guide to aid in installation
  • Bore using 6mm diameter bit for rear hooks
  • Drill pilot using 2.5mm diameter bit for locking devices
  • Can be used with all DTC Undermount Slides including TS10

(6-way Adjustable), SS10 (35 kg Soft-Closing) and S10 (25kg Soft-Closing)

This item is sold as special order only.
