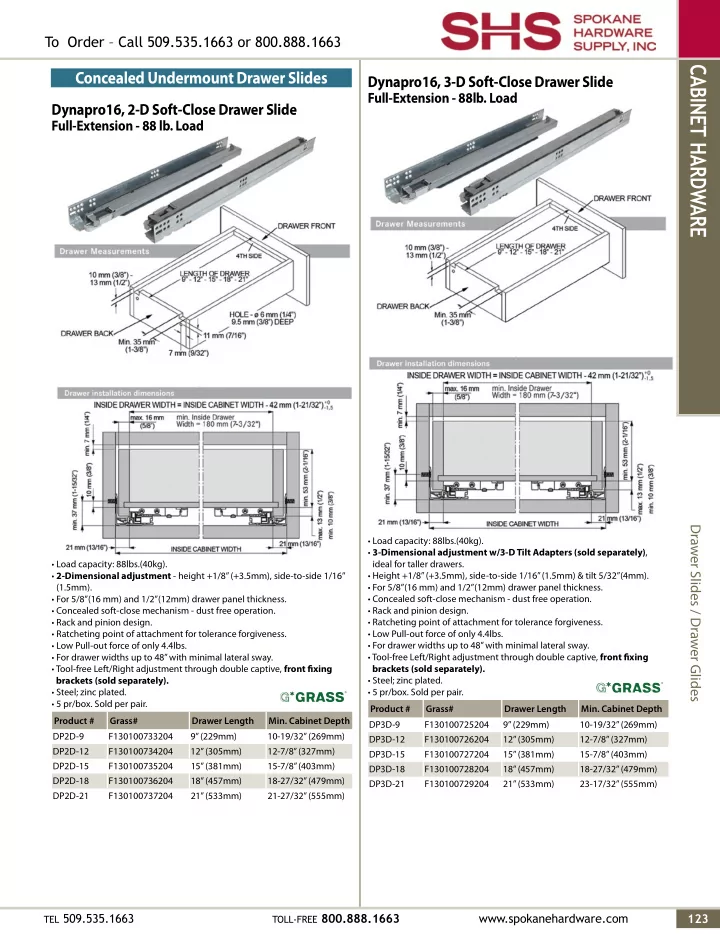

CABINET HARDWARE Concealed Undermount Drawer Slides Dynapro16, 3-D - - PDF document

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 123

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

Concealed Undermount Drawer Slides

Dynapro16, 2-D Soft-Close Drawer Slide

Full-Extension - 88 lb. Load

• Load capacity: 88lbs.(40kg).
• 2-Dimensional adjustment - height +1/8” (+3.5mm), side-to-side 1/16”

(1.5mm).

• For 5/8”(16 mm) and 1/2”(12mm) drawer panel thickness.
• Concealed soft-close mechanism - dust free operation.
• Rack and pinion design.
• Ratcheting point of attachment for tolerance forgiveness.
• Low Pull-out force of only 4.4lbs.
• For drawer widths up to 48” with minimal lateral sway.
• Tool-free Left/Right adjustment through double captive, front fjxing

brackets (sold separately).

• Steel; zinc plated.
• 5 pr/box. Sold per pair.

Product # Grass# Drawer Length

• Min. Cabinet Depth

DP2D-9 F130100733204 9” (229mm) 10-19/32” (269mm) DP2D-12 F130100734204 12” (305mm) 12-7/8” (327mm) DP2D-15 F130100735204 15” (381mm) 15-7/8” (403mm) DP2D-18 F130100736204 18” (457mm) 18-27/32” (479mm) DP2D-21 F130100737204 21” (533mm) 21-27/32” (555mm)

Dynapro16, 3-D Soft-Close Drawer Slide

Full-Extension - 88lb. Load

• Load capacity: 88lbs.(40kg).
• 3-Dimensional adjustment w/3-D Tilt Adapters (sold separately),

ideal for taller drawers.

• Height +1/8” (+3.5mm), side-to-side 1/16” (1.5mm) & tilt 5/32”(4mm).
• For 5/8”(16 mm) and 1/2”(12mm) drawer panel thickness.
• Concealed soft-close mechanism - dust free operation.
• Rack and pinion design.
• Ratcheting point of attachment for tolerance forgiveness.
• Low Pull-out force of only 4.4lbs.
• For drawer widths up to 48” with minimal lateral sway.
• Tool-free Left/Right adjustment through double captive, front fjxing

brackets (sold separately).

• Steel; zinc plated.
• 5 pr/box. Sold per pair.

Product # Grass# Drawer Length

• Min. Cabinet Depth

DP3D-9 F130100725204 9” (229mm) 10-19/32” (269mm) DP3D-12 F130100726204 12” (305mm) 12-7/8” (327mm) DP3D-15 F130100727204 15” (381mm) 15-7/8” (403mm) DP3D-18 F130100728204 18” (457mm) 18-27/32” (479mm) DP3D-21 F130100729204 21” (533mm) 23-17/32” (555mm)

124

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Concealed Undermount Drawer Slides

Dynapro16, 3-D Heavy-Duty Soft-Close Drawer Slide Full-Extension - 110-132lb. Load

• Heavy-Duty slide - loads of up to 132lbs. (60kg).
• 27” and 30” lengths - loads up to 110lbs. (50kg).
• 3-Dimensional adjustment w/3-D Tilt Adapters (sold separately),

ideal for taller drawers.

• Adjustment: Height +1/8” (+3.5mm), side-to-side 1/16” (1.5mm) & tilt

5/32”(4mm).

• For 5/8”(16 mm) and 1/2”(12mm) drawer panel thickness.
• Concealed soft-close mechanism - dust free operation.
• Rack and pinion design.
• Low Pull-out force of only 4.4lbs.
• Ratcheting point of attachment for tolerance forgiveness.
• For drawer widths up to 48” with minimal lateral sway.
• Tool-free Left/Right adjustment through double captive, front fjxing

brackets (sold separately).

• Steel; zinc plated.
• 1 pr/box. Sold per pair.

Product # Grass# Drawer Length

• Min. Cabinet Depth

DP3DHD-18 F130100730204 18” (457mm) 18-27/32” (479mm) DP3DHD-21 F130100731204 21” (533mm) 21-27/32” (555mm) DP3DHD-24 F130100732204 24” (610mm) 24-7/8” (632mm) DP3DHD-27 F130101394203 27” (686mm) 27-7/8” (708mm) DP3DHD-30 F130101395203 30” (762mm) 30-7/8” (784mm)

Dynapro Front Locking Device

• For use with Grass Dynapro 2-D and 3-D drawer slides
• Features tool-free side-to-side adjustment - total 1/8” (3mm).
• Ratcheting point of attachment for tolerance forgiveness.
• For standard width drawers and inset drawers.
• Minimum inside drawer width: 7-3/32” (180mm).
• Order 1-LH and 1-RH per pair of slides.
• 200/box. Sold individually.

Product # Grass# DPFFB-LH F134125000633 DPFFB-RH F134125001633

Dynapro Narrow Front Locking Device

• For use with Grass Dynapro 2-Dimensional drawer slides.
• Features tool-free side-to-side adjustment - total 1/8” (3mm).
• Ratcheting point of attachment for tolerance forgiveness.
• For narrow and standard width drawers and inset drawers.
• Minimum inside drawer width: 3-3/4” (95mm).
• Order 1-LH and 1-RH per pair of slides.
• 200/box. Sold individually.

Product # Grass# Description DPNDFFB-LH F134100699233 Left Hand DPNDFFB-RH F134100700233 Right Hand

Dynapro 3-D Tilt Adjustment Adapter

• Provides tilt adjustment with Grass Dynapro 3-D and Grass Dynapro

Heavy-Duty 3-D drawer slides.

• Tilt adjustment + 5/32” (4mm).
• For frameless or face frame applications.
• Order 1-LH and 1-RH per pair of slides.
• 200/box. Sold individually.

Product # Grass# Description DP3DRAB-LH F134125002233 Left Hand DP3DRAB-RH F134125003233 Right Hand

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 125

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

Dynapro 4-D Drawer Depth Adjuster

New Item!

• Optional depth adjustment - provides +4.5mm forward adjustment.
• Works with all Dynapro slides.
• For narrow and standard width drawers and inset drawers.
• Set includes: 2 brackets (1 left & 1 right hand), order 1 set per pair of

slides.

• 1 set/box. Sold per set.

Product # Grass# DPDEPTHADJ F134101002104

Dynapro Rear Mounting Socket

• For use with Grass Dynapro 2-D and 3-D drawer slides.
• For 12” - 21” drawers; face frame applications.
• Steel, zinc plated.
• 300/box. Sold individually.

Product # Grass# DPRMS 7950.VE300

Face Frame Inset Bracket

• Optional bracket for face frame applications when using Grass Dynapro

and other concealed undermount drawer slides.

• Works with all inset applications.
• Bracket mounts behind the face frame, minimum 1/2” (12.7mm) frame
• fgset required.
• Slide attaches easily with one screw.
• Bracket includes guide markings for proper setback.
• Screws included.
• 50 pr/box. Sold per pair.

Product # Grass# DPISB 13901-08

Dynapro Jig/Drilling Template

• For use with Grass Dynapro 2-D and 3-D drawer slides.
• For standard & narrow front locking device.
• For drawer hole hook.
• For adjustment adapter.
• 1/box. Sold individually.

Product # Grass# DPJIG F146109874299

DETAILED PRODUCT TEMPLATES AND INSTALLATION INSTRUCTIONS CAN BE FOUND ONLINE.

Visit www.thehardwarehut.com

126

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Concealed Undermount Drawer Slides

Hettich Quadro IW21 Silent System Drawer Slide

Full-Extension - 75lb. Load

• Load capacity: 75 lbs dynamic.
• For 5/8”(16 mm) and 1/2”(12mm) drawer panel thickness (spacers

required for 1/2” material).

• For face frame and frameless applications (rear mount sockets for face

frame applications sold separately.)

• Perfect vertical and lateral stability & soft-closure with self close - the

spring-operated mechanism closes the drawer safely and automatically.

• Maintenance-free through self-cleaning ball tracks.
• Front fjxing brackets sold separately.
• Steel; zinc plated.
• 10 pr/box. Sold per pair.

Product # Drawer Length

• Min. Cabinet Depth

(Frameless) 9-048-982 9” (229mm) 9-7/8” (250mm) 9-134-388 12” (305mm) 12-7/8” (326mm) 9-134-368 15” (381mm) 15-7/8” (402mm) 9-048-793 18” (457mm) 18-7/8” (478mm) 9-048-776 21” (533mm) 21-7/8” (554mm) 9-134-273 24” (610mm) 24-7/8” (630mm)

Hettich Quado FAQ Silent System Drawer Slide

Full-Access, Frameless - 75lbs. Load

New Item!

• Load capacity: 75 lbs dynamic.
• For 5/8”(16 mm) and 1/2”(12mm) drawer panel thickness (spacers re-

quired for 1/2” material).

• For frameless applications.
• Full access: economical solution with minimal extension loss.
• Perfect vertical and lateral stability & soft-closure with self close - the

spring-operated mechanism closes the drawer safely and automatically.

• Front fjxing brackets sold separately.
• Steel; zinc plated.
• 30 pr/box. Sold per pair.

Product # Drawer Length

• Min. Cabinet Depth

FAQFL15 15” (381mm) 16-3/4” (425mm) FAQFL18 18” (457mm) 19-3/4” (501mm) FAQFL21 21” (533mm) 22-3/4” (578mm)

Hettich Quadro Front Fixing Brackets

• Integrated +2mm tool-less height adjustment.
• Blue thumb-wheel moves a wedge into position between the drawer

bottom panel and runner. The height setting is not changed when the drawer is removed.

• For 5/8”(16mm) drawer boxes. Includes spacers for 1/2” (12mm) drawer

box thickness.

• Min. inside drawer width: 6-1/2”(165mm).
• 10 pr/box. Sold per pair.

Product # 9-026-839

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 127

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

Hettich Quado FAQ Silent System Drawer Slide

Full-Access, Face Frame - 75lbs. Load

New Item!

• Load capacity: 75 lbs dynamic.
• For 5/8”(16 mm) and 1/2”(12mm) drawer panel thickness (spacers re-

quired for 1/2” material).

• For face frame applications, rear mount socket sold separately.
• Full access: economical solution with minimal extension loss.
• Perfect vertical and lateral stability & soft-closure with self close - the

spring-operated mechanism closes the drawer safely and automatically.

• Max. Cabinet Depth = Min. Cabinet Depth + Rear Socket Adjustment

Range (see rear socket specs).

• NOTE: Inset application increases min. cabinet depth. Trial recommend-

ed.

• Front fjxing brackets sold separately.
• Steel; zinc plated.
• 30 pr/box. Sold per pair.

Product # Drawer Length Min.Cabinet Depth (with Metal Rear Socket) FAQFF9 9” (229mm) 11-1/8” (282mm) FAQFF12 12” (305mm) 14-1/8” (359mm) FAQFF15 15” (381mm) 17-1/8” (435mm) FAQFF18 18” (457mm) 20-1/8” (514mm) FAQFF21 21” (533mm) 23-1/8” (590mm)

Hettich Quadro Mounting Jig

• Used for placement of hole in back of drawer required when installing

Hettich Quadro IW21 Undermount Drawer Slides.

• 1/box. Sold individually.

Product # 9-084-515

Hettich Quadro Front Fixing Brackets

• Integrated +2mm tool-less height adjustment.
• Blue thumb-wheel moves a wedge into position between the drawer

bottom panel and runner. The height setting is not changed when the drawer is removed.

• For 5/8”(16mm) drawer boxes. Includes spacers for 1/2” (12mm) drawer

box thickness.

• Min. inside drawer width: 6-1/2”(165mm).
• 10 pr/box. Sold per pair.

Product # 9-026-839

Hettich Quadro Rear Mount Socket

• Non-handed, two-piece design (pre-assembled).
• For up to 27 mm (1-1/16”) depth adjustment and 19 mm (3/4”) side-to-

side self-alignment.

• Installation recommended with two #7 fmat head screws per bracket, not

included.

• 10 pr/box. Sold per pair.

Product # 9-052-230

Hettich Quadro Rear Mount Socket

• Screw-on rear mount socket for face frame construction.
• Non-handed, two-piece design.
• For up to 50mm (1-15/16”) depth adjustment and ± 1.5 mm (1/16”) side

adjustment.

• Additional adjustment via oblong hole.
• Use with min. four #6 truss head screws, not included.
• Metal construction, zinc plated.
• 10 pr/box. Sold per pair.

Product # 9-055-093

128

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Concealed Undermount Drawer Slides

KV MUV Heavy-Duty Soft-Close Slide

Full-Extension - 120lb. Load

New Item!

• Load capacity: 120lbs.
• For drawers up to 30”D x 42”W - perfect for heavy pot and pan drawers

and deeper cabinets and ever popular wider drawers.

• Elongated front and rear mounting holes for fast adjustment.
• Ergonomic front fjxing brackets included, feature tool-free adjustment.
• For up to 5/8”(16 mm) drawer panel thickness.
• Stabilizing cassette rollers keep closed drawer fronts aligned and true.
• Steel; galvanized fjnish.
• 4 pr/box. Sold per pair.

Product # Drawer Length Cabinet Depth MUVHDB18 18” (457mm) 21” (533mm) MUVHDB20 20” (508mm) 21” (533mm) MUVHDB21 21” (533mm) 24” (610mm) MUVHDB22 22” (559mm) 24” (610mm) MUVHDB24 24” (610mm) 27” (686mm) MUVHDB27 27” (686mm) 30” (762mm) MUVHDB30 30” (762mm) 33” (838mm)

KV MUV Installation Jig

• Used for placement of hole in back of drawer
• Required when installing Knape and Vogt MUV Undermount Drawer Slides.
• 1/box. Sold individually.

Product # MUV-121

KV MUV Replacement Front Fixing Bracket

• Replacement part only, front fjxing brackets included with the KV MUV

concealed drawer slides.

• Tool-free 1/8” height adjustment.
• 1 pr/box. Sold per pair.

Product # MUV-RL

KV MUV Soft-Close Drawer Slide

Full-Extension - 75lb. Load

• Load capacity: 75lbs.
• Elongated front and rear mounting holes for fast adjustment.
• Ergonomic front fjxing brackets included, feature tool-free adjustment.
• For up to 5/8”(16 mm) drawer panel thickness.
• Stabilizing cassette rollers keep closed drawer fronts aligned and true.
• Steel; galvanized fjnish.

Product # Drawer Length Cabinet Depth Qty/Box MUVB9 9” (229mm) 12” (305mm) 4 pr/box. Sold per pair. MUVB10 10” (254mm) 12” (305mm) MUVB12 12” (305mm) 15” (381mm) MUVB14 14” (356mm) 15” (381mm) 6 pr/box. Sold per pair. MUVB15 15” (381mm) 18” (457mm) MUVB16 16” (406mm) 18” (457mm) MUVB18 18” (457mm) 21” (533mm) MUVB20 20” (508mm) 21” (533mm) MUVB21 21” (533mm) 24” (610mm) MUVB22 22” (559mm) 24” (610mm)

KV MUV Rear Mount Sockets

• Rear mount socket for face frame construction.
• For use with Knape and Vogt MUV undermount slides.
• 1 pr/box. Sold per pair.

Product # Description MUV-RBM for 14” and Longer Slides MUV-RBP for 9” , 10” & 12” Slides

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 129

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

Side Mount Drawer Slides

KV 8405 Box/File Drawer Slides, Poly-Bagged

Overtravel - 100lb. Load

• Load capacity: 100lbs.
• Extension: 1” over-travel for full access to drawer contents.
• Mounting: Side mounted; Non-handed design.
• Lever disconnect for easy drawer removal.
• Recommended for 24” max. drawer width.
• Slide Action: Telescoping; ball-bearing.
• Clearance: 1/2” plus 1/32” minus 0” each side.
• Height: 1-13/16”

.

• Screws included in (P) poly-bagged sets only.
• Steel; anochrome plated fjnish.
• 10 pr/box. Sold per pair.

Product # Size 8400P8 8” 8405P10 10” 8405P12 12” 8405P14 14” 8405P16 16” 8405P18 18” 8405P20 20” 8405P22 22” 8405P24 24” 8405P26 26” 8405P28 28”

KV Face Frame Front Mounting Bracket

• Face Frame Bracket designed for 8400/8405/8417/8419 Series Drawer

Slides.

• Screws not included.
• 100/box. Sold individually.

Product # Finish 8404B Zinc

KV 8405 Box/File Drawer Slides, Bulk

Overtravel - 100lb. Load

• Load capacity: 100lbs.
• Extension: 1” over-travel for full access to drawer contents.
• Mounting: Side mounted; Non-handed design.
• Lever disconnect for easy drawer removal.
• Recommended for 24” max. drawer width.
• Slide Action: Telescoping; ball-bearing.
• Clearance: 1/2” plus 1/32” minus 0” each side.
• Height: 1-13/16”

.

• Screws sold separately.
• Steel; anochrome plated fjnish.
• 10pr /box. Sold per box.

Product # Size 8405B10 10” 8405B12 12” 8405B14 14” 8405B16 16” 8405B18 18” 8405B20 20” 8405B22 22” 8405B24 24” 8405B26 26” 8405B28 28”

KV Rear Mount Socket

• Designed for use with Knape and Vogt 8400/8405/8417/8419 Series and

similar ball-bearing drawer slides in a face frame application.

• Snap-on design, screws not included.
• Non-handed; Made of steel.
• 2-3/4in. maximum adjustment.
• Overall Size: 3-1/2”L x 1-7/8”H x 1-1/8”W.
• 20/box. Sold individually.

Product # Finish 8403 Zinc

130

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Side Mount Drawer Slides

KV 8405WH Box/File Drawer Slides

Full-Extension - 100lb. Load

• Load capacity: 100lbs.
• Extension: Full-extension for full access to drawer contents.
• Mounting: Side mounted; Non-handed design.
• Lever disconnect for easy drawer removal.
• Recommended for 24” max. drawer width.
• Slide Action: Telescoping; ball-bearing.
• Clearance: 1/2” plus 1/32” minus 0” each side.
• Height: 1-13/16”

.

• Screws sold separately.
• Steel; white plated fjnish.

Product # Finish Size Qty/Box 8400BWH22 White 22” 10 pr/box. Sold per pair. 8500-90-WH-50 White Screws - #7 x 1/2” (20/bag) 1 bag/box. Sold per bag.

KV 8419 Self-Closing Box/File Drawer Slides

Overtravel - 100lb. Load

• Load capacity: 100lbs.
• Extension: 1” over-travel for full access to drawer contents.
• Mounting: Side mounted; Non-handed design.
• Lever disconnect for easy drawer removal.
• Recommended for 24” max. drawer width.
• Slide Action: Self-closing, telescoping; ball-bearing.
• Clearance: 1/2” plus 1/32” minus 0” each side.
• Height: 1-13/16”

.

• Screws not included.
• Steel; anochrome plated fjnish.
• 10 pr/box. Sold per pair.

Product # Size 8417B12 12” 8419B14 14” 8419B16 16” 8419B18 18” 8419B20 20” 8419B22 22” 8419B24 24” 8419B26 26”

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 131

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

Repon NJ35D08 Soft-Closing Drawer Slides

Full Extension - 100lb. Load

• Extremely light, silent and smooth motion with cushioned out-stop and

2” soft-close stroke.

• Load capacity: 100lbs.(for 18”-24” slide lengths).
• Extension: full-extension.
• Mounting: Side mounted; Non-handed design.
• 5.5-6.5lbs. pull force per drawer.
• Slide Action: Telescoping; ball-bearing.
• Clearance: 1/2” (+1/32” - 0”).
• Height: 1-13/16”

.

• Screws not included.
• Steel; zinc plated fjnish.
• 10 pr/box. Sold per pair.

Product # Size Load Rating NJ35D08-12EZP 12” 50 lbs. NJ35D08-14EZP 14” 60 lbs. NJ35D08-16EZP 16” 60 lbs. NJ35D08-18EZP 18” 100 lbs. NJ35D08-20EZP 20” 100 lbs. NJ35D08-22EZP 22” 100 lbs. NJ35D08-24EZP 24” 100 lbs. NJ35D08-26EZP 26” 80 lbs. NJ35D08-28EZP 28” 70 lbs.

Repon NJ31733 Box/File Drawer Slides

Overtravel, 100lb. Load

• Load capacity: 100lbs.
• Extension: 1” over-travel for full access to drawer contents.
• Mounting: Side mounted; Non-handed design.
• Slide Action: Telescoping; ball-bearing.
• Clearance: 1/2” (+1/32” - 0” each side.)
• Height: 1-13/16”

.

• Screws sold separately.
• Steel; anochrome plated fjnish.
• 10 pr/box. Sold per pair.

Product # Size NJ31733-10EZP 10” NJ31733-12EZP 12” NJ31734-14EZP 14” NJ31733-16EZP 16” NJ31733-18EZP 18” NJ31733-20EZP 20” NJ31733-22EZP 22” NJ31733-24EZP 24” NJ31733-26EZP 26” NJ31733-28EZP 28”

132

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Side Mount Drawer Slides

KV 8505 Heavy-Duty File/Lateral Drawer Slides, Poly-Bagged

Overtravel - 150lb. Load

• Load capacity: 150lbs.
• Extension: 1-1/4” over-travel.
• Mounting: Side mounted.
• Non-handed, quick-disconnect drawer members.
• Recommended for 30” max. drawer width.
• Slide Action: Progressive movement on ball-bearings.
• Clearance: 1/2” plus 1/32” minus 0” each side.
• Height: 3-51/64”

.

• Screws included in (P) poly-bagged sets only.
• Steel; anochrome plated fjnish.
• 5 pr/box. Sold per pair.

Product # Size 8505P12 12” 8505P14 14” 8505P16 16” 8505P18 18” 8505P20 20” 8505P22 22” 8505P24 24” 8505P26 26” 8505P28 28” 8505P30 30”

KV 8505 Heavy-Duty File/Lateral Drawer Slides, Bulk

Overtravel - 150lb. Load

• Load capacity: 150lbs.
• Extension: 1-1/4” over-travel.
• Mounting: Side mounted.
• Non-handed, quick-disconnect drawer members.
• Recommended for 30” max. drawer width.
• Slide Action: Progressive movement on ball-bearings.
• Clearance: 1/2” plus 1/32” minus 0” each side.
• Height: 3-51/64”

.

• Screws not included.
• Steel; anochrome plated fjnish.
• 5pr /box. Sold per box.

Product # Size 8505B16 16” 8505B18 18” 8505B20 20” 8505B22 22”

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 133

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

Repon Heavy-Duty Drawer Slides

Full Extension - 200lb. Load

New Item!

• Heavy-duty ball bearing slides for commercial, mechanical and residen-

tial applications.

• Load capacity: 200lbs.
• Extension: full-extension.
• Mounting: Side mounted; Non-handed design.
• Closed position hold-in detent.
• Lever disconnect.
• Clearance: 1/2”

.

• Height: 2-1/8”

.

• Screws sold separately.
• Steel; electro zinc fjnish.
• 10 pr/box. Sold per pair.

Product # Size NJ81A02-18 18” NJ81A02-20 20” NJ81A02-22 22”

KV 8800B Heavy-Duty Drawer Slides

Full Extension - 200lb. Load

• Designed for use wherever strength and durability are needed, such as

tool boxes, truck bodies, and work stations.

• Load capacity: 200lbs.
• Extension: full-extension.
• Mounting: Side mounted; Non-handed design.
• Closed position hold-in detent.
• Lever disconnect.
• Recommended for 42” max. drawer width.
• Slide Action: Telescoping; ball-bearing.
• Clearance: 3/4” plus 1/32” minus 0” each side.
• Height: 2-9/32”

.

• Screws sold separately.
• Steel; zinc plated fjnish.
• 4 pr/box. Sold per pair.

Product # Size 8800B18 18” 8800B20 20” 8800B22 22” 8800B24 24” 8800B26 26” 8800B28 28”

134

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Side Mount Drawer Slides

KV 8900 Extra Heavy-Duty Drawer Slides

Full Extension - 180-500lb. Load

• Designed for use wherever extra strength and durability are needed,

such as industrial, commercial or vehicle large storage drawer applica- tions.

• Load capacity: 180-500lbs. depending on application. Modest use: 500lb.;

Normal use: 400lb.; Vehicle use: 300lb.; Flat mounted: 180lb.

• Extension: full-extension.
• Mounting: Side or fmat mounted; Non-handed design.
• Closed position hold-in detent.
• Non-disconnect.
• Slide Action: Telescoping; ball-bearing.
• Clearance: 3/4”

.

• Height: 3”

.

• Screws sold separately.
• Steel; zinc plated fjnish.

Product # Size Qty/Box 8900B22 22” 3 pr/box. Sold per pair. 8900B24 24” 8900B26 26” 8900B28 28” 8900B30 30” 2 pr/box. Sold per pair. 8900B32 32” 8900B34 34” 8900B36 36” 8900B40 40” 1 pr/box. Sold per pair. 8900B42 42” 8900B48 48” 8900B60 60”

KV 1300 Lever Release Drawer Slides

3/4 Extension - 75lb. Load

• Load capacity: 75lbs.
• Extension: 3/4 extension.
• Mounting: Side mounted.
• Positive stop lever; stay close design.
• Slide Action: ball-bearing rollers.
• Clearance: 1/2” plus 1/32” minus 0” each side.
• Height: 3”

.

• Screws included in (P) poly-bagged sets only.
• Steel; zinc plated fjnish.

Product # Size Qty/Box 1300PZC12 12” 10 pr/box. Sold per pair. 1300PZC14 14” 1300PZC16 16” 1300PZC18 18” 1300PZC20 20” 1300PZC22 22” 1300PZC24 24” 1300PZC28 28” 1300BZC22 22” 10pr/box. Sold per box.

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 135

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

Breadboard Slides

• 13/16” channel to accommodates a 3/4” thick board.
• Rear bracket can be bent 90° for face frame mounting.
• Steel, Zinc plated.
• 25 pr/box. Sold per pair.

Product # Size 1212112 21-1/2”

Groove/Side Mount Mini Drawer Slides

3/4 Extension - 22lb. Load

• Commonly used as a replacement slide for furniture with 11/16” (17mm)

grooved or dado drawer sides.

• Mounting: Groove mounted; Non-handed design.
• Precision running, ball mounted.
• Extension: single-stage extension.
• Height: 11/16”
• Clearance/Depth: 3/8”

.

• Screws not included.
• Steel, zinc plated.
• 100 pr/box. Sold per pair.

Product # Size Drawer Length 420-58-257 9-11/16” (246mm) 9-3/4” - 16-1/8” (246-410mm) 420-58-319 12-3/16” (310mm) 12-1/4” - 20-1/2” (312-520mm) 420-58-373 14-11/16” (374mm) 14-3/4” - 25” (376-635mm)

Groove/Side Mount Plastic Guide Drawer Rail

• Commonly used as a replacement slide for furniture with 11/16” (17mm)

grooved or dado drawer sides.

• Sold individually, must order 2 per drawer.
• White plastic.
• Screws sold separately.
• 20/box. Sold individually.

Product # Size 430-15-701 11-1/4” (286mm)

Press-Fit Drawer Stop

• Prevents drawer from sliding all the way out of opening.
• To remove drawer, press the drawer stop lever upward.
• 1-3/8”L; White plastic.
• 100/box. Sold individually.

Product # Finish 430-09-150 White

136

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Two-Way Travel Drawer Slides

Accuride 2002C Two-Way Drawer Slides

3/4 Extension - 50lb. Load

Designed especially for installation in room dividers, kitchen islands, medi- cal carts, pass-through shelves. Use where access is needed from both sides of the unit.

• Features tabs for quick mounting of shelves, trays, or drawers.
• Internal detent secures slide in center position.
• Load capacity: 50lb. drawers up to 12” wide.
• Clearance: .38” (9.7mm) side space.
• Height: 1-3/8”

.

• Slide Action: Ball Bearings.
• Installation: Non-disconnect.
• Screws not included.
• Steel; zinc fjnish.
• 10 pr/box. Sold per pair.

Product # Size 422-15-458 18” 422-15-501 20” 422-15-556 22” 422-15-609 24”

Euro/Epoxy Drawer Slides

Grass European/Epoxy Drawer Slides

3/4 Extension - 100lb. Load

• Load capacity: 100lbs.
• Extension: 3/4 extension.
• Mounting: Bottom corner.
• Parallel self-closing.
• Slide Action: Nylon rollers.
• Clearance: 1/2”(12.5mm).
• Screws not included.
• Steel, epoxy coated fjnish.
• 25 pr/box. Sold per pair.

Product # Size Finish 1702-300-11 12” (300mm) Beige 1702-350-11 14” (350mm) Beige 1702-400-11 16” (400mm) Beige 1702-450-11 18” (450mm) Beige 1702-500-11 20” (500mm) Beige 1702-550-11 22” (550mm) Beige 1702-575-11 22-5/8” (575mm) Beige 1702-300-2 12” (300mm) White 1702-350-2 14” (350mm) White 1702-400-2 16” (400mm) White 1702-450-2 18” (450mm) White 1702-500-2 20” (500mm) White 1702-550-2 22” (550mm) White 1702-575-2 22-5/8” (575mm) White

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 137

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

Grass Oversized European/Epoxy Drawer Slides

3/4 Extension - 125lb. Load

• Load capacity: 125lbs.
• Extension: 3/4 extension.
• Mounting: Bottom corner.
• Parallel self-closing.
• Slide Action: Nylon rollers.
• Clearance: 1/2” (12.5mm).
• Screws not included.
• Steel, epoxy coated fjnish.
• 20 pr/box. Sold per pair.

Product # Size Finish 1800-600-2 24” (600mm) White 1800-650-2 26” (650mm) White 1800-700-2 28” (700mm) White 1800-750-2 30” (750mm) White 1800-800-2 32” (800mm) White

Grass Universal Rear Mount Socket

for Grass 1702/1800 Series Slides

• For rear mounting slides in face-frame applications.
• Screw or staple mount.
• Made of polyethylene.
• Inside Opening Size: 7/8”(22mm)H x 3/8”(10mm)W
• 250/box. Sold individually.

Product # Handing AL-248P-L Left AL-248P-R Right

Grass Slide Gun Jig

for Grass 1702/1800 Series Slides

• Metal.
• 1/box. Sold individually.

Product # F146083248101

Grass European/Epoxy Drawer Slides

Full-Extension - 125lb. Load

• Load capacity: 125lbs.
• Extension: Full-extension.
• Mounting: Bottom corner.
• Parallel self-closing.
• Slide Action: Nylon rollers.
• Clearance: 1/2”(12.5mm).
• Screws not included.
• Steel, epoxy coated fjnish.
• 10 pr/box. Sold per pair.

Product # Size Finish 5300-400-2 16” (400mm) White 5300-450-2 18” (450mm) White 5300-500-2 20” (500mm) White 5300-550-2 22” (550mm) White 5300-600-2 24” (600mm) White

138

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Euro/Epoxy Drawer Slides

KV Rear Mount Socket

for KV 1284 Series Slides

• Rear mount socket designed for use with Knape and Vogt 1284 Series

European slides (non-stock) in face frame applications.

• Screw mount, screws not included.
• Made of plastic.
• Inside Opening Size: 1-1/8”(29mm)H x 3/8”(10mm)W
• 200/box. Sold individually.

Product # Handing 1284-4L Left 1284-4R Right

Center Mount Drawer Slides

Center Mount Drawer Slide

3/4 Extension - 35lb. Load

• Load capacity: 35lbs.
• Extension: 3/4 extension.
• Mounting: Under drawer.
• Friction disconnect for easy installation.
• Rear mounting bracket allows for 1-3/8” of adjustment for variable cabi-

net depths.

• Height: 3/8”

.

• Includes: 1 drawer slide and 2 corner tacks, screws not included.
• Steel, electro-zinc plated.
• 20/box. Sold individually.

Product # Size Drawer Length Cabinet Depth DS3508-12 12-3/4” 10-5/8” - 12-1/2” (270-318mm) 13” - 14-1/2” (330-368mm) DS3508-14 14-3/4” 12-5/8” - 14-1/2” (321-368mm) 15” - 16-1/2” (381-419mm) DS3508-16 16-3/4” 14-5/8” - 16-1/2” (372-419mm) 17” - 18-1/2” (432-470mm) DS3508-18 18-3/4” 16-5/8” - 18-1/2” (422-470mm) 19” - 20-1/2” (483-521mm) DS3508-20 20-3/4” 18-5/8” - 20-1/2” (473-521mm) 21” - 22-1/2” (533-572mm) DS3508-22 22-3/4” 20-5/8” - 22-1/2” (524-572mm) 23” - 24-1/2” (584-622mm)

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 139

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

KV 1175 Center/Under Mount Drawer Slide

3/4 Extension - 50lb. Load

• Load capacity: 50lbs.
• Extension: 3/4 extension.
• Mounting: Under drawer.
• For drawer lift-out, allow 5/16” (8mm) clearance between drawer side

height and drawer case opening height.

• Drawer width must be 1/4” (6.4mm) less than cabinet opening.
• Drawer depth must be at least 1-1/4” (32mm) shorter than cabinet depth.
• If necessary, the channel assembly can be cut to fjt the inside depth of

the cabinet.

• Slide Action: Nylon rollers.
• Screws included.
• Steel, zinc plated.
• 10/box. Sold individually.

Product # Size 1175PZC18 18” 1175PZC20 20” 1175PZC2258 22-5/8” 1175PZC24 24”

Drawer Roller Guides

• Excellent for soft wood or particle board applications.
• Handed for left or right application.
• Installs with nails or staples (not included).
• 100/box. Sold individually.

Product # Finish 705L-32 White 705R-32 Brown

Drawer Slide Guide

Rear Mount

• Mount on rear of drawer.
• For 5/16” x 1-3/16” wood drawer slides.
• Install using #6 pan head screws (not included).
• 50/box. Sold individually.

Product # Finish 509GRN-22 Green

Drawer Slide Guide

Rear Mount

• Mount on rear of drawer.
• For 3/8” x 1” wood drawer slides.
• Install using #6 pan head screws (not included).
• 50/box. Sold individually.

Product # Finish 510-22 Natural

Drawer Slide Guide

Rear Mount

• Mount on rear of drawer.
• For 1/4” x 1-1/8” wood drawer slides.
• Install using #6 pan head screws (not included).
• 50/box. Sold individually.

Product # Finish 514-22 Natural

Drawer Slide Guide

Rear Mount

• Mount on rear of drawer.
• For 3/16” x 1-5/16” metal drawer slides.
• Install using #6 pan head screws (not included).
• 50/box. Sold individually.

Product # Finish 520-22 Natural

140

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Keyboard and Pencil Drawer Slides

KV 8250 Pencil Drawer Slides

3/4 Extension - 75lb. Load

• Load capacity: 75lbs.
• Extension: 3/4 extension.
• Mounting: under surface.
• Slide Action: ball-bearing.
• Lever disconnect for easy drawer removal.
• Anti-rebounding stay-close design holds the drawer in a closed position,

yet allows easy opening.

• Mounting brackets adjust to 7 difgerent heights (and can be reversed for

inboard and outboard mounting.

• Height: 2-11/32” to 3-11/16” adjustable in 7/32” increments.
• Screws included.
• Steel; anochrome plated fjnish.
• 10 pr/box. Sold per pair.

Product # Size 8250P12 12” 8250P14 14” 8250P16 16” 8250P18 18” 8250P20 20” 8250P22 22”

KV 8150 Keyboard Slides

3/4 Extension - 75lb. Load

• Load capacity: 75lbs.
• Extension: 3/4 extension.
• Mounting: under surface.
• Slide Action: ball-bearing.
• Positive lever release for easy drawer removal.
• Hold-in feature prevents keyboard tray bounce back.
• Hold-out feature allows slide to be held in place when drawer is open.
• Mounting brackets adjust to 7 difgerent heights (and can be reversed for

inboard and outboard mounting.

• Height: 2-11/32” to 3-11/16” adjustable in 7/32” increments.
• Screws included.
• Steel; anochrome plated fjnish.
• 10 pr/box. Sold per pair.

Product # Size 8150P14 14” 8150P16 16” 8150P18 18” 8150P20 20”

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 141

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

KV 8157 Keyboard Slides w/Shelf Tabs

3/4 Extension - 75lb. Load

• Load capacity: 75lbs.
• Extension: 3/4 extension.
• Mounting: under surface.
• Slide Action: ball-bearing.
• Positive lever release for easy drawer removal.
• Hold-in feature prevents keyboard tray bounce back.
• Hold-out feature allows slide to be held in place when drawer is open.
• Mounting brackets adjust to 7 difgerent heights (and can be reversed for

inboard and outboard mounting.

• Height: 2-11/32” to 3-11/16” adjustable in 7/32” increments.
• Screws included.
• Steel; anochrome plated fjnish.
• 10 pr/box. Sold per pair.

Product # Size 8157P14 14” 8157P16 16” 8157P18 18” 8157P20 20”

Keyboard and Pencil Drawer Slides

KV Value Keyboard System

w/Soft-Touch Knob Adjustment

Mechanism Features:

• 6” height adjustment - from fmush with work surface to 6” below.
• Single soft-touch knob to adjust both height & tilt.
• 30° tilt range with +/-15° negative and positive tilt.
• 360° swivel at track.
• 18” EZ-Glide track system.
• Powder coated steel construction, non-skid keyboard pads.
• 20” wide molded comfort platform.
• Optional positive tilt lockout.
• Optional mouse tray with built-in cable management, sold separately.
• 1/box. Sold individually.

Product # Description Finish SD-1 Keyboard System Black OMS Swivel Mouse Tray Black

KV Value Keyboard & Mouse System

w/Soft-Touch Knob Adjustment

Mechanism Features:

• 6” height adjustment - from fmush with work surface to 6” below.
• Single soft-touch knob to adjust both height & tilt.
• 30° tilt range with +/-15° negative and positive tilt.
• 360° swivel at track.
• 18” EZ-Glide track system.
• 20” wide molded comfort platform.
• Accommodates right or left hand mousing.
• PVC-free removable padded palm support.
• MPS tilt and swivel mouse over mouse platform.
• Powder coated steel construction, non-skid keyboard pads.
• Optional positive tilt lockout.
• 1/box. Sold individually.

Product # Finish SD-3 Black

142

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Keyboard and Pencil Drawer Slides

KV Value Keyboard & Mouse System

w/Soft-Touch Knob Adjustment

Mechanism Features:

• 6” height adjustment - from fmush with work surface to 6” below.
• Single soft-touch knob to adjust both height & tilt.
• 30° tilt range with +/-15° negative and positive tilt.
• 360° swivel at track.
• 18” EZ-Glide track system.
• Powder coated steel construction.
• One piece construction for keyboard & mouse.
• 25” wide 5/8” melamine keyboard & mouse platform.
• PVC-free removable padded palm support.
• Mouse right or left, mouse surface ensures smooth mouse operation.
• Optional positive tilt lockout.
• 1/box. Sold individually.

Product # Finish SD-04-18 Black

KV Performance Keyboard and Mouse System

w/Single Paddle Control

Mechanism Features:

• 9-3/4” height adjustment - from 2-1/2” above work surface to 7-1/4”

below.

• Single Keynetix paddle control to adjust both height and tilt.
• 30° tilt range with +/-15° negative and positive tilt.
• 360° swivel at track.
• 21” EZ-Glide track system.
• Accommodates right or left hand mousing.
• PVC-free removable padded palm support.
• MPS tilt and swivel mouse over mouse platform.
• Powder coated steel construction, non-skid keyboard pads.
• 20” wide molded comfort platform.
• Optional positive tilt lockout.
• 1/box. Sold individually.

Product # Finish SD-10-21 Black

KV Performance Keyboard and Mouse System

w/Single Paddle Control

Mechanism Features:

• 9-3/4” height adjustment - from 2-1/2” above work surface to 7-1/4”

below.

• Single Keynetix paddle control to adjust both height and tilt.
• 30° tilt range with +/-15° negative and positive tilt.
• 360° swivel at track.
• 21” EZ-Glide track system.
• One piece construction for keyboard & mouse.
• 25” wide 5/8” melamine keyboard & mouse platform.
• PVC-free removable padded palm support.
• Mouse right or left, mouse surface ensures smooth mouse operation.
• Optional positive tilt lockout.
• 1/box. Sold individually.

Product # Finish SD-14-21 Black

KV Keyboard Drawer Tray

Mechanical Features:

• 28.75” Lycra Gel/PVC cushion wrist rest wraps around the front edges of

drawer.

• 18” Ball bearing slide assembly with lock-out feature.
• Brackets mount in “outboard” position under work surface for application

widths 29” or greater, and in the “inboard” position for widths less than 26.75” .

• 25-3/4” x 10” tray.
• 75 lb. load rating.
• Comes factory assembled with mounting hardware.
• Optional mouse tray with built-in cable management, sold separately.
• 1/box. Sold individually.

Product # Description Finish KD-100 Keyboard System Black KD-010 Swivel Mouse Tray Black

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 143

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

Bottom Mount/Pantry Slides

KV 8000 Undermount Pantry Slides

Overtravel - 130lb.

Designed for use with kitchen pantries, computer and entertainment centers, or where a pull-out shelf is needed.

• Load capacity: 130lbs.
• Extension: full-extension plus overtravel.
• Mounting: bottom mount.
• Slide Action: Telescoping; ball-bearing.
• Clearance: 3/4” (slide only); 2-1/4” (with brackets).
• Height: 1-35/64”

.

• Removable brackets that allow for fast and easy installation.
• Hold-in detent and key-hole style mounting holes.
• Steel; anochrome plated fjnish.
• 5 pr/box. Sold per pair.

Product # Size 8000P20 20” 8000P22 22” 8000P24 24”

Bottom Mount Slides for Custom Shelving

Full-Extension - 100lb. Load

• Make your own custom pull-out shelves with the Accuride bottom

mounts slides.

• Load capacity: 100lbs.
• Extension: full-extension.
• Mounting: bottom mounted.
• Slide Action: Telescoping; ball-bearing.
• Height: 2”

.

• Steel; White fjnish.
• 1 pr/box. Sold per pair.

Product # Size BM-3832-18W-52 18” BM-3832-20W-52 20” BM-3832-22W-52 22”

KV TV Swivel/Slide Shelf (Black)

7/8 Extension - 225lb. Load

• Heavy-duty swivel is specially designed for computer and entertainment

centers.

• Slide Action: Ball bearing slide assembly.
• Swivels 360°.
• Turntable: 16” x 16”

.

• Overall Size: 17-5/16”W x 2-7/16”H.
• Platform Diagonal Size: 22”

.

• Slide Length: 15-1/2”; Travel: 14”

.

• Recommended for TV’s up to 36” wide.
• Includes mounting hardware.
• 1/box. Sold individually.

Product # Finish 1388-BLK Black

144

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Pocket/Pivot Door Slides

KV 8092 Series 4x4 Pocket Door Slides

• 75lb. Load
• Ideal for use in large entertainment and home theater cabinets.
• Max Door Size: 72”H x 26”W
• Mounting: Mounts directly to cabinet side.
• Load Rating: 75lb.
• Multiple hinge options allow for a wide variety of applications.
• Slide Action: Progressive movement on precision steel ball bearings.
• Dual rack and pinion system virtually eliminates door sag, speeding

installation and minimizing adjustment.

• Ebony Black electro-zinc plated lacquer fjnish.
• NOTE: Order slides 4” longer than door width for door to fully recess

into cabinet.

• Slides, shaft and hinges all ordered separately.

Product # Description Qty/Box 8092P-EB-16 16” Pocket Slides 10 pr/box. Sold per pair. 8092P-EB-18 18” Pocket Slides 8092P-EB-20 20” Pocket Slides 8092P-EB-22 22” Pocket Slides 8092P-EB-24 24” Pocket Slides 8092P-EB-26 26” Pocket Slides 8092P-EB-28 28” Pocket Slides 8092P-EB-30 30” Pocket Slides 8090B-EB-36 36” Shaft 2/box. Sold individually. 8090B-EB-48 48” Shaft 8090B-EB-72 72” Shaft 8080-HKEZFEB Hinges (Inset, Free Swing, 35mm Cup) 1 pr/box. Sold per pair. 8080-HKEZLEB Hinges (Overlay, 1/4” Max., 40mm Cup) 8080-HKEZSEB Standard Hinges (Inset, Self-Close, 35mm Cup) 8085-HKEZTEB Hinges (Inset - 1” Thick Door, 40mm Cup) 8086-HKEZXEB Hinges (Inset - 1-1/4” Thick Door, 40mm Cup) 8090P-CR Raised Panel Cassette Roller 1/box. Sold individually.

KV 8070EZ Pivot Door Slides

• 30lb. Load
• Ideal for use in entertainment and home theater cabinets, specially

designed to install quickly and easily.

• Cabinets acts as an installation jig. Bracket allows the follower strip to be

installed after the slides are installed - no need to pre-mount the follower strip to the slides.

• Max Door Size: 42”H x 24”W.
• NOTE: Order slides 4” longer than door width for door to fully recess

into cabinet.

• Set includes: 1 pair slides, mounting hardware and self-closing inset

door hinges (one pair of slides will accommodate one door).

• Inset hinges standard, optional hinge functions sold separately.
• Ebony Black electro-zinc plated lacquer fjnish.
• 10 pr/box. Sold per pair.

Product # Size 8070PEZEB12 12” 8070PEZEB14 14” 8070PEZEB16 16” 8070PEZEB18 18” 8070PEZEB20 20” 8070PEZEB22 22” 8070PEZEB24 24” Optional Hinges 8080-HKEZFEB Hinges (Inset, Free Swing, 35mm Cup) 8080-HKEZLEB Hinges (Overlay, 13/32” Max. 40mm Cup) 8085-HKEZTEB Hinges (Inset - 1” Thick Door, 40mm Cup) 8086-HKEZXEB Hinges (Inset - 1-1/4” Thick Door, 40mm Cup)

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 145

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

Metal Drawers & Gallery Rail Systems

Grass Integra Quick 9113 Metal Drawer System

Height 3-3/8” (86mm)

• Single extension, height 3-3/8” (85mm).
• Installation width 5/8” (15.5mm).
• 100lb. load rating.
• Snap-in bottom mounting.
• White fjnish.
• NOTE: Front fjxing brackets must be ordered separately.
• 10 pr/box. Sold per pair.

Product # Length 9113-350-2 14” (350mm) 9113-400-2 16” (400mm) 9113-450-2 18” (450mm) 9113-500-2 20” (500mm) 9113-550-2 22” (550mm)

Grass Integra Quick 9313 Metal Drawer System

Height 5-7/8” (149mm)

• Single extension, height 5-7/8” (149mm).
• Installation width 5/8” (15.5mm).
• 100lb. load rating.
• Snap-in bottom mounting.
• White fjnish.
• NOTE: Front fjxing brackets must be ordered separately.
• 10 pr/box. Sold per pair.

Product # Length 9313-400-2 16” (400mm) 9313-450-2 18” (450mm) 9313-500-2 20” (500mm) 9313-550-2 22” (550mm)

Grass Integra Front Fixing Brackets

for 9113/9213/9313 Drawers

• Front fjxing bracket for use with Integra Quick Series 9113/9213/9313.
• Click-on version, front clicks on automatically.
• Height adjustment via cam, side-to-side adjustment via slotted hole.

Product # Description Qty/Box 9305-L-VE10 Screw on - Left Hand 10/box. Sold individually. 9305-R-VE10 Screw on - Right Hand 9306-L-VE10 Doweled - Left Hand 9306-R-VE10 Doweled - Right Hand 9112-2-VE20 Cover Cap for Front Fixing 20/box. Sold individually.

Grass Integra Front Fixing Adaptors

for Interior Drawers

• Inset Front fjxing adaptor for interior drawers.
• Screw-on mount.
• White fjnish.
• Set contains: front fjxing adapters (left & right), clamp fmaps, mounting

screws.

• 10 pr/box. Sold per pair.

Product # Description 9108-2-VE10 For 9113 - 3-3/8” (85mm)H 9308-2-VE10 For 9313 - 5-7/8” (149mm)H

146

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Metal Drawers & Gallery Rail Systems

Grass Integra 3500 Adjustable Gallery Rail

for Integra Drawers

• For Integra Drawers with tall fronts and tall wooden drawer backs.
• White fjnish.
• 3500 Set includes: 2 side gallery rails, 2 front fjxing parts, 2 back fjxing

parts, 2 cover caps. Product # Description Qty/Box 3500-550-2 Gallery Rail Set - 22” (550mm) 1 set/box. Sold per set. 3570-1000-2 Divider Rail - 39-3/8” (1000mm) 20/box. Sold individually. 3575-2-VE20 Divider Clip

Grass Integrafjt Drilling Jig

• Grass Integrafjt Drilling Jig
• Predrilling of fjxings positions for Integra front fjxings and Integra Quick

bottom mounting.

• Set Includes: 3/16” (5mm) marker, 3/8” (10mm) marker.
• 1/box. Sold individually.

Product # 3960

Grass Integra Marker Jig

for Integra Quick Front Fixing Brackets

• Grass Integra Marker jig.
• For use with Integra Quick Front Fixing Brackets 9105 / 9205 / 9305.
• Set includes: left part, right part & 4 marker tips.
• 1 set/box. Sold per set.

Product # 3986-VE1

Grass Integra 3570 Gallery Rail

for Pull-out Shelf

• Railing for single and double gallery surround or divider railing.
• Use with Grass 1702 single extension slides, sold separately.
• White epoxy coated aluminum tube.
• 20/box. Sold individually.

Product # Description 3570-1000-2 Rail - 39-3/8” (1000mm) 3575-2-VE20 Divider Clip 3576-2-VE20 Single Corner Post

File Rail Systems

Grass Integra 3595 Pendafmex File Railing

• For use with Grass Integra drawers.
• Front tilt adjustment with screw.
• Anodized aluminum fjnish.
• 3595 Sets include: 2 side gallery rails, 2 front fjxing parts, 2 back fjxing

parts, 2 cover caps. Product # Description Qty/Box 3595-500-22 File Railing Set - 20” (500mm) 20 set/box. Sold per set. 3595-550-22 File Railing Set - 22” (550mm) 3597-1200-22 Divider Rail - 47-1/4”(1200mm) 20/box. Sold individually. 3599 Divider Clips

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 147

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

Snap-On File Hanging System

• File rails & clips made of sturdy, rigid PVC.
• Patented clips glide smoothly along plastic hangers for easy fjle adjust-

ment, allowing for letter and legal sized fjling in the same drawer in a neat, organized manner.

• Includes a snap feature, which gives an audible click when snapped onto

the fjle rail to help you confjrm that it is securely in place.

• NOTE: File Rails, cross clips and fjle bars sold separately.

Product # Description Finish Qty/Box 2311.001.60 1/2” x 96”L File Rail White 60/box. Sold individually. 2311.003.60 1/2” x 96”L File Rail Black 94010.001T Cross Rail Clip White 1000/box. Sold individually. 94010.003T Cross Rail Clip Black CFB12X48 1/2” x 48” Cross Bar Aluminum 100/box. Sold individually.

Letter/Legal File Rail Sets

• Versatile, can be used with wood or metal drawer box systems.
• Includes components for front-to-back and side-to-side fjling.
• File rails snap into place and adjust easily between fjling confjgurations.
• Attractive black fjnish, mounts easily with screws.
• Fits drawer boxes up to 26” deep.
• Set Contains: Cut to size, letter/legal fjle drawer system with T-Rod

divider.

• 1 set/box. Sold per set.

Product # Description FFSK2-LT Letter Size (12-1/8”-12-3/16”W) FFSK3-LG Legal Size (15-1/8”-15-3/16”W)

Letter/Legal File Rail Systems

• Available in both letter and legal size dimensions.
• Features front and back frames that fasten to the drawer box.
• LGFD: Versatile T-Rod to divide drawer into two sections to hold letter

and legal size folders.

• Designed for base 18 and base 21 cabinets.
• Can be trimmed to fjt virtually any cabinet drawer.
• SMFD: 13”W x 19-1/4”L x 9-3/4”H.
• LGFD: 15-7/8” x 19-1/4”L x 9-3/4”H
• 1 set/box. Sold per set.

Product # Description LGFD-52 Legal/Letter File System SMFD-52 Letter FIle System

Index Followers & Track

• 475 Card Size: 2-11/16”H x 4-3/4”W.
• For 475 Install: Recess track into 1-3/4 x 1/4”W slot.
• 476 Letter Size: 7-5/8”H x 10-3/4”W.
• For 476 Install: Recess track into 2-1/4” x 1/4”W slot.
• Screws included with track.
• Made in the USA.
• 10/box. Sold individually.

Product # Description 475FZC Card Size Index Follower 476FZC Letter Size Index Follower 476TZC26 26”L Track

148

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Drawer Slide Accessories

Spacer/Distance Blocks

• Provides side clearance for interior drawers and pull-out shelves.
• 2 mounting holes compatible with 32mm boring system and one center

euro screw hole to mount drawer slide to spacer.

• Install using euro screws (not included).
• White plastic.
• 100/box. Sold individually.

Product # Height 3600WH-22 1/2” 3601WH-22 3/4” 3602WH-22 1”

Distance Block

• Provides side clearance for interior drawers and pull-out shelves.
• Dowel mount: 5mm dowel pin.
• 100/box. Sold individually.

Product # Finish 3802-13-VE100 White

Spacer/Distance Blocks

• Provides side clearance for interior drawers and pull-out shelves.
• 1” overall diameter; 1/4” diameter center euro screw hole.
• Install using euro screw (not included).
• White plastic.
• 100/box. Sold individually.

Product # Height 3611WH-22 1/2”

Drawer Front Adjuster

• Allows for independent adjustment for drawer front.
• Black plastic, screw included.
• Fits into 25mm hole.
• 200/box. Sold individually.

Product # 351-002-01-2662

Face Frame Inset Bracket

• Optional bracket for face frame applications when using Grass Dynapro

and other concealed undermount drawer slides.

• Works with all inset applications.
• Bracket mounts behind the face frame, minimum 1/2” (12.7mm) frame
• fgset required.
• Slide attaches easily with one screw.
• Bracket includes guide markings for proper setback.
• Screws included.
• 50 pr/box. Sold per pair.

Product # Grass# DPISB 13901-08

Face Frame Mounting Bracket

• Designed for face frame mounting of ball-bearing drawer slides.
• Installs with screws (not included).
• 50/box. Sold individually.

Product # 601-22

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com 149

To Order – Call 509.535.1663 or 800.888.1663 Drawer Slides / Drawer Glides

CABINET HARDWARE

Bainbridge Slide-out Tray Bumper

• Protects interior of cabinet doors from damage caused by roll-out trays

and shelves, mounts to front corner of shelf.

• 7/16” high with reference tab.
• Overall size: 1-1/8”H x 3/4”W.
• White plastic.
• 100/box. Sold individually.

Product # 4601WH-32

Metal Kolbe Korners

• Front-mounting bracket for shaker-style drawers.
• Small, thin design, for a commercial environment.
• 1-3/4”H x 3/4”W x 1/2”D.
• Koble Korners & screws sold separately.
• 1 pk/box. Sold per pk.

Product # Description Finish Qty/Pk KK50PCMETALTAN Kolbe Corner Tan 50 KK50PCMETALWHITE Kolbe Corner White 50 KKMET50SCRTAN Screws Tan 50 KKMET50SCRWH Screws White 50

Rear Mount Drawer Slide Guide

• Mounts on rear of drawer.
• For 5/16” x 1-3/16” wood drawer slides.
• Install using #6 pan head screws (not included).
• Overall size: 2-1/2” x 1-3/4”

.

• 50/box. Sold individually.

Product # 509GRN-22

Rear Mount Drawer Slide Guide

• Mount on rear of drawer.
• For 3/8” x 1” wood drawer rails.
• Install using #6 pan head screws (not included).
• Overall size: 2”W x 1-1/2”H.
• 50/box. Sold individually.

Product # 510-22

Rear Mount Drawer Slide Guide

• Mount on rear of drawer.
• For 1/4” x 1-1/8” wood drawer slides.
• Install using #6 pan head screws (not included).
• Overall Size: 2-7/16”W x 1-7/8”

.

• 50/box. Sold individually.

Product # 514-22

Rear Mount Drawer Slide Guide

• Use on back of drawer to guide slide.
• For 3/16” x 1-5/16” metal drawer slides.
• Install using #6 pan head screws (not included).
• Overall size: 2-1/2”W x 1-5/8”H.
• 50/box. Sold individually.

Product # 520-22

150

TEL 509.535.1663 TOLL-FREE 800.888.1663

www.spokanehardware.com

Builders Hardware Specialists Since 1945

CABINET HARDWARE

Drawer Slides / Drawer Glides

Drawer Slide Accessories

KV Rear Mount Socket

for KV 1284 Series Slides

• Rear mount socket designed for use with Knape and Vogt 1284 Series

European slides (non-stock) in face frame applications.

• Screw mount, screws not included.
• Made of plastic.
• Inside Opening Size: 1-1/8”(29mm)H x 3/8”(10mm)W
• 200/box. Sold individually.

Product # Handing 1284-4L Left 1284-4R Right

Drawer Roller Guide

• Excellent for soft wood or particle board applications.
• Installs with nails or staples (not included).
• Wheel diameter: 7/8”

.

• 100/box. Sold individually.

Product # Handing Color 705L-32 Left White 705R-32 Right Brown

Press-Fit Drawer Stop

• Helps prevent drawer from sliding all the way out of opening.
• To remove drawer, press the drawer stop lever upward.
• Press fjts into 8mm hole.
• White plastic.
• 1000/box. Sold individually.

Product # 430-09-150

Indamatic Soft-Close Device for Wood Drawers

• Converts any drawer that already has a drawer slide into a soft closing

drawer, without changing the drawer slides.

• Silent, no bounce-back, soft closing takes efgect from 2” out in front of

cabinet.

• For use on wood or melamine drawers with 1/2” side clearance per side.
• For best functioning, install on drawers with Euro slides up to 16”

. If using ball bearing drawer slides, the rubber stop on the slides must be

• removed. Drawer will be held closed with piston and spring mechanism.
• On drawers wider than 18”

, very heavy drawers or drawers with ball- bearing slides, two INDAMATICs should be used.

• Actuator features 4mm of height adjustment.
• Easy to install.
• Screw holes are on 32mm centers, install using #6 x 1/2 fmat head screws

(not included).

• Overall length is 8-1/2” x 3/4” wide
• 1/box. Sold individually.

Product # IND-1-SC

Flexa-Touch Drawer Opener

• Designed to allow drawers to be opened just by pushing on the front.
• Adjustable for fmush alignment.
• 7/8” Adjustment, 2-1/8” min. to 3” max.
• Includes screws.
• 25/box. Sold individually.

Product # Finish 1021-L-12 Beige
