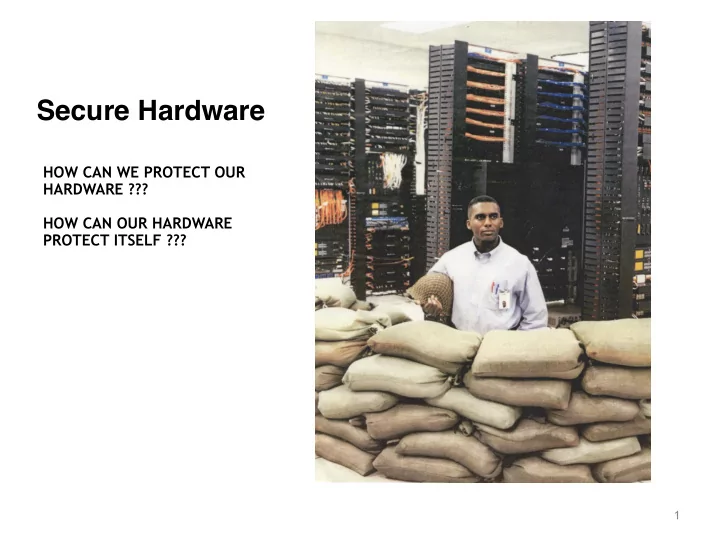

HOW CAN WE PROTECT OUR HARDWARE ??? HOW CAN OUR HARDWARE PROTECT ITSELF ???

1

Secure Hardware

2

O’Reilly

Trusted or Trustworthy?

An object is trusted if and only if it operates as expected An object is trustworthy if and only if it is proven to operate as expected.

3

• Peter Neumann (paraphrased)

4

What Do TPMs Do? (Trusted Computing)

• Store secrets (keys)
• Protect secrets against infected systems.
• Provide a repository for trusted system measurements that a

compromised platform cannot lie about when interrogated.

• TPMs can best be described as platform trust coprocessors.
• TPMs are also very useful in enabling verified boot of OS’s and

hypervisors.

Other useful features of TPMs

• Policy protected persistent secure storage (for keys, certificates, and
• ther data)
• Keys

– Generate, store, and use symmetric and asymmetric keys – Key hierarchy – key encrypting keys, platform keys, endorsement keys, storage root keys – Key cache – Key migration – Key usage policy enforcement

• Random number generation
• Limited crypto in TPM 2.0 (sign, verify, encrypt, decrypt)
• Most TPM chips are FIPS 140-2 validated
• Common Criteria protection profile for chips themselves (not the

systems they are in)

6 IBM Confidential

Platform Configuration Registers (PCR)

• In volatile storage in TPM
• SHA-256 cumulative hash
• Initialized to zero at TPM initialization

NEVER written to directly, always extended

PCRnew = SHA-256(PCRold || new value)

7

8

9

10

Because of the unknown order of the contents of the cumulative hash, you also need it to send you its log.

11

Extreme HW Security

12

13

The Threat Model

– Who are the attackers?

• buggy software from business partners (intent is not required!)
• system administrators?
• employee insiders?
• thrill-seeking hackers?
• terrorists?
• organized nation-states?

– What resources do they have? – What attacks are anticipated?

14

What can a successful attacker gain?

– notoriety – money – life and limb of others – a marketable identity – defeat of an enemy in wartime – control of

• a flight deck?
• the brake system?
• the on-board movie?
• the radio of the BMW next to me in

traffic?

15

How will my product defend itself?

Physical – it’s own enclosure – the enclosure of the system it’s in – a secure environment (inside the Pentagon) – inspection / human beings / dogs Logical / software – Encryption of sensitive material – Authentication of operators – Integrity of incoming commands and software – Integrity of on-board memory – Integrity of the bootstrap / factory initialization

16

Why secure hardware?

• Because we all doing . . .

– Increasingly important operations – In increasingly distributed environments – That are increasingly open

• As a consequence . . .

– We need to trust machines we cannot control – And to which motivated adversaries may have direct access

17

What is a secure coprocessor?

• A general-purpose computing environment that withstands

physical and logical attacks

• It runs only the programs it’s supposed to
• It runs them unmolested
• One can (remotely) tell the difference between the real

program on the real thing, and a clever impersonator

• An attacker might carry out destructive analysis on one or more

devices, yet not break the security of the whole system

• Usually incorporates high-performance crypto, but not just a

fast crypto box

18

What do applications need from secure hardware?

• Acceleration of security operations (e.g. cryptography, random

number generation)

• Physical protection of information assets
• Cryptographic keys
• Electronic valuables (e.g. e-cash, postage, coupons)
• Software (e.g. meters, risk calculations)
• Enablement of network security operations (e.g. intrusion

detection)

19

Some applications for secure hardware

• Network security
• Intrusion and virus defense, filtering, virtual private networks
• E-commerce
• Electronic payments, e-postage/tickets/coupons, smart card

personalization

• Data centers
• Secure databases (e.g. healthcare, corporate secrets),

entertainment content

• Banking and finance
• Securities trading, transaction processing and funds transfer
• Government and military
• Benefits transfer, government suppliers, high assurance

systems for defense, intelligence, justice

20

IBM PCI-X Cryptographic Coprocessor (PCIXCC)

▪ Announced in September, 2003 ▪ Greatly improved performance ▪ PCI-X and network interface ▪ Same physical / logical security feature set as 4758 ▪ Certified FIPS 140-2 level 4

21

Proprietary pipelining hardware DES/TDES engine Modular math engine SHA-1 engine Hardware random number generator Active tamper-detection
 and response circuitry

4764 hardware architecture

CPU Time of day clock FLASH (4MB) DRAM (4MB) ROM (64KB) Proprietary memory interlock Battery-backed RAM (8KB) I/O (PCI, serial port) Tamper-responding membrane 266+MHz PowerPC SoC PCI/X, Ethernet 64MB ECC 16MB 1MB 128KB

New pipeline and crypto ASICs
 w/ much better performance (e.g. 50X in some cases)

22 20 January 2006

Daughter card

23 20 January 2006

Inner copper enclosure

24 20 January 2006

Tamper-sensing mesh/membrane

25 20 January 2006

Outer copper shell and potting material

26 20 January 2006

Completed assembly

27

IBM 4769 PCIe Cryptographic Coprocessor (HSM)

2019

28

IBM 4769 PCIe Cryptographic Coprocessor (HSM)

Matchbox: Solution Overview

• Allows collaborative

procesing amongst parties that do not trust each other

• One or more parties provide

data (kept encrypted)

• One or more parties make

requests (request encrypted, processing in secure coprocessor)

• One or more parties gets

the results (transmission encrypted)

Solution Components

• IBM 4758
• MatchBox software

Matchbox: Solution

• All processing and

distributed results are based on automatically enforced contracts

• Sensitive processing is

confined within the secure coprocessor (IBM 4758) and is not

• bservable from outside
• Sensitive data outside

the coprocessor is always encrypted

• Secure matching of

biometrics

Agency 2

Auth/Enc (4758)

Agency 1

Auth/Enc (4758)

. . . . .

Law Enforcement

Auth/Enc (4758)

Airline 1

Airport

Airline 2

Law Enforcement

Auth/Enc (4758)

Railroad 1

Railroad

secure matching in 4758 secure matching in 4758 secure matching in 4758 secure matching in 4758 secure matching in 4758 secure matching in 4758

Matchbox service

Auth/Enc (4758)

31 9/29/19

FIPS 140-2 Physical Security Requirements

Level 1 – production grade Level 2 – tamper evident Level 3 – tamper resistant Level 4 – tamper responding

32 9/29/19

FIPS 140-2 Level 1 – Production Grade analogy

Ordinary snap-cap bottles

33 9/29/19

FIPS 140-2 Level 2 – Tamper Evident analogy

Tamper evident bottle caps ▪ alert the user to tampering ▪ require inspection (rely on humans for protection)

34 9/29/19

FIPS 140-2 Level 3 – Tamper Resistant analogy

Child resistant medicine bottle caps resist opening by unauthorized users (children). Tamper resistance → device begins to protect itself

35 9/29/19

FIPS 140-2 Level 4 – Tamper Responding analogy

The PillSafe™ stacks drug tablets next to a stable chemical reactant that can destroy the drugs. Attempts to force the mechanism or penetrate the bottle cause instant destruction of the medication. Tamper responding → device protects itself

See http://www.healthcarepackaging.com/archives/2007/03/futuristic_pill_container_zaps.php

36 9/29/19

FIPS level 1 (out of 4) – the bare mimimum

Requirements are mainly cumulative, with a few exceptions

• Mainly algorithmic compliance (“our AES is compatible with

yours”)

• Limited testing outside algorithm verification
• Important indication if certified (but check security policy)
• Double-check algorithm certificates (key sizes, modes etc.)
• State transition diagrams

37 9/29/19

FIPS level 2 (out of 4)

• Level 1 and . . .
• crypto users are identified acting in roles
• Not very useful for software modules
• Limited use for modules which provide only raw operations
• Must authenticate user’s role
• Visible tamper evidence is not very relevant today:

– One does not actually see most devices interacted with – Most devices themselves have disappeared into systems (or onto chips) – This was still feasible when FIPS 140-1 was written – Still useful in some restricted environments (example: ATMs)

38 9/29/19

FIPS and CC roles and identities

• Users must be identified / authenticated somehow
• Users can be companies or software, not

necessarily human beings, e.g.

– Human being in Personnel – IBM as a microcode and operating system loader – An operating system as an application loader

39 9/29/19

FIPS level 3 (out of 4)

• Level 2 and. . .
• Infeasible for practical software, unless protected by a Level 3+

enclosure (plus other features)

• Additional, extensive testing over Levels 1-2
• User separation / identification required (more than in Level 2)

40 9/29/19

FIPS levels 3-4 (out of 4)

• Sample tamper-detecting/evident box (Level 4)
• One needs to certify the tamper-evident box itself, not product hosting it
• There are different, obvious hacks around this, some truly innovative

41 9/29/19

FIPS level 4

• Level 4: tamper response

– Highest level achievable (much stronger than Level 3) – Module actively protects itself

• Physical intrusion
• Environmental parameters
• Optionally against side channels attacks

– Level 4 specific features

• Active testing for environment-related failures
• Requires some formal verification

– Very few Level 4 devices exist (almost all from IBM) – Level 4 devices may be deployed to untrusted environments

Detection - Physical Unclonable Functions (PUFs)

• Do not store key in digital form
• Generate key during usage then erase

COMPOSITE SECURITY

43

Sometimes the sum of the parts… is a HOLE !

44

David Safford, IBM Research

45 9/29/19

Composite Evaluation: frequently misunderstood

Common false assumptions: “By using a certified product/library, added components themselves become certified” “By layering multiple certified components, the whole system becomes certified” Reality: Unless very carefully applied, composing two evaluations can actually result in LESS security than each component had on its own
