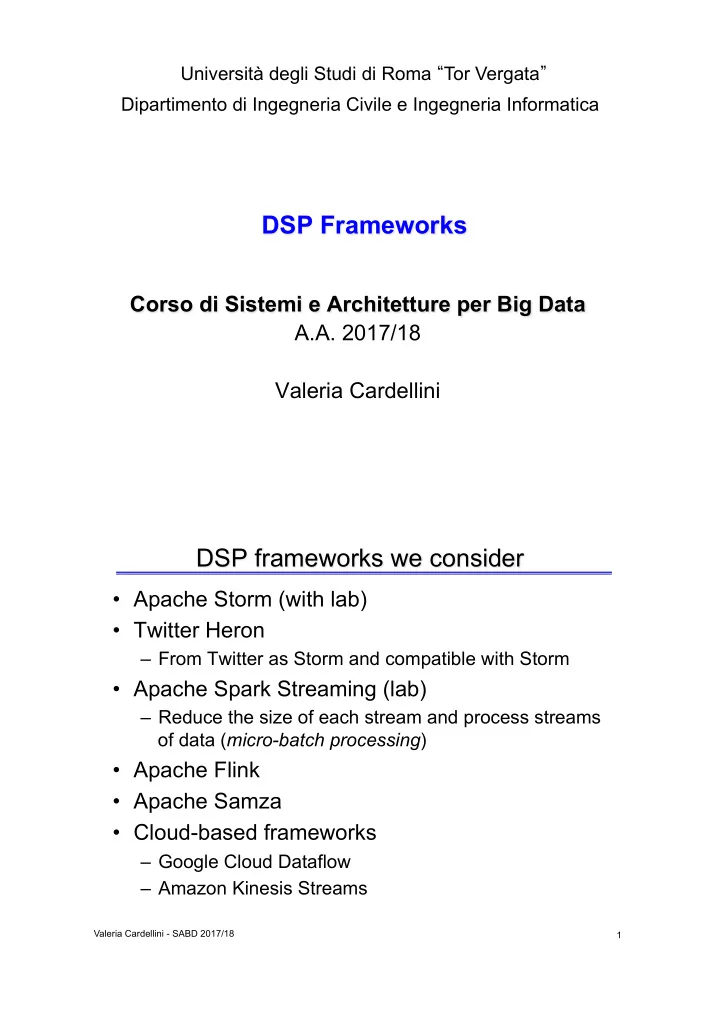

DSP Frameworks Corso di Sistemi e Architetture per Big Data A.A. - - PDF document

Università degli Studi di Roma “Tor Vergata” Dipartimento di Ingegneria Civile e Ingegneria Informatica

DSP Frameworks

Corso di Sistemi e Architetture per Big Data A.A. 2017/18 Valeria Cardellini

DSP frameworks we consider

• Apache Storm (with lab)
• Twitter Heron

– From Twitter as Storm and compatible with Storm

• Apache Spark Streaming (lab)

– Reduce the size of each stream and process streams

• f data (micro-batch processing)
• Apache Flink
• Apache Samza
• Cloud-based frameworks

– Google Cloud Dataflow – Amazon Kinesis Streams

1 Valeria Cardellini - SABD 2017/18

Apache Storm

• Apache Storm

– Open-source, real-time, scalable streaming system – Provides an abstraction layer to execute DSP applications – Initially developed by Twitter

• Topology

– DAG of spouts (sources of streams) and bolts (operators and data sinks)

2 Valeria Cardellini - SABD 2017/18

Stream grouping in Storm

• Data parallelism in Storm: how are streams

partitioned among multiple tasks (threads of execution)?

• Shuffle grouping

– Randomly partitions the tuples

• Field grouping

– Hashes on a subset of the tuple attributes

Valeria Cardellini - SABD 2017/18 3

Stream grouping in Storm

• All grouping (i.e., broadcast)

– Replicates the entire stream to all the consumer tasks

• Global grouping

– Sends the entire stream to a single task of a bolt

• Direct grouping

– The producer of the tuple decides which task of the consumer will receive this tuple

Valeria Cardellini - SABD 2017/18 4

Storm architecture

5 Valeria Cardellini - SABD 2017/18

• Master-worker architecture

Storm components: Nimbus and Zookeeper

• Nimbus

– The master node – Clients submit topologies to it – Responsible for distributing and coordinating the topology execution

• Zookeeper

– Nimbus uses a combination of the local disk(s) and Zookeeper to store state about the topology

Valeria Cardellini - SABD 2017/18 6

worker process

executor executor

THREAD THREAD JAVA PROCESS

task task task task task

Storm components: worker

• Task: operator instance

– The actual work for a bolt or a spout is done in the task

• Executor: smallest schedulable entity

– Execute one or more tasks related to same operator

• Worker process: Java process running one or

more executors

• Worker node: computing

resource, a container for

• ne or more worker processes

7 Valeria Cardellini - SABD 2017/18

Storm components: supervisor

• Each worker node runs a supervisor

The supervisor:

• receives assignments from Nimbus (through

ZooKeeper) and spawns workers based on the assignment

• sends to Nimbus (through ZooKeeper) a

periodic heartbeat;

• advertises the topologies that they are

currently running, and any vacancies that are available to run more topologies

Valeria Cardellini - SABD 2017/18 8

Twitter Heron

• Realtime, distributed, fault-tolerant stream

processing engine from Twitter

• Developed as direct successor of Storm

– Released as open source in 2016 https://twitter.github.io/heron/ – De facto stream data processing engine inside Twitter

• Goal of overcoming Storm’s performance,

reliability, and other shortcomings

• Compatibility with Storm

– API compatible with Storm: no code change is required for migration

Valeria Cardellini - SABD 2017/18 9

Heron: in common with Storm

• Same terminology of Storm

– Topology, spout, bolt

• Same stream groupings

– Shuffle, fields, all, global

• Example: WordCount topology

Valeria Cardellini - SABD 2017/18 10

Heron: design goals

• Isolation

– Process-based topologies rather than thread-based – Each process should run in isolation (easy debugging, profiling, and troubleshooting) – Goal: overcoming Storm’s performance, reliability, and other shortcomings

• Resource constraints

– Safe to run in shared infrastructure: topologies use

• nly initially allocated resources and never exceed

bounds

• Compatibility

– Fully API and data model compatible with Storm

Valeria Cardellini - SABD 2017/18 11

Heron: design goals

• Backpressure

– Built-in rate control mechanism to ensure that topologies can self-adjust in case components lag – Heron dynamically adjusts the rate at which data flows through the topology using backpressure

• Performance

– Higher throughput and lower latency than Storm – Enhanced configurability to fine-tune potential latency/throughput trade-offs

• Semantic guarantees

– Support for both at-most-once and at-least-once processing semantics

• Efficiency

– Minimum possible resource usage

Valeria Cardellini - SABD 2017/18 12

Heron topology architecture

• Master-work architecture
• One Topology Master (TM)

– Manages a topology throughout its entire lifecycle

• Multiple Containers

– Each Container multiple Heron Instances, a Stream Manager, and a Metrics Manager – A Heron Instance is a process that handles a single task of a spout or bolt – Containers communicate with TM to ensure that the topology forms a fully connected graph

Valeria Cardellini - SABD 2017/18 13

Heron topology architecture

Valeria Cardellini - SABD 2017/18 14

Heron topology architecture

• Stream Manager (SM): routing engine for data

streams

– Each Heron connects to its local SM, while all of the SMs in a given topology connect to one another to form a network – Responsbile for propagating back pressure

Valeria Cardellini - SABD 2017/18 15

Topology submit sequence

Valeria Cardellini - SABD 2017/18 16

Self-adaptation in Heron

• Dhalion: framework on top of Heron to autonomously

reconfigure topologies to meet throughput SLOs, scaling resource consumption up and down as needed

Valeria Cardellini - SABD 2017/18 17

• Phases in Dhalion:
• Symptom detection

(backpressure, skew, …)

• Diagnosis generation
• Resolution
• Adaptation actions:

parallelism changes

Heron environment

• Heron supports deployment on Apache

Mesos

• Can also run on Mesos using Apache Aurora

as a scheduler or using a local scheduler

Valeria Cardellini - SABD 2017/18 18

Batch processing vs. stream processing

• Batch processing is just a special case of

stream processing

Valeria Cardellini - SABD 2017/18 19

Batch processing vs. stream processing

• Batched/stateless: scheduled in batches

– Short-lived tasks (Hadoop, Spark) – Distributed streaming over batches (Spark Streaming)

• Dataflow/stateful: continuous/scheduled once

(Storm, Flink, Heron)

– Long-lived task execution – State is kept inside tasks

Valeria Cardellini - SABD 2017/18 20

Native vs. non-native streaming

Valeria Cardellini - SABD 2017/18 21

Apache Flink

• Distributed data flow processing system
• One common runtime for DSP applications

and batch processing applications

– Batch processing applications run efficiently as special cases of DSP applications

• Integrated with many other projects in the
• pen-source data processing ecosystem

Valeria Cardellini - SABD 2017/18 22

• Derives from Stratosphere

project by TU Berlin, Humboldt University and Hasso Plattner Institute

• Support a Storm-compatible API

Flink: software stack

Valeria Cardellini - SABD 2017/18 23

• On top: libraries with high-level APIs for different

use cases, still in beta

Flink: programming model

• Data stream

– An unbounded, partitioned immutable sequence

• f events
• Stream operators

– Stream transformations that generate new output data streams from input ones

Valeria Cardellini - SABD 2017/18 24

Flink: some features

• Supports stream processing and windowing

with Event Time semantics

– Event time makes it easy to compute over streams where events arrive out of order, and where events may arrive delayed

• Exactly-once semantics for stateful

computations

• Highly flexible streaming windows

Valeria Cardellini - SABD 2017/18 25

Flink: some features

• Continuous streaming model with

backpressure

• Flink's streaming runtime has natural flow

control: slow data sinks backpressure faster sources

Valeria Cardellini - SABD 2017/18 26

Flink: APIs and libraries

• Streaming data applications: DataStream API

– Supports functional transformations on data streams, with user-defined state, and flexible windows – Example: how to compute a sliding histogram of word occurrences of a data stream of texts

Valeria Cardellini - SABD 2017/18 27

WindowWordCount in Flink's DataStream API

Sliding time window of 5 sec length and 1 sec trigger interval

Flink: APIs and libraries

• Batch processing applications: DataSet API
• Supports a wide range of data types beyond

key/value pairs, and a wealth of operators

Valeria Cardellini - SABD 2017/18 28

Core loop of the PageRank algorithm for graphs

Flink: program optimization

• Batch programs are automatically optimized

to exploit situations where expensive

• perations (like shuffles and sorts) can be

avoided, and when intermediate data should be cached

Valeria Cardellini - SABD 2017/18 29

Flink: control events

• Control events: special events injected in the data

stream by operators

• Periodically, the data source injects checkpoint barriers

into the data stream by dividing the stream into pre- checkpoint and post-checkpoint

• More coarse-grained approach than Storm: acks sequences of

records instead of individual records

• Watermarks signal the progress of event-time within a

stream partition

• Flink does not provide ordering guarantees after any

form of stream repartitioning or broadcasting

– Dealing with out-of-order records is left to the operator implementation

Valeria Cardellini - SABD 2017/18 30

Flink: fault-tolerance

• Based on Chandy-Lamport distributed

snapshots

• Lightweight mechanism

– Allows to maintain high throughput rates and provide strong consistency guarantees at the same time

Valeria Cardellini - SABD 2017/18 31

Flink: performance and memory management

• High performance and low latency
• Memory management

– Flink implements its own memory management inside the JVM

Valeria Cardellini - SABD 2017/18 32

Flink: architecture

Valeria Cardellini - SABD 2017/18 33

• The usual master-worker architecture

Flink: architecture

Valeria Cardellini - SABD 2017/18 34

• Master (Job Manager): schedules tasks,

coordinates checkpoints, coordinates recovery

• n failures, etc.
• Workers (Task Managers): JVM processes

that execute tasks of a dataflow, and buffer and exchange the data streams

– Workers use task slots to control the number of tasks it accepts – Each task slot represents a fixed subset of resources of the worker

Flink: application execution

• Jobs are expressed as data flows
• The job graph is transformed into the

execution graph

• The execution graph contain information to

schedule and execute a job

Valeria Cardellini - SABD 2017/18 35

Flink: infrastructure

• Designed to run on large-scale clusters with

many thousands of nodes

• Provides support for YARN and Mesos

Valeria Cardellini - SABD 2017/18 36

A recent need

• A common need for many companies

– Run both batch and stream processing

• Alternative solutions

– Lambda architecture – Unified frameworks: Spark, Flink, Samza – Unified programming model: Apache Beam

Valeria Cardellini - SABD 2017/18 37

Lambda architecture

• Data-processing design pattern to integrate batch and

real-time processing

• Streaming framework used to process real-time events,

and, in parallel, batch framework (e.g., Hadoop/Spark) deployed to process the entire dataset (perhaps periodically)

• Results from the two parallel pipelines are then merged

38 Source: https://voltdb.com/products/alternatives/lambda-architecture Valeria Cardellini - SABD 2017/18

Lambda architecture: example

Valeria Cardellini - SABD 2017/18 39

• Lambda architecture used at LinkedIn before

Samza development

Lambda architecture

• Pros:

– Flexibility in the frameworks’ choice

• Cons:

– Implementing and maintaining two separate frameworks for batch and stream processing can be hard and error-prone – Overhead of developing and managing multiple source codes

• The logic in each fork evolves over time, and keeping

them in sync involves duplicated and complex manual effort, often with different languages

Valeria Cardellini - SABD 2017/18 40

Unified frameworks

• Use a unified (Lambda-less) design for

processing both real-time as well as batch data using the same data structure

• Spark, Flink and Samza follow this trend

Valeria Cardellini - SABD 2017/18 41

Apache Beam

• A new layer of abstraction
• Provides advanced unified programming model

– Allows to define batch and streaming data processing pipelines that run on any execution engine (for now: Flink, Spark, Google Cloud Dataflow) – Java, Python and Go as programming languages

• Translates the data processing pipeline defined

by the user with the Beam program into the API compatible with the chosen distributed processing engine

• Developed by Google and released as open-

source top-level project

Valeria Cardellini - SABD 2017/18 42

Apache Samza

• A distributed system for stateful and fault-

tolerant stream processing

– A unified framework for batch and stream processing: similarly to Flink, streams as first-class citizen, batch as special case of streaming – Production at LinkedIn since 2014

• Uses Kafka for messaging and YARN to

provide fault tolerance, processor isolation, security, and resource management

Valeria Cardellini - SABD 2017/18 43

Apache Samza

• Why stateful and fault-tolerant processing? User

profiles, email digests, aggregate counts, …

• Example: Email Digestion System

– Production application running at LinkedIn using Samza to digest updates into one email

Valeria Cardellini - SABD 2017/18 44

Apache Samza: features

• Provides distributed and scalable data

processing with

– Configurable and heterogeneous data sources and sinks (e.g., Kafka, HDFS, AWS Kinesis) – Efficient state management: local state (in memory

• r on disk) partitioned among tasks (rather than

using a remote data store) and incremental checkpointing (more efficient than full state checkpointing) – Unified processing API for stream and batch processing

• Differently for Flink

– Flexible deployment models

Valeria Cardellini - SABD 2017/18 45

Apache Samza: architecture

• Samza is made up of three layers:

– A streaming layer: Kafka – An execution layer: YARN – A processing layer: Samza API

Valeria Cardellini - SABD 2017/18 46

Apache Samza: architecture

• Samza, YARN and Kafka interaction

Valeria Cardellini - SABD 2017/18 47

• RM: YARN ResourceManager
• NM: YARN NodeManager
• AM: ApplicationMaster
• Samza client uses YARN to run

a Samza job

• YARN starts and supervises one
• r more SamzaContainers, and

the processing code (using the StreamTask API) runs inside those containers

• The input and output for the

Samza StreamTasks come from Kafka brokers

Apache Samza: running an application

• Count the number of page views aggregated by

user ID

• Two Samza jobs: one to group messages by user

ID, the other to do the counting

Valeria Cardellini - SABD 2017/18 48

Apache Samza: state management

• Common approach (e.g., in Storm) to deal with large

amounts of state: use a remote data store (e.g., Redis)

• Samza approach: keep state local to each node and

make it robust to machine failures by replicating state changes across multiple machines

Valeria Cardellini - SABD 2017/18 49

Apache Samza: high-level API

Valeria Cardellini - SABD 2017/18 50

Apache Samza: example application

• Samza job to find top-k trending tags

– DAG for the logical representation of the application

Valeria Cardellini - SABD 2017/18 51

Apache Samza: example application

Valeria Cardellini - SABD 2017/18 52

Towards strict delivery guarantees

• Most frameworks provide at-least-once delivery

guarantees (e.g., Storm, Samza)

– For stateful non-idempotent operators such as counting, at- least-once delivery guarantees can give incorrect results

• Flink, Storm with Trident, and Google’s MillWheel offer

stronger delivery guarantees (i.e., exactly-once)

– Exactly-once low latency stream processing in MillWheel works as follows:

• The record is checked against de-duplication data from previous

deliveries; duplicates are discarded

• User code is run for the input record, possibly resulting in pending

changes to timers, state, and productions

• Pending changes are committed to the backing store
• Senders are acked
• Pending downstream productions are sent

Valeria Cardellini - SABD 2017/18 53

Source: MillWheel: Fault-Tolerant Stream Processing at Internet Scale, VLDB 2013.

DSP in the Cloud

• Data streaming systems are also offered as

Cloud services

– Amazon Kinesis Data Streams – Google Cloud Dataflow – IBM Streaming Analytics – Microsoft Azure Stream Analytics

• Abstract the underlying infrastructure and

support dynamic scaling of the computing resources

• Appear to execute in a single data center

Valeria Cardellini - SABD 2017/18 54

Google Cloud Dataflow

• Fully-managed data processing service, supporting

both stream and batch execution of pipelines

– Transparently handles resource lifetime and can dynamically provision resources to minimize latency while maintaining high utilization efficiency – On-demand and auto-scaling

• Provides a unified programming model and a

managed service for developing and executing a wide range of data processing patterns including ETL, batch computation, and continuous computation

– Apache Beam model

• Provides exactly-once processing

– MillWheel is Google’s internal version of Cloud Dataflow

Valeria Cardellini - SABD 2017/18 55

Google Cloud Dataflow

• Seamlessly integrates with other Google cloud

services

– Cloud Storage, Cloud Pub/Sub, Cloud Datastore, Cloud Bigtable, and BigQuery

• Apache Beam SDKs, available in Java and Python

– Enable developers to implement custom extensions and choose other execution engines

Valeria Cardellini - SABD 2017/18 56

Amazon Kinesis Data Streams

• Allows to build applications that process and

analyze streaming data

Valeria Cardellini - SABD 2017/18 57

Kinesis Data Streams: components

• Data record

– Unit of data stored by Kinesis

• Stream: group of data records

– Data producers write data records to Kinesis streams – Data records in the stream are distributed into shards

• Shard: sequence of data records in a stream

– Number of shards in a stream specified when the stream is created

• Can then be increased or decreased as needed but manually

– Base unit of capacity: up to 1MB/s of written data and 2MB/s

• f read data

– Partition key used to group data by shard within a stream – Used also for service pricing http://amzn.to/2szRTkG – Data records are stored in shards temporarily (24 hours by default)

Valeria Cardellini - SABD 2017/18 58

Kinesis Data Streams: consuming data

• Kinesis Data Streams is used to capture streaming

data

• An application reads data from a Kinesis stream as

data records, then uses the Kinesis Client Library (KCL) for the processing logic

– KCL takes care of: load-balancing across multiple EC2 instances, responding to instance failures, check-pointing processed records, reacting to re-sharding (that adjusts the number of shards)

Valeria Cardellini - SABD 2017/18 59

References

• Overview on DSP frameworks

– Wingerath et al. “Real-time stream processing for Big Data”,

• 2016. http://bit.ly/2rUhXXG
• Kulkarni et al., “Twitter Heron: stream processing at

scale”, ACM SIGMOD'15. http://bit.ly/2rUXkux

• Carbone et al., “Apache Flink: Stream and batch

processing in a single engine”, Bulletin IEEE Comp. Soc.

• Tech. Comm. on Data Eng., 2015. http://bit.ly/2sYzoGb
• Noghabi et al., “Samza: Stateful scalable stream

processing at LinkedIn”, VLDB Endowment, 2017. https://bit.ly/2LushvF

• Akidau et al., “MillWheel: fault-tolerant stream processing

at Internet scale”, VLDB'13. http://bit.ly/2rE7Fa3

Valeria Cardellini - SABD 2017/18 60
