Marquette University | Milwaukee School of Engineering | Purdue University | University of California, Merced | University of Illinois, Urbana-Champaign | University of Minnesota | Vanderbilt University A Linkage Driven Variable Displacement Pump

slide-1

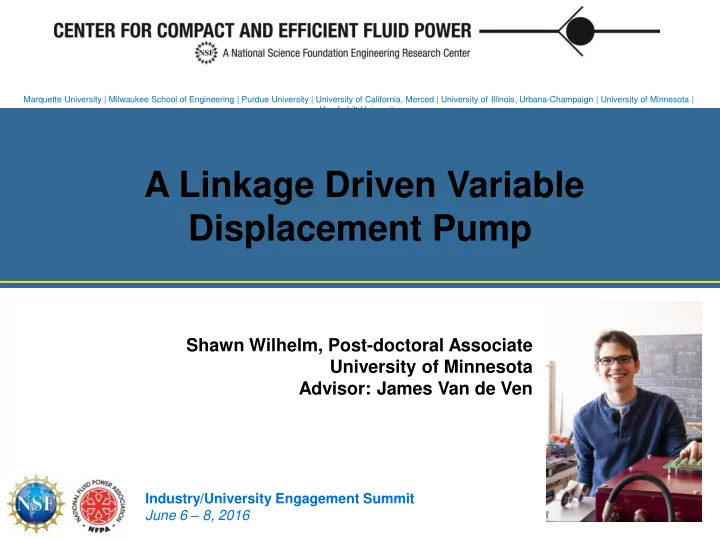

SLIDE 1

Marquette University | Milwaukee School of Engineering | Purdue University | University of California, Merced | University of Illinois, Urbana-Champaign | University of Minnesota | Vanderbilt University

A Linkage Driven Variable Displacement Pump

Shawn Wilhelm, Post-doctoral Associate University of Minnesota Advisor: James Van de Ven

Industry/University Engagement Summit June 6 – 8, 2016


slide-2
SLIDE 2

2

Hydraulic Systems are Inefficient

  • Low Efficiency of Fluid

Power Flow Control

– 50% Industrial – 20% Mobile

  • $20B wasted annually
  • 150 MMT of CO2
slide-3
SLIDE 3

3

Axial Piston Bent Axis

Losses In Existing Pumps Do Not Scale

  • Port plates lead to

high constant leakage rates at a given pressure independent of speed

slide-4
SLIDE 4

4

Variable Displacement Mechanism

  • Vary the stroke of a piston with no other

sliding joints

  • Eliminate Port Plate

Pouliot, H. N., Delameter, W. R., and Robinson, C. W., 1977, "A Variable Displacment Spark-Ignition Engine," No. 770114, SAE International.

slide-5
SLIDE 5

5

Advantage of Linkage Pump

  • High efficiency at low displacement
  • Losses scale with displacement

1800rpm 5000 psi

slide-6
SLIDE 6

6

Linkage Concept

Input Crank Slider Link Axis of Slide

6

slide-7
SLIDE 7

7

Linkage Concept

Input Crank Slider Link Axis of Slide Connecting Rod

7

slide-8
SLIDE 8

8

Linkage Concept

Input Crank Slider Link Axis of Slide Connecting Rod

8

slide-9
SLIDE 9

9

Input Crank Slider Link Axis of Slide Connecting Rod Rocker

9

Linkage Concept

slide-10
SLIDE 10

10

Input Crank Slider Link Axis of Slide Connecting Rod Rocker Adjustable Ground Pivot

10

Linkage Concept

slide-11
SLIDE 11

11

Input Crank Coupler Connecting Rod Slider Link Axis of Slide Adjustable Ground Pivot Rocker

11

Linkage Concept

slide-12
SLIDE 12

12

Input Crank Coupler Slider Link TDC Adjustable Ground Pivot

12

Linkage Concept

slide-13
SLIDE 13

13

Input Crank Coupler Rocker Connecting Rod Slider Link Adjustable Ground Pivot Axis of Slide

13

Linkage Concept

slide-14
SLIDE 14

14

Linkage Pump Prototypes

5 Years of Prototype Development

slide-15
SLIDE 15

15

Pumping Mechanism

Linkage Adjustable Ground Piston Crosshead Bearing 15

slide-16
SLIDE 16

16

Linkage In Motion

slide-17
SLIDE 17

17

First Prototype Pump

500 psi, 180rpm, 8.75cc/rev

slide-18
SLIDE 18

18

Model Agrees with Experiment

Displacement (%) Crank Angle (rad)

slide-19
SLIDE 19

19

Second Generation Prototype

  • Three cylinder
  • 21MPa (3000 psi)
  • 5kW
  • 30Hz operating

speed

  • Bearings in joints
slide-20
SLIDE 20

20

Rendering

kj

slide-21
SLIDE 21

21

Prototype is Smooth & Quiet

slide-22
SLIDE 22

22

Pump Model: Pressure/Flow Dynamics

slide-23
SLIDE 23

23

Experimental Results

10 Hz Operation

slide-24
SLIDE 24

24

Third Generation Pump

3500 psi, 1800 rpm, 11.5cc/rev, Multi-Fluid

slide-25
SLIDE 25

25

New Pump Mechanism

slide-26
SLIDE 26

26

Radial Cam Adjustable Linkage Pump

Same Benefits as Crankshaft:

  • Constant Top Dead Center
  • True Zero Displacement
  • High Efficiency Joints
  • Insignificant Leakage

Added Benefits:

  • Control Ripple with Cam Profile
  • Multi-Lobe
  • Compact, Stiff, Lightweight
  • Cam Drives Link, Not Piston

– Low Piston Side Load

slide-27
SLIDE 27

27

Cam Pump First Gen Prototype

Five Cylinder, 3 Lobe 66cc/rev 5000psi 80-120 RPM

slide-28
SLIDE 28

28

Efficiency Curves

  • Even at low speed
  • peration, high

efficiencies are achieved

slide-29
SLIDE 29

29

Double Shear Design Complete

  • Displacement

– 0-15cc/rev

  • RPM

– Nominal 280 rpm – Max 550 rpm

  • Pressure

– Max 350 Bar

slide-30
SLIDE 30

30

Current Activities

  • Creating a startup to bring the pump to

market

  • Targeting low speed applications where

efficiency is key.

  • Looking for funding sources
  • Applying for June SBIR Solicitation
slide-31
SLIDE 31

31

How can industry help?

  • The goal is commercialization
  • Flexible to many methods of doing so
  • Looking for industry assistance,

partnership, or direct licensure

  • Trying to development a model for

commercialization of academic research in the fluid power industry

– How might you envision this?

slide-32
SLIDE 32

32

Thank You
