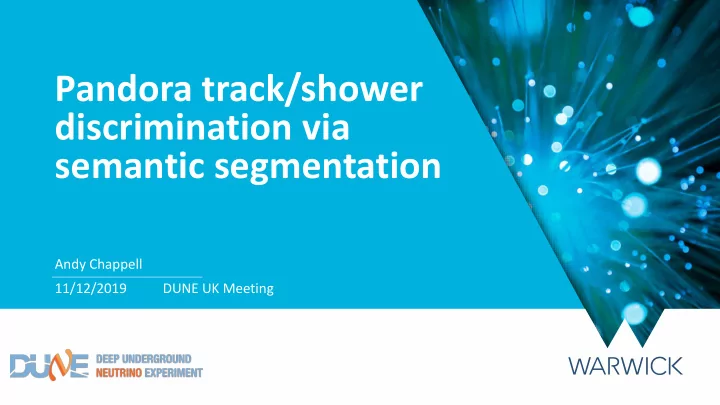

Pandora track/shower discrimination via semantic segmentation

Andy Chappell 11/12/2019 DUNE UK Meeting

• Overview and project goal
• Model architecture
• Approach to tuning
• (Very) preliminary performance figures

Roadmap

2

• Assign track and shower probabilities to every hit in

U, V and W planes

• Train a neural network to calculate the probabilities
• Pass these probabilities to downstream Pandora

algorithms for cluster creation, merging, etc

• Currently cluster property-based cuts

Overview and project goal

w x

3

• U-Net architecture developed for

biomedical image segmentation in 2015

• Convolutions form the down-

sampling part of the U

• Transpose convolutions form the

up-sampling part of the U

• Skip connections add images from

down-sampling path to up- sampling path

• Track and shower probabilities

assigned to each pixel

Architecture

https://arxiv.org/abs/1505.04597

4

• Building on work started by Steven Green
• PyTorch implementation
• Two key blocks in the network
• Down-sampling convolution block

[Conv2d, ReLU, BatchNorm] [Conv2d, ReLU, BatchNorm]

• Up-sampling transpose convolution block

[ConvTranspose2d, ReLU, BatchNorm] [Conv2d, ReLU, BatchNorm]

• Loss: Categorical cross-entropy

𝑚𝑝𝑡𝑡 = −𝑚𝑜𝑧𝑢𝑠𝑣𝑓_𝑑𝑚𝑏𝑡𝑡

• Accuracy: Fraction classified == truth

Architecture

ො 𝑦𝑗 = 𝑦𝑗 − 𝜈𝐶 𝜏𝐶 𝑧𝑗 = 𝛿 ො 𝑦𝑗 + 𝛾 Batch normalisation

1

• 1

1

Rectified Linear Unit

5

• Multiple input pixels map to one output

pixel

• Each layer increases number of kernels to

build more complex features

• Stride 2 down-samples to reduce

computational overhead

Architecture

Up-sample Down-sample

• Each input pixel maps to multiple output

pixels

• Effective stride 1/2 up-samples to return to
• riginal image size

Credit: V. Dumoulin & F. Visin Credit: T. Lane

6

• Trained on a 980 event subset of MCC11 (no space charge)
• 80% training, 20% validation
• Split into batches of 48 images
• Images 512 x 208 (likely to change)
• Images generated to cover full extent of plane in drift and wire

positions (only W plane in provisional tests)

Inputs

w x

7

Activations

8

• What’s the fastest we can

train?

• Learning rate controls step

size in weights relative to gradient

• Start with a very low

learning rate, increase each batch

• Try different weight decays
• Getting this right allows

faster training

Learning rate optimisation

9

• Clearly very high learning rates attainable,

but…

• Not for a single value over the whole training

cycle

• Highest rates either fails to progress, or starts

poorly

• Notable differences in accuracy evolution

10

• Linear decay better, but…
• Higher rates still fail to progress or start

poorly

• Still notable differences in accuracy evolution

11

• One-cycle learning:
• Start slow -> Accelerate -> Decelerate
• Smoother loss evolution
• Train at higher rates
• Consistent accuracy evolution across a range
• f maximum learning rates

https://arxiv.org/abs/1803.09820

12

• Overall accuracy ~87%
• Track accuracy ~82%
• Shower accuracy ~95%

Performance

w x

MC Classification Network Classification

13

• Further network refinements:
• Further refine One-Cycle learning rate
• Architectural tweaks (e.g. ResBlocks, depth)
• Vary learning rate by layer group
• Regularisation
• Data set refinement
• Crop image plane to hit region and higher resolution in x
• Image augmentation (e.g. randomly rotate images in each batch)
• Train on a much larger data set
• Transfer learning with larger images

Future plans

14

Backup

15

• One-cycle policies best performing
• Able to go to higher learning rates
• Constant and linear decay performance ok
• Expect constant rate to plateau
• Exponential decay fails to make progress

16

• Conv2d weights use Kaiming uniform initialisation

with 𝑏 = √5

• Historical artefact. Jeremy Howard discovered this

causes gradients to vanish in deep networks

• Will be fixed in a future release of PyTorch
• For now, useful to reinitialise weights with Kaiming

normal initialisation with 𝑏 = 0 (for standard ReLU)

Conv2d initialization in PyTorch
