SLIDE 1
Oct 17, 2007
2
From Protocol Stack to Protocol Heap
- Role-Based Architecture
- R. Braden, T. Faber, M. Handley
Role-Based Architecture & Network Pointers Jona Schoch Seminar - - PowerPoint PPT Presentation
Role-Based Architecture & Network Pointers Jona Schoch Seminar - - PowerPoint PPT Presentation

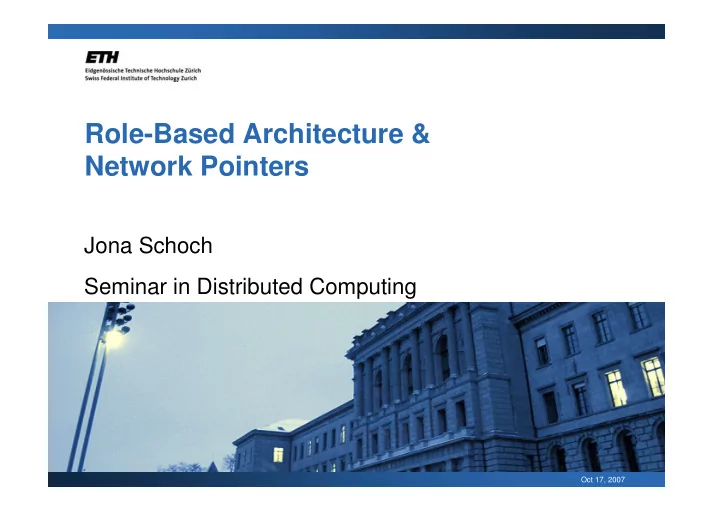

Role-Based Architecture & Network Pointers Jona Schoch Seminar in Distributed Computing Oct 17, 2007 From Protocol Stack to Protocol Heap - Role-Based Architecture R. Braden, T. Faber, M. Handley 2 Protocol Stack model Consists of
SLIDE 2
SLIDE 3
3
Protocol Stack model
Consists of
Protocol layers Protocol headers
Created in the 70s Worked well
SLIDE 4
4
Problems
Internet has changed! Usual suspects: NAT,
Firewalls, Proxies…
„Last on – first off“ Inflexibility
Source: M. Kaufmann
SLIDE 5
5
A new architecture
No stack No Layers New functional unit: Role
Role-based Architecture: RBA
SLIDE 6
6
Role
Communicating building block Performs function on packets Generally not hierarchical May be stateful
SLIDE 7
7
Properties of Roles
Instantiated in Network-nodes Identified by a RoleID Role address: RoleID@NodeID Reflective roles Generic roles …
SLIDE 8
8
Role Data
Input / output of a role
Application data payload Metadata
Role Specific Headers (RSHs)
SLIDE 9
9
Role Specific Headers
Divided metadata Format role specific Addressed to roles RSH ( <RoleAddressList> ; <RSHBody> )
Packet
SLIDE 10
10
Datagram Delivery Example
RSH ( <RoleAddressList> ; <RSHBody> ) RBA equivalent to a simple IP datagram
{ RSH(LinkLayer@NextHopAddr ; ), RSH(HbHForward@* ; destNodeID), RSH(HbHSource@* ; sourceNodeID), RSH(DestApp@destNodeID ; AppID, payload) }
SLIDE 11
11
RBA Objectives
Extensibility Portability Auditability Controlled access to metadata
SLIDE 12
12
Realization of RBA
Variety of ways further research required
Entirely role-based Above particular layer Only abstraction
Packet format design
Generality vs. wasting bytes
SLIDE 13
13
Packet Structure
SLIDE 14
14
Network Pointers
- R. Gold, C. Tschudin
SLIDE 15
15
Goals
Break the processing black box!
Control packet handling
Empower the end-nodes!
Directable indirection
SLIDE 16
16
Network Pointers
Packet processing function
Addressable Forwarding Header modification
SLIDE 17
17
Basic idea
Keep IP Configure Data Link layer Pointer Space
Mapping from/to IP Build new services
SLIDE 18
18
Network Pointers - Terminology
Network Pointer Selector (local) = Pointer value Context Resolution function
On all network nodes Well known selector
SLIDE 19
19
Implications
Forwarding State
in network in packet (parameter stack)
From End- to Start-Addresses!
SLIDE 20
20
Example: Mobile Personal Area Network
SLIDE 21
21
Combining RBA & Network Pointers
Get rid of implicit layer 2.5 Network Pointers as back plane for RBA
Steering packets Identifying processing instances
SLIDE 22
22
Remaining questions
What is really new? How to change state of pointers?
SLIDE 23
23
References
„From Protocol Stack to Protocol Heap – Role-
Based Architecture“, R. Braden, T. Faber, M. Handley
„New Internet Architectures“, M. Kaufmann
SLIDE 24
24
„Network Pointers“, R. Gold, C. Tschudin „A Virtualized Link Layer with Support for
Indirection“, R. Gold, P. Gunningberg, C. Tschudin
„LUNAR: Lightweight Underlay Network Ad-hoc
Routing“, R. Gold, C. Tschudin
