Disclosures How my current algorithm for venous Nothing to Disclose Thoracic Outlet Syndrome has evolved Jason T. Lee UCSF Vascular Symposium 2015 Stanford Vascular & Endovascular Surgery Vascular Surgery Basic Facts 3-80/1000

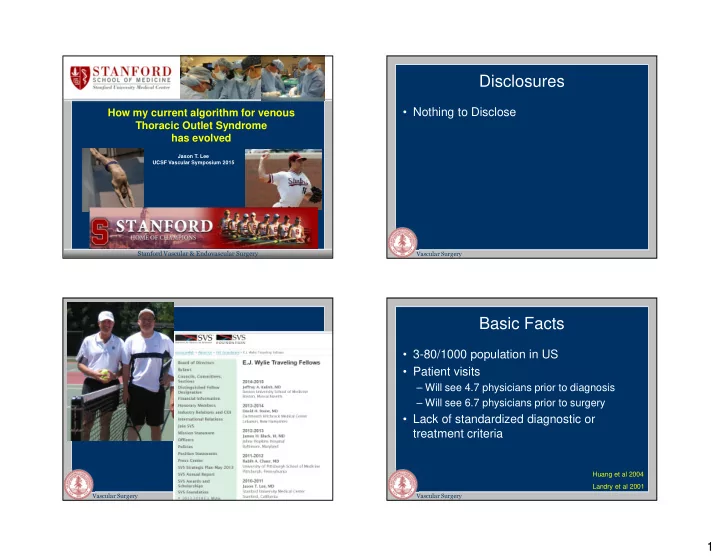

slide-1
SLIDE 1

1

Stanford Vascular & Endovascular Surgery

Jason T. Lee UCSF Vascular Symposium 2015

How my current algorithm for venous Thoracic Outlet Syndrome has evolved

Vascular Surgery

Disclosures

  • Nothing to Disclose

Vascular Surgery Vascular Surgery

Basic Facts

  • 3-80/1000 population in US
  • Patient visits

– Will see 4.7 physicians prior to diagnosis – Will see 6.7 physicians prior to surgery

  • Lack of standardized diagnostic or

treatment criteria

Huang et al 2004 Landry et al 2001

slide-2
SLIDE 2

2

Vascular Surgery

Epidemiology

  • Analysis of large administrative database to

determine national trends of surgical intervention for Thoracic Outlet Syndrome

– Incidence of operation – Type of TOS – Type of Surgeon – Mortality – Inpatient complications – Volume effect

Vascular Surgery

RESULTS

INCIDENCE

Range 1568-3740 cases/year, median 2524 96% neurogenic 3% venous 1% arterial

Vascular Surgery

RESULTS

TYPE OF SURGEON

VASCULAR THORACIC NEUROSURGEON ORTHOPEDIC

67% 20% 7% 6%

Vascular Surgery

RESULTS

Neurogenic vs. Venous

Neurogenic Venous P-value Median age decile 30-39 20-29 <0.0001 % female 68.6% 38.4% <0.0001 Hospital stay (days) 2.7 6.7 <0.0001 Mortality 0.04% 1.4% <0.001

slide-3
SLIDE 3

3

Vascular Surgery

RESULTS

Complications

  • High Volume Hospital

– counted the number of procedures performed by each hospital each year and assigned the top tercile as high volume – >15 cases per year associated with lower complication rate

  • Odds Ratio 0.43 (p=0.007)
  • Teaching status

– Equal between teaching and non-teaching hospitals

Vascular Surgery

Anatomy

Vascular Surgery

Venous TOS

  • Subclavian vein thrombosis

– Overuse injury – Hypertrophied scalene – Costoclavicular ligament – Hypercoagulable state

  • Presentation

– swelling – DVT – Muscle ache/fatigue

Vascular Surgery

Historical Perspective

  • 1875 - Paget describes “gouty phlebitis” of UE,

which he attributes to vasospasm

  • 1884 - Schroetter postulates subclavian/axillary vein

thrombosis as cause

  • 1949 - Hughes reviews 320 published cases, coins

“Paget-Schroetter syndrome”

  • 1950s - subclavian vein catheters come into use
  • 1960s - association of primary SV/AV thrombosis

with exertion recognized, leading to coining of “effort thrombosis”

  • 1970s - subclavian vein catheterizations recognized

as secondary cause of SV/AV thrombosis

slide-4
SLIDE 4

4

Vascular Surgery

Development of a treatment paradigm for vTOS

  • Simple observation and anticoagulation yields

poor results

  • Open surgical thrombectomy leads to high

incidence of early rethrombosis

  • Early thrombolysis is effective as initial strategy

– Rapidly restores patency – Confirms anatomy – safe

Donayre et al, Am J Surg 1996 Machleder, Sem Vasc Surg 1992 Deweese et al, Circulation 1970

Vascular Surgery

18 yo baseball catcher Working out on weekend Swollen R arm Duplex showed axillo- subclavian occlusion

Vascular Surgery

Audience participation

  • A. anticoagulation only
  • B. thrombolysis then anticoagulation
  • C. thrombolysis with immediate rib

resection

  • D. thrombolysis, anticoagulation,

delayed rib resection

3% 64% 27% 6%

Vascular Surgery

18 yo baseball catcher Working out on weekend Swollen R arm Duplex showed axillo- subclavian occlusion Venography Thrombolysis

slide-5
SLIDE 5

5

Vascular Surgery

18 yo baseball catcher Working out on weekend Swollen R arm Duplex showed axillo- subclavian occlusion Venography Thrombolysis Mechanical Chemical

Vascular Surgery

18 yo baseball catcher Working out on weekend Swollen R arm Duplex showed axillo- subclavian occlusion Venography Thrombolysis Mechanical Chemical Balloon venoplasty

Vascular Surgery

Treatment options

  • Immediate surgery
  • If surgery, what are

the issues?

– Approach – Venoplasty/stent – Venolysis/venous replacement

  • Trial of

anticoagulation

– Surgery if symptoms persist

Vascular Surgery

Immediate Surgery vs. Conservative Approach

  • Immediate surgery

– Avoid longer regimen of anticoagulation – Return to baseline activity sooner

  • Conservative

– Less inflammation around vein leading to safer

  • peration

– Allows for possibility of non-operative management

Machleder, J Vasc Surg 1993 Angle et al, Ann Vasc Surg 2001 Lee et al, J Vasc Surg 2000

slide-6
SLIDE 6

6

Vascular Surgery Vascular Surgery Vascular Surgery Vascular Surgery Suspected PSS

Duplex Ultrasound Venogram & Thrombolysis Repeat & Observe

  • +

Heparin to Warfarin

Sxs at One Month?

First Rib Resection

Yes

Continue warfarin

No

Sxs at 3 Months?

First Rib Resection Discontinue warfarin

Yes No

Stanford Algorithm-CURRENT

Athlete Young (<28)

slide-7
SLIDE 7

7

Vascular Surgery

Lots of Choices for patients

  • Numerous options for VTOS treatment

– Conservative management – Surgery

  • Timing
  • Approach
  • Adjuncts
  • CARE SHOULD BE INDIVIDUALIZED

Vascular Surgery

Technical Aspects

  • Infraclavicular approach
  • Vein reconstruction
  • Timing of post-op venogram/venoplasty?

Vascular Surgery Vascular Surgery

slide-8
SLIDE 8

8

Vascular Surgery Vascular Surgery

Courtesy of J. Ernesto Molina

Vascular Surgery

Courtesy of J. Ernesto Molina

Vascular Surgery

Courtesy of J. Ernesto Molina

slide-9
SLIDE 9

9

Vascular Surgery

Courtesy of J. Ernesto Molina

Vascular Surgery

Courtesy of J. Ernesto Molina

The Hopkins Algorithm

  • Johns Hopkins protocol

– Thrombolysis (typically done prior to referral) – Systemic anticoagulation – First rib resection and scalenectomy

  • Restart Lovenox POD #3

– Two week follow-up venogram (+/- PTA)

  • Discontinue Lovenox if vein widely patent

– Four week clinic follow up with Duplex exam

  • Anticoagulation duration based on symptoms

and duplex findings

Vascular Surgery

Post op Orders

  • Resume lovenox POD#3-4
  • Schedule venogram POD 7-14

– No residual narrowing/no need for venoplasty

  • Finish 1 month total anticoagulation

– Need venoplasty

  • Complete one additional month anticoagulation
  • Resume full activity at 6 weeks
slide-10
SLIDE 10

10

Vascular Surgery

Some questions?

  • How about those with subacute or chronic

clot or delay in referral to surgery?

  • What happens to the athletes?

Vascular Surgery Vascular Surgery Vascular Surgery 27% 33%

slide-11
SLIDE 11

11

Vascular Surgery

Patient Demographics

All n=41 nTOS n=27 PSS n=14

Age (mean)

19.0 19.0 18.8

Female (%)

18 (44%) 17 (63%) 1 (7%)

Sport (%) Swimming

11 (27%) 11 (41%) 0 (0%)

Baseball

13 (33%) 4 (14%) 9 (65%)

Synchronized Swimming

2 (5%) 2 (7%) 0 (0%)

Volleyball

2 (5%) 1 (4%) 1 (7%)

Rowing

4 (10%) 3 (11%) 1 (7%)

Football

1 (2%) 0 (0%) 1 (7%)

Water Polo

5 (12%) 3 (11%) 2 (14%)

Weight Lifting

1 (2%) 1 (4%) 0 (0%)

Wrestling

1 (2%) 1 (4%) 0 (0%)

Diving

1 (2%) 1 (4%) 0 (0%)

Affected side Right (%)

26 (63%) 14 (52%) 12 (86%)

Affected Side Dominant (%)

28 (68%) 16 (59%) 12 (86%)

Bilateral (%)

1 (2%) 1 (4%) 0 (0%)

p=.0007

Vascular Surgery

Patient Demographics

All n=41 nTOS n=27 PSS n=14

Age (mean)

19.0 19.0 18.8

Female (%)

18 (44%) 17 (63%) 1 (7%)

Sport (%) Swimming

11 (27%) 11 (41%) 0 (0%)

Baseball

13 (33%) 4 (14%) 9 (65%)

Synchronized Swimming

2 (5%) 2 (7%) 0 (0%)

Volleyball

2 (5%) 1 (4%) 1 (7%)

Rowing

4 (10%) 3 (11%) 1 (7%)

Football

1 (2%) 0 (0%) 1 (7%)

Water Polo

5 (12%) 3 (11%) 2 (14%)

Weight Lifting

1 (2%) 1 (4%) 0 (0%)

Wrestling

1 (2%) 1 (4%) 0 (0%)

Diving

1 (2%) 1 (4%) 0 (0%)

Affected side Right (%)

26 (63%) 14 (52%) 12 (86%)

Affected Side Dominant (%)

28 (68%) 16 (59%) 12 (86%)

Bilateral (%)

1 (2%) 1 (4%) 0 (0%) p=.04 p=.18 p = 1

Vascular Surgery

Treatment Outcomes-PSS

All TOS (n=41) nTOS (n=27) PSS (n=14)

Operative

32 (78%) 18 (66.7%) 14 (100%)

Non-Operative

9 (22%) 9 (33.3%) 0 (0%)

Thrombolysis

13 (31.7%)

  • 13 (92.9%)

Mean timing of Thrombolysis (days prior to surgery, range)

84 (2-730)

  • 84 (2-730)

Length of Symptoms before Treatment (mean, months)

7.8 11 (SURG-15.1/ NONOP-3) 1.6

Return to Full Sport (%)

35 (85.4%) 22 (81.5%) 13 (92.9%)

Time to Pain Free (mean, months)

2.7 3.4 1.9

Time to Return Full Sport (mean, months)

4.6 4.4 4.7

Average Duration of Post-Op Anti-coagulation (months)

2.3

  • 2.3

Vascular Surgery

Treatment Outcomes-PSS

All TOS (n=41) nTOS (n=27) PSS (n=14)

Operative

32 (78%) 18 (66.7%) 14 (100%)

Non-Operative

9 (22%) 9 (33.3%) 0 (0%)

Thrombolysis

13 (31.7%)

  • 13 (92.9%)

Mean timing of Thrombolysis (days prior to surgery, range)

84 (2-730)

  • 84 (2-730)

Length of Symptoms before Treatment (mean, months)

7.8 11 (SURG-15.1/ NONOP-3) 1.6

Return to Full Sport (%)

35 (85.4%) 22 (81.5%) 13 (92.9%)

Time to Pain Free (mean, months)

2.7 3.4 1.9

Time to Return Full Sport (mean, months)

4.6 4.4 4.7

Average Duration of Post-Op Anti-coagulation (months)

2.3

  • 2.3
  • 64% with complete resolution
  • 36% with partial thrombus

burden

slide-12
SLIDE 12

12

Vascular Surgery

Treatment Outcomes-PSS

All TOS (n=41) nTOS (n=27) PSS (n=14)

Operative

32 (78%) 18 (66.7%) 14 (100%)

Non-Operative

9 (22%) 9 (33.3%) 0 (0%)

Thrombolysis

13 (31.7%)

  • 13 (92.9%)

Mean timing of Thrombolysis (days prior to surgery, range)

84 (2-730)

  • 84 (2-730)

Length of Symptoms before Treatment (mean, months)

7.8 11 (SURG-15.1/ NONOP-3) 1.6

Return to Full Sport (%)

35 (85.4%) 22 (81.5%) 13 (92.9%)

Time to Pain Free (mean, months)

2.7 3.4 1.9

Time to Return Full Sport (mean, months)

4.6 4.4 4.7

Average Duration of Post-Op Anti-coagulation (months)

2.3

  • 2.3

Vascular Surgery

Summary

  • High index of suspicion for TOS patients
  • Good prognosis for athletes

– 82% nTOS, 93% PSS – full return to sport

  • Keys to success:

– Multidisciplinary approach to TOS patients

  • Sports medicine, orthopedics, physical therapy,

team physicians, vascular surgeons, etc.

  • Reporting standards and registries

upcoming

Vascular Surgery

Thank You
