Development of two-photon polarization microscopy into a protein structure tool Mgr. Josef Melcr Project leader: Josef Lazar, Ph.D. Summer School in Molecular Biophysics and Systems Biology in Nov Hrady, Czech Republic, from July 8 th to July

slide-1
SLIDE 1

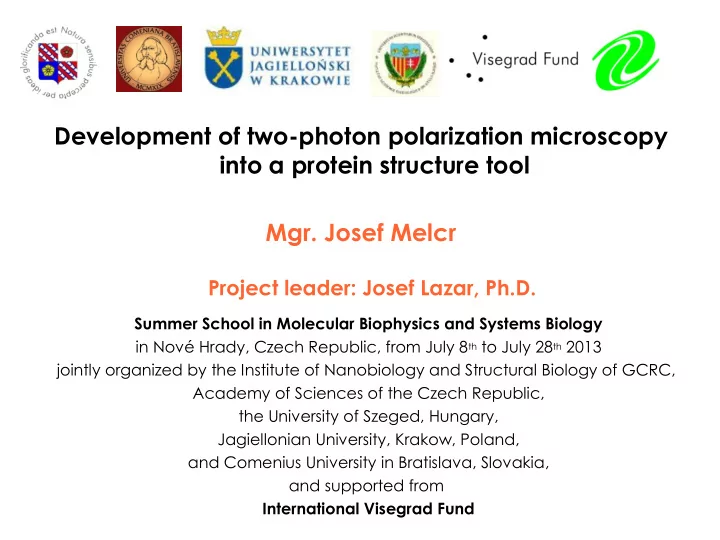

Summer School in Molecular Biophysics and Systems Biology in Nové Hrady, Czech Republic, from July 8th to July 28th 2013 jointly organized by the Institute of Nanobiology and Structural Biology of GCRC, Academy of Sciences of the Czech Republic, the University of Szeged, Hungary, Jagiellonian University, Krakow, Poland, and Comenius University in Bratislava, Slovakia, and supported from International Visegrad Fund

Development of two-photon polarization microscopy into a protein structure tool

  • Mgr. Josef Melcr

Project leader: Josef Lazar, Ph.D.

slide-2
SLIDE 2
slide-3
SLIDE 3

Optical properties of molecules are anisotropic

slide-4
SLIDE 4

Transition dipole moment

TDM TDM

slide-5
SLIDE 5

Optical properties of fluorescent proteins are anisotropic

slide-6
SLIDE 6

Fluorescent proteins in living cells

Horizontal polarization Vertical polarization

slide-7
SLIDE 7

Horizontal polarization Vertical polarization

Fluorescent proteins in living cells

slide-8
SLIDE 8

Horizontal + vertical polarization

slide-9
SLIDE 9

A single fluorescent dye in a model membrane

F2N12S GUV: Giant Unilamellar Vesicle 10 μm

slide-10
SLIDE 10

Experiment and simulations together

slide-11
SLIDE 11

Agreement of the two approaches

× microscopy + simulations

slide-12
SLIDE 12

Polarization microscopy and simulations of fluorescent proteins

cleGFP dleGFP Neg-cleGFP

slide-13
SLIDE 13

r = Fhor / Fver

Mammalian cells with

  • verexpressed fluorescent

constructs

dleGFP cleGFP 0.97 Neg30-cleGFP 1.07

2-photon polarization microscopy images

dleGFP 0.17

dichroic ratio:

slide-14
SLIDE 14

Round mammalian cells with

  • verexpressed fluorescent

constructs

dleGFP 0.69 cleGFP 1.06 Neg30-cleGFP 1.27

2-photon polarization microscopy images dichroic ratio:

r = Fhor / Fver

slide-15
SLIDE 15

Fluorescent proteins in giant unilamellar vesicles

Titanium electrodes used for GUVs preparation a single GUV

+

fluorescent protein with a lipid tag

slide-16
SLIDE 16

Fluorescent proteins in vesicles

bright field 488nm

slide-17
SLIDE 17

Molecular dynamics simulations

  • f cleGFP and NegCleGFP

+ video

slide-18
SLIDE 18

Tilt-angle analysis

cleGFP – tilt angle in time

slide-19
SLIDE 19

Tilt-angle analysis – histogram

cleGFP Neg-cleGFP

slide-20
SLIDE 20

Tilt-angle analysis – histogram

Neg-cleGFP cleGFP Neg-cleGFP

slide-21
SLIDE 21

Conclusions

  • all tested approaches appear feasible
  • cell membrane topology affects linear dichroism
  • surface charges on a protein molecule affect interactions

with the cell membrane

  • more experiments needed to evaluate the capability of

two-photon polarization microscopy to yield quantitative information on protein structure

slide-22
SLIDE 22
