Detection and Identification of Illicit Drugs and Cutting Agents in Seized Street Drugs: Benchtop NMR Spectrometer & Databasing Software ACD/Labs User Meeting Susanne D. Riegel, Alexander F. G. Maier, Dimitris Argyropoulos, Marie Lange,

slide-1
SLIDE 1

ACD/Labs User Meeting

Baltimore, MD March 8th, 2020

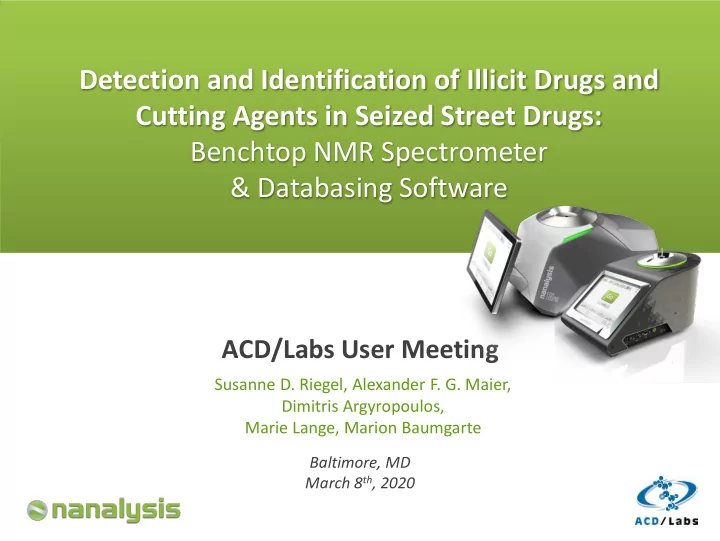

Detection and Identification of Illicit Drugs and Cutting Agents in Seized Street Drugs: Benchtop NMR Spectrometer & Databasing Software

Susanne D. Riegel, Alexander F. G. Maier, Dimitris Argyropoulos, Marie Lange, Marion Baumgarte

slide-2
SLIDE 2

NMR Instruments and Field Strength

Dalitz, F.; Cudaj, M.; Maiwald, M.; Guthausen, G.; Prog. Nuc. Mag. Reson. Spec. 2012, 60, 52 2

slide-3
SLIDE 3

Illegal Drugs

  • Typically classified by:

– Legal Classification – e.g., Schedule I, Class A – Effect – e.g., depressant, stimulant, hallucinogen – Molecular Structure – e.g., cannabinoids, opioids, phenethylamines

3

Amphetamine Stimulant Methamphetamine Stimulant MDMA Psychedelic, entactogen

  • Designer Drugs – synthetic analog of a legal restricted or prohibited drug devised to

avoid drug detection and identification.

slide-4
SLIDE 4

New Psychoactive Substances* (from 2-phenyethylamine)

4 * Defined by EU 2015/1535 ‘Act to combat the distribution of new psychoactive substance’

slide-5
SLIDE 5

Why Benchtop NMR Spectroscopy?

5

Nik Wipes IR HPLC High-field NMR Benchtop NMR Sample Prep ✓ Easy ✓ Easy X Tedious ✓ Easy ✓ Easy Sample Conc ~ Medium ~ Low-medium ✓ Low ~ Low-medium ~ Medium Analysis Time ✓ <1 min ✓ <1 min X >15 min ✓ <1 min ✓ <1 min Location ✓ On-site ✓ On-site X Off-site X Off-site ✓ On-site Standards X Required X Required X Required ✓ Not Required ✓ Not Required Quantitative X X with calibration X with calibration ✓ w/o calibration ✓ w/o calibration Capital Cost $ $ $$ $$$$ $$ Operating Expenditure $ $ $$ $$$ $

slide-6
SLIDE 6

Considerations for Mobile Laboratory

6

  • Stability – temperature (AC & simple heating block), vibration (soft or hard)
  • Mounting
  • Power consumption
  • Automation
  • Accuracy/reliability
slide-7
SLIDE 7

Sample Preparation and 1H NMR Acquisition

7

1D 1H NMR spectrum at 60 MHz

Unknown Search Queries

  • ~30 mg of an unknown drug sample

dissolved/suspended in vials of ~0.6 mL DMSO-d6 and D2O

  • Vials were capped and agitated for 1 min
  • Liquid phase transferred to NMR tube

Reference Standards

  • 60 µmol of sample dissolved in

~0.6 mL DMSO-d6 or D2O (if insoluble)

  • Vial capped and agitated until dissolved

completely.

  • Transferred to NMR tube

SAMPLE PREP:

1H NMR DATA ACQUISITION (performed at LKA):

SW = 80 ppm SW center = 20 ppm np = 8192 scan delay = 1 s ns = 16 or 64 time = 1 min or 4 min

  • Zero Fill
  • Phase

PRE-PROCESSING (ACD/Labs Macro for automatic processing):

  • Baseline
  • solvent detection
slide-8
SLIDE 8

Database

8

slide-9
SLIDE 9

Creating a Macro

9

slide-10
SLIDE 10

Creating a Macro

10

slide-11
SLIDE 11

Creating a Macro

11

slide-12
SLIDE 12

Automated Preprocessing: Apply Macro

12

slide-13
SLIDE 13

Automated Preprocessing: Apply Macro

13

slide-14
SLIDE 14

Case Study: Unknown Street Drug

14

  • 1. Sample Prep of Unknown:
  • Spatula of unknown added to vial of ~0.6 mL D2O
  • Sealed and agitated for 1 min
  • Liquid phase transferred to NMR tube
  • 2. 1H NMR Spectra Acquisition
  • 3. Load into ACD/Spectrus
  • Auto Preprocessing Macro
  • Peak Search with ACD/Spectrus DB
slide-15
SLIDE 15

Open Unknown 1H NMR Spectra into ACD/Labs

15

slide-16
SLIDE 16

Search Database

16

slide-17
SLIDE 17

Database Search Options

17

slide-18
SLIDE 18

Database Search

18

slide-19
SLIDE 19

First Database Hits: Cocaine

19

slide-20
SLIDE 20

Auto Select Best Hits

20

slide-21
SLIDE 21

Database Best Hits

21

slide-22
SLIDE 22

Adjust Intensity

22

slide-23
SLIDE 23

Optimize Hit

23

slide-24
SLIDE 24

Optimize hit for Cocaine

24

slide-25
SLIDE 25

Residuals of Best Fit for Unknown & Cocaine Std

25

slide-26
SLIDE 26

Optimize Hit for Lactose

26

slide-27
SLIDE 27

Manually Change Intensity

27

slide-28
SLIDE 28

Manually Change Intensity

28

slide-29
SLIDE 29

Manually Change Intensity

29

slide-30
SLIDE 30

Visualize Sum Instead of Residuals

30

slide-31
SLIDE 31

Sum of Database Components on Unknown

31

slide-32
SLIDE 32

Manually Investigate Other Potential Hits

32 N N O NH CH3 CH3 Cl

slide-33
SLIDE 33

Visualize Inspect Benzydiamine HCl

33 N N O NH CH3 CH3 Cl

slide-34
SLIDE 34

Visually Inspect bk-2C-B HCl

34

Br O CH3 O H3C O NH3 Cl

slide-35
SLIDE 35

Visually Inspect Caffeine

35

slide-36
SLIDE 36

Optimize Intensity

36

slide-37
SLIDE 37

Horizontal Offset Adjustment

37

slide-38
SLIDE 38

Line Broadening Adjustment

38

slide-39
SLIDE 39

Optimize Hit

39

slide-40
SLIDE 40

Caffeine Optimized

40

slide-41
SLIDE 41

Visually Inspect Sorbitol

41

OH OH OH OH OH HO

slide-42
SLIDE 42

Visually Inspect D-Mannitol

42

slide-43
SLIDE 43

Visually Inspect Citric Acid

43

OH O OH O OH O HO

slide-44
SLIDE 44

Select all Matching Components

44

slide-45
SLIDE 45

Inspect Matching Components: Sum

45

slide-46
SLIDE 46

Case Study: Cocaine cont.

46

slide-47
SLIDE 47

Case Study: Cocaine cont.

47

slide-48
SLIDE 48

Report: Street Drug Cocaine HCl

48

Compare with GC-MS analysis:

  • Cocaine HCl (41.9%)
  • Caffeine
  • Lactose
  • D-mannitol/sorbitol

Cocaine HCl

83.33 match

Lactose

50.00 match

Caffeine

33.33 match

D-Mannitol

16.67 match

slide-49
SLIDE 49

Conclusions and Future Work

  • Successfully acquired and built database for 150+ illicit drugs and cutting agents
  • Peak pick allowed relatively automatic identification of peaks
  • Want to develop fingerprinting/similarity structures flags

49

slide-50
SLIDE 50

Thanks and Acknowledgments

Nanalysis

Juan Araneda Terry Chu Paul Hui Neal Gallagher Adam Paulson Amro Hussein

50

Kriminaltechnisches Institut

Christian Vidal Nicole Lehnert

ACD/Labs

Michel Riese
