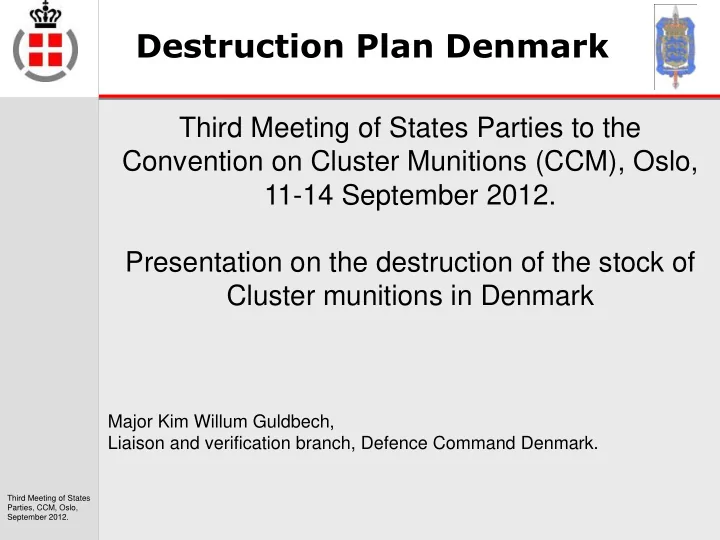

Destruction Plan Denmark Third Meeting of States Parties to the Convention on Cluster Munitions (CCM), Oslo, 11-14 September 2012. Presentation on the destruction of the stock of Cluster munitions in Denmark Major Kim Willum Guldbech, Liaison

slide-1
SLIDE 1

Third Meeting of States Parties, CCM, Oslo, September 2012.

Destruction Plan Denmark

Third Meeting of States Parties to the Convention on Cluster Munitions (CCM), Oslo, 11-14 September 2012. Presentation on the destruction of the stock of Cluster munitions in Denmark

Major Kim Willum Guldbech, Liaison and verification branch, Defence Command Denmark.

slide-2
SLIDE 2

Third Meeting of States Parties, CCM, Oslo, September 2012.

Background

  • In late 2011 Danish MoD decided to speed up

the destruction process.

  • The destruction process started in mid 2012

and is expected finished in late 2013.

slide-3
SLIDE 3

Third Meeting of States Parties, CCM, Oslo, September 2012.

Scope

Destruction of: 27.000 ea DM 642 / 155 mm 15.000 ea DM 662 / 155 mm 20 ea Rockeye MK-20 / bombs A total of 2.440.940 explosive submunitions.

slide-4
SLIDE 4

Third Meeting of States Parties, CCM, Oslo, September 2012.

Retention

  • Denmark will keep 2700 (1st august

2018) peaces of sub-munitions for training purpose.

  • The submunition will be separated from

the shell and stored in carbon tubes – and hence not operational anymore.

slide-5
SLIDE 5

Third Meeting of States Parties, CCM, Oslo, September 2012.

Choosing the company

Danish Acquisition and Logistics Organization found that the contract with

  • ur normal ammunition disposal factory

also covered disposal of this type of ammunition. The cost is estimated to be approximately 18 mio Danish kroner or 2,5 mio Euro. 7,5 Danish kroner per bomblet or 1 Euro.

slide-6
SLIDE 6

Third Meeting of States Parties, CCM, Oslo, September 2012.

EXPAL

DENEX A/S, Tuenvej 120, Elling, 9900 Frederikshavn Denmark

slide-7
SLIDE 7

Third Meeting of States Parties, CCM, Oslo, September 2012.

DENEX

Located in: Frederikshavn Total Surface: 340.000 m2 Storage Capacity: 31 EX magazines Built Surface Area: 18.000 m2 (53 buildings) Quality systems: AQAP 2110 ISO 9001 ISO 14001 Turnover: Around 40 mil. €

slide-8
SLIDE 8

Third Meeting of States Parties, CCM, Oslo, September 2012.

Where it is actually happening

slide-9
SLIDE 9

Third Meeting of States Parties, CCM, Oslo, September 2012.

Removal of ejection charge.

1.Lifting plug. 2.Cover plate. 3.Ejection charge. 4.Holster for ejection charge.

2 1 4 3

How it is done in detail

slide-10
SLIDE 10

Third Meeting of States Parties, CCM, Oslo, September 2012.

Removal of base closure.

  • 1. 155 mm ICM DM 642 projectile

is fixed on a special trolley and placed in a secure room.

  • 2. A special tool is mounted in the

bottom of the ICM shell.

  • 3. Base closure is removed

1 2 3

How it is done in detail

slide-11
SLIDE 11

Third Meeting of States Parties, CCM, Oslo, September 2012.

Removal of bomblets.

  • 1. After the base closure is

removed the operator enter the room.

  • 2. An operator turns the shell so

the bottom faces the carton tube.

  • 3. The operator leaves the room.
  • 4. The bomblets are pressed in to

the carton tube with a special tool.

How it is done in detail

slide-12
SLIDE 12

Third Meeting of States Parties, CCM, Oslo, September 2012.

Removal of fuze from bomblet DM 1384

  • 1. Four bomblets are taken from the

carton tube at a time.

  • 2. Bomblets DM 1383 are then placed

in a machine which automatically cuts the fuze of.

  • 3. The fuze remains in the room where

they have been cut and are secured with glue.

  • 4. Then it is transported to one of

Expal’s factories for destruction

How it is done in detail

slide-13
SLIDE 13

Third Meeting of States Parties, CCM, Oslo, September 2012.

Destruction of

bomblets without the fuze.

  • 1. The bombs are placed in a small

container for cooling which runs fully automatic and uses nitrogen.

  • 2. After cooling down to minus195,8

Celsius the bomblets are automatically transferred by a robot to a pressing machine.

1

How it is done in detail

slide-14
SLIDE 14

Third Meeting of States Parties, CCM, Oslo, September 2012.

Destruction of bomblets without the fuze.

  • 1. The bombs are then crushed.
  • 2. The crushed bombs are pushed

into a separator, where the explosives are separated from the metal parts.

2 2

How it is done in detail

slide-15
SLIDE 15

Third Meeting of States Parties, CCM, Oslo, September 2012.

How it is done in detail

Cutting empty shell ICM DM642.

  • 1. It is cut in two places.

(The lower part just before the rotating belt and upper part just after the rotating belt) separating the cupper rotating belt.

  • 2. After this the shell cant be used
  • perationally anymore.
slide-16
SLIDE 16

Third Meeting of States Parties, CCM, Oslo, September 2012.

Packing and storing bomblets

slide-17
SLIDE 17

Third Meeting of States Parties, CCM, Oslo, September 2012.

Questions
