Carbon Farming Initiative workshop: from Plan to Practice slides Piggeries: destruction of methane generated from manure 2013 These slides are also available in PDF format on the Clean Energy Regulator website 1 . 1

slide-1

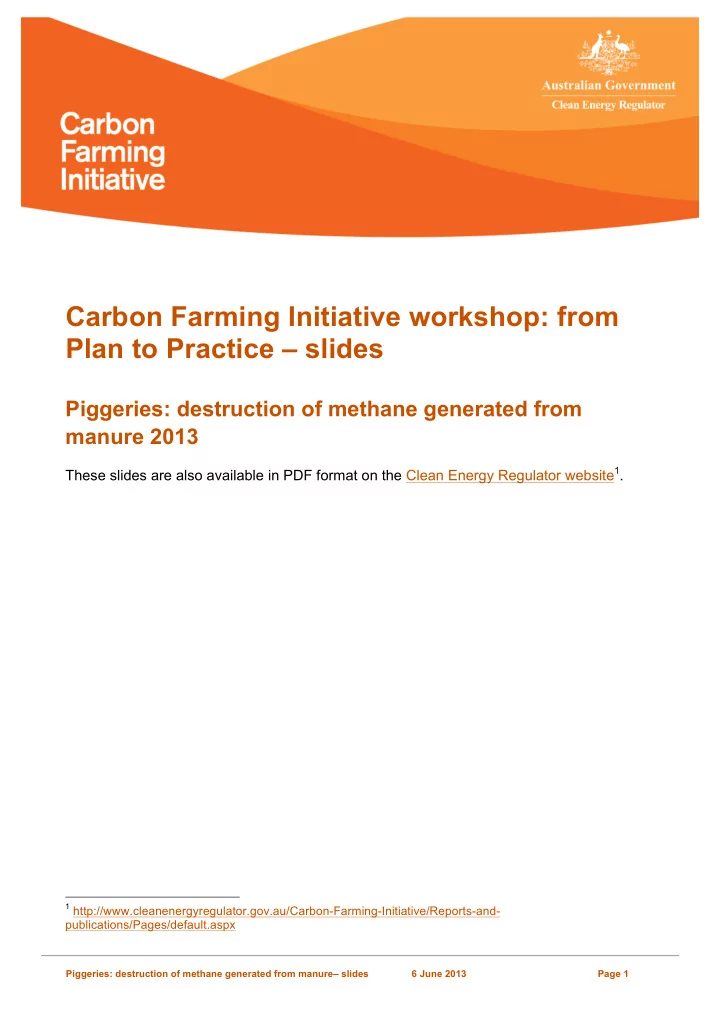

SLIDE 1

Piggeries: destruction of methane generated from manure– slides 6 June 2013 Page 1

Carbon Farming Initiative workshop: from Plan to Practice – slides

Piggeries: destruction of methane generated from manure 2013

These slides are also available in PDF format on the Clean Energy Regulator website1.

1 http://www.cleanenergyregulator.gov.au/Carbon-Farming-Initiative/Reports-and-

publications/Pages/default.aspx

slide-2
SLIDE 2

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 2

Welcome

  • Introductions
  • Housekeeping

Workshop purpose

  • Support your participation
  • Help you to understand what's involved

Introduction

Purpose:

  • Understand Clean Energy Regulator’s role
  • Understand key concepts behind the Carbon Farming Initiative’s operation

Clean Energy Regulator Our vision is to support Australia in transitioning to a low carbon economy through an informed and efficient market for carbon and investment in renewable energy. Other government organisations Three government organisations have a role in the Carbon Farming Initiative:

slide-3
SLIDE 3

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 3

Department of Agriculture, Fisheries and Forestry Provides information and support for landholders and funds research Department of Industry Development of policy, legislation and methodologies Clean Energy Regulator Assessment of projects, education, issue of Australian carbon credit units Video: how the Carbon Farming Initiative works View the video, how the Carbon Farming Initiative works2, on YouTube. Australian Government response to Climate Change

  • International: Kyoto Agreement
  • Domestic: Reduction in greenhouse gas pollution using the market

» Carbon pricing mechanism How the Carbon Farming Initiative works

  • You can earn Australian carbon credit units (ACCUs) by:

» storing carbon, or » reducing greenhouse gas emissions on the land

  • 1 ACCU = 1 tonne of carbon dioxide equivalent (CO2-e).

Methodology determinations Methodology determinations set out the rules for undertaking a specific activity to earn Australian carbon credit units.

Industry perspective: Australian Pork Limited

  • Pork’s carbon footprint
  • Opportunities for the pork industry

2 http://www.youtube.com/watch?v=uBj7xc3ZKWg

slide-4
SLIDE 4

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 4

Presenters: Janine Price, Manager Environment and Climate Change, Australian Pork Limited Sam Lawrence, Senior Policy Analyst, Australian Pork Limited Australian Pork Limited The Carbon Farming Initiative: From Plan to Practice Sam Lawrence, Senior Policy Analyst Janine Price, Manager, Environment APL and the Australian pork industry APL

  • Australian Pork Limited (APL) is the peak national representative body for Australian pig

producers.

  • It is a producer-owned not-for-profit company combining marketing, export development,

research & innovation and strategic policy development to assist in securing a profitable and sustainable future for the Australian pork industry.

slide-5
SLIDE 5

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 5

Cost of production

  • Cost of production for Australian pork is high. - ie labour, feed grain, energy
  • Subsidisation in export markets.

Pork’s carbon footprint

  • Livestock accounts for 66% of Aust. agriculture’s greenhouse gas (GHG) emissions,

which amounts to approx 16% of Australia’s total GHG emissions.

  • Pork production represents just 0.4% of livestock greenhouse gas emissions.
  • Most of our emissions (nearly 70%) come from the effluent system. This offers a

significant opportunity to reduce.

slide-6
SLIDE 6

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 6

Pork’s carbon footprint

  • A recent APL funded project analysed these options and showed that emissions from

effluent treatment may be reduced by 62-80%.

  • Treatments for capturing and destroying CH4:

» Covered Anaerobic ponds (CAPs) with flaring (CAP-F) » Methane for heat to offset farm gas use (CAP – G) » Combined heat & power generation on farm (CAP-CHP) » Transporting effluent off site to a centralised anaerobic digestion plant (CAD)

  • Potential to have the lowest GWP for pork production worldwide.
  • Significant opportunity to reduce ecological footprint, reduce energy inputs, differentiate
  • ur product and promote the industry’s environmental credentials.
slide-7
SLIDE 7

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 7

The Carbon Farming Initiative Opportunities

  • The Carbon Farming (CFI) is a carbon offsets scheme that allows pig farmers to earn

carbon credits by reducing GHG emissions

  • APL provided input into policy and legislation. Worked in partnership with Government-

CER, DCCEE, DAFF

  • The Aust. Pork industry was the first Industry to have a methodology endorsed and

approved by government – “Destruction of methane generated from manure in piggeries” - Developed by APL, DCCEE and industry experts.

  • Second methodology recently approved for biodigesters
  • Other opportunities for reduction of GHG
slide-8
SLIDE 8

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 8

Example

  • A 5000 standard production unit (SPU) piggery would produce ≈103,500m3 of

methane per year, (≈1556t CO2 equivalent per year).

  • With CFI credits of approximately $16/T, at $2.45 per finished pig @ 9900 pigs =

$24,255 per year. CFI: Case Study Blantyre farms

  • Blantyre Farms (Young, NSW) was the first piggery in Aust. to secure approval to

participate in the CFI scheme.

  • With 22,000 pigs, Blantyre Farms installed a biogas system to generate electricity from

manure by covering an effluent pond - powers the entire farm

  • The owners, no longer pay $15,000 a month for electricity and gas, but earn $5,000 a

month from the power sold back to the electricity grid.

  • Blantyre Farms generates CFI credits and renewable energy certificates from the

project. APL and the Pork CRC APL

  • APL priorities continue to focus on GHG mitigation on-farm.
  • There are several projects, including covered ponds and the Biogas Code.
  • The National Agricultural Manure Management Program (NAMMP) is worth $6.19m

(with $2.97m from DAFF) with other RDCs to address knowledge gaps leading to further CFI methodologies for producers. Pork CRC

  • The bio-energy support program offers free advice for producers.
  • Dr Stephan Tait – University of Queensland Ph: 0466 699 817.
  • NAMMP is currently running a project on solid manure in anaerobic digesters.
slide-9
SLIDE 9

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 9

Guide to undertaking a piggeries – destruction of methane generated from manure project

  • Support your decision to participate in the Carbon Farming Initiative, using the piggeries

methodology What does a piggery project look like?

  • Manure treated in a covered pond
  • Pond contains only manure from operations of piggery sheds
  • Gas from the covered pond is collected and combusted:

» Flare » Electricity generation system » Gas boiler

  • Use PigBal model to calculate carbon abatement.

Why participate?

  • Capturing emissions from effluent ponds has several benefits
  • Earn Australian carbon credit units (ACCUs) and sell these for a financial benefit
  • Watch the video3.

How do I get started?

  • Check your eligibility
  • Assess the feasibility
  • Check your expectation for return on investment
  • Decide on your business model
  • Apply:

» Recognised Offsets Entity » ANREU account » Eligible Offsets project How do I undertake a piggery project?

  • Meet eligibility requirements

3 http://www.cleanenergyfuture.gov.au/video/grantham-piggery/

slide-10
SLIDE 10

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 10

» Flare » Electricity generation » Gas boiler

  • Maintain your equipment
  • Measure inputs to PigBal

PigBal Model is a computer program that predicts piggery manure production. Model inputs include daily herd information, weekly. Project boundary

  • Baseline:

» Greenhouse gas emissions from treatment pond (methane - CH4)

  • Project activity:

» Electricity from the grid, fuel used for gas capture and combustion (CO2, N20, CH4) » Gas capture and combustion (N20, CH4) Measure and calculate abatement

  • Baseline calculation
  • Greenhouse gas abatement calculation
  • Monitor
  • Use PigBal

Monitoring and record keeping

  • Project information
  • Combustion device information
  • Monitoring and gas composition information
  • Direct and indirect measurement (inputs and outputs from PigBal)
  • Other records
slide-11
SLIDE 11

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 11

Quality assurance and control matters More on record keeping

  • Monitoring data is crucial to your application for ACCUs. Will you be able to protect

your data in an unforseen event? Audit report Provides a ‘reasonable assurance’ opinion on whether or not your project complies with the methodology determination and Carbon Farming legislation Apply for carbon credits

  • Submit offsets report and audit report to the Clean Energy Regulator
  • Australian carbon credit units (ACCUs) are issued into your account in the Registry
  • Earn money by selling the ACCUs and transferring them to another account in the

Registry

Question and answer panel

  • Introduction to Carbon Farming Initiative and Clean Energy Regulator
  • Australian Pork Limited
  • What does a project look like?
  • Measure and calculate abatement
  • Audit
slide-12
SLIDE 12

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 12

Case Study: Technical Aspects of a Piggery Biogas project

Presenter: Stephan Tait, University of Queensland, Advanced Water Management Centre and Pork CRC Technical aspects of a Piggery Biogas Project Roseworthy 7 June 2013 Pork CRC Bioenergy Support Program4 Stephan Tait, PhD, CEng(IChemE) This presentation is provided for general information purposes and should NOT be used as a substitute for professional advice. Outline

  • Why can burning of piggery biogas produce carbon credits?
  • What equipment do you need for a piggery project?
  • What does the equipment cost?
  • Where are the greatest returns?
  • Some tips…

Where do the carbon credits come from?

4 http://porkcrc.com.au/research/program-4/bio-energy-support-program/

slide-13
SLIDE 13

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 13

Biogas to Carbon Credits Biogas covers Biogas flaring This slide shows 2 images of biogas flaring.

  • Flare pilots burn with nearly invisible blue flame.
  • Flame difficult to see in day, visible at night – use IR, TC or UV to monitor.

*Manufacturers or suppliers for which photos of infrastructure are shown are neither endorsed nor recommended. Photos are only shown for illustrative purposes.

slide-14
SLIDE 14

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 14

Biogas flaring

  • Flow meter shows how much methane is being sent to the flare to be burnt
  • Temperature probe or UV sensor confirms that the flare is actually operational and is

burning the methane sent to it Biogas heating

slide-15
SLIDE 15

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 15

  • This slide has 1 image of a system used for biogas heating. Photo credit to Skerman et

al, RIRDC, 2012 Power generation This slide has 3 images of power generators.

  • Methane (in biogas) + air and spark = energy = electricity
slide-16
SLIDE 16

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 16

Biogas cleaning

  • This slide has 7 images of equipment on farm used for biogas cleaning. Images

courtesy Skerman and Collman, RIRDC, 2012

slide-17
SLIDE 17

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 17

How much does it cost? What are the potential returns? Number of sows Cost Return time < 400 < $200k 5+ year payback 400-500 $200-300k 4-5 year payback 1000-1500 $400-600k 3-5 year payback 2000+ $1000k 2-3 year payback Indicative only, based on projects to date, can be substantially different and should be assessed on a site-by-site basis. Not to be interpreted as financial advice. Combined Heat and Power – Capital Cost Spread * Indicative only, based on projects to date, can be substantially different and should be assessed on a site-by-site basis. Not to be interpreted as financial advice

slide-18
SLIDE 18

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 18

Biogas return – breakdown

*Indicative only, based on projects to date, can be substantially different and should be assessed on a site-by-site basis. Not to be interpreted as financial advice.

slide-19
SLIDE 19

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 19

Energy distribution

  • This slide has 5 images showing how energy can be distributed from grower-finisher

sheds where there are high manure volumes and minimal energy requirements to breeder pigs sheds where there are low manure volumes and high energy demand for heating (lamps)

slide-20
SLIDE 20

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 20

Contributors

  • Tom Smith (Kia-ora)
  • Ian Connaughton (Don KRC)
  • Ken Cameron (Cameron Pastoral)
  • Edwina and Michael Beveridge (Blantyre Farms)
  • Eugene McGahan (FSA – Pork CRC Feasibility studies)
  • Alan Skerman, (DEEDI QLD
  • Stephan Heubeck (NIWA)
  • Janine Price/Rob Wilson (APL, Pork CRC)
  • Dr. Sasha Jenkins, UWA
  • Mark Hogan/Ian Longfield, Rivalea
  • Grant Skilton, Aurere Farms
  • Hugh Payne, DAFWA, Medina
  • Steve Lepper, NZ
  • Abre de Villiers

Administration: working with the Clean Energy Regulator

Understand three key administrative steps involved with Carbon Farming Initiative projects. Three important parts to your administration

  • 1. Recognised Offsets Entity
  • 2. Eligible Offsets Project
  • 3. Certificate of Entitlement

Download application forms from the Clean Energy Regulator website. There are no application fees.

slide-21
SLIDE 21

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 21

Recognised Offsets Entity

  • Essential to be part of the Carbon Farming Initiative and issued with Australian carbon

credit units

  • Open an ANREU Account

» fit and proper person test » proof of identity test

  • Centrally processed, case officer allocated

Tip: call us before you submit your application to make sure it’s all in order: (02) 6159 3434 Eligible Offsets Project

  • Sets out your plan to implement a Carbon Farming Project.
  • Checked by the Clean Energy Regulator to make sure your plans meet the Carbon

Farming Initiative rules.

  • Processed by Carbon Farming team, new case officer.

Eligible Offsets Project: Q10 Project start date If backdating, confirm project operating with project requirements the whole time period Eligible Offsets Projects: Q12 Project description

  • Address all project eligibility points identified in s2.1 of the methodology determination

Eligible Offsets Projects: Q25 Legal right

  • Land title
  • Licence
  • Contracts

Certificate of Entitlement and offsets report

  • Applications for Australian carbon credit units are made at the same time as you submit

your offsets and audit reports.

slide-22
SLIDE 22

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 22

  • You can choose when to report and apply for credits, within the one to five year period.
  • Good record keeping is essential to your report and audit.

Summary: three important parts to your administration

  • 1. Recognised Offsets Entity
  • 2. Eligible Offsets Project
  • 3. Certificate of Entitlement

Carbon Markets and feasibility

Purpose:

  • Understand the basics of ACCU markets to enable you to ask questions of your

advisors

  • Provide you with tips to consider when undertaking your feasibility

Types of markets

  • ACCUs are personal property and can be traded.
  • Two key markets:

» Domestic compliance market » Voluntary market Characteristic Kyoto ACCUs Kyoto project Non-Kyoto (eligible) Kyoto Project Non-Kyoto (voluntary) Non-Kyoto project Can be surrendered under the carbon pricing mechanism Yes Yes No Able to be sold on the voluntary market Yes Yes Yes Able to be converted or exchanged for international emissions units Yes No No

slide-23
SLIDE 23

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 23

Selling ACCUs

  • Compliance market - pay attention to:

» Carbon pricing mechanism in fixed price period (to 2015) » Market for European Union Allowances (after 2015)

  • Voluntary market – pay attention to:

» Charisma of your project Who can help?

  • Seek advice from an Australian Financial Services Licence holder
  • Consider these resources:

» Your normal bank and/or broker » Carbon Markets Institute: CFI hub » Liable Entities Public Information Database (LEPID) Project feasibility

  • 1. Financial feasibility
  • Know the costs and benefits
  • Cash flow
  • Scenario analysis
  • 2. Commercial feasibility
  • Kyoto or Non-Kyoto ACCUs?
  • Number ACCUs estimated?
  • Timeline to deliver ACCUs?
  • 3. Methodology
  • Can you meet the rules for eligibility and data capture as described in an approved

methodology determination?

  • 4. Regulatory Feasibility
  • Methodology available?
  • In Australia?
slide-24
SLIDE 24

Piggeries: destruction of methane generated from manure – slides 6 June 2013 Page 24

  • Required by law?
  • Legal right?
  • 5. Legal feasibility
  • Pass tests to open ANREU account?
  • Legal right to carry out project?
  • 6. Organisational capabilities
  • Own and operate?
  • Engage third parties? (aggregator, broker, cooperative)

Question and Answer panel

  • Case study
  • Administration: three key steps when working with the Clean Energy Regulator
  • Carbon market and project feasibility

Thank you

Evaluation forms More Information

  • Clean Energy Regulator website5
  • Phone: 1300 553 542
  • Email: CFI@cleanenergyregulator.gov.au
  • Watch the webinar or view the transcript6

5 http://www.cleanenergyregulator.gov.au/Pages/default.aspx 6 http://www.cleanenergyregulator.gov.au/Carbon-Farming-Initiative/events/Pages/webinar-piggeries.aspx
