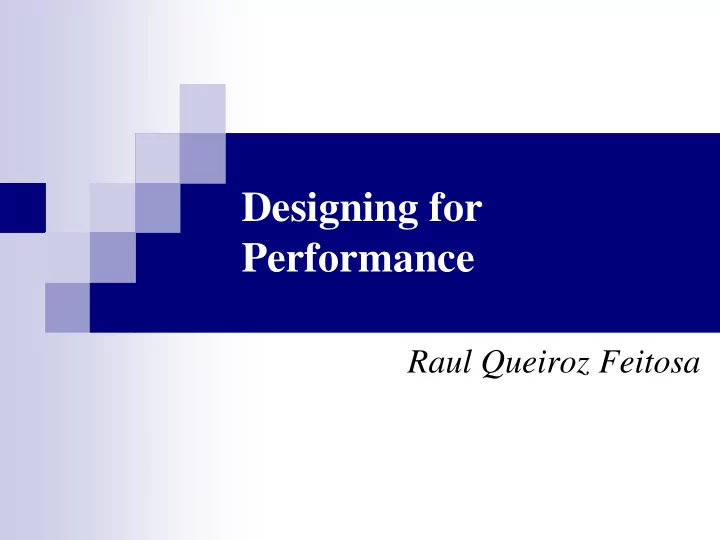

Designing for Performance

Raul Queiroz Feitosa

Objective

“In this section … we examine the most common approach to assessing processor and computer system performance”

• W. Stallings

Outline

 Performance Assessment  Amdahl’s Law

Performance Assessment

EPYC 7601 Cache 64 MB Freq.: 2.2 GHz 32 Cores Intel Xeon Platinum 8280L Cache 38.5 MB Freq.: 2.7 GHz 28 Cores

Which one would you choose?

Performance Assessment

What matters?

Cost Size Reliability Security Power Consumption Performance

Performance Assessment

Main CPU operations

Seek and decode instructions Load and Store data Logic and Arithmetic Operations

 Fixed-Point  Floating-Point

Performance Assessment

Performance factors

Clock speed or clock rate ( f )

Expressed in multiples of Hz.

Clock cycle or clock tick

• ne increment, or pulse, of the clock .

Clock time ( τ )

time between consecutive pulses.

Performance Assessment

Performance factors

Clock speed

 Usually multiple clock cycles are required per

instruction.

 The amount of work implied by one instruction varies

considerably.

 Pipelining gives simultaneous execution of instructions.  So, clock speed is not the whole story!

Performance Assessment

Performance factors

Instruction Execution Rate

 Expressed in Millions of instructions (MIPS) or floating

point instructions (MFLOPS) per second.

 Heavily dependent on instruction set, compiler design,

processor implementation, cache & memory hierarchy.

Performance Assessment

Performance factors

 CPI - average number of cycles per instructions  Ii - number of machine instructions of type i executed by a

program.

 CPIi - number of cycles per instruction of type i.  Ic - number of machine instructions executed by a program







n i i c

I I

1 c n i i i

I I CPI CPI





 

1

Performance Assessment

Performance factors

 T – processor time needed to execute a program.

a refinement yields where

p is the number of processor cycles to decode + execute the instruction m is the number of memory references needed k is the ratio between memory cycle time and processor cycle time.

    CPI I T

c

  

     ) ( k m p I T

c

Performance Assessment

Performance factors

System attributes affecting the performance factors

Ic p m k τ

Instruction set architecture

 

!

Compiler technology

  

Processor implementation

 

Cache and memory hierarchy

 

Performance Assessment

Exercise 1

A program involves the execution of 2 million instructions on a 400 MHz

• processor. CPI and the proportion of four instruction types are given below.

Compute the average CPI: average CPI is CPI = 0.6+ (2  0.18) + (4  0.12) + (8  0.1) = 2.24 instruction type CPI instruction mix Arithmetic and logic 1 60% Load/store with cache hit 2 18% Branch 4 12% Load/store with cache miss 8 10%

Performance Assessment

Exercise 2

Consider two hardware implementations M1 and M2 of the same instruction set. There are three instruction classes: F, I and N. The M1 clock rate is 600 Mhz. The clock cycle of M2 is 2 ns. The average CPI for these three instruction classes are Class CPI of M1 CPI of M2 Comments F 5.0 4.0 floating-point I 2.0 3.8 integer N 2.4 2.0 non-arithmetic

a)

Compute the peak performance for M1 and M2 in MIPS.

b)

If 50% of the instruction executed in a given program belong to class N and the other are equally distributed between F and I, which is the fastest machine and by which factor?

Performance Assessment

Exercise 2

c) A designer of M1 plan to change the project to improve performance. Assuming the information in (b). Which of the options below should be more beneficial? 1. Use a FPU twice as fast (CPI=2,5 for class F). 2. Add a second ALU to reduce the CPI for integer operations to 1.20 3. Use a faster logic that allows a clock rate of 750 MHz keeping the same CPI values? d) The CPI given above include a cache miss that occurs 5 times per 100 executed instructions. Each cache miss imply in a 10 cycles penalty. The forth redesign option consists of using a larger instruction cache so as to reduce the miss ratio from 5% to 3%. Compare this alternative with the

• ptions before.

e) Characterize application programs that can be executed faster in M1 than in M2, i. e., discuss the instruction composition of such applications. Hint: Let x, y and 1-x-y the fraction of instructions belonging to classes F, I and N respectively.

Performance Assessment

Exercise 3

Consider two codes produced by two compiler for the same source program. The instructions of the machine that will execute these codes can be divided in class A (CPI=1) and B (CPI=2). The number of executed instruction of each class is given below Class compiler 1 compiler 2 comments A 600M 400M CPI=1 B 400M 400M CPI=2

a)

Compute the execution time for both codes assuming a clock rate = 1 GHz.

b)

Which compiler produce the most efficient code and by which factor?

c)

Which code execute at the highest MIPS?

Performance Assessment

Benchmarks: motivation

A high level language statement A=B+C /* assume all quantities in main memory */ Compiled code on CISC add mem(B),mem(C),mem(A) Compiled code on RISC load mem(B),reg(1); load mem(C),reg(2); add reg(1),reg(2),reg(3); store reg(3),mem(A);

So, if MIPSCISC= 1, then MIPSRISC= 4 Both machines execute the same high level codes in the same time.

Performance Assessment

Benchmarks: definition

 Programs designed to test performance  Written in high level language → portable  Represents a particular application or system programming

area (systems, numerical, commercial)

 Easily measured and widely distributed  The best known such collection of benchmark suites is the

System Performance Evaluation Corporation (SPEC)

 The best known of the SPEC suites is the CPU2017:

 includes an optional metric for measuring energy

consumption

Performance Assessment

SPECspeed metric

 Spec benchmarks do not concern with instruction execution

rates

 Base runtime defined for each benchmark using reference

machine

 Speed metric is the ratio of reference time to system run time

Performance Assessment

SPECrate Metric

 Measures throughput or rate of a machine carrying out a number of tasks  Multiple copies of benchmarks run simultaneously

 Ratio is calculated as follows:

copies of program

Performance Assessment

Averaging SPEC metrics

 For both SPECspeed and SPECrate, the selected ratios are

averaged using the Geometric Mean, which is reported as the

• verall metric.

Performance Assessment

Exercise 4

The table below shows the execution times, in seconds, for 3 different processors.

a)

Compute the arithmetic mean value for each system using X as the reference machine and then using Y as the reference machine.

b)

Compute the geometric mean value for each system using X as the reference machine and then using Y as the reference machine. Which is the most realistic result?

benchmark processor X Y Z 1 20 10 40 2 40 80 20

Outline

 Performance Assessment  Amdahl’s Law

Amdahl’s Law

Estimate the potential speed up of program using multiple processors

 Fraction f of code parallelizable with no scheduling overhead  Fraction (1-f) of code inherently serial  T is total execution time for program on single processor  N is number of processors that fully exploit parallel portions of code

Amdahl’s Law

Conclusions

Code needs to be parallelizable/parallelized! f small, parallel processors has little effect. N → ∞, speedup bound by 1/(1 – f). Speedup is bound, giving diminishing returns for

more processors .

Amdahl’s Law

Exercise 5

A program spends 60% of its execution time with floating point operations. 90%

• f them are executed in parallelizable loops. When the code is parallelized

coordination and synchronization between parts make the part not involving floating-point operations 10% longer.

a)

Find the improvement in terms of execution time achieved by doubling the speed of the floating-point unit.

b)

Find the improvement in terms of execution time achieved by using two processors having the same speed and structure as the original one

c)

What would be the improvement if both changes are implemented.

Amdahl’s Law

Generalization for any design improvement

Suppose that the enhancement affects the execution f of the total runtime before enhancement, and that the speed up brought by this enhancement is SUf . Thus . t enhancemen after time Execution t enhancemen before time Execution  Speedup

 

f

SU f f Speedup    1 1

Amdahl’s Law

Generalized Amdahl’s Law example

Suppose that a task consumes 40% of the time with floating-point operations. A new FPU has speedup

• K. Then the overall speedup is

So, the maximum speedup is 1.67.

 

K Speedup 4 . 4 . 1 1   

Homeworks

Exercise 6

A processor is used for an application where 30 %, 25% and 10% of the processing time is spent with floating-point addition, multiplication and division,

• respectively. For a new processor version, 3 alternatives are being considered, all
• f them involving nearly the same design and implementation cost. Which one

should be selected?

a)

Redesign the adder making it twice as fast as the older one.

b)

Redesign the multiplier making it three times as fast as the older one

c)

Redesign the divider making it ten times as fast as the older one.

Homeworks

Exercise 7:

T is the average processing time of a computer operating at frequency f. Instructions are grouped in 3 types, as shown below. Typically a program executes the same proportion of instructions from all three groups/types. Compute the MIPS and the new execution time, if the FPU becomes twice as fast.

Instruction type CPI Floating point arithmetic 10 Integer arithmetic 5 Non- arithmetic 2

Homeworks

Exercise 8:

Let f1 and f2 be the operation frequency of processors P1 and P2 respectively. Assume that two compilers generate different executable codes for the same source program which may be executed byP1 as well as byP2 . The codes have the characteristics given below: Compute the ratio f1/f2 for which the processing time in P1 executing code 1 equals the processing time of P2 executing code 2.

Instruction type CPI Proportion compiler 1 Proportion compiler 2 Floating point arithmetic 10 20 % 30 % Integer arithmetic 5 30 % 10 % Non- arithmetic 2 50 % 60 %

Homeworks

Exercise 9:

The code of an application can be separated in a sequential part (S) and in a parallelizable part (P). The number of executed instructions of type P is twice as many as

• f type S, when the application runs in a single processor. When the application runs in

multiple processors the number of instructions of type S increases in 10%. Consider the following two configurations:

Determine the limit ratio r between the CPI of instructions of type P and type S (r=CPIP /CPIS), for which the configuration A) is faster than configuration B).

Compute the upper limit for the speed up that can be achieved using multiple processors without changing the operation frequency.

A) Single processor machine operating with frequency 2f. B) Four processors machine operating with frequency f.

Text Book References

The topics are covered in

Stallings

• chapter 2

Tanenbaum - section 8.4
